10/100/1000M Gigabit Ethernet RJ45 Network LAN Cable Tester / CAT5E CAT6 Multifunction Network Analyzer

Product Overview

Description

10/100/1000M Gigabit Ethernet RJ45 Network LAN Cable Tester / CAT5E CAT6 Multifunction Network Analyzer

Description

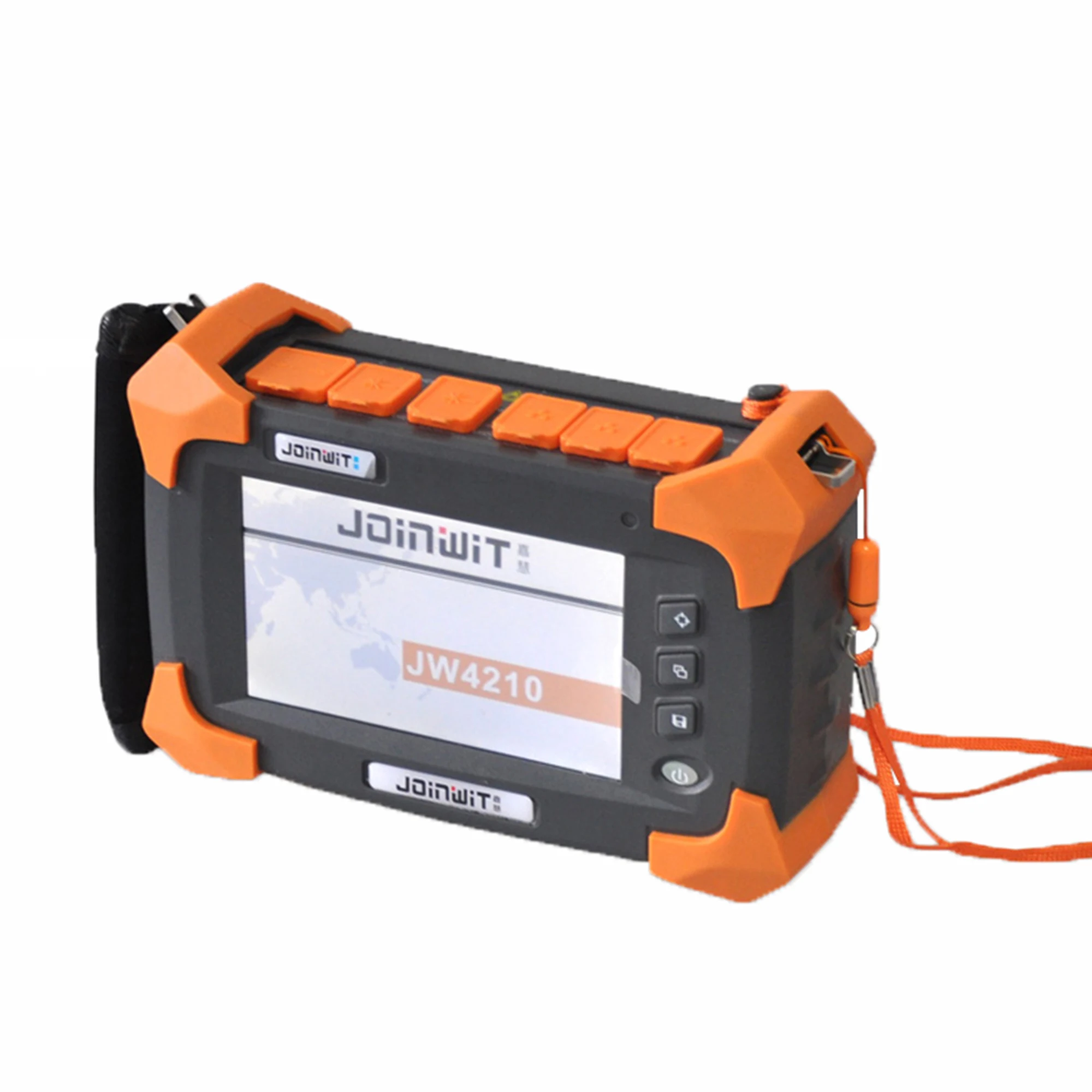

JOINWIT JW4210 is a handheld 10M/100M/1000M gigabit Ethernet tester, used for the Ethernet installation, operation and maintenance services.
The JW4210 design in a small and portable device which provides packet capture, network monitoring, network performance testing, data generation, test leads and error test functions in an organic whole unit. It is widely used in network layer 1/2/3 BER test and RFC - 2544 test. JW4210 help maintenance people to quickly locate fault and analysis network



Features

Electrical port and optical ports with rate at 10/100/1000Mbps
Smart and durable, field application ready

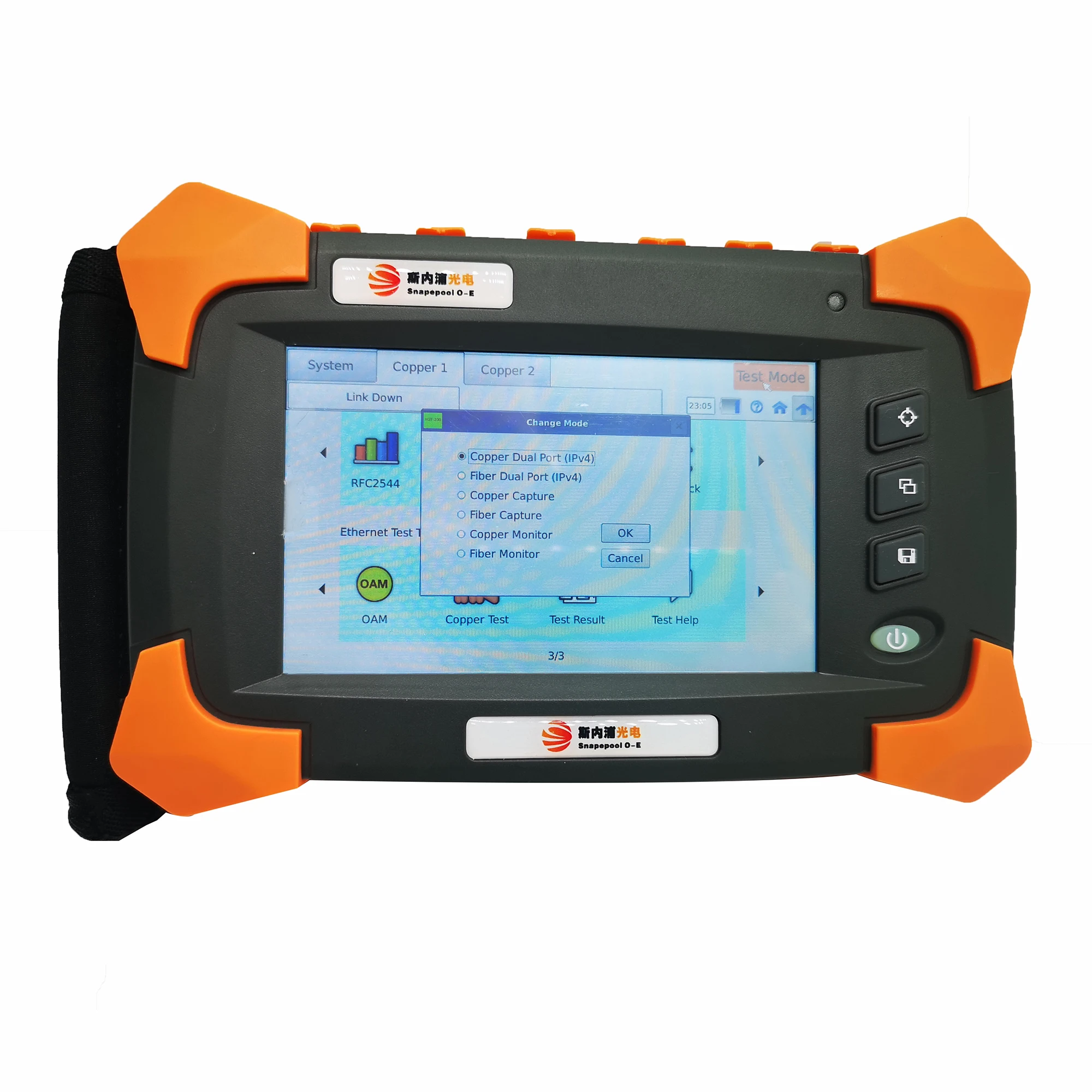

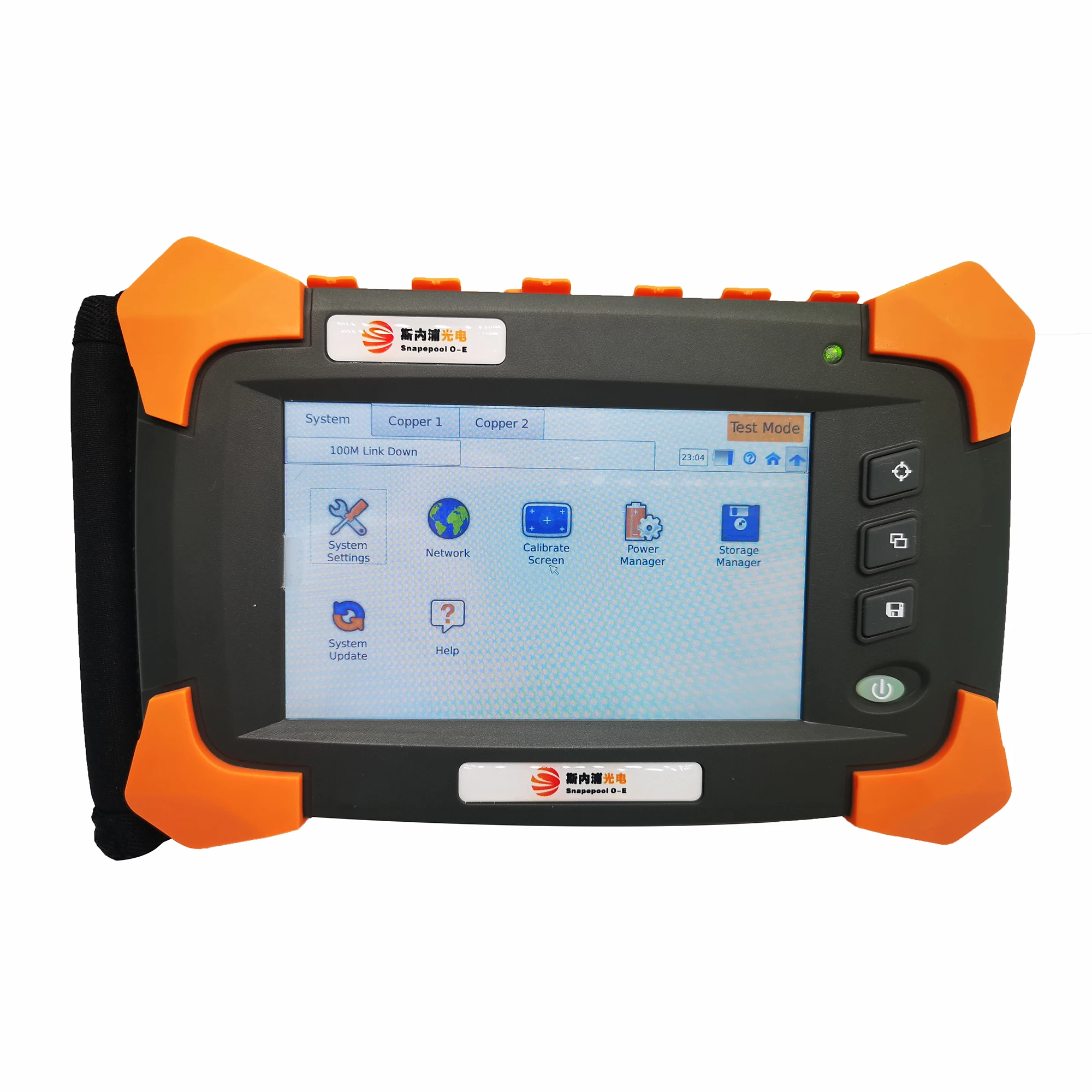

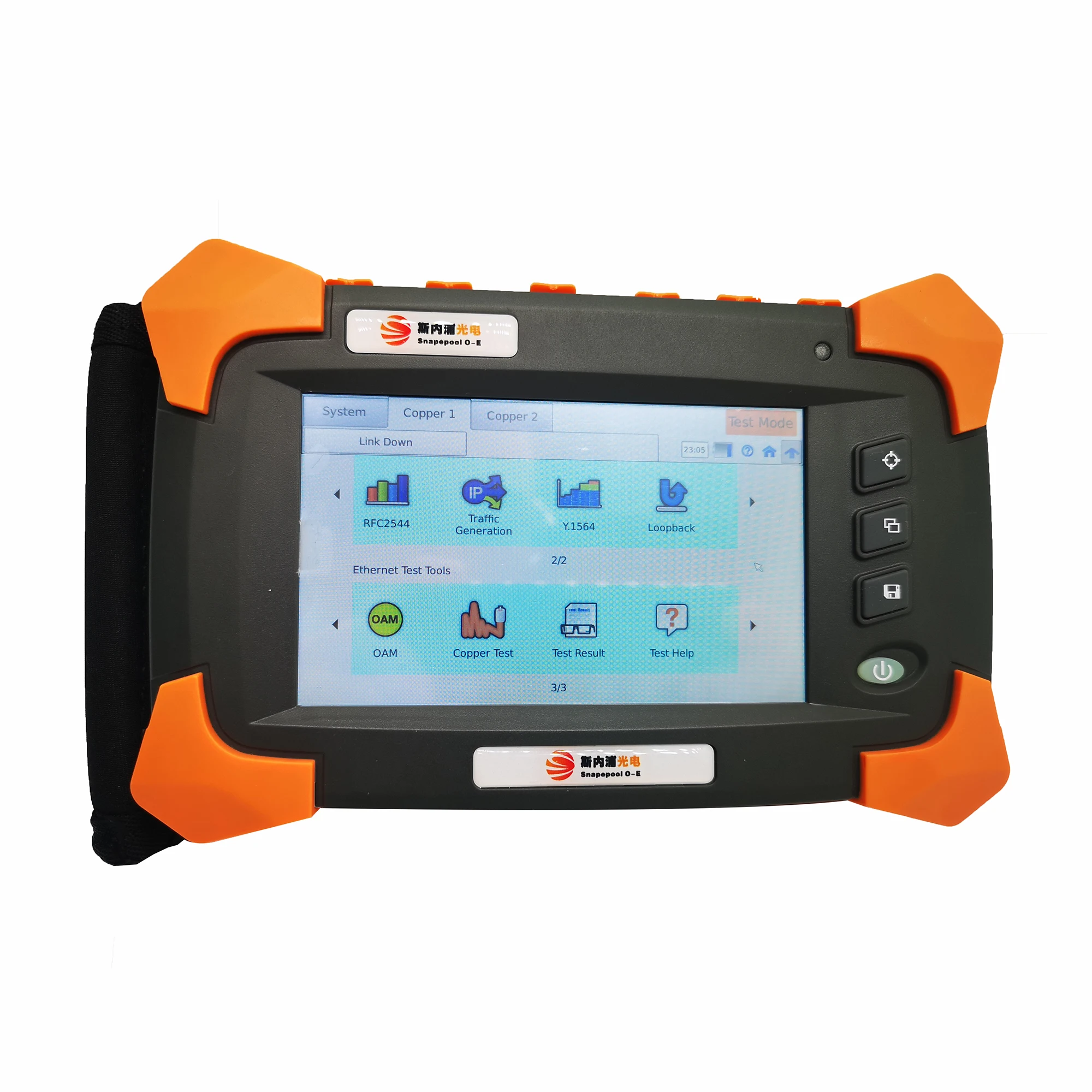

5 inch LCD color touch screen, smart navigation menu
Results can be shown graphically and numerically
RFC2544 auto test, quickly find the fault
Full Y.1564 test
LED indicator light, on-screen display and ICON
Large capacity memory to save settings and test results
Embedded software to easy upgrade

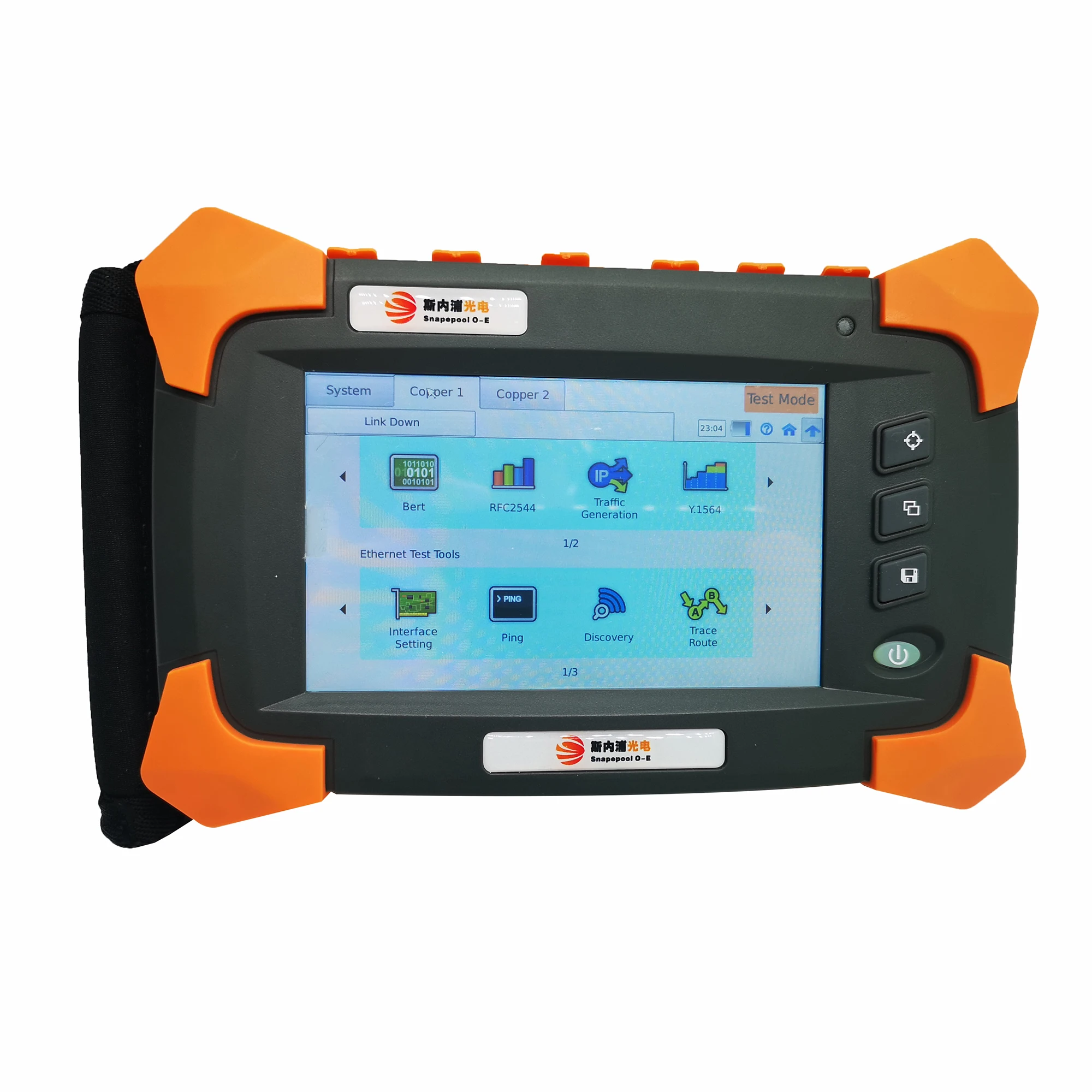

Functions

L1/L2/L3 BER Test
Integrated RFC2544 benchmark test:throughput, packetloss, latency, back-to-back
Multi- stream traffic generation (10 traffic stream)
Receiving end flow filter analysis
VLAN test
Connectivity test: PING, TRACE ROUTE,IP scan
Through, terminal mode test and frame length, frame type, and utilization stat.
Optical power test, optical module temperature, working current, voltage test
Cable VCT: Identifying short circuit, open circuit, cable length fault location
Service disruption time test
Intelligent loop back test
Jitter Test
USB data interface, driver-free



Specification

Model	JW4210

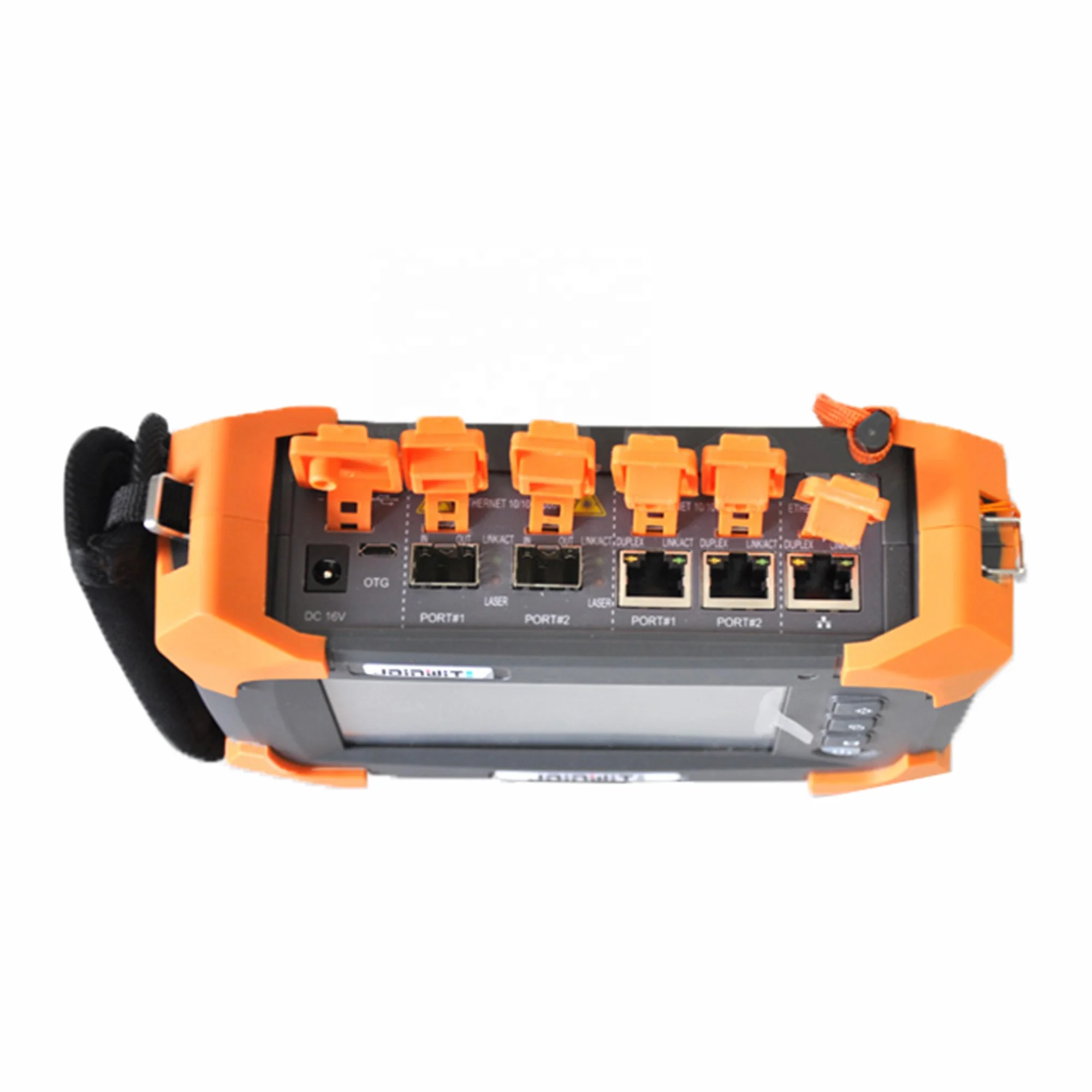

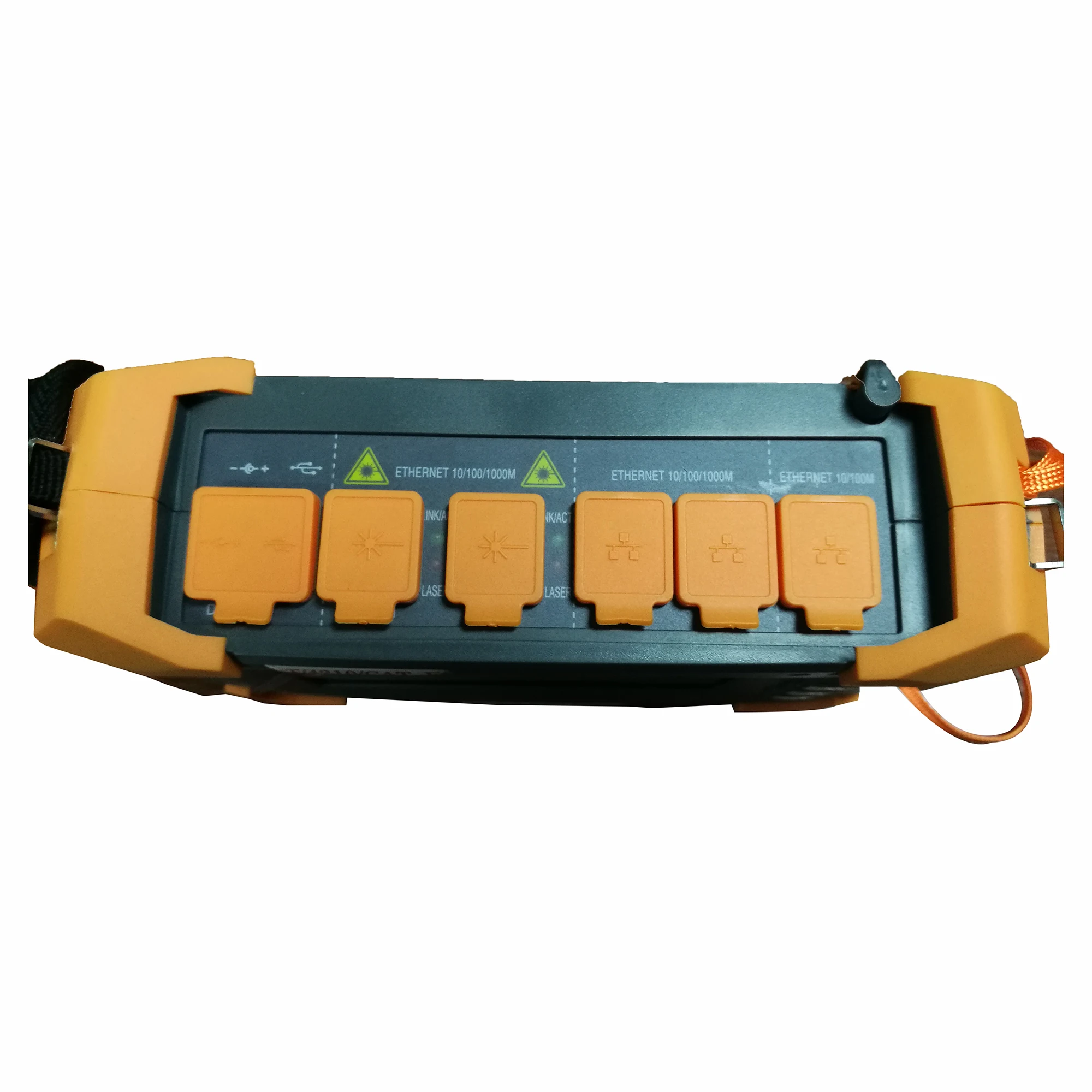

Testing port	Dual-RJ45 port: 10/100/1000 BASE-T Dual-SFP port: 1000BASE-SX/LX/ZX
Standard	IEEE 802.3, RFC1242, RFC2544, Y.1564
Connector	RJ-45/USB

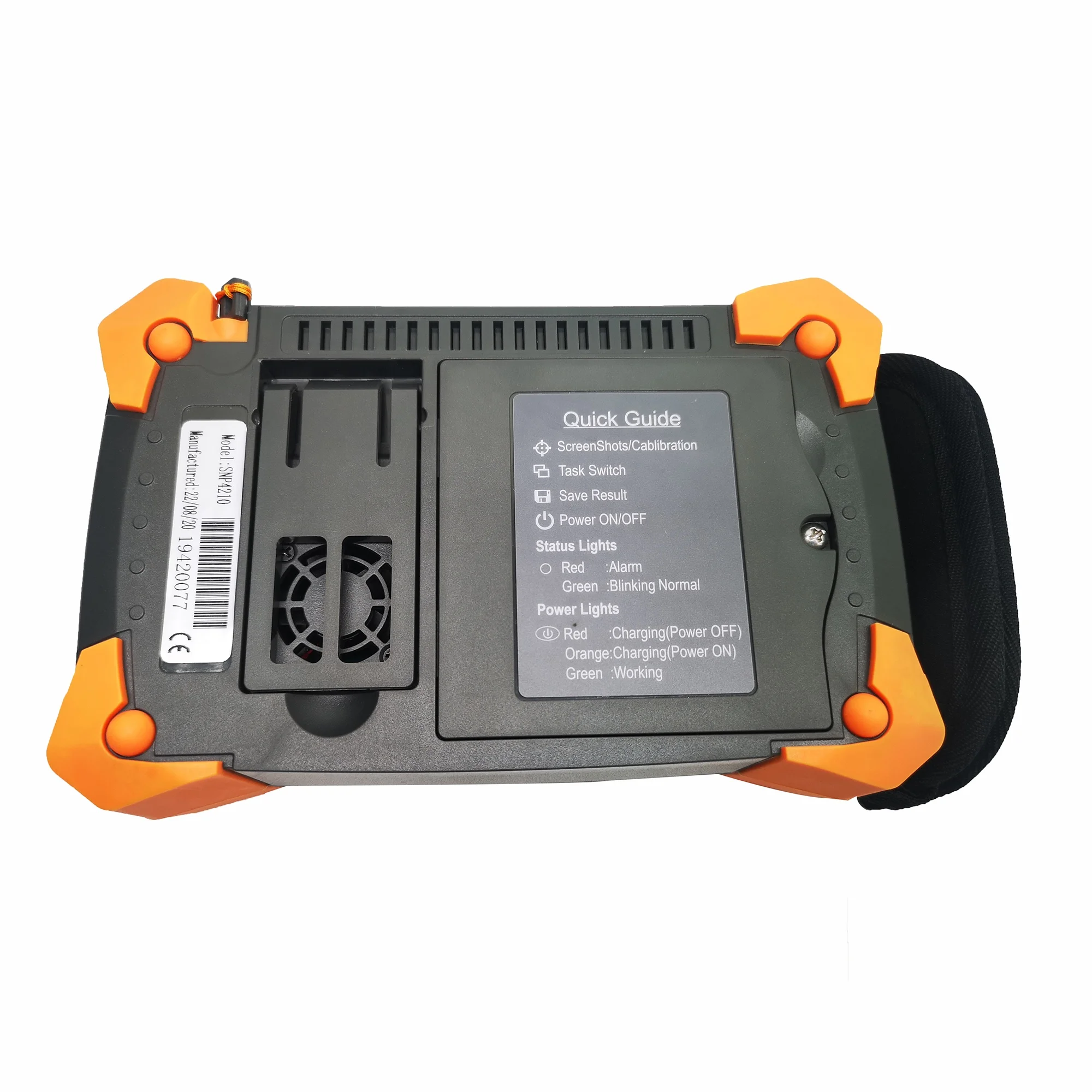

LED indicator	POWER, PORT1 LINK/ACT, PORT2 LINK/ACT, ALARM
Display	800×480 color LCD touch screen
Battery	Lithium battery / AC adapter
Power Supply	4 hours continuous operation
Operating temperature	0℃~50℃
Relative humidity	0 to 95% (non-condensing)
Weight	800g
Dimension	233×110×64mm
