30~210RT Refrigeration Equipment Water Cooled Industrial Chiller
- Category: >>>
- Supplier: Jinan Mgreenbelt Machinery Co. Ltd.
Share on (60698498703):
Product Overview
Description
Product Overview
30 ton- 500Tons Industrial Water Cooled Chiller
Water Cooler Chiller Equipment
Water cooled chiller capacity 30Ton to 500 tons
Temperature control range 5℃ to 35℃
Chilled water flow rate up to 250 cbm per hour
High-efficiency evaporator and condenser
Branded scroll or piston compressor available
Full protection devices of water-cooled chiller
Various models and capacities available
Water cooled chiller capacity 30Ton to 500 tons
Temperature control range 5℃ to 35℃
Chilled water flow rate up to 250 cbm per hour
High-efficiency evaporator and condenser
Branded scroll or piston compressor available
Full protection devices of water-cooled chiller
Various models and capacities available
FEATURES AT A GLANCE
Chiller Equipment Specifications
1. Outlet temperature range: +5 C ~+35 deg C
2. Pump included
3. Stainless steel tank included
4. High cooling efficient;
5.Electric Power saving.
6.Shell and tube heat exchanger
7.Micro-computer intelligent control system; SIEMENS PLC option.
8.Temperature automatic control no need operate by manual.
9. CE, UL, SGS certificate

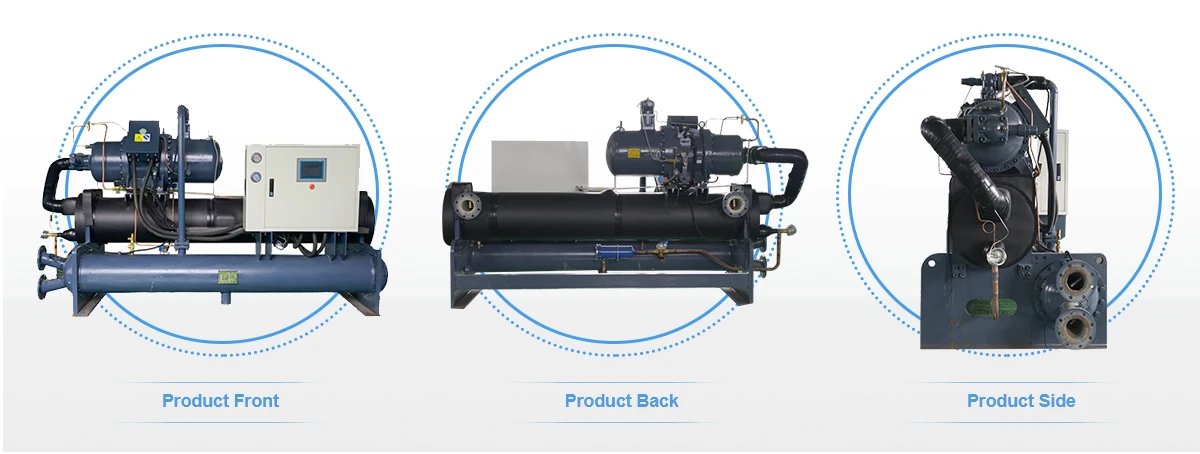

Front elevation
Back elevation
Side
PRODUCT SPECIFICATIONS
Model | Cooling Capacity | Power | Pump | Water Flow |
MG-90WS | 92 KW / 26.2 Ton | 23 KW | 3 KW | 15.8 m3/h |
MG-165WS | 164 KW / 46.6 Ton | 39 KW | 4 KW | 28.1 m3/h |
MG-220WS | 219 KW / 62.3 Ton | 54 KW | 4 KW | 37.5 m3/h |
MG-280WS | 280 Kw/ 79.6 Ton | 57.5 KW | 4 Kw | 48 m3/h |
MG-350WS | 352 KW / 100 Ton | 70 KW | 5.5 KW | 50.6 m3/h |
MG-500WS | 480 KW / 136.5 Ton | 106 KW | 7.5 KW | 82.3 m3/h |
MG-600WS | 611 KW / 173.7Ton | 134 KW | 11 KW | 104.7 m3/h |
MG-650WS | 634 KW / 180.3 Ton | 142 KW | 11 KW | 108.7 m3/h |
MG-750WS | 740 KW / 210.4 Ton | 165 KW | 11 KW | 126.9 m3/h |
PRODUCT CONFIGURATION
HANBELL / BITZER COMPRESSOR
Electric cabinet
Heat Exchanger
Cooling Tower
Stainless steel tank
Centrifugal pipe pump

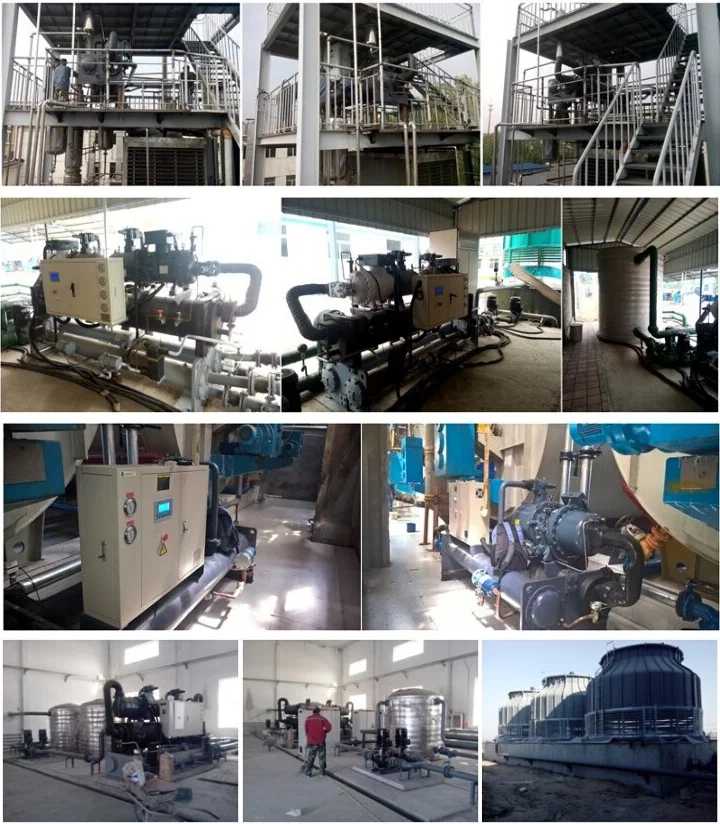

Successful Project
CHICKEN PROCESS COOLING
BVEVERAGE COOLING
PLASTIC INDUSTRIAL COOLING
NATURAL GAS COOLING
BREWERY COOLING
Concrete PROCESS COOLING
SIMILAR PRODUCTS
Large Capacity Scroll Chiller
4 Compressor Circuit System
Smaller chiller for plastic molding
5 Ton ~40 Ton .
Water Cooled Chiller Solution
High Cooling Efficient
Company Profile
FAQ
Q1：How to choose a right chiller model?
A1：If you will used for plastic injection machine? you can tell us what's your injection capacity, then we suggest you the chiller model.
If you will used for other industrial, you can tell us:
(1). What's the water flow rate in your system?
(2). What's the inlet and outlet temperature need?
(3). You local power supply?
Q2. Are you manufacturer or trader?
A1. We are manufacturer, our factory located in Dezhou City, Shandong Province.
Q3. How about warranty?
A1. One Year warranty,
Within warranty if any quality problem, we will send new parts and pay the freight for you.
You can have some other confuse or questions about us, you can also send to our sales manager:
