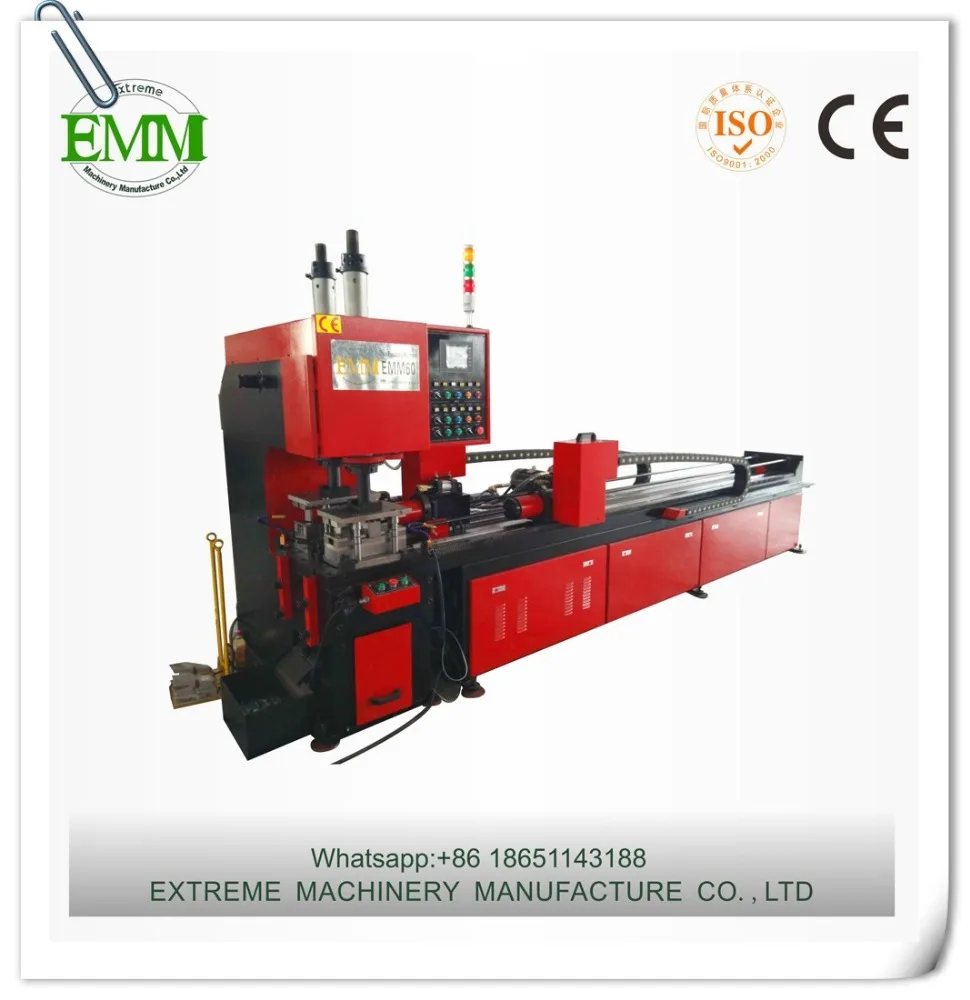

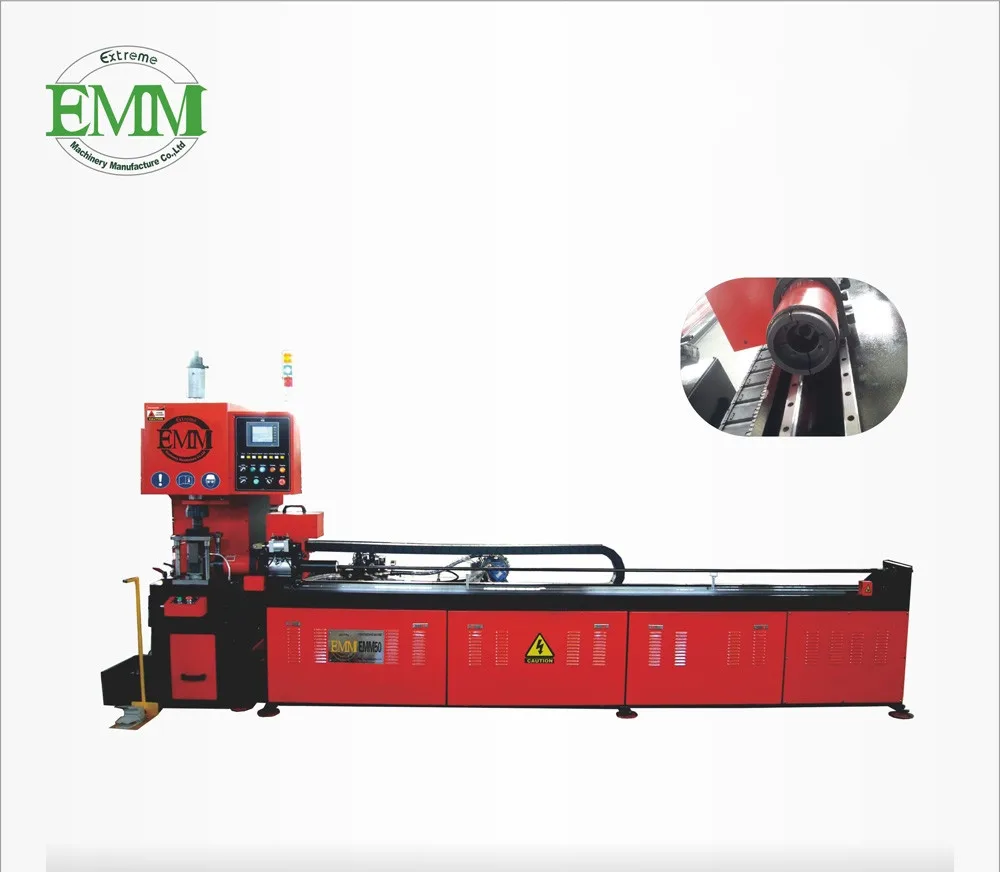

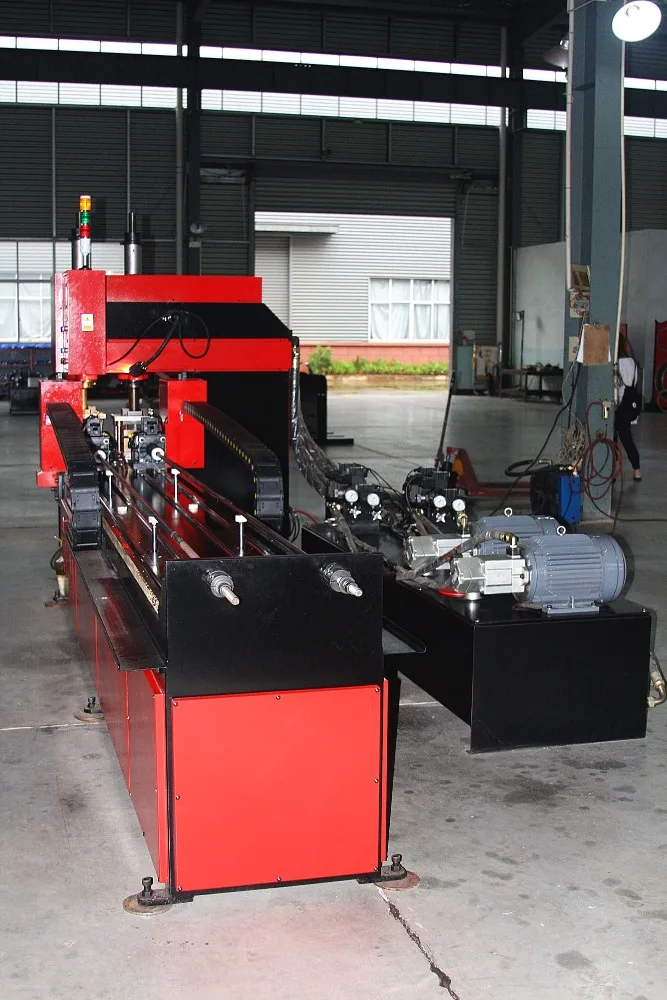

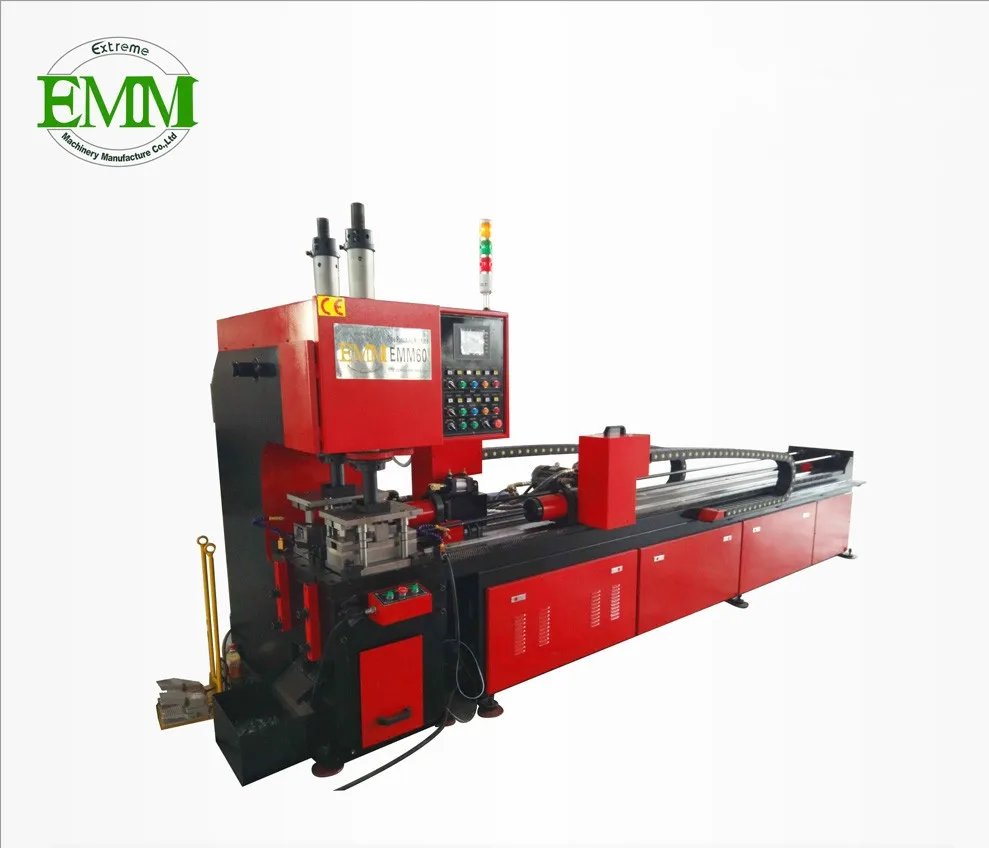

EMM60 hydraulic press for pipes used aluminum window and door hole punching machine

Product Overview

Description

EMM60 hydraulic press for pipes used aluminum window and door hole punching machine

Product Description

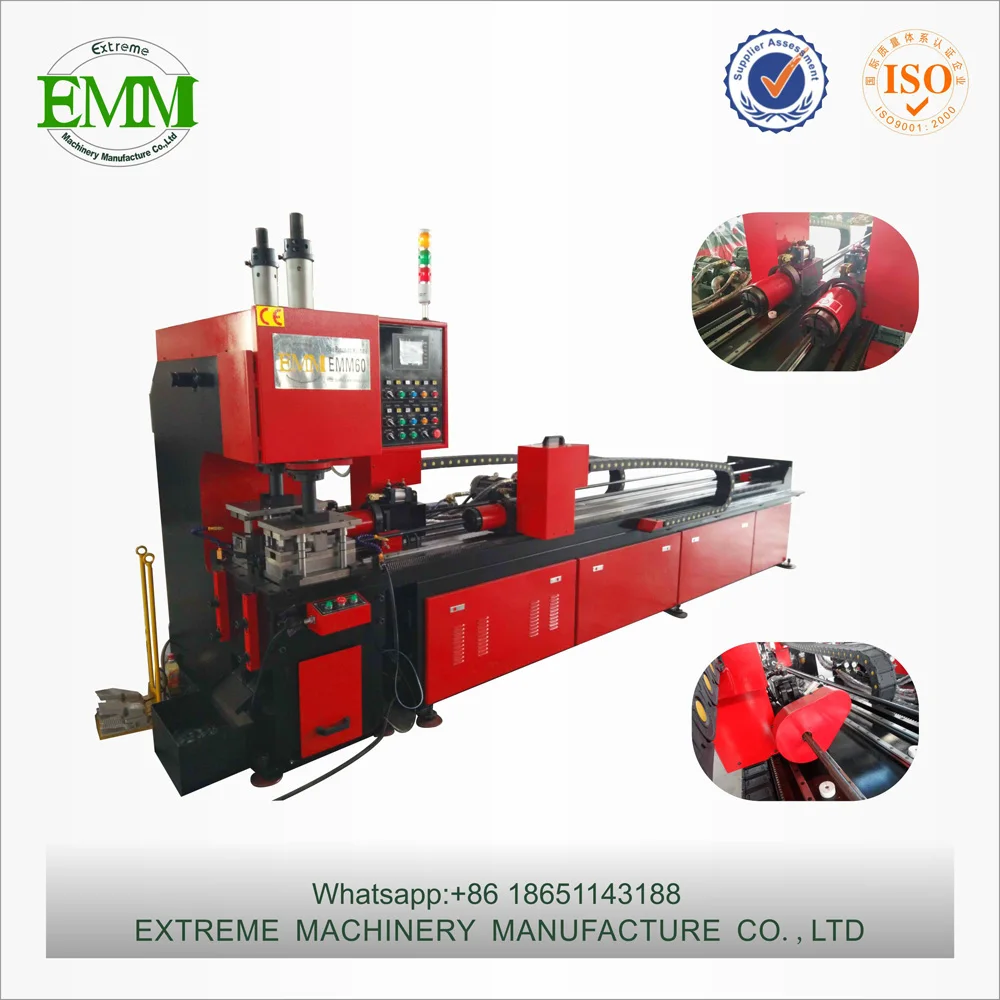

EMM60 hydraulic press for pipes used aluminum window and door hole punching machine



Hole punching machine		EMM50	EMM50A	EMM50B	EMM60	EMM60A	EMM60B	EMM60C
Name		Single line	Single line(with 360 rotation)	Single line(with push rod function)	Dual line	Dual line(with 360 rotation)	Dual line(with push rod function)	Dual line(with 360 rotation and 360 rotation)
Workpiece		round,square,rectangular,oval,special pipe and various holes(according to detailed drawing)
Material		All kinds of iron, aluminum, copper, stainless steel…
Hole diameter and thickness		Φ50×τ3~~~~~Φ16×τ11mm
Pipe diameter	Round pipe	Φ16-----Φ120 mm
	Square pipe	20×20-------75×75 mm
	Rectangular pipe	15×30-------60×120 mm
	Angle iron	30×30--------75×75mm
	Channel	25×50--------60×120mm
Processing length		3500mm /6000mm
Max servo feeding speed		50000mm/min
processing categories		Single punching,Not equidistant punching,Isometric punching,360°rotation punching

Product Features of hole punching machine steel EMM60

Our machine is adopted with Japan-made serve motor driving devices and the feedin
and receiving speed can be set to high speed and high precision to enhance the productivity.
*It is featured with sufficient clamping force of clamping oil cylinders and the position of work
pieces is stable and uneasily loose off.

*Whenever the oil cylinder is moving downward, the machine is designed with hydraulic
difference driving loops rated at high or low RPM .It is also featured with high speed downward
moving, low speed processing and hi- speed position resume .It is available to increase the formation
stability of work pieces during puncturing .In addition to increasing the activation speed, it can
effectively reduce HP lead to save electrical energy.
*The electrical control system is designed with human machine interface 150mm

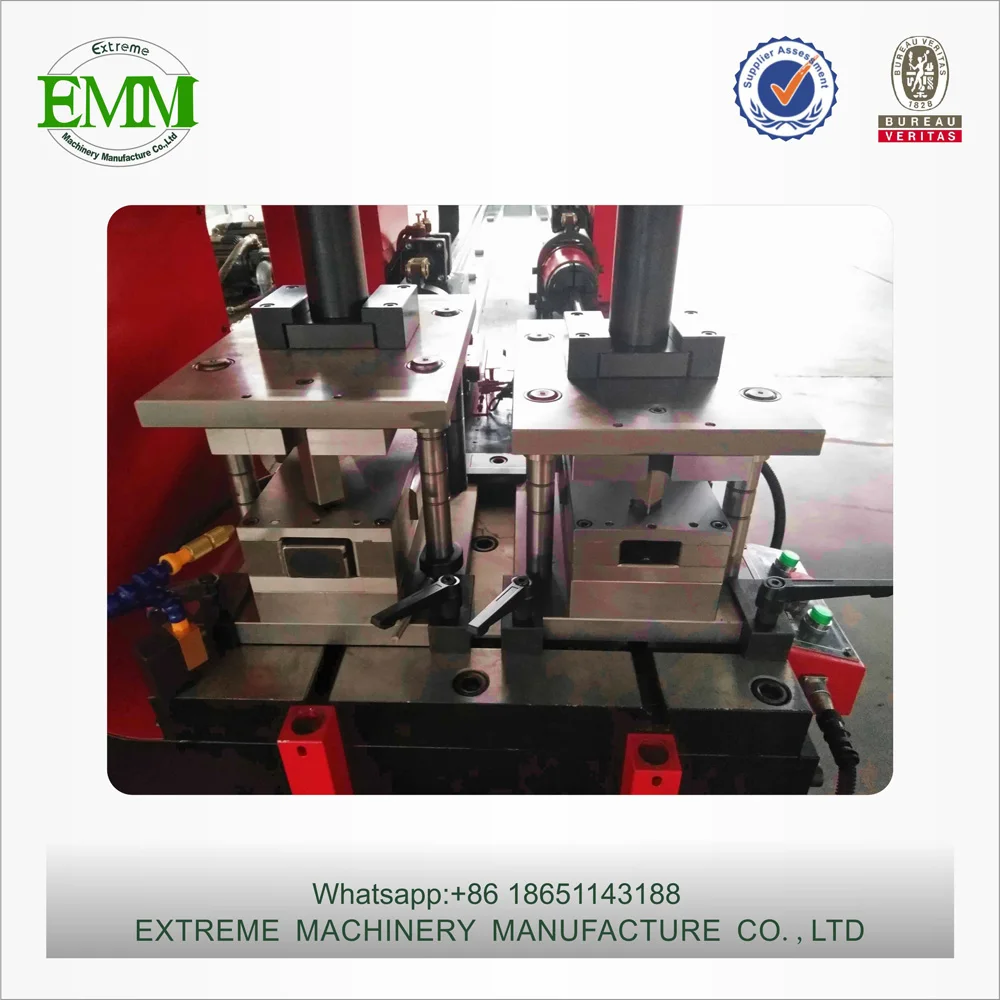

(Stroke available for positioning) the mold set is designed with 600mm in depth available for
forward and backward 150mm moving accessibility Our machine is designed with the Italy-made
digital scale (LCD display) with high precision.

Automatic feeding: One worker start the double line at the same time, if the tubes with standard
size, the worker operated without any mistake, it only need about one minute punch one pipe.
Artificial feeding: two workers operate one line separated, if the tubes with standard size, the
worker operated without any mistake, it need about five minute can punch one pipe.

Packaging & Shipping

EMM60 hydraulic press for pipes used aluminum window and door hole punching machine





Our Services

EMM60 hydraulic press for pipes used aluminum window and door hole punching machine

Presale Service

We assist customers in well understanding the product information like features, functions and applications and so on. As for the detailed procuring information or drawings, our professionals will first conduct a careful examination and then recommend the most suitable machines or devise proper schemes for customers. We also provide free samples if necessary.

Service during the Sale

1. We are manned with professional salesmen and technicians to provide the information, technical support and the optimal solutions with high cost performance.



2. Based on the specific requirements of customers and the lead time, we will formulate a rigorous operation process. Through the close cooperation of Commodity Department, Sales Department, Technical Department and the Ocean Shipping Department, we are devoted to timely supplying customers with superior machines.



3. Generally, certain quantity of quick-wear parts will be delivered with the goods. The delivery deadline depends on the specific order, which is usually within 1 to 3 months.

After-Sale Service

1. One year warranty is provided.

2. Customers can send photos or samples for our confirmation once the parts are damaged within the one year warranty. If the parts are not damaged by misoperation, we will reply to customers within 48 hours and provide free parts for replacement. Besides, for the parts out of commission and beyond the

warranty, we only charge for the basic costs of parts.

3. We regularly follow up the service condition of products, and timely analyze and copy with the feedbacks. As for the disputes, we will figure out effective actions to reach mutual satisfaction.



FAQ

EMM60 hydraulic press for pipes used aluminum window and door hole punching machine

Company Information

EMM60 hydraulic press for pipes used aluminum window and door hole punching machine

    We are the professional manufacturer of metal fabrication machinery in China, has been in this field more than 12 years. Our main market is Southeast Asia, South America, Africa, Eastern Europe... Each year, nearly 100 sets machine could be produced then exported out. Until now, We have served for over 500 clients, and sell machines to more than 40 countries. So cooperating with us, certainly you will get a high quality machine along with the best price, as well as the most considerate after-sales service. Assisting our client select high performance equipment, put into production soon and gain more and more profit is our company’s persistent pursuit.
