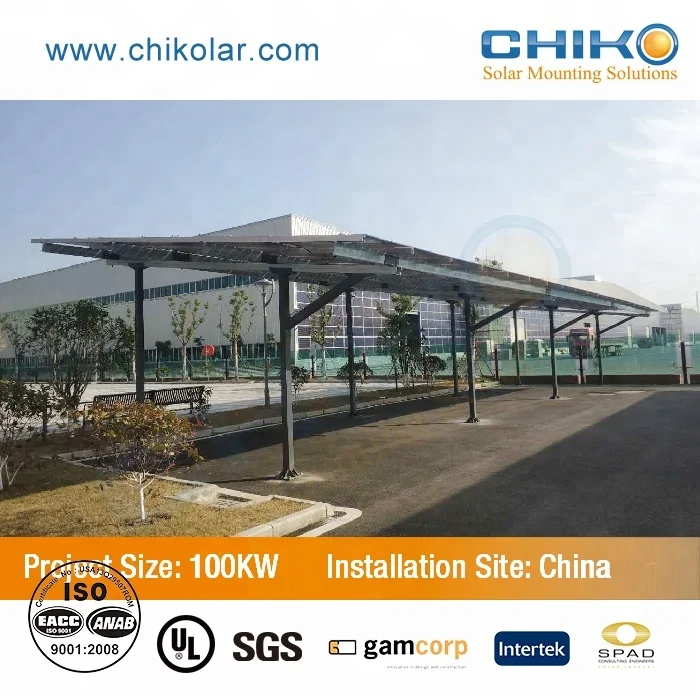

Chiko Solar Aluminum Carport mounting rack / Structure
- Category: >>>
- Supplier: Shanghai Chiko Solar Technology Co. Ltd.
Share on (60698601122):
Product Overview
Description
Carport

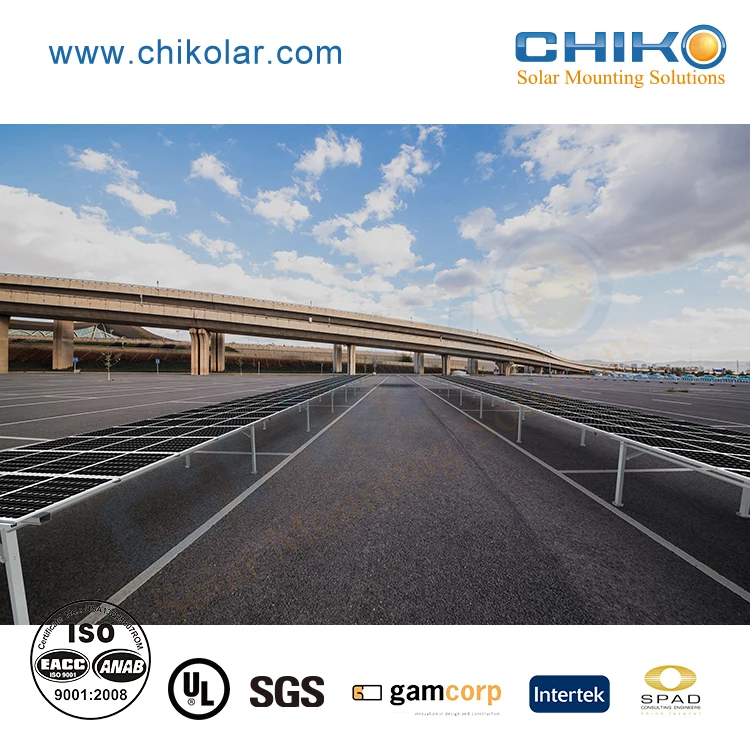

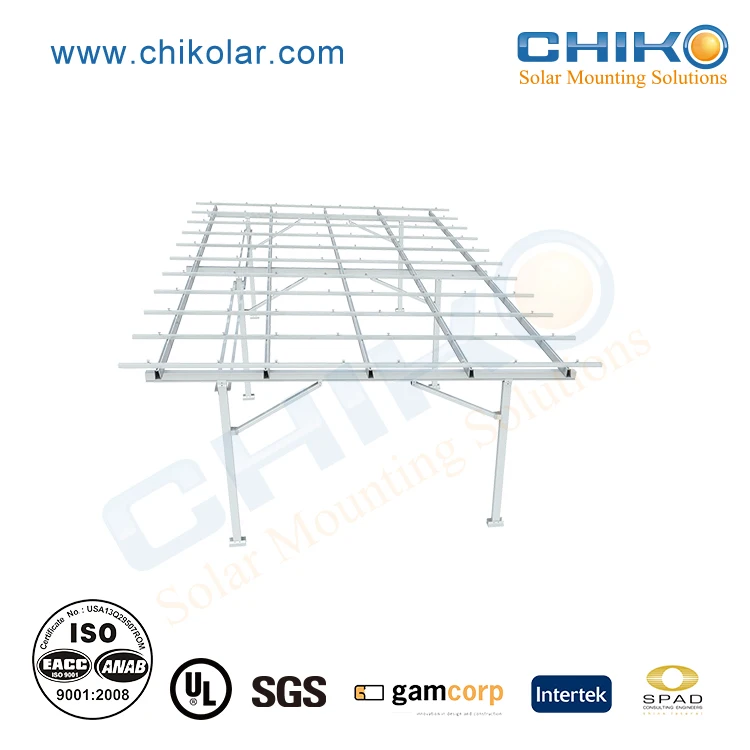

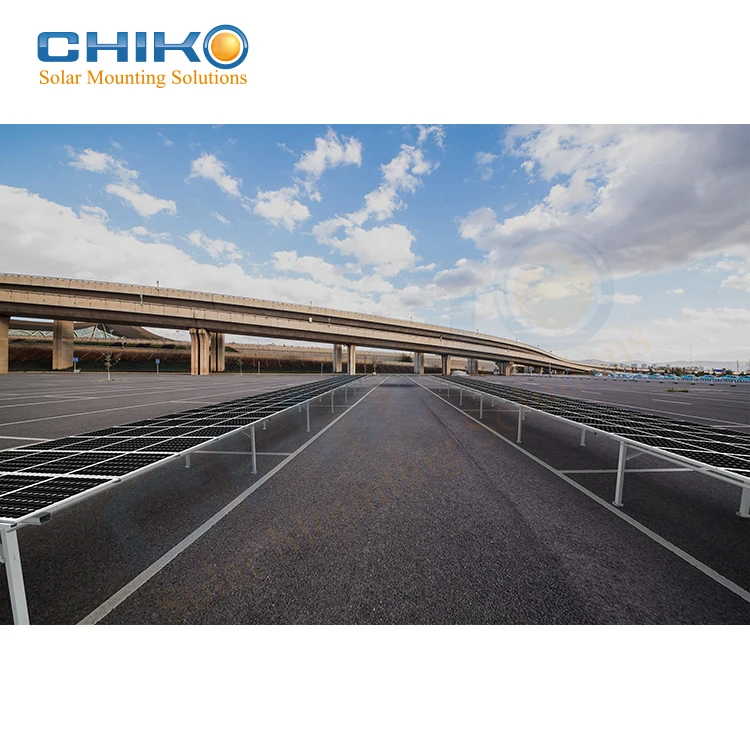

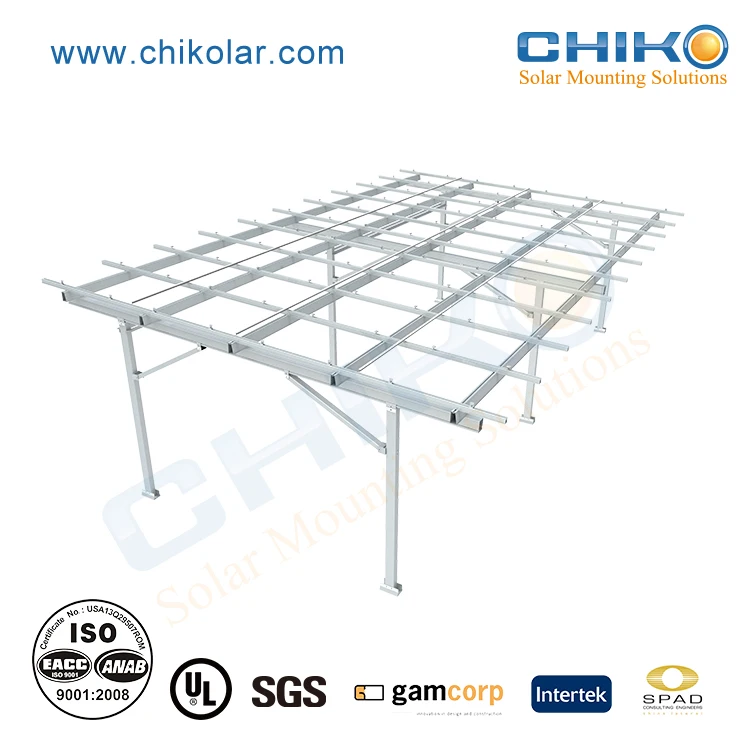

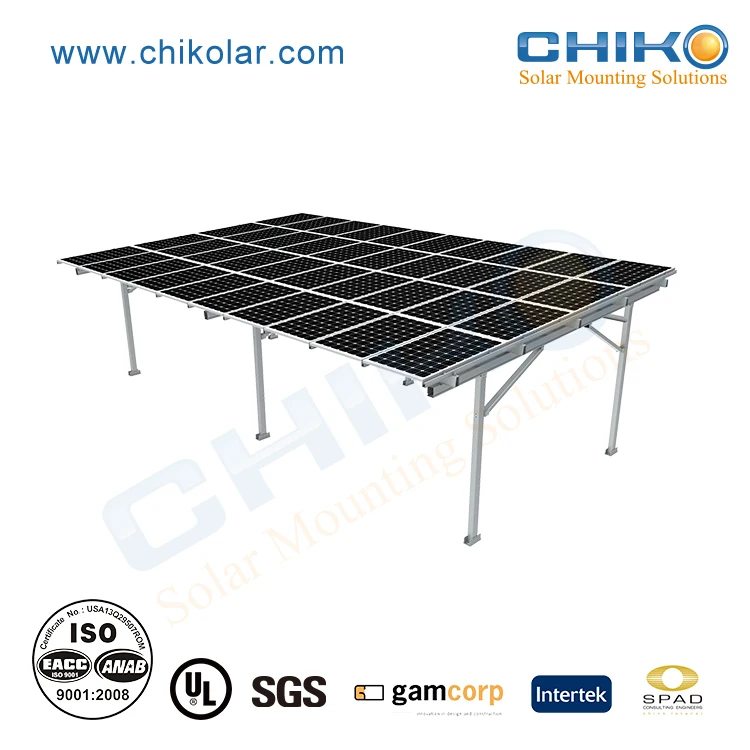

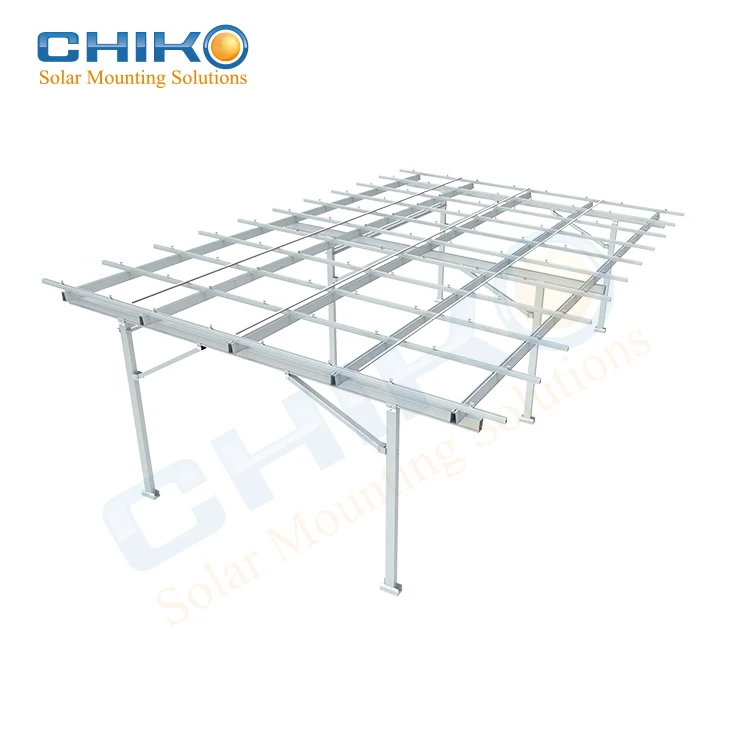

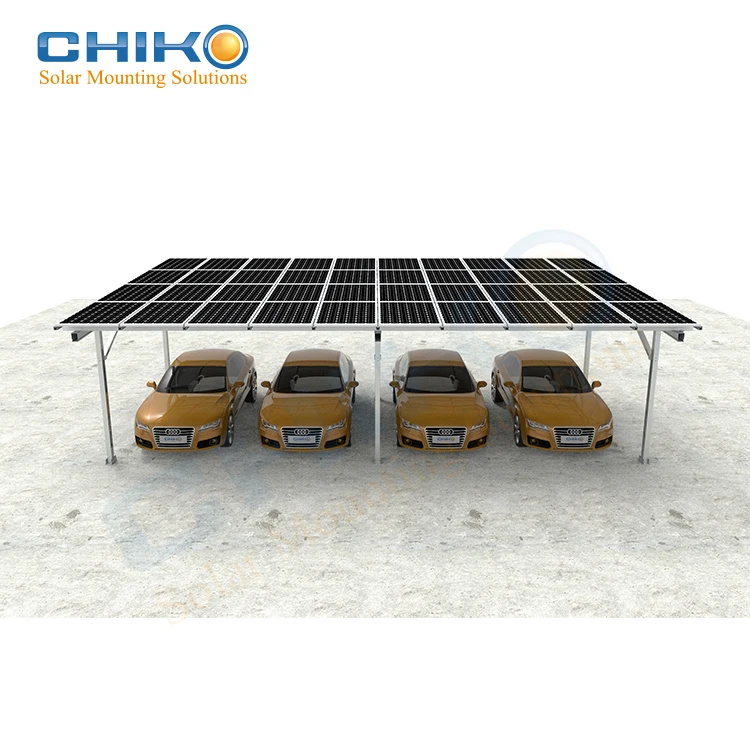

CHIKO Two Column Solar Carport
CHIKO's carport is the most cost effective structures, The high strength aluminum beam and column which could inimize the whole structure weight and saving transport cost. The system is designed for easy and quick installations, Variety configuration of solar panel can be built according to different area size.

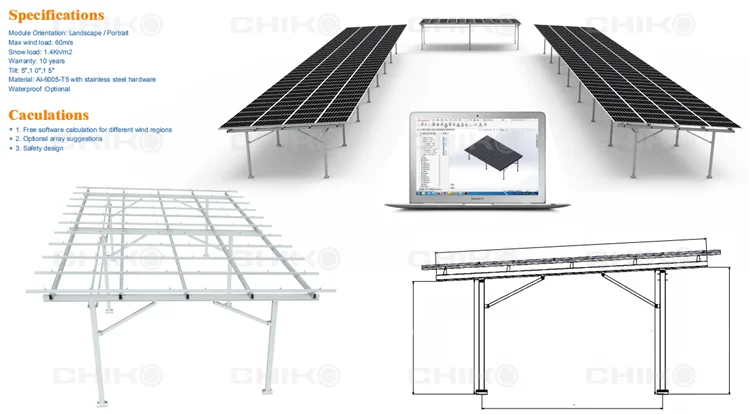

Specifications
Module Orientation: Landscape / Portrait
Max wind load: 60m/s
Snow load: 1.4Kn/m2
Warranty: 10 years
Max wind load: 60m/s
Snow load: 1.4Kn/m2
Warranty: 10 years
Tilt: 5°,1 0°,1 5°
Material: Al-6005-T5 with stainless steel hardware
Waterproof :Optional
Material: Al-6005-T5 with stainless steel hardware
Waterproof :Optional
Suitable for Framed or thin film Modules
Pre-punched make the installations at site more
convenient and labor cost saving
Standard with 3 panel in portrait and 6 panel in
landscape
Applicable for commercial and residential
Pre-punched make the installations at site more
convenient and labor cost saving
Standard with 3 panel in portrait and 6 panel in
landscape
Applicable for commercial and residential
Caculations
1. Free software calculation for different wind regions
2. Optional array suggestions
3. Safety design
2. Optional array suggestions
3. Safety design
Recommend Products
Our service
Please provide Project informations as below when inquiry:
1. The dimension of your common solar panel? ________(L*W*T)
2. The PV array? _________
3. Max Wind speed in your area? _________
4. Tilt angle require for your area? _________
If you have any special require, Click here to contact us. Our design team will help you make the most suitable solution.
1. The dimension of your common solar panel? ________(L*W*T)
2. The PV array? _________
3. Max Wind speed in your area? _________
4. Tilt angle require for your area? _________
If you have any special require, Click here to contact us. Our design team will help you make the most suitable solution.
WHY CHOOSE CHIKO ?
• Cost-effective - Factory manufacturing
• Installation - Special design is available
• Guarantee - Warranty 10 years and service life up to 30 years
• Delivery - Globally warehouse
• Guarantee - Warranty 10 years and service life up to 30 years
• Delivery - Globally warehouse
Product packaging
CHIKO Packaging: Put Warranty Chiko solar mounting products into CHIKO standard carton/ wooden pallet/ other customized packages.
CHIKO Shipping Lead-time: 1-2 weeks after the order payment confirm
CHIKO Shipping Lead-time: 1-2 weeks after the order payment confirm
Rail | 8 Pcs/Pkg320 Pcs/Pallet |
Rail Splice Kit | 50 Pcs/Box10000 Pcs/Pallet |
Mid Clamp | 100 Pcs/Box20000 Pcs/Pallet |
End Clamp | 100 Pcs/Box20000 Pcs/Pallet |
Hanger Bolt | 100 Pcs/Ctn10000 Pcs/Pallet |
Grounding Lug | 140 Pcs/Box28000 Pcs/Pallet |
Company Profile
Shanghai CHIKO Solar, started in 2009, is a leading manufacturer focusing on solar mount system, and provides around 15.4 MW solar PV installation every week.
CHIKO Solar provides a series of rooftop and ground solar mounting system to support your PV project installation.
Certification: We have established good cooperation with countries across the world, including USA, Mexico, Germany, UK, Thailand,Australia, Japan. Besides, Our experienced team provides prompt and professional customized design to meet all you need.
Easy installation & cost saving, Solar Energy System Roman Tile Roof Solar Photovoltaic Mount is a HOT sell among all the CHIKO Solar Mount kits.
CHIKO Solar provides a series of rooftop and ground solar mounting system to support your PV project installation.
Certification: We have established good cooperation with countries across the world, including USA, Mexico, Germany, UK, Thailand,Australia, Japan. Besides, Our experienced team provides prompt and professional customized design to meet all you need.
Easy installation & cost saving, Solar Energy System Roman Tile Roof Solar Photovoltaic Mount is a HOT sell among all the CHIKO Solar Mount kits.
Exhibition
Our Advantages
Quality
With CHIKO, you will meet leading highest standard quality. All of our Aluminum profiles are made 6005 T5 with surface protection anodic oxidation 12-15 micron (µ), hooks and bolts are made of Stain- less steel 304.Ground mounting systems that made of Q235 steel will be hot dip galvanized with a averagethickness 80 micron (µ).
