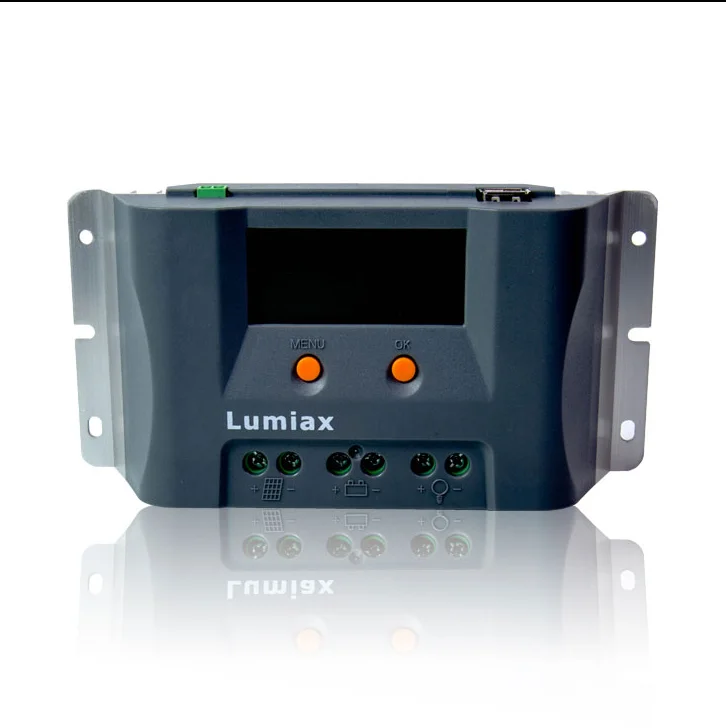

Lumiax 10A 12v mppt charge controller with USB LCD display for home system
- Category: >>>
- Supplier: Qingdao Skywise Technology Co. Ltd.
Share on (60698627334):
Product Overview
Description
Product Description

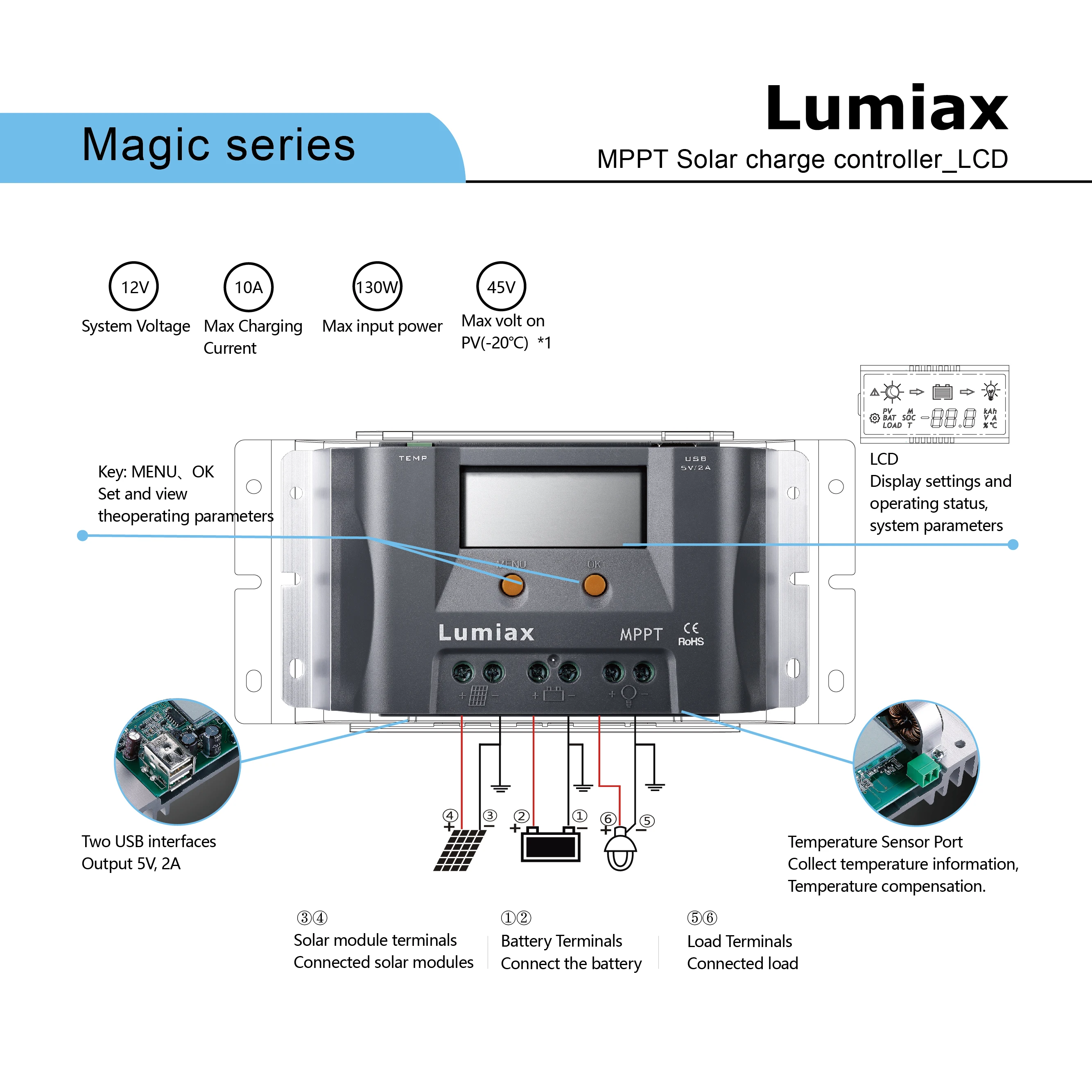

10A 12V price solar charge controller MPPT LCD display
45V max solar voltage,LCD display, Common negative, RS485,2 USB
1.Innovative Max Power Point Tracking(MPPT) technology, tracking efficiency >99.9%
2.High charge conversion efficiency up to 98%
3.LCD display design, reading parameters and working status easily
4.Multiple load control modes: Standard 24 hours, Dusk to Dawn, Timer and User-defined mode
4.Multiple load control modes: Standard 24 hours, Dusk to Dawn, Timer and User-defined mode
5.Current-limiting charging protection while the PV power exceeds the range.
6.External temperature sensor
7.2 USB interfaces, 5V,2A
Protection:
* PV Over Current ·
* PV Short Circuit ·
* PV Reverse Polarity
* Battery Reverse Polarity ·
* Battery Reverse Polarity ·
* Battery Over voltage
* Battery Over voltage ·
* Battery Over voltage ·
* Battery Over discharge
* Load Over Current Protection ·
* Load Over Current Protection ·
* Load Short Circuit Protection
* Over Temperature Protection
* Over Temperature Protection
Secification/Parameters
MT1050-EU | |||||||
Ampere | 10A | ||||||
System Voltage | 12V | ||||||
Mppt Charging Voltage | < 14.5V @25℃ | ||||||
Boost Voltage | 14.5V @25℃ | ||||||
Equal Voltage | 14.8V @25℃（Liquid, AGM） | ||||||
Float Voltage | 13.7V @25℃ | ||||||
Low Voltage Disconnect | 10.8~11.8V, SOC1~5 | ||||||
Reconnect Voltage | 11.6~12.8V | ||||||
Overcharge Protect | 15.5V | ||||||
Battery Type | Liquid, Gel, AGM | ||||||
Max Voltage On Battery Terminal | 20V | ||||||
Temperature Compensation | -4.17mV/K per cell (Boost, Equal), -3.33mV/K per cell (Float) | ||||||
Max Voltage On Pv Terminal | 45V | ||||||
Max Input Power | 130W | ||||||
Dusk/Dawn Detect Voltage | 8V | ||||||
Mppt Tracking Range | (Battery Voltage+1V) ~ Voc*0.9 | ||||||
Output Current | 10A | ||||||
USB Interface | 5V,2A | ||||||
Working Mode | Standard 24H; Dusk to Dawn; Timer; User-defined Mode | ||||||
Max Tracking Efficiency | >99.9% | ||||||
Max Charge Conversion | 97.5% | ||||||

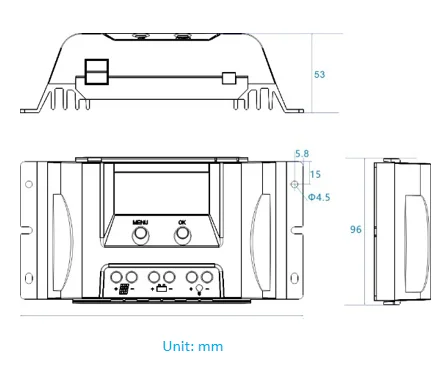

Dimensions | 189*96*53mm | ||||||
Weight | 480g | ||||||
Grounding | Common Negative | ||||||
Protection Degree | IP32 | ||||||

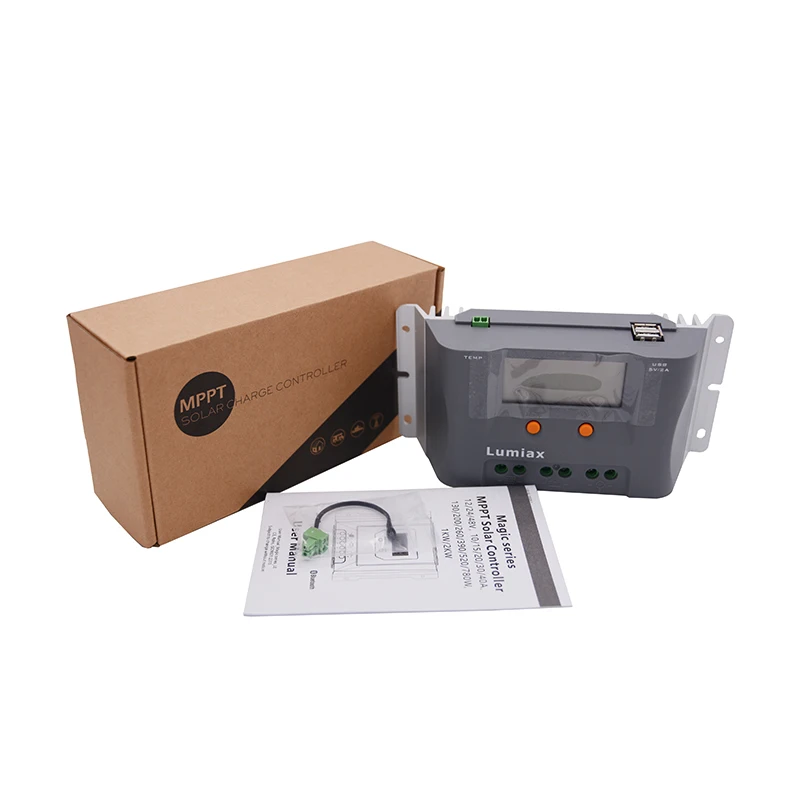

Packing&Shipping
Package：
Single package size:200*100*60mm
Single gross weight:0.7kg
Package Type:20pcs/Carton 420*240*360mm
G.W:10.8kg
Single gross weight:0.7kg
Package Type:20pcs/Carton 420*240*360mm
G.W:10.8kg
Shipping Method:
1)By Express: DHL, FEDEX, UPS, TNT and so on.
2)By air,By train and by ship
3)We also can send to your forwarder or agent in China, who can arrange shipment for you.
1)By Express: DHL, FEDEX, UPS, TNT and so on.
2)By air,By train and by ship
3)We also can send to your forwarder or agent in China, who can arrange shipment for you.
Related Products

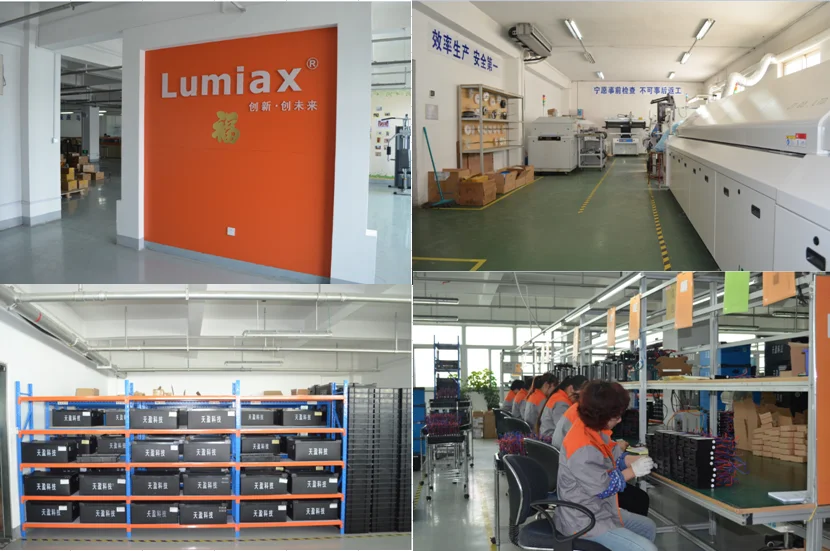

Company Introduction
Registered as “Lumiax”, Qingdao Skywise Technology Co., Ltd. was established in 2007, and located in Qingdao. Due to many years devoted to researching and developing, now we have been the world-leading solar charge controller manufacturer with over 1.5 million controllers exported to 100 countries.
Certificates that we have possessed of ISO9001 Quality Management System, ISO14001 Environmental Management System, CQC Golden Sun Certificate, CE and Rohs. Also with IEC61000, IEC62509,FCC,SASO,CISPR certificates for some models.
Products major including PWM and MPPT solar controllers,for solar 24 hours universal system controller and solar street light controller.

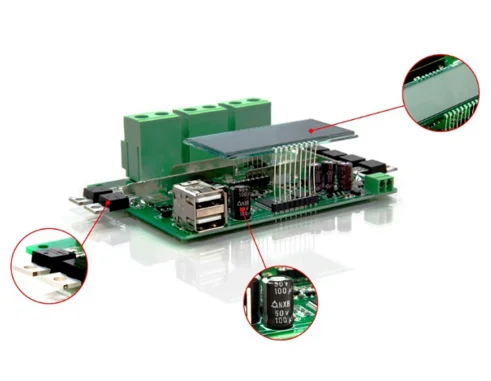

1.All Lumiax products PCB are designed very well, no need for labor soldering, all are welded by machine automatically, which decrease the damage risk, like cold welding\\welding slag\\high temperature harm to components around.
