Taifu brand competitive price central heating small water recirculation pump

Product Overview

Description



Taifu brand competitive price central heating small water recirculation pump







The Technical data:
1.Fluid temeprature range:-10℃-110℃
2.Max.working pressure:6bar for 100W heater pump,10bar for 200W heater pump
3.Max Permissible ambient temperature:+40℃

Motor data:
1.degree of protection:IP54
2.Insulating class:F
3.Ennegy Class:B

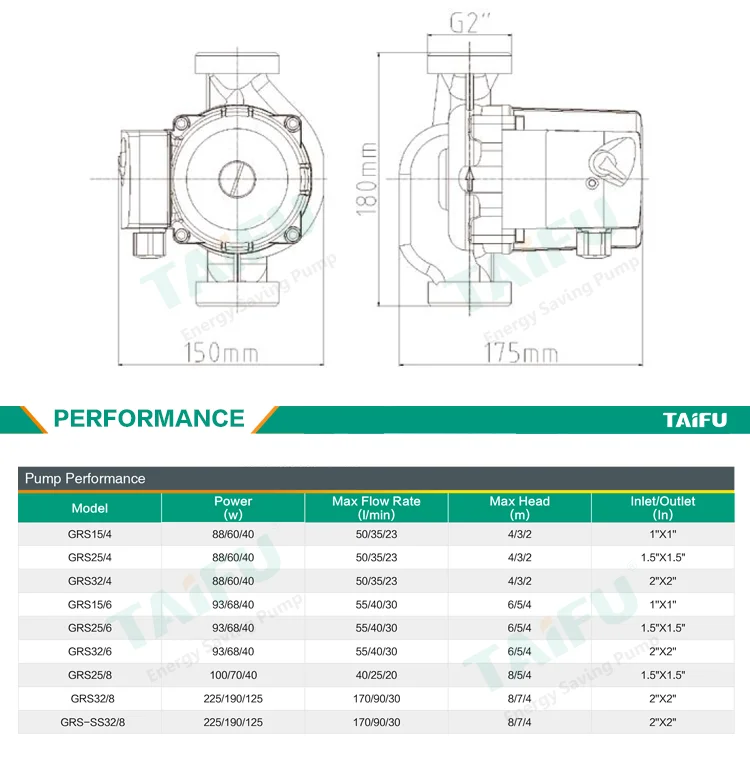

4.Pumpbody:130mm or 180mm

Material for pumps:
1.Ceramic shaft
2. impeller:GF-PP

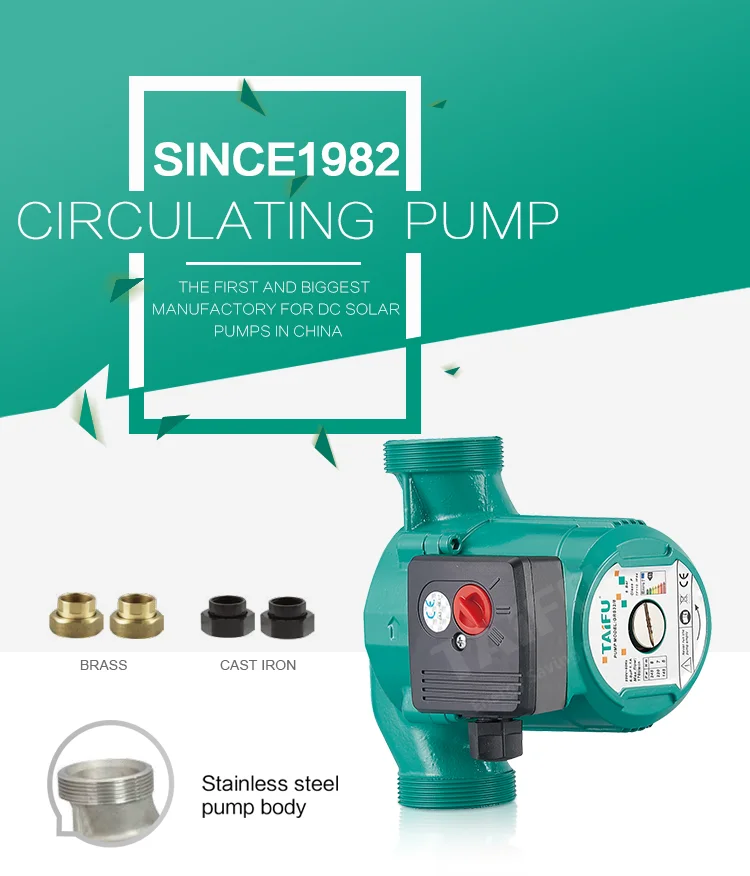

3.Pump body:stainless steel material or Cast iron material
4.Connectors:brass connectors or cast iron connectors
5.100%Copper wire
6.Therminal box:LDPE
7.Rotor:Stainless steel material
8.Shielding:Stainless steel material

















Histroy: More than 35 years experience of manufacturing pumps.

Scale: Cover working area of 80000 square meters,have more than 500 employees.

Technology: A group of professional technical engineers and a strong R& D team.

Management: Scientific ERP management and strict quality control system.

Equipment: Japanese automatic molding machine & pouring machine for cast iron parts,

double spindle lathe for pump body and stator,japanese CNC precision automatic lathe

for shaft,automatic wiring machine, electrophoresis,etc.

Innovation: Continuously diversify products range to satisfy customers’needs.

Production capacity: 150000 pcs/month; Marketing network: America,Europe,Asia,Africa,etc.

Long-term supplier of world-class companies: GAZI and main supermarkets in USA etc.

Marketing mode: All export business.
