CK6140ZX cnc lathe automatic feed
- Category: >>>
- Supplier: Zhejiang Kaida Machine Tool Co. Ltd.
Share on (60698663359):
Product Overview
Description
FEATURES AT A GLANCE
Product Features
1. Adopting high strength, high quality cast iron made by resin sand process and aging treatments.
2. Adopting high precision rolling bearings lubricated with grease.
3. Centralized lubrication.
4. Full enclosure with safety switch and door interlock.
5. Movable control panel is convenient for operation and allows easy access.
Right elevation
Left elevation
Back elevation

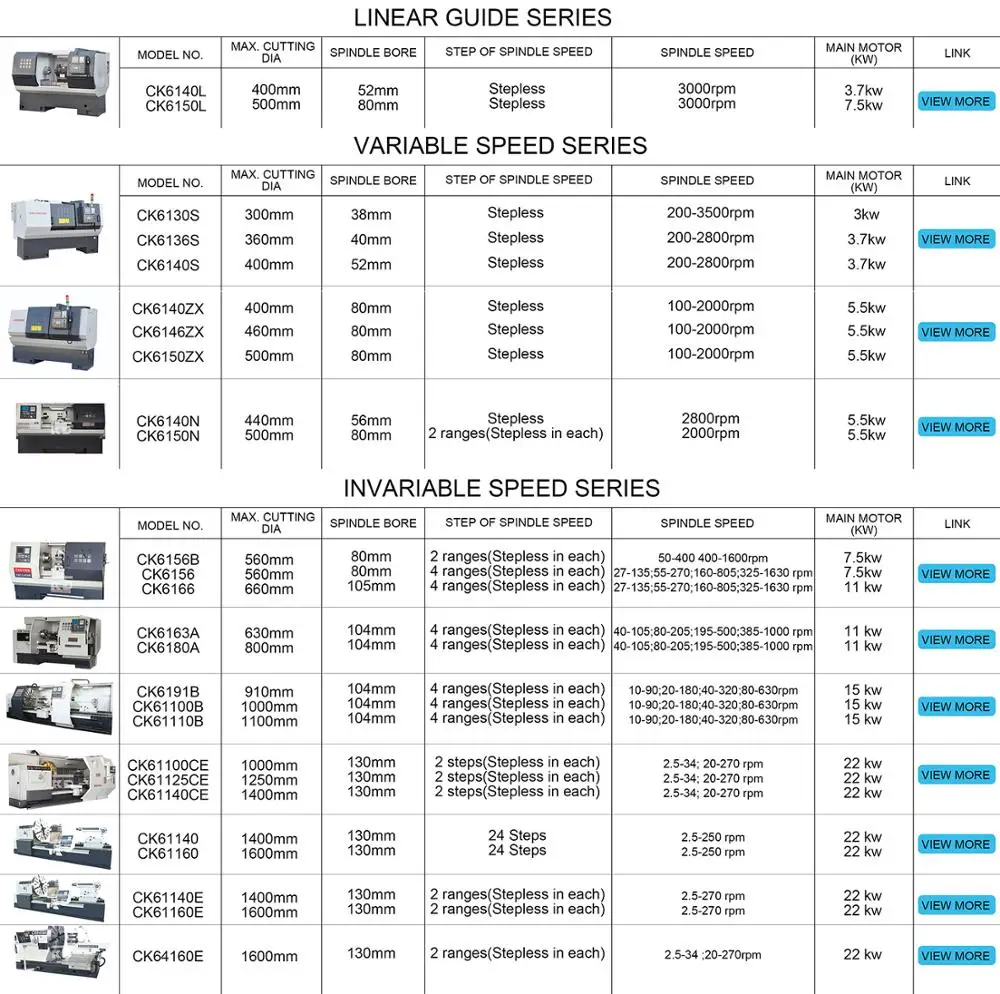

PRODUCT SPECIFICATIONS
MODELS | CK6140ZX | CK6146ZX | CK6150ZX | |
CAPACITY | ||||
Max.swing over bed | Ф400mm | Ф460mm | Ф500mm | |
Max.swing over carriage | Ф210mm | Ф240mm | Ф280mm | |
Max. length of workpiece | 750/1000/1500mm | 750/1000/ 1500mm | 1000/ 1500mm | |
Max.turning length | 600/850/1350mm | 600/850/1350mm | 850/1350mm | |
6-way turret Max.turning length | 430mm | 430/680/ 1180mm | 680/ 1180mm | |
6-way turret Max.turning diameter | 280mm | 340mm | 340mm | |
TRAVEL | ||||
Max.cross travel(X) | 250mm | 280mm | 280mm | |
Max.longitudinal travel(Z) | 710/960/1460mm | 710/ 960/ 1460mm | 960/ 1460mm | |
FEED | ||||
Rapid feed for axis X | 8m/min | 8m/min | 8m/min | |
Rapid feed for axis Z | 10m/min | 10m/min | 10m/min | |
SPINDLE | ||||
Spindle nose | D8 | D8 | D8 | |
Spindle bore | Ф80mm | Ф80mm | Ф80mm | |
Taper bore of spindle | M.T.NO.7 | M.T.NO.7 | M.T.NO.7 | |
Steps of spindle speed (manual) | Variable | Variable | Variable | |
Range of spindle speed | 100~2000rpm | 100~2000rpm | 100~2000rpm | |
TOOL POST | ||||
Tool post stations | 4-way, 6-way, 8-way | |||
Tool cross section | 25×25mm | 25×25mm | 25×25mm | |
TAILSTOCK | ||||
External diameter of tailstock sleeve | Ф75mm | Ф75mm | Ф75mm | |
Taper bore of tailstock sleeve | M.T.NO.4 | M.T.NO.5 | M.T.NO.5 | |
Max.travel of tailstock sleeve | 130mm | 130mm | 130mm | |
OTHERS | ||||
Min. input | 0.001mm | 0.001mm | 0.001mm | |
Main motor power | 5.5kw (optional 7.5kw) | 5.5kw (optional 7.5kw) | 5.5kw (optional 7.5kw) | |
Coolant pump power | 75w | 75w | 75w | |
Overall dimensions(L×W×H) | 2060×1180×1500mm | (2060/ 2310/ 2790)×1180×1500mm | (2310/ 2790)×1180×1500mm | |
Net weight | 2100kg | 2200, 2350, 2900kg | 2350, 2900kg | |

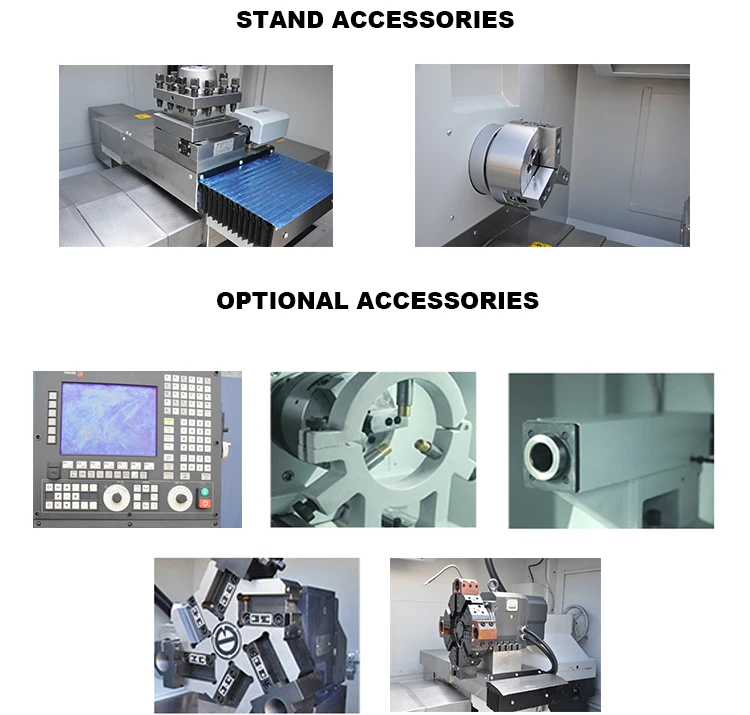

PRODUCT CONFIGURATION
3-jaw manual chuck or Taiwan hydraulic chuck is optional.
4-station/6-station/8-station turret are optional.
Manual tailstock or hydraulic tailstock is optional.
FANUC, SIEMENS, FAGOR, MITSUBISHI, GSK cnc controllers are optional.
Auto chip conveyor is optional.
Auto bar feeder is optional.
