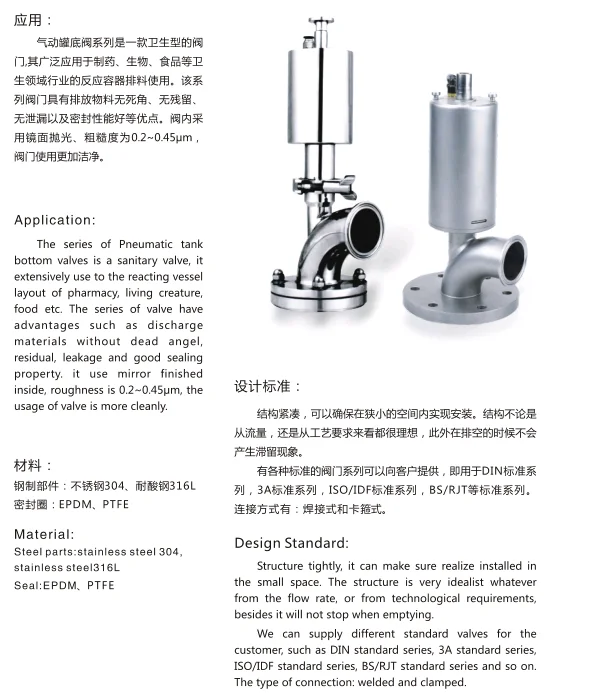

SS304/SS316L Stainless Steel Sanitary Tank Bottom valve
- Category: >>>
- Supplier: Wenzhou Yuanyu Mechanical Co. Ltd. [Zhejiang China]Wenzhou
Share on (60698707729):
Product Overview
Description
Technical Data | |||
Material | Contact with the product components | 304L/316L(1.4306/1.4404) Forging | Can provide material inspection report |
Material No contact with the product components | 304/202(1.4301/202) Forging | ||
Sealing Material | Standard | VMQ | Adopt import sealing materials, with all the seal material the FDA 117.2600 |
Option | EPDM/FPM | ||
Pressure | Pressure of Work | 0~10 bar | |
Control air pressure | 5~8 bar | ||
Temperature | Working temperature | VMQ:(-50~+180℃) EPDM:(-20~+135℃)FPM:(-30~+230℃) | |
Sterilization temperature | 150℃(MAX20min) | ||
Surface treatment | Inside surface treatment | Ra>=0.4-0.8μm | |
Surface treatment | Ra>=0.8-1.6μm | ||
Connection | The diameter welding | Welding mouth:DIN 11850-2with 11850-1/SMS/3A/ISO Series etc | |
Connection mode: welding, fast loading, male and female, flange, etc. | |||
Optional driven | Brainpower | ||
Pneumatic control | Pneumatic head and fixed bracket | ||
Butterfly valve volume flow: flow through the butterfly valve per unit time of a cross-sectional area of the fluid volume | Volume flow: cubic meters/hour(m3/h) | ||
Company Information
FAQ
1. May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves
2. What's the payment term
For small orders, we accept PayPal, Western Union, T/T and Credit Card.
For mass orders, we accept T/T and L/C.
3. Can i have my own Logo on the product?
Yes, you can send us your drawing and we can make your logo.
4. Do you have any MOQ of your products?
We always have stock for valve
5. Do you accept no-standard products?
Sure, as soon as you could provide drawings or detail.
