high speed winding yarn on big bobbin winder
- Category: >>>
- Supplier: Jiangsu Tangshi Textile Machinery Group Co. Ltd. [Jiangsu China]Jiangsu
Share on (60698731452):
Product Overview
Description

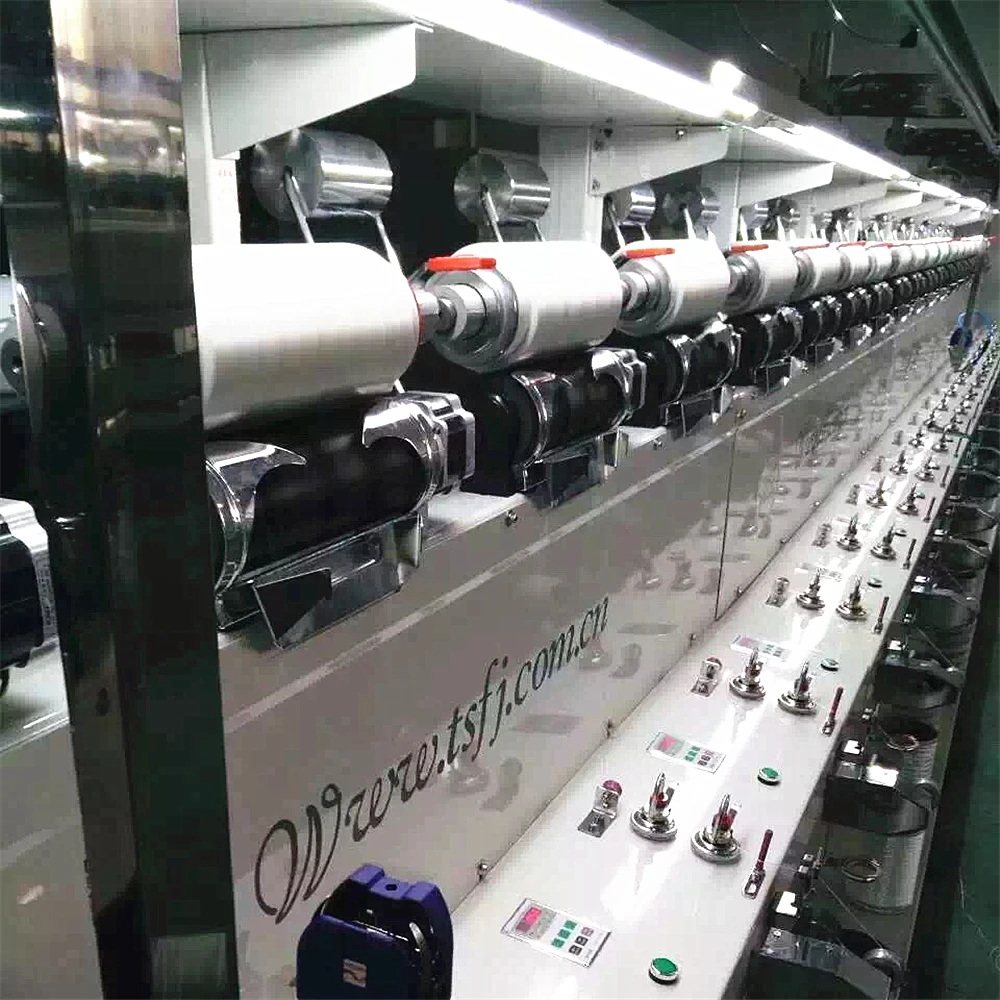

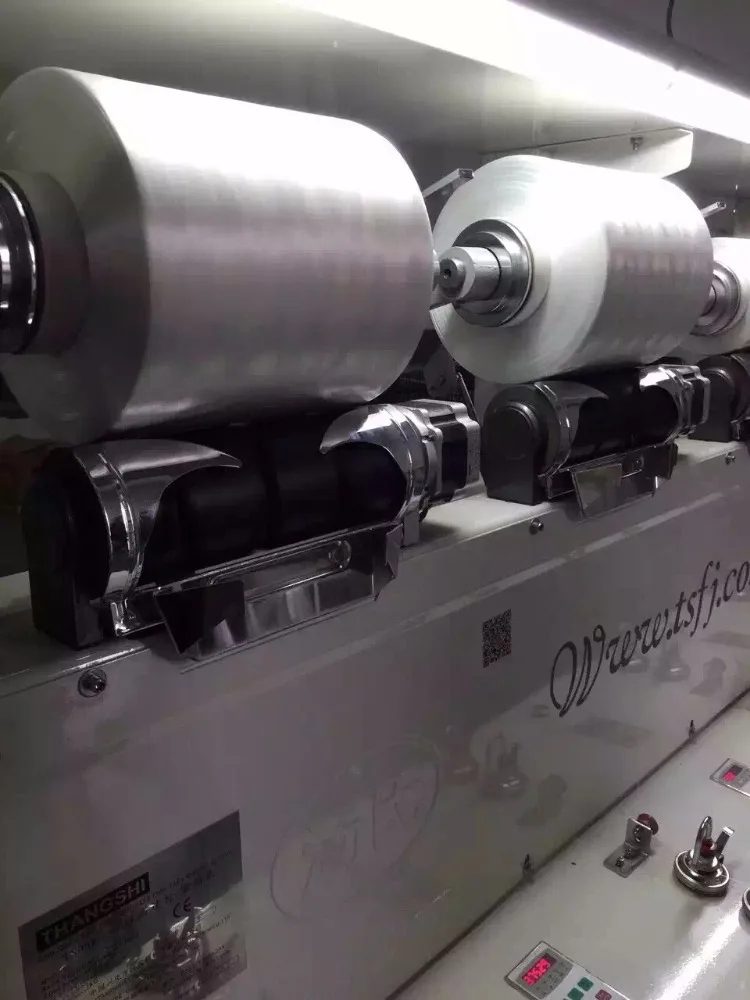

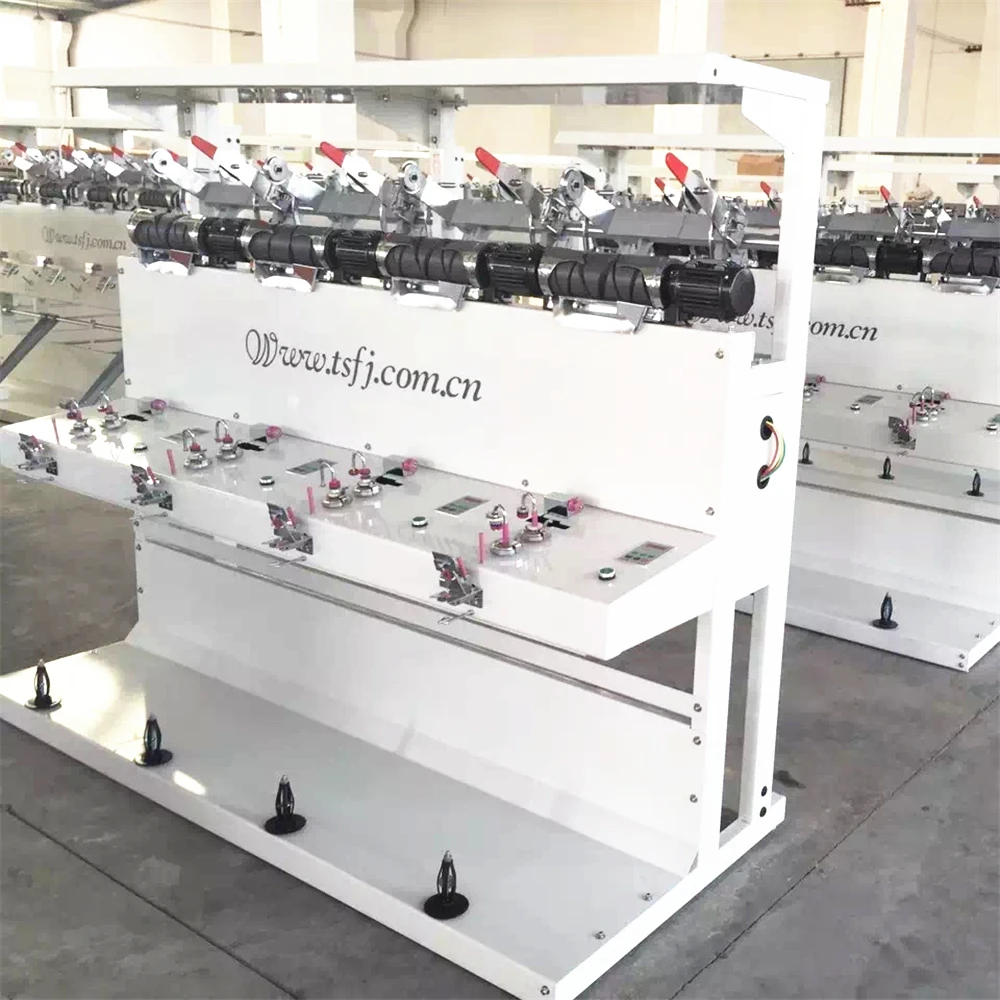

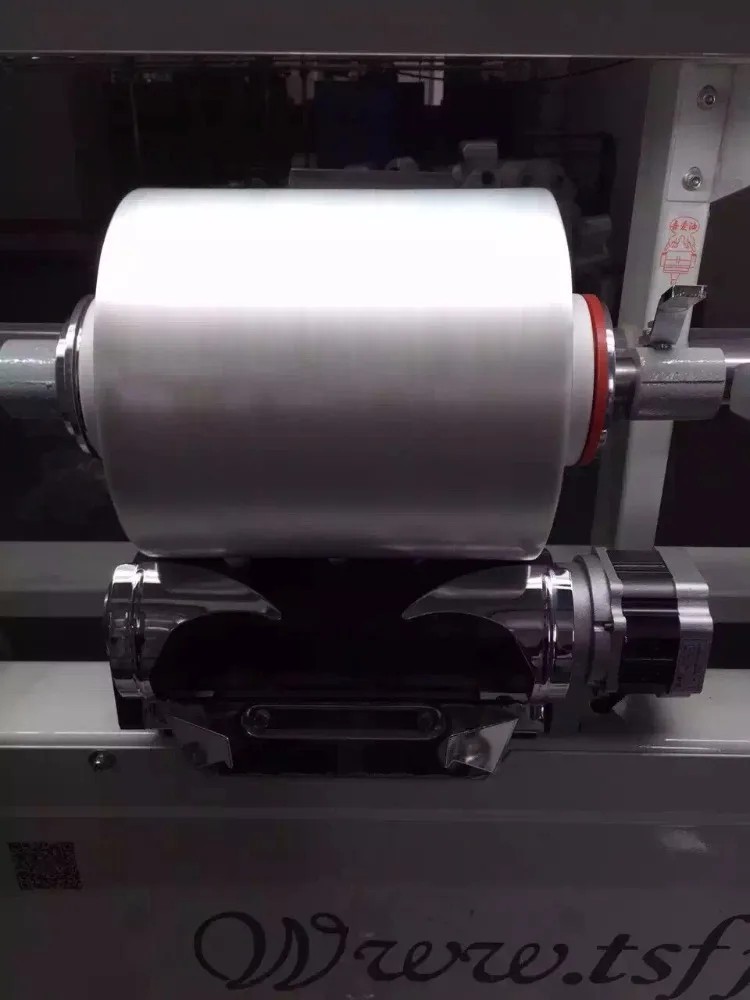

TS008D Big Bobbin yarn Winding Machine---It is suitable for chemical fiber, cotton yarn, industrial filament,low elastic yarn,carpet yarn,mop line,etc.It is used to winding yarn on big bobbin for the next processes, high efficiency , good take up package formed are ensured by this machine..
Base Info | Product Name | High-speed big bobbin winding machine |
Model Number | TS008D | |
Brand | TANGSHI | |
Place of Origin | Jiangsu province, China (Mainland) | |
Application | winding yarn cones for the processes of weaving, warping , knitting or dyeing in HTHP | |
Yarn | Chemical fiber,cotton yarn,industrial filament,low elastic yarn,carpet yarn,mop line,etc | |
Automatic Grade | Semi-Auto | |
Production Ability | High Speed | |
| Layout | Single Side |
| Number of spindle | 4,8,12,16,20,24,28,32,36 |
| Winding Speed | 100-1000m/min |
| Weight of package | max 10 kg |
| Drive | Individual |
| Bobbin Type | 10"(280mm--300mm) |
| Package Diameter | up to 200mm and 290mm |
| Voltage | Three phases or single phase ,50HZ |
| Motor power | 0.18kW/spindle |
Specification | Weight | 450KG(4 spindles) |
| Dimension(L*W*H) | 1920*850*1650mm(4 spindles) |
| Auto stop device | Each spindle has motion sensor |
| Anti-stack system | Controlled by the inverter |
| Speed regulation | By inverter |
| Electronic slub catcher | optional |
| Air Splicer | Optional |
| Blower cleaner | Optional |
| Lighting system | Optional |
| Warranty | 1 year |
| Certification | ISO9001:2008 & CE |
| After-sales Service | Engineer available to service machinery overseas |
Company Information
Xinghua Tangshi Textile Machinery Co.,Ltd was established in 1993, which located in XingHua district industrial park(XingHua exit of NINGJINYAN Highway). Xinghua Tangshi Textile Machinery Co.,Ltd was an experienced and professional manufacturer, it already has 23 years’ experience of producing drum winding machines, with advanced technics and production equipments it can output more one thousand winding machines annually. after these years hard work and faith cooperation, Tangshi Textile Machinery Co.,Ltd got a good reputation. our products like GA014 series soft and tight winding machine, TS008 semi-automatic soft and tight winding machine, TS230,280,290,300 big take-up winding machine. and we also can make the special machines according to the customers different demands. we service the textile industry in conformance with the aim of “professional produce, faith operation, reputation brand ”. the products are widely sold at domestic and also export to south-east asia countries gradually. Can supply kinds of winding machine is our company’s feature, good quality and timely deliver is our promise. sincerely hope we can go forward hand in hand and set up bright life together! Winding machine------------Tangshi Textile Machine Co.,Ltd will be your best choose!
