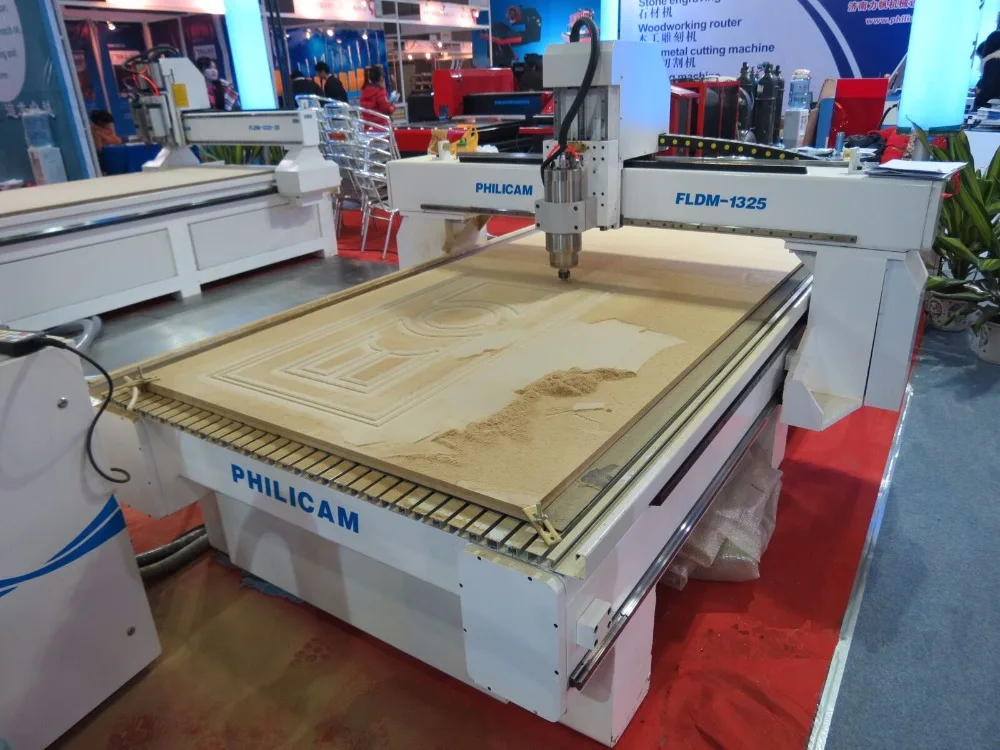

philicam 1325 router cnc work on MDF board and wood door / wood furniture
- Category: >>>
- Supplier: Jinan Lifan Machinery Co. Ltd.
Share on (60698746839):
Product Overview
Description
philicam router cnc for salesine
Application of router cnc >>>
♦Y axis uses double-motor in-phase drive that ensure the machine equality and smoothly running.
♦ Using high accurate pinion and rack transmission. The max speed is 23m/min. It can clearly engrave the 1mm small word.
♦ Spindle adopts 3.2KW water-cooling domestic motor which is very powerful and with little noise .It can work continuely without maintaining.
♦ Intelligent protection for working table that can prevent misuse or software errors from damaging the surface. Its protection of step beyond the boundary avoids crashing while design area beyond processing area.
♦ Advanced industrial controlling system is compatible to many dictate formats that can operate after accident or next day processing so it is very convenient.
Parameters of router cnc >>>
NO. | Description | Parameter |
1 | X,Y,Z Working Area | 1300x2500x200mm |
2 | Table Size | 1300×2500mm |
3 | X,Y,Z Traveling Positioning AccuraIT | ±0.03/300mm |
4 | X,Y,Z Repositioning Positioning AccuraIT | ±0.05mm |
5 | Lathe Structure | Welded Structure |
6 | X, Y Structure | Gear Wheel Transmission, Shaft Linear Bearings |
7 | Z Structure | Ball Screw, Shaft Linear Bearings |
8 | Max. Consume power | 3Kw |
9 | Max.Speed | 0-32000mm/min |
10 | Max. Working Speed | 0-20000mm/min |
11 | Spindle Power Motor | 3kw spindle air cooled |
12 | Spindle Speed | 0-24000RPM |
13 | Working Mode | Stepper |
14 | Working Voltage | AC220V/50/60Hz,1PH (Option: 380V,3PH) |
15 | Command | G Code, *uoo, *mmg, *plt |
16 | Operating System | DSP System (Option: Mach3 PC Software) |
17 | Flash Memory | 128M |
18 | Collet | ER25 |
19 | X,Y Working DelicaIT | <0.01mm |
20 | Software | Type3 software, Wentai software, Artcam software |
21 | Running Circumstance | Temperature: 0°C~45°C |
22 | Packing Size | Separated: 3200X1950X1404mm |
23 | Weight | 1200KG |

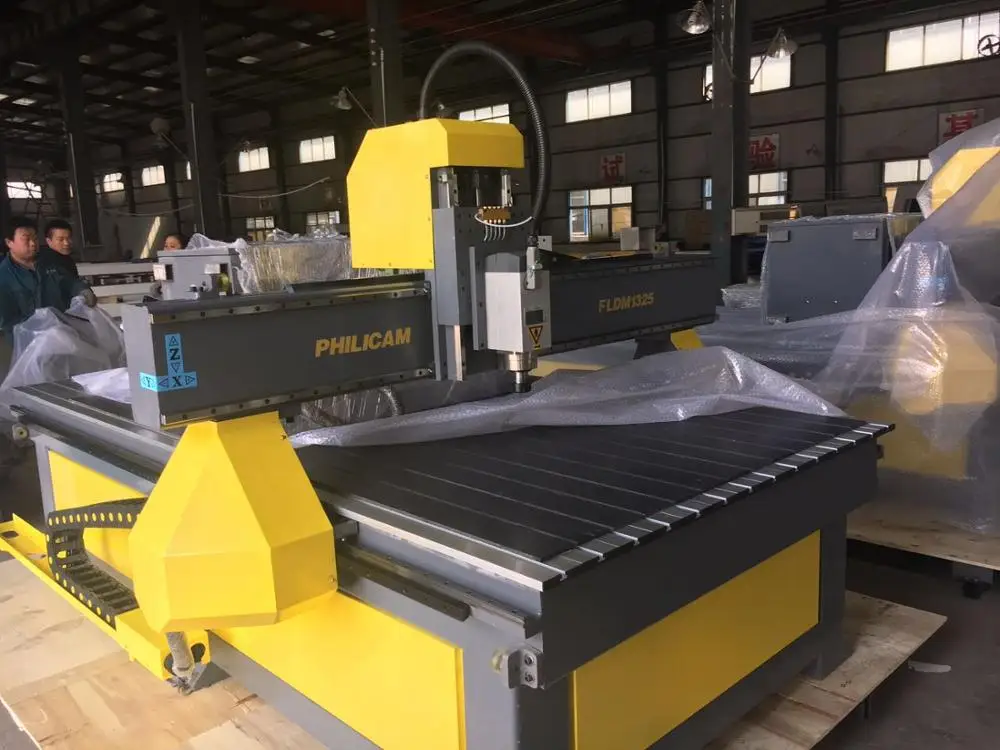

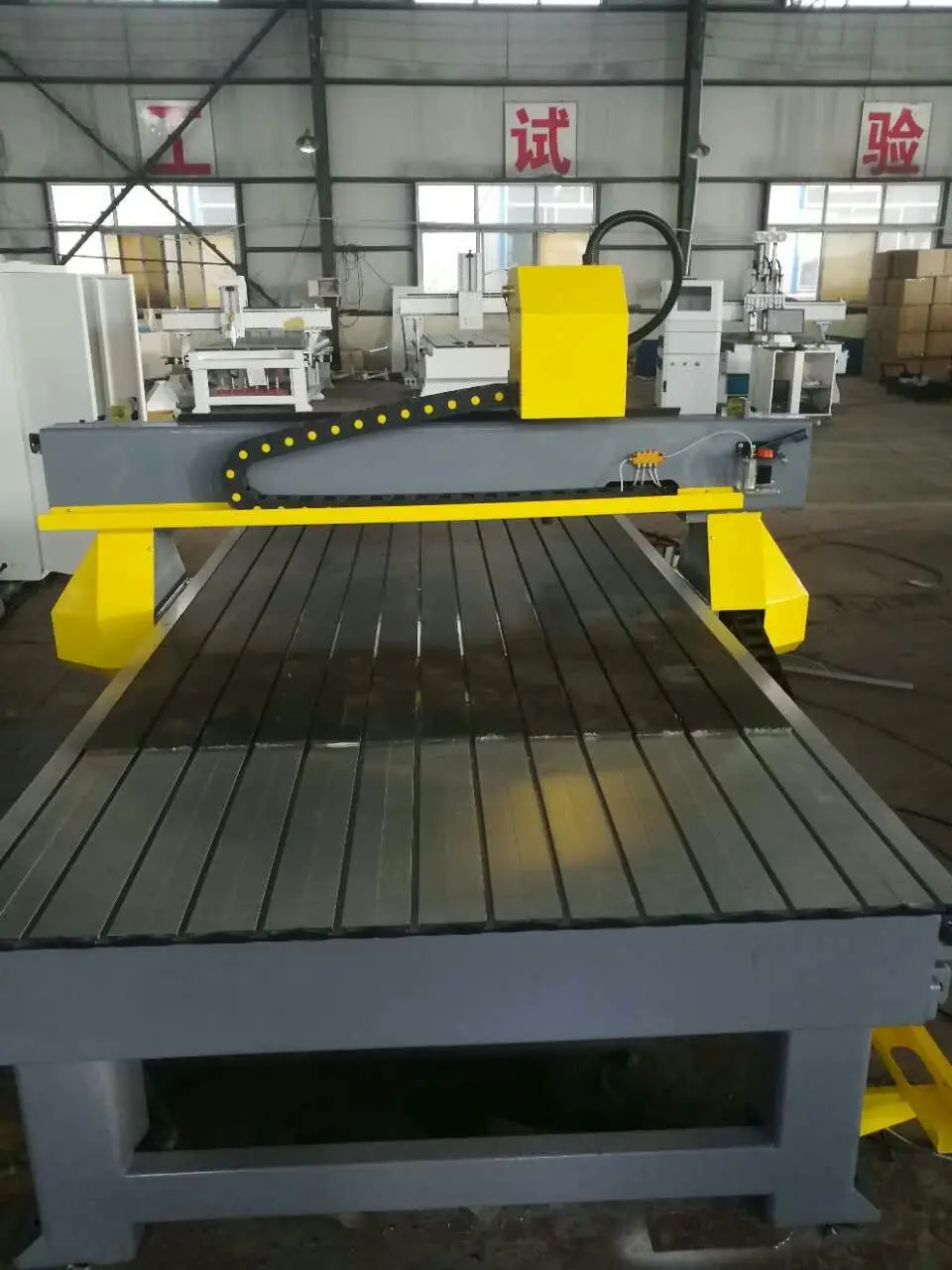

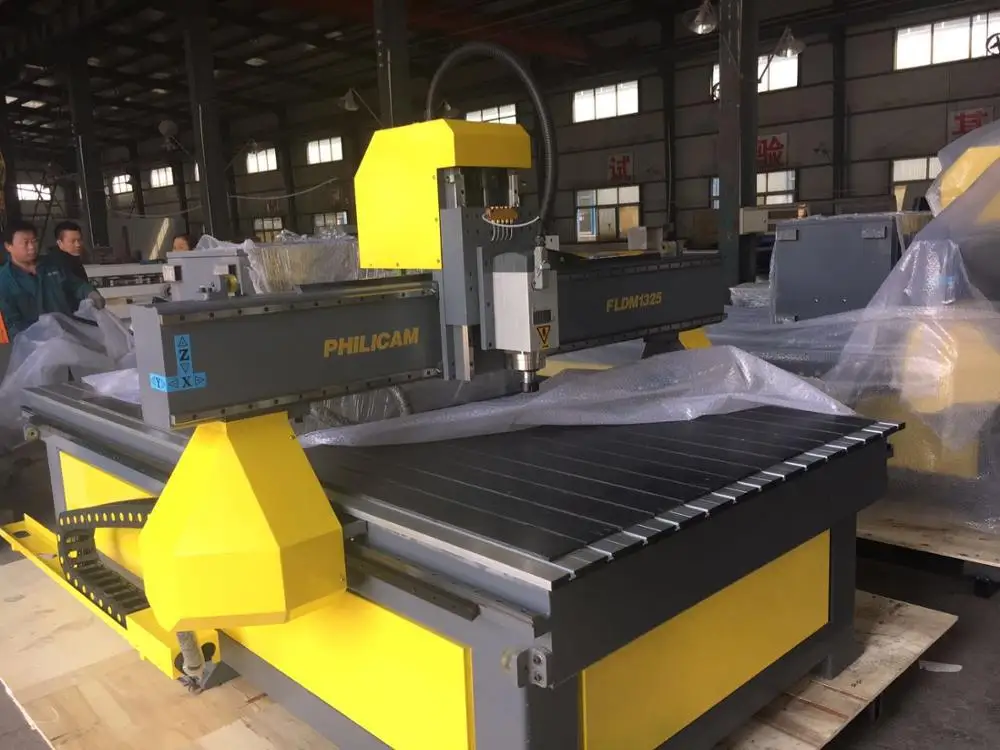

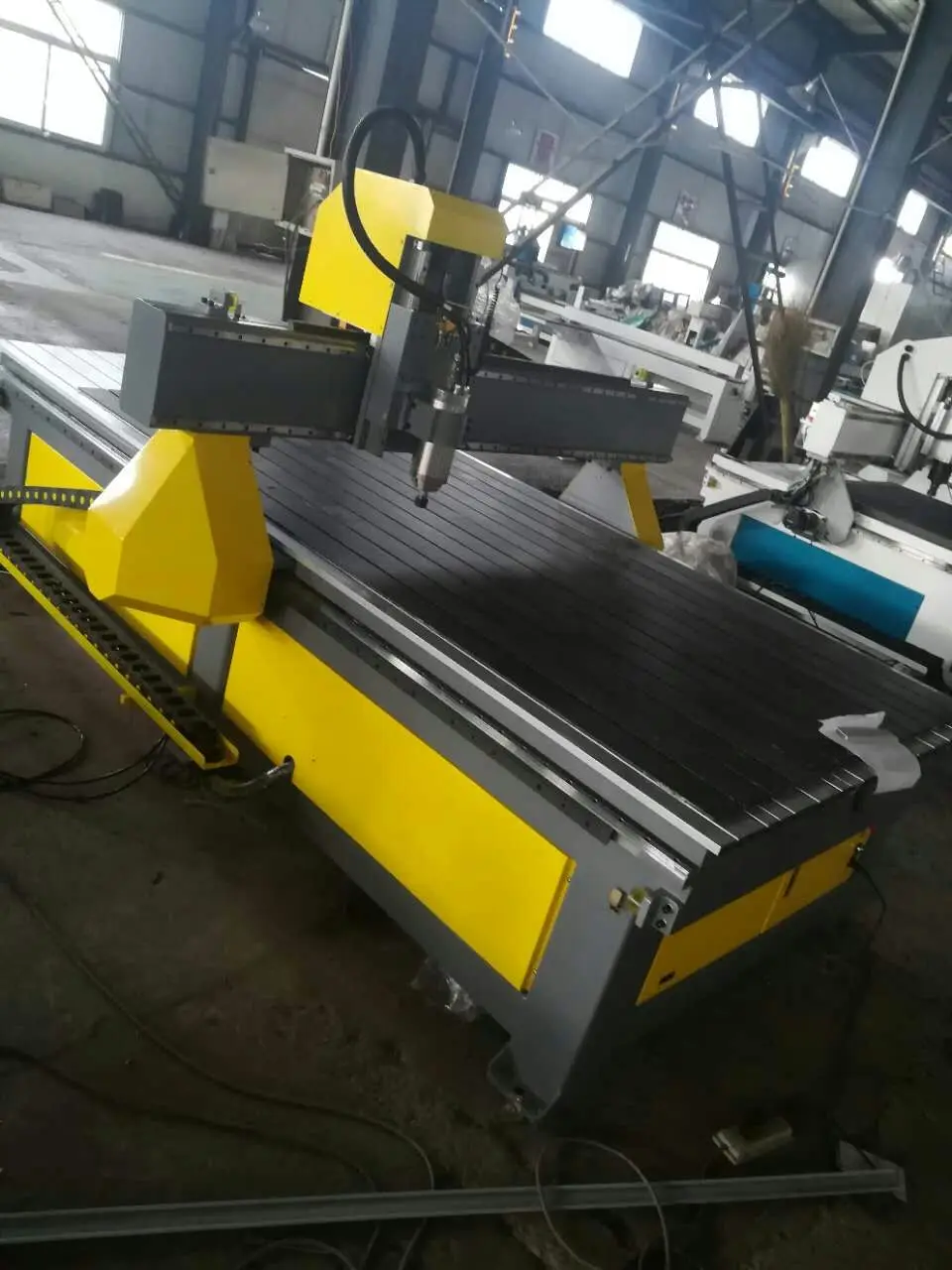

Router cnc details >>>

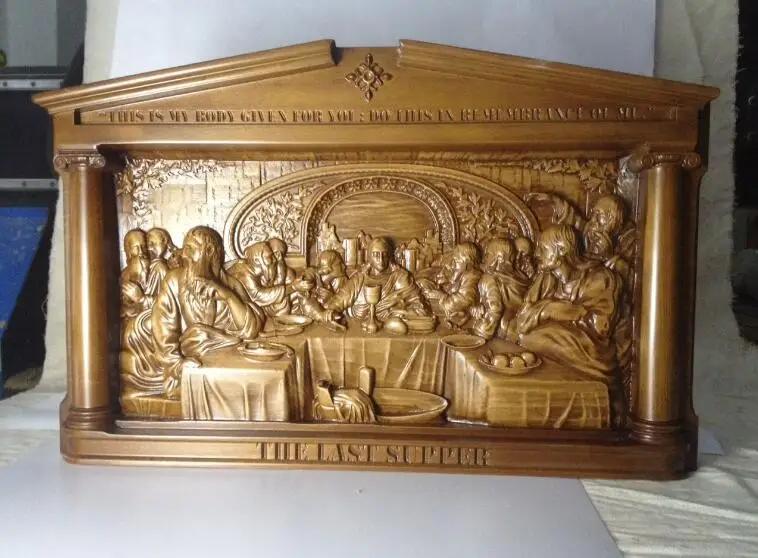

Samples of router cnc >>>

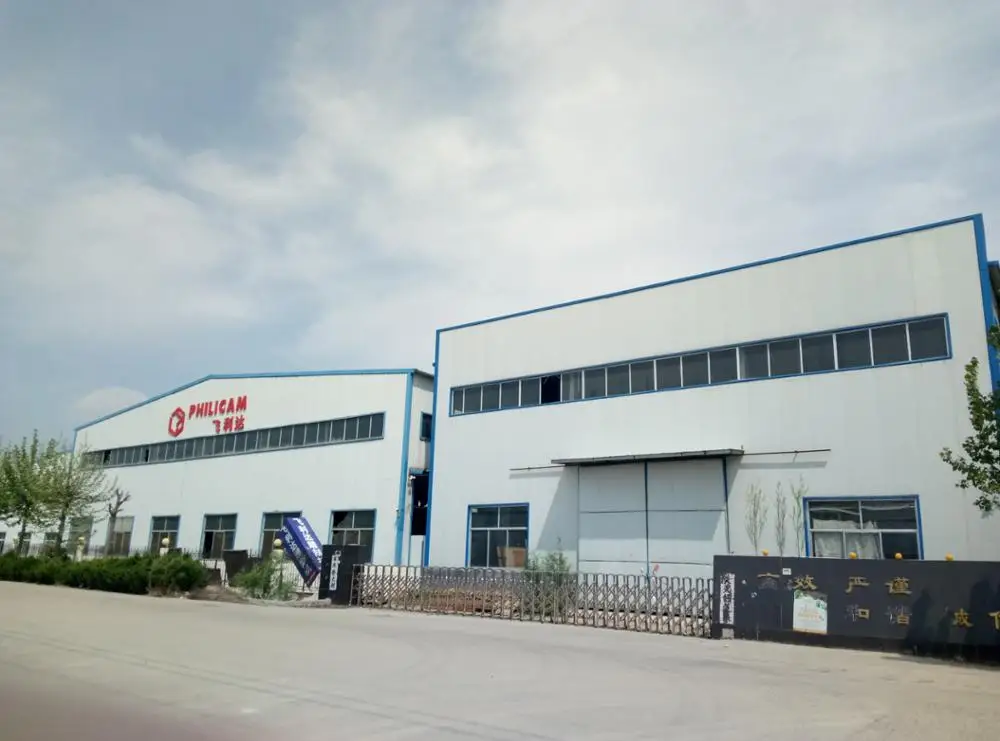

Our factory >>>
