Description

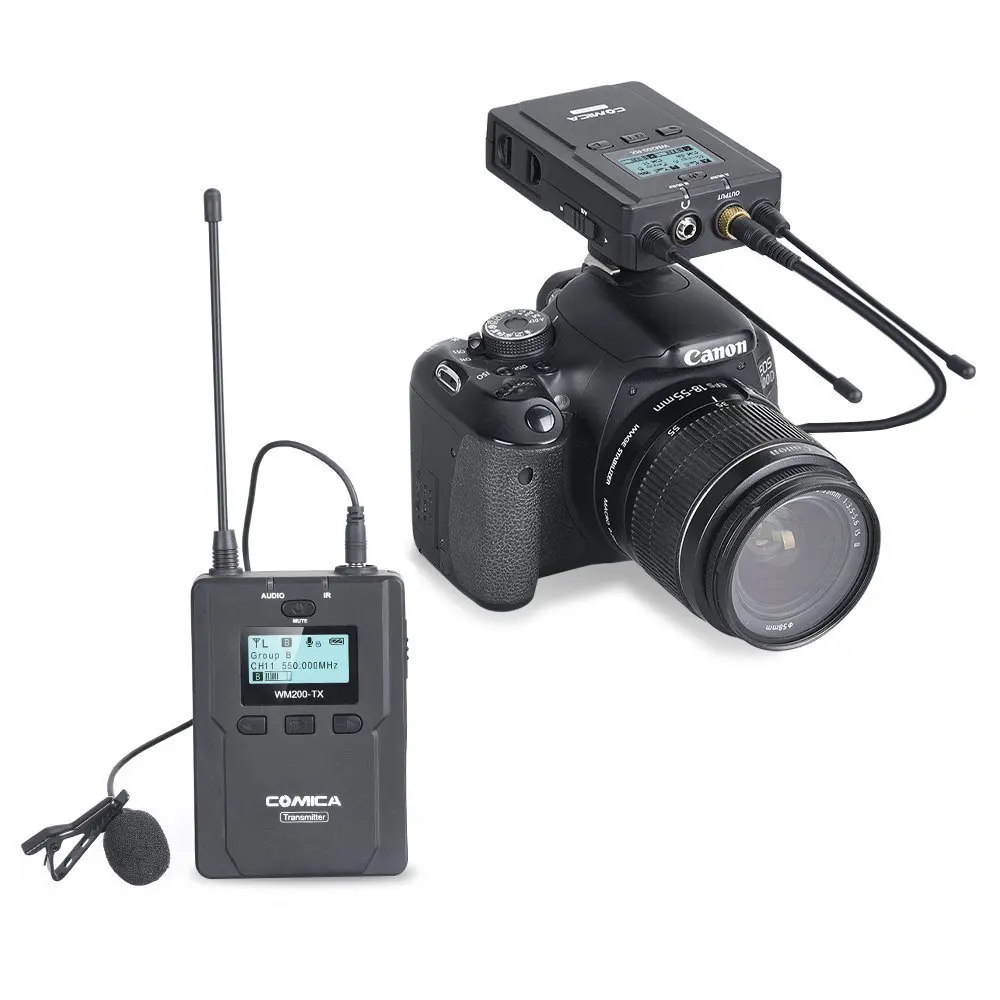

Comica CVM-WM200(C) 96-Channel Full Metal UHF Professional Wireless Lavalier Microphone System for Canon 6D 600D 5D2 5D3 Nikon Sony Camera,iPhone/iPad/Smartphones & XLR Camcorders(394-Foot Range)



Description:

WM200 is an all-metal wireless microphone with dual-transmitter triggered by one receiver, with two AA batteries, it utilizing UHF wireless FM technology and LED high-resolution lattice screen: 96 channels in total, 16-level adjustable volume, and integrated into LCF, Auto-scanning, Auto IR Channel-match, stereo / mono switchable audio mode, RF signal strength adjustment, MIC/LINE IN input dual selection, power monitoring at receiver end, sound pickup dynamic display, backlight adjustment and other functions, at the same time with strong shielding anti-noiseperformance, it’s a high-quality microphone to broadcasting level.



Main Features:

. Dual Transmitters Triggered by One Receiver, A/B Double Group Options;

. 96 Channels, Used for Multiple Devices Working Together;

. Working Distance is Up to 120m (in open area, up to 80m in Barrier Area);

. LCF Low Cut Filtering Mode;

. Auto-scanning for Quick Channel Selection;

. Manual or Auto IR Sync;

. Adjustable RF Signal Strength;

. Audio Dynamic Display Bar;

. 16 Levels Volume Adjustment;

. Transmitter Power Monitor;

. Mono/Stereo Switchable Output Modes;

. Low-consumption, Super-long Standby Time;

. Lattice LCD Display, High Resolution;

. Full Metal Manufacturing, Excellent Shielding;

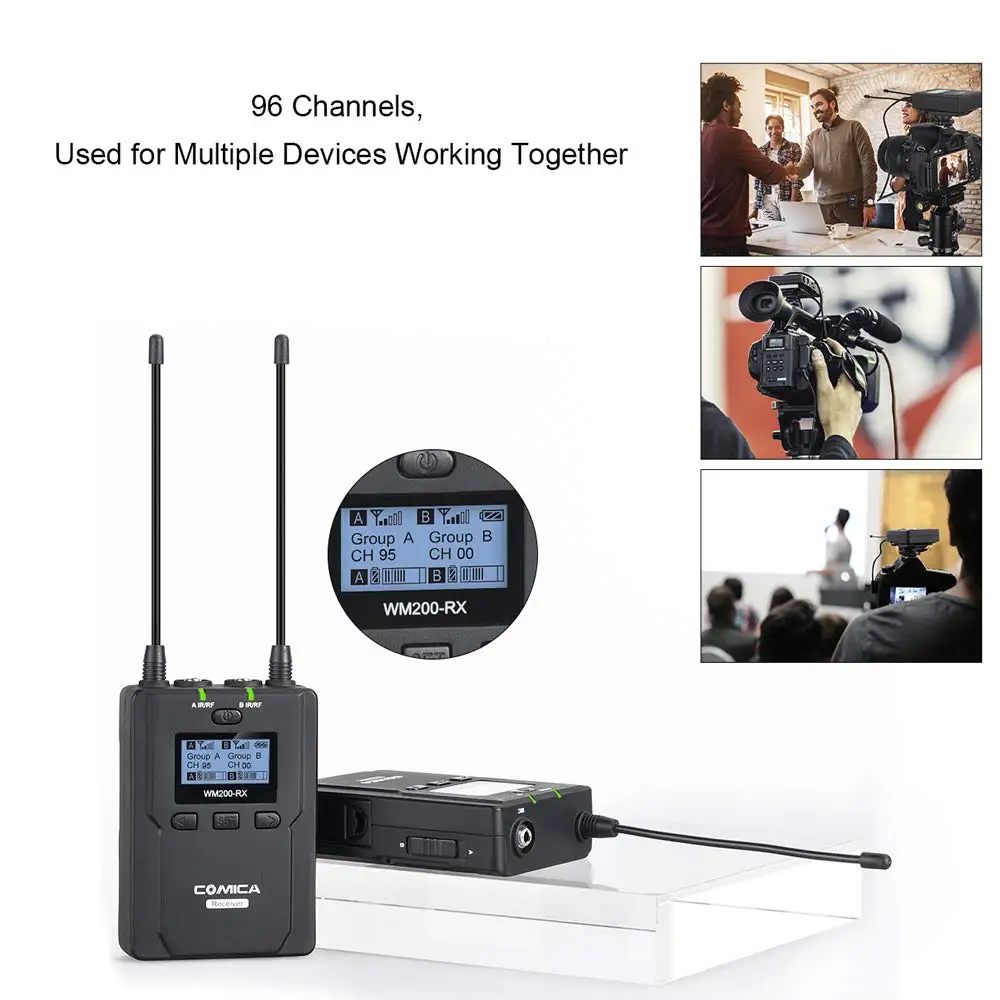

[96-CHANNEL] One transmitter triggered by one receiver which can be used for multiple devices working together, with auto-scanning for quick channel selection to A/B group.Group A Wireless Frequency: 520.000MHz~548.500MHz. Group B Wireless Frequency: 550.000MHz~578.500MHz.(Notice: When using with a separately purchased handheld transmitter, please confirm the version number of the receiver and transmitter, currently available CVM-WM300 (C) version number: 3.0.4)



[REAL-TIME MONITORING] With lattice LCD display, HD display dynamic volume test bar and transmitter power, real-time monitoring of volume and power.Different frequency channels.



[LCF Low Cut Filtering Mode] Used in a noisy environment for audio recording, it can cut off the low-frequency part for pure and clear output.Dual channel selection, you can choose mono or stereo switchable output modes.



[LONG WORKING DISTANCE] Working distance up to 394 feet (in open area, up to 263 feet in Barrier Area). By adopting UHF technology, it can realize smooth recording without staccato.



[ADJUSTABLE RF SIGNAL STRENGTH] The CVM-WM200 wireless microphone is made of full-metal manufacturing, with excellent shielding. When the working distance is within 197 feet, you can switch to low strength mode, which helps to reduce power consumption for longer standby time. When the working distance is longer than 197 feet, you can choose the high strength mode to improve the audio quality.



Specification

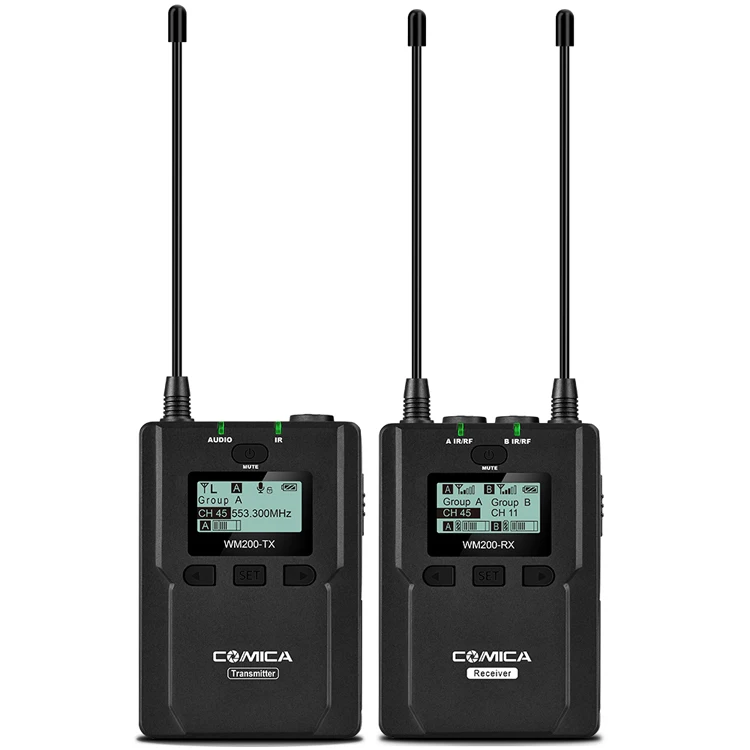

 Transmitter TX

Channels	96
Group A Wireless Frequency	520.000MHz ~ 548.500MHz
Group B Wireless Frequency	550.000MHz ~ 578.500MHz
Signal / Noise	>65dB
Antenna	1/4 Wavelength Wire Antenna
Transmitting Power	10dbm/15dbm
Stray Radiation	<-60dBc
Sound Delay	<20ms
Audio Distortion	<0.5%
Battery	Two AA Batteries
Dimension	84 x 63.5 x 23mm
Operating Temperature	0℃ ~ 50℃
Storage Temperature	-20℃ ~ 60℃

Receiver RX

Channels	96
Group A Wireless Frequency	520.000MHz ~ 548.500MHz
Group B Wireless Frequency	550.000MHz ~ 578.500MHz
Signal / Noise	>65dB
Antenna	1/4 Wavelength Wire Antenna
Receiving Power	-95dBm
Stray Radiation	<-60dBc
Sound Delay	<20ms
Audio Distortion	<0.5%
Battery	Two AA Batteries
Dimension	84 x 63.5 x 23mm
Operating Temperature	0℃ ~ 50℃
Storage Temperature	-20℃ ~ 60℃
