Ceiling Extractor 6 Inch Electric Exhaust Fans Ventilation Fan Bathroom
- Category: Axial Flow Fans >>>
- Supplier: Wenzhou Yudong Electrical Appliance And Sanitary Ware Co. Ltd.
Share on (60698785763):
Product Overview
Description
Product Description
Ceiling Extractor 6 Inch Electric Exhaust Fans Ventilation Fan Bathroom
Features
- The fan is suitable for wall/window/ ceiling mounting.
- Shutter, ring are optional, ring is needed for window mounting.
- Easy installation

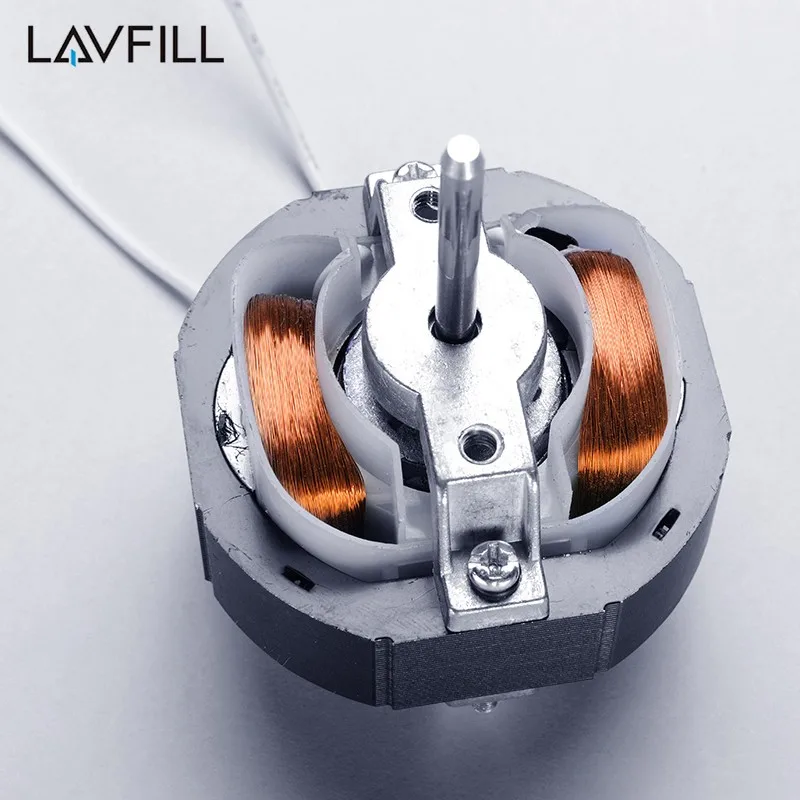

- Shaded pole motor with thermo cut-off

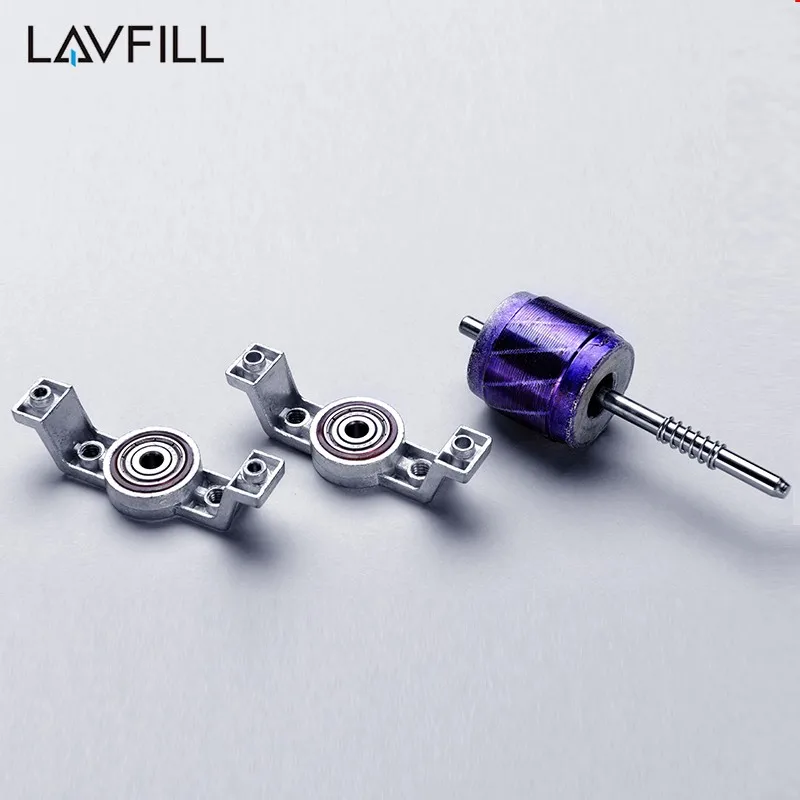

- Ball bearing motor to reduce friction for long life operation
- Modern and functional design
- Front louver for safety protection
- Safety design based on IEC requirements
- Approved by SAA TUV SASO CE RoHS
- More functions
+ With humidity sensor adjustable humidity range 60%-90%, the humidity level from 60%-90% can be shown by four LED indicators, adjustable time range 0 -30 mins, the original factory setting is 60%, 1min.
+ With timer adjustable time range 0 -30 mins, the delay time 30s-30mins can be shown by five LED indicators, the original factory setting is 1 mins.
+ With motion sensor sensing range of 0.5m ≤ D ≤8m, angle 180°*360° delay timer adjustable time range 1 -30 mins
About details
Dimensions
Installation Dimension
Unit: mm
| Article No. | A | B | C | D |
| LFWW-13Y | φ150 | 193 | 100 | 13 |
| LFWW-13Y-1S | ||||
| LFWW-13Y-3 | ||||
| LFWW-13YT | ||||
| LFWW-13YT-1S | ||||
| LFWW-13YT-3 | ||||
| LFWW-13YH | ||||
| LFWW-13YH-1S | ||||
| LFWW-13YH-3 | ||||
| LFWW-13YS | ||||
| LFWW-13YS-1S | ||||
| LFWW-13YS-3 |
Technical Parameter
| Article No. | Category | Rated Voltage/Frequency | Power | Air Volume | Noise |
| LFWW-13Y | Wall Window Mount Ducted Fan | 110V~,60Hz 127V~,60Hz 220V~,50Hz 220V~,60Hz 220V~,50/60Hz 220-240V~,50Hz | 18W | 240m³/h | 35dB |
| LFWW-13Y-1S | |||||
| LFWW-13Y-3 | |||||
LFWW-13YT | |||||
LFWW-13YT-1S | |||||
LFWW-13YT-3 | |||||
| LFWW-13YH | |||||
| LFWW-13YH-1S | |||||
| LFWW-13YH-3 | |||||
| LFWW-13YS | |||||
| LFWW-13YS-1S | |||||
| LFWW-13YS-3 |
Note:
T - With Timer
H - With Humidity Sensor
S - With Motion Sensor
-1S - Silver Painted Panel
-3 - Chrome Painted Panel

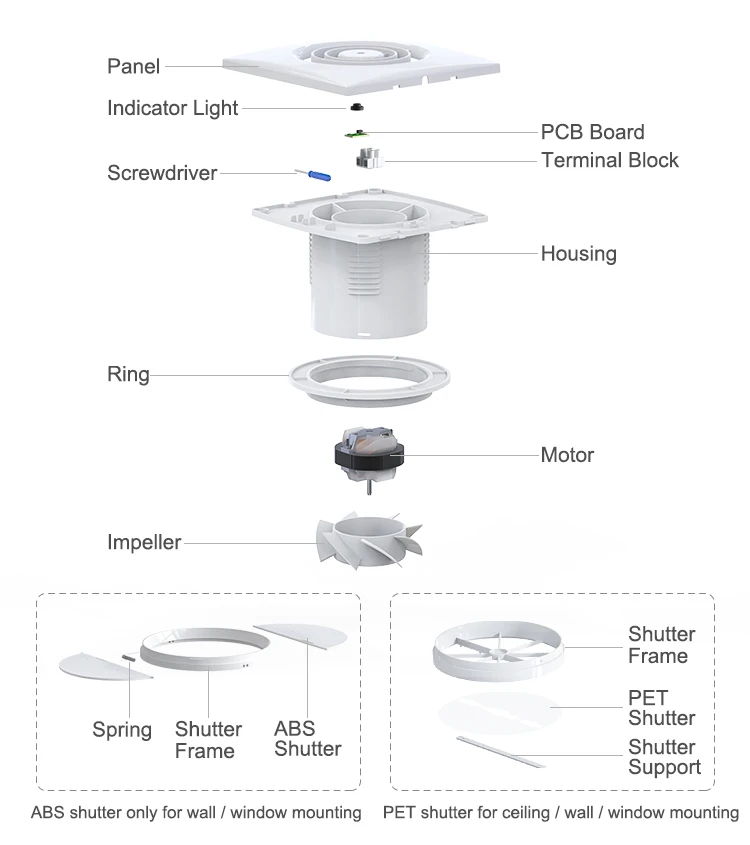

Exploded View
