DIN 1.0/2.3 Connector Male Direct Solder for RG402 .141

Product Overview

Description

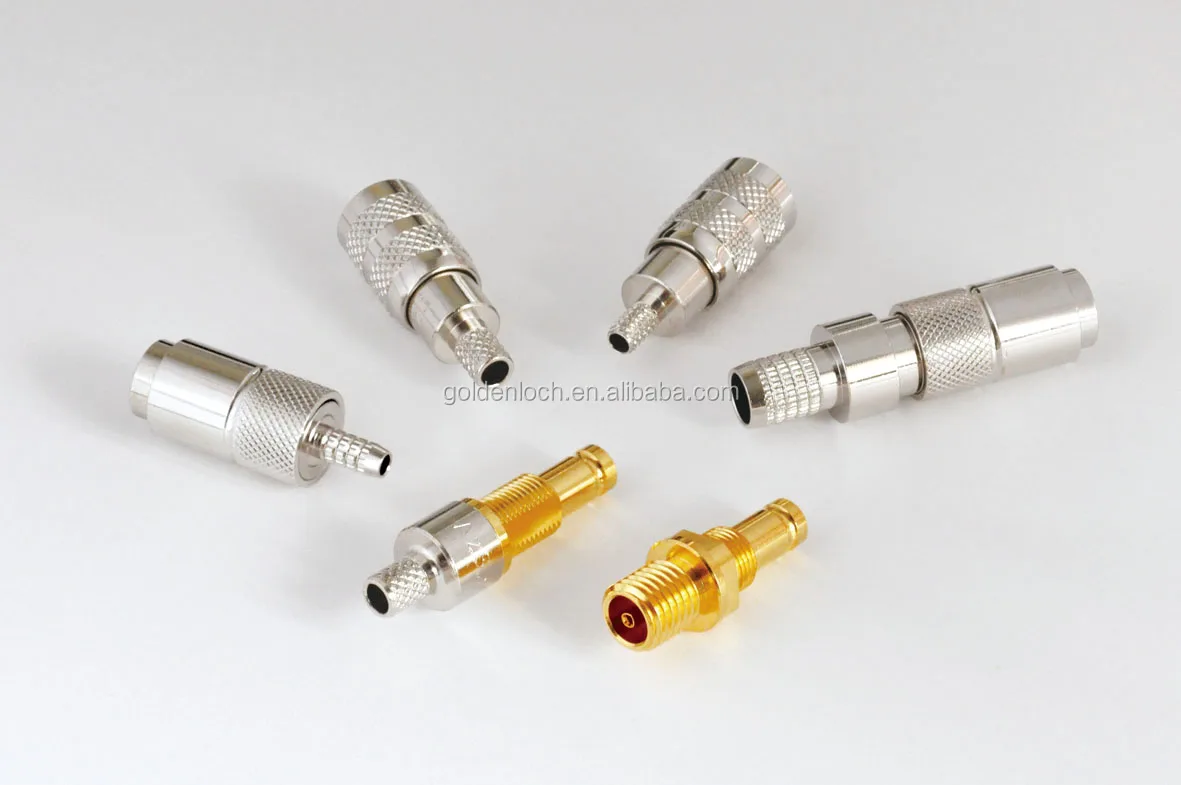

DIN 1.0/2.3 Connector Direct Solder Plug for RG402 .141

1. ISO 9001 & IATF 16949 certified
2. RoHS & REACH compliant
3. Made in Taiwan





Features:

1. Push-pull coupling
2. Locking mechanism will not vibrate loose as threaded connectorsare prone to do
3. Easy installation

Applications:

1. Amplifiers
2. Switching Equipment
3. Base Stations

Electronical Specifications

Impedance	50 Ω & 75 Ω
Frequency Range	0-10 GHz
Working Voltage	250 VRMS max. at sea level
Dielectric Withstanding Voltage	750 VRMS min. at sea level
VSWR	Straight: 1.3 max.
Contact Resistance	Center Contact: 10 milliohm Max.
	Outer Contact: 3 milliohm Max.
Insulator Resistance	10,000 megaohms min.





Material Specifications

Parts Name	Material		Finish
Male(Plug)	Body/Metal Part	Brass	Nickel
	Outer Contact	BeCu	3u" Gold
	Center Contact	Brass	3u" Gold
Female(Jack)	Body/Metal Part	Brass	Gold/Nickel
	Center Contact	BeCu	3u" Gold
Insulators	PTFE		None
Crimp Ferrules	Brass or Copper		Nickel

Note: Other Material/Finish is available on request
