Product Overview
Description
Product Description

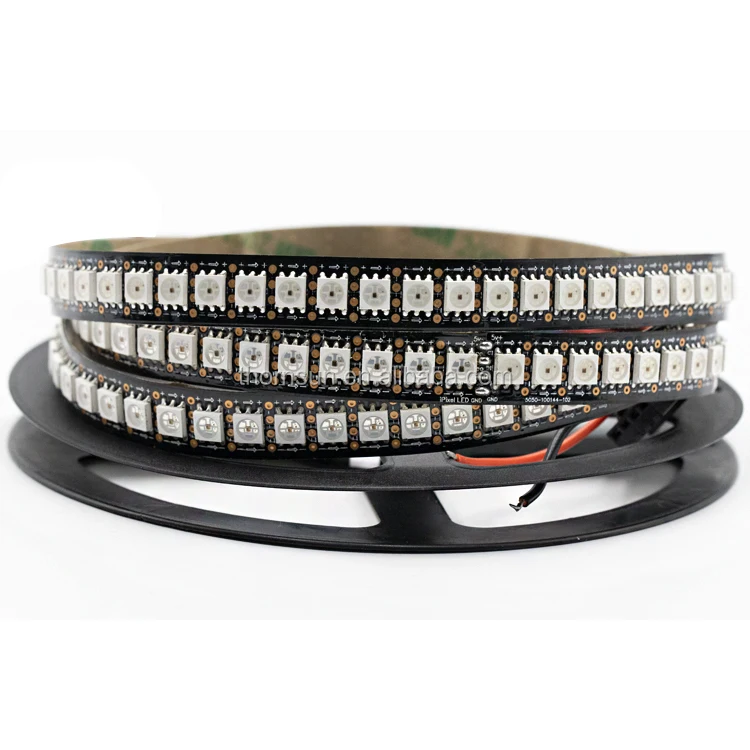

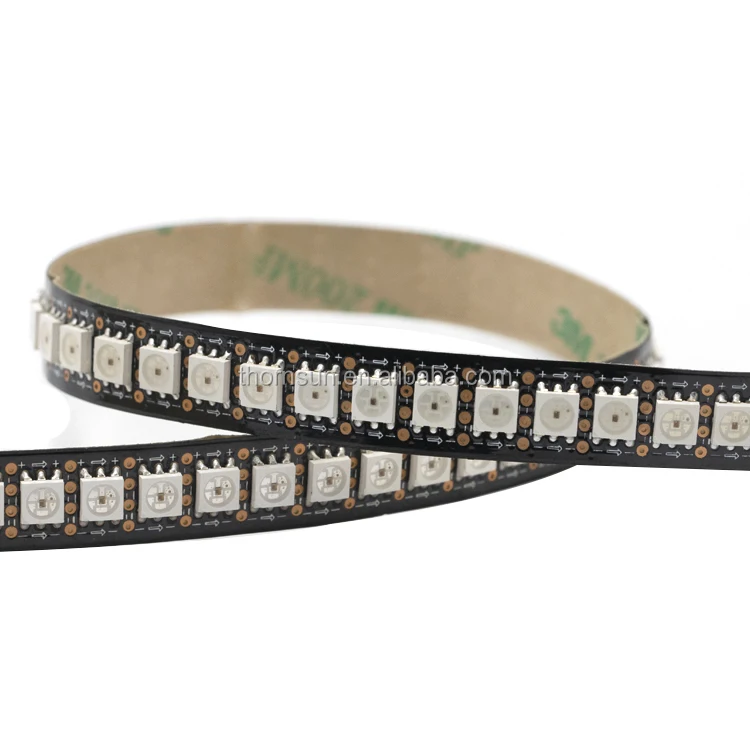

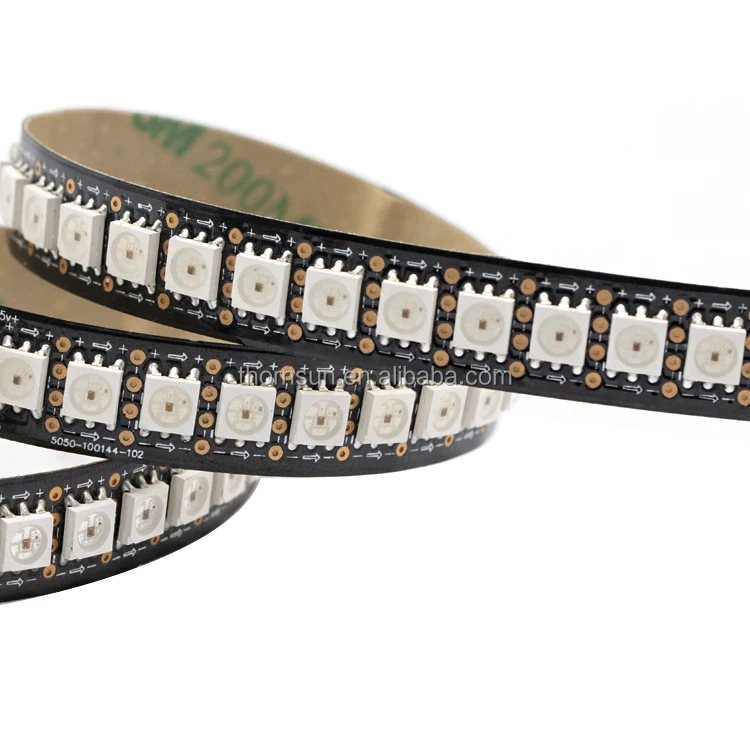

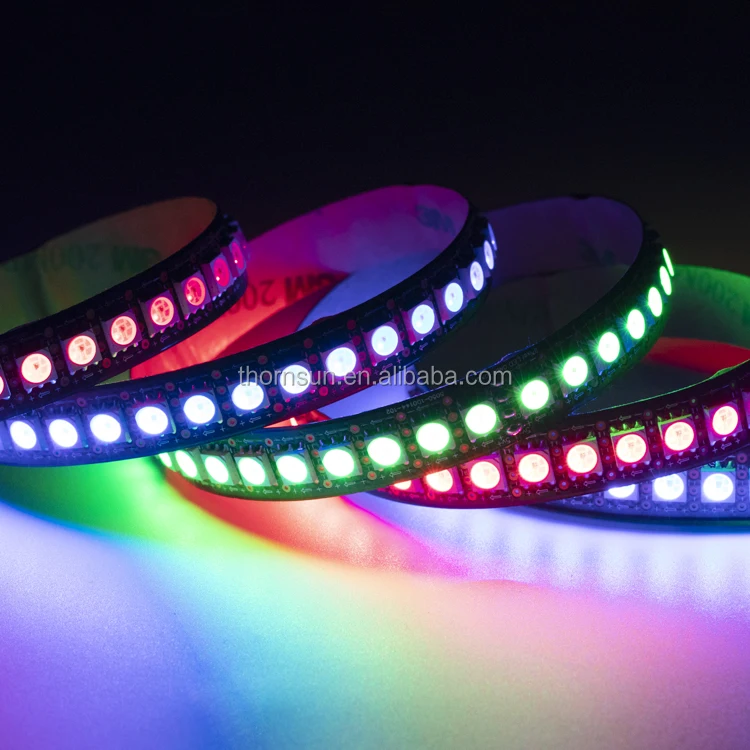

Addressable RGB color DC5V LED strip 5050 SMD flexible light 144pixels SK9822/apa102c
Model number | TS-apa102-144 | ||||
LED TYPEE | SMD 5050 RGB chip | ||||
Available color | RGB | ||||
IC Model | apa102 ic built-in | ||||
Color | Addressable full color | ||||
View angle | 120 degree | ||||
LED QTY | 144LEDS/M | ||||
POWER | 43.2w/m | ||||
Voltage | DC5V | ||||
PCB color | white /black | ||||
PCB width | 12mm | ||||
Installation | wiht 3M adhesive back ,easy for installation | ||||
IP rate | IP20/IP65(Silicon tube )/IP67/IP68 | ||||
Package | 1M/reel .with anti-static bag | ||||
Application | indoor /outdoor decorative lighting ,ceiling lighting ,sign lighting etc. | ||||
Detail use information:
1)Addressable full color led strips----apa102 ic built-in
2)30pcs led per one meter
3) individually control ----------1 ic& 1 led chip
4)Standard Reel Length: 5meter/roll, also can be customized.5) Cutted: 1 integrated RGB LEDs per segment, can be cutted per 1LED.
you can cut this stuff pretty easily with wire cutters, there are cut-lines
every 0.65''/3.33cm(1 LED each), Solder to the 0.1'' copper pads and you're good to go.
you can cut this stuff pretty easily with wire cutters, there are cut-lines
every 0.65''/3.33cm(1 LED each), Solder to the 0.1'' copper pads and you're good to go.
6)Power supply: You must use a 5V DC power supply to power this strip, do not use higher than 6V or you can destroy the entire strip
7)Connectors: 4PIN JST female and male connectors, DAT, CLK, DC5V+, GND-.these LEDs have 2 wires (input and out put) for sending data - one clock pin and one data pin.That means you need two pins, not one, to control DotStars. Because the clock and data is seperated, you can use any processor speed or type to control these strips, and you don't have to worry about being careful with the timing.
8)LED Brightness: Red ~600mcd, Green ~500mcd, Blue ~150mcd
Connection:
SPI signal :LED strip+ LED power supply +led controller
DMX control :LED strip + LED power supply+DMX controller +DMX decoder
LED controller :T-series SD card controller ,RF remote controller .DMX controller,Arduino.........(off line /PC online)
LED power supply :Meanwell power supply ,T- series ,A-series .... (waterproof /non-waterproof )
Controller and Power supply:
T-100S +Meanwell power:
Application
house decorative lighting
outdoor lighting
logo decorative lighting
