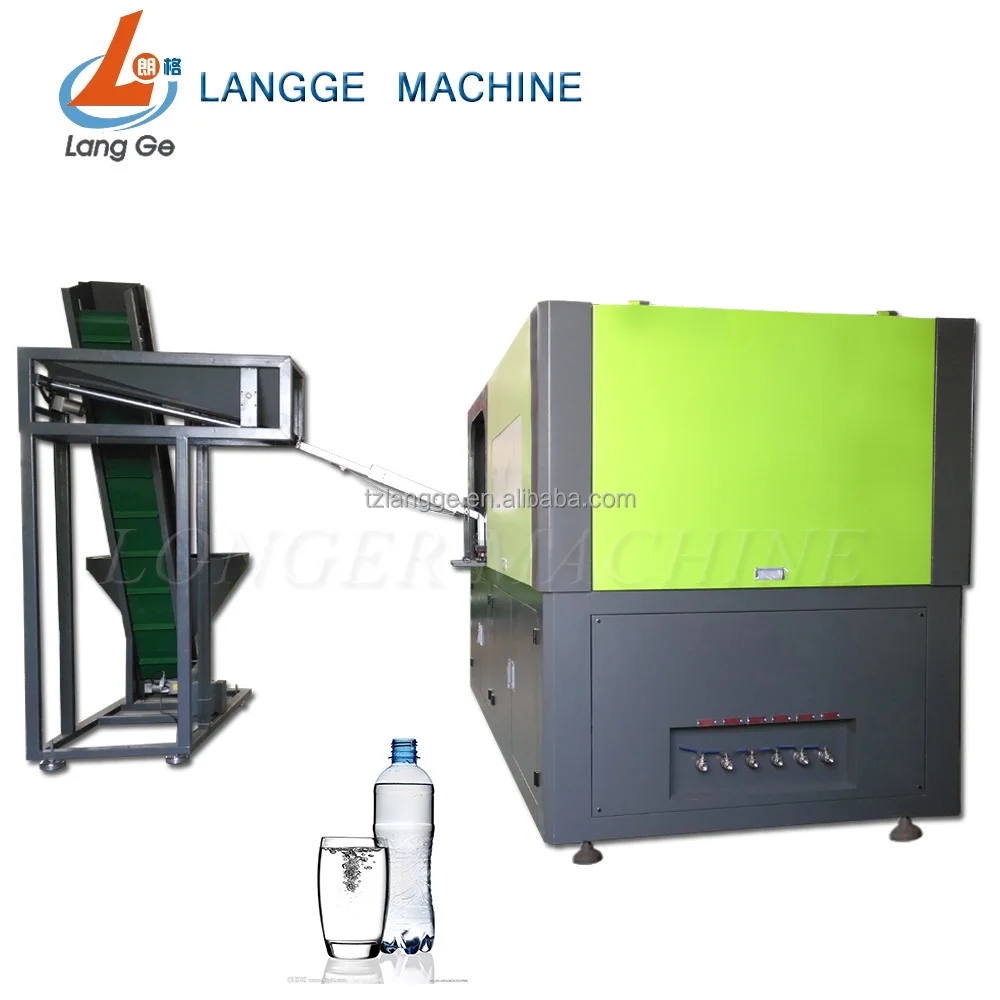

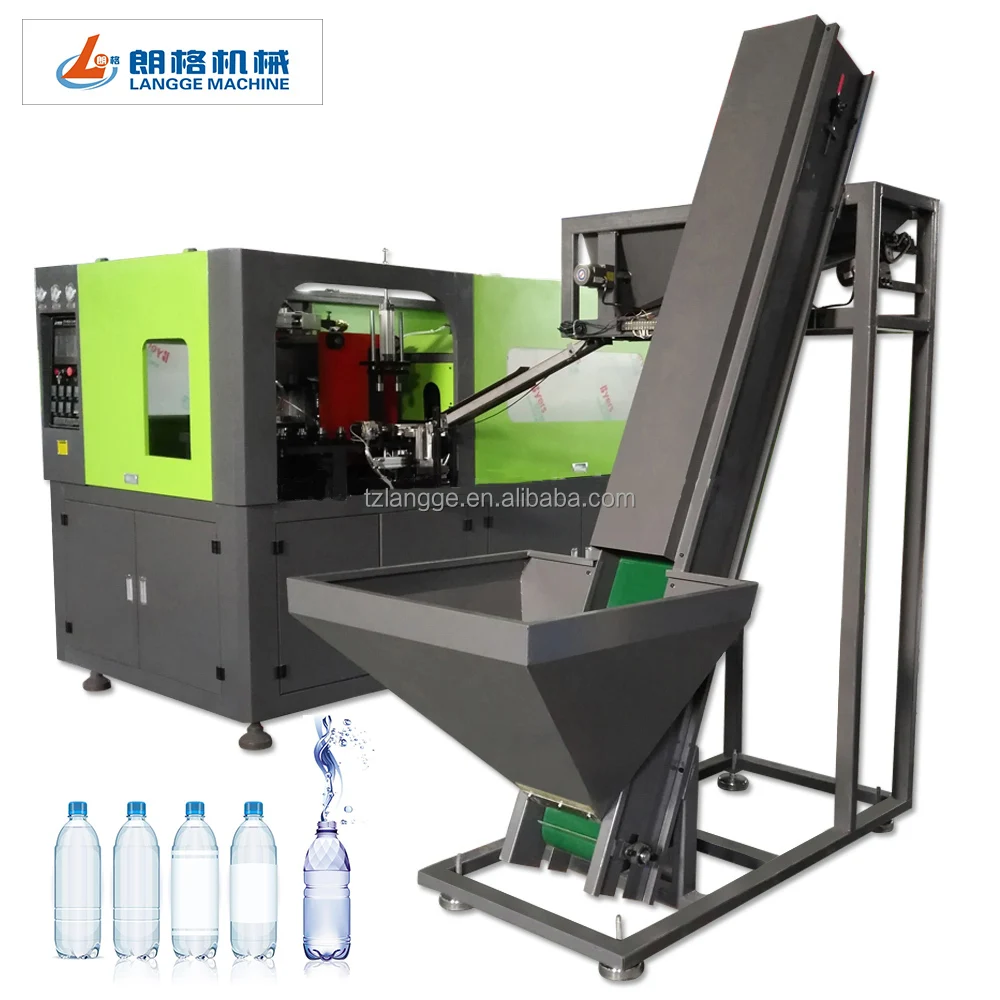

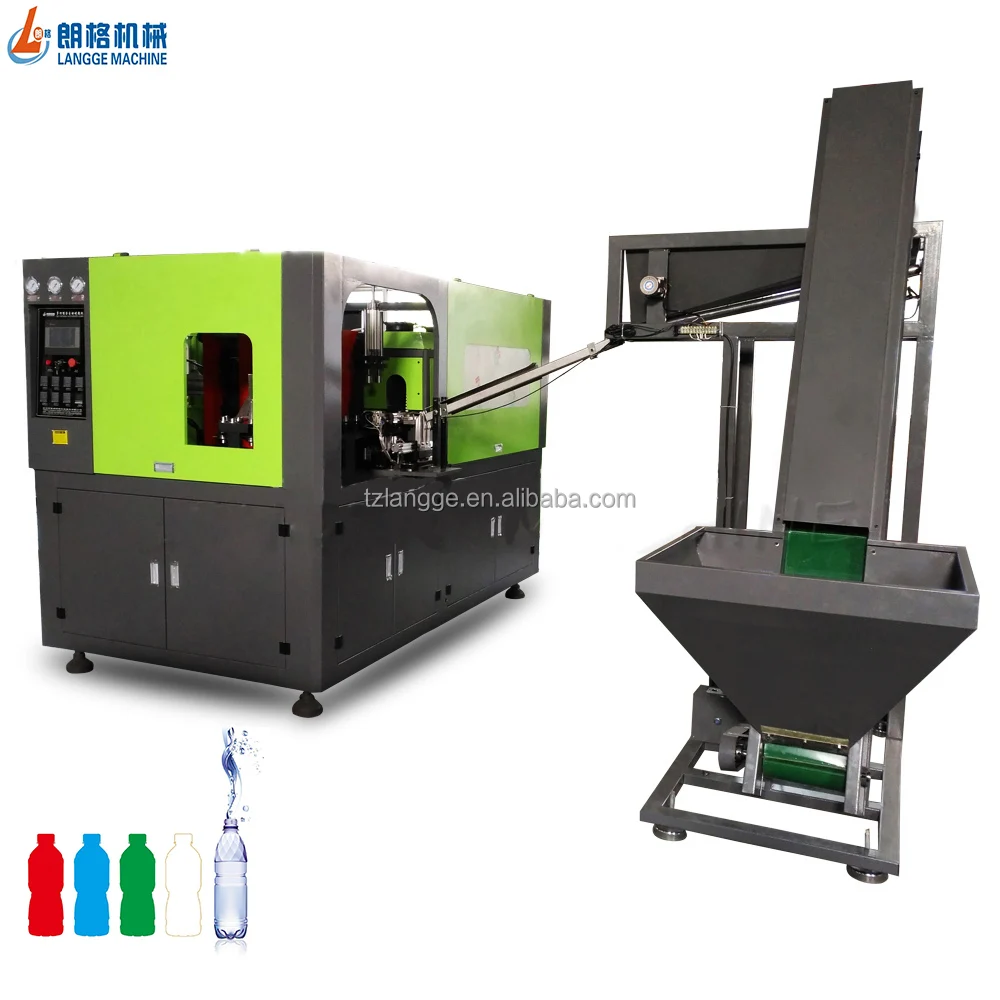

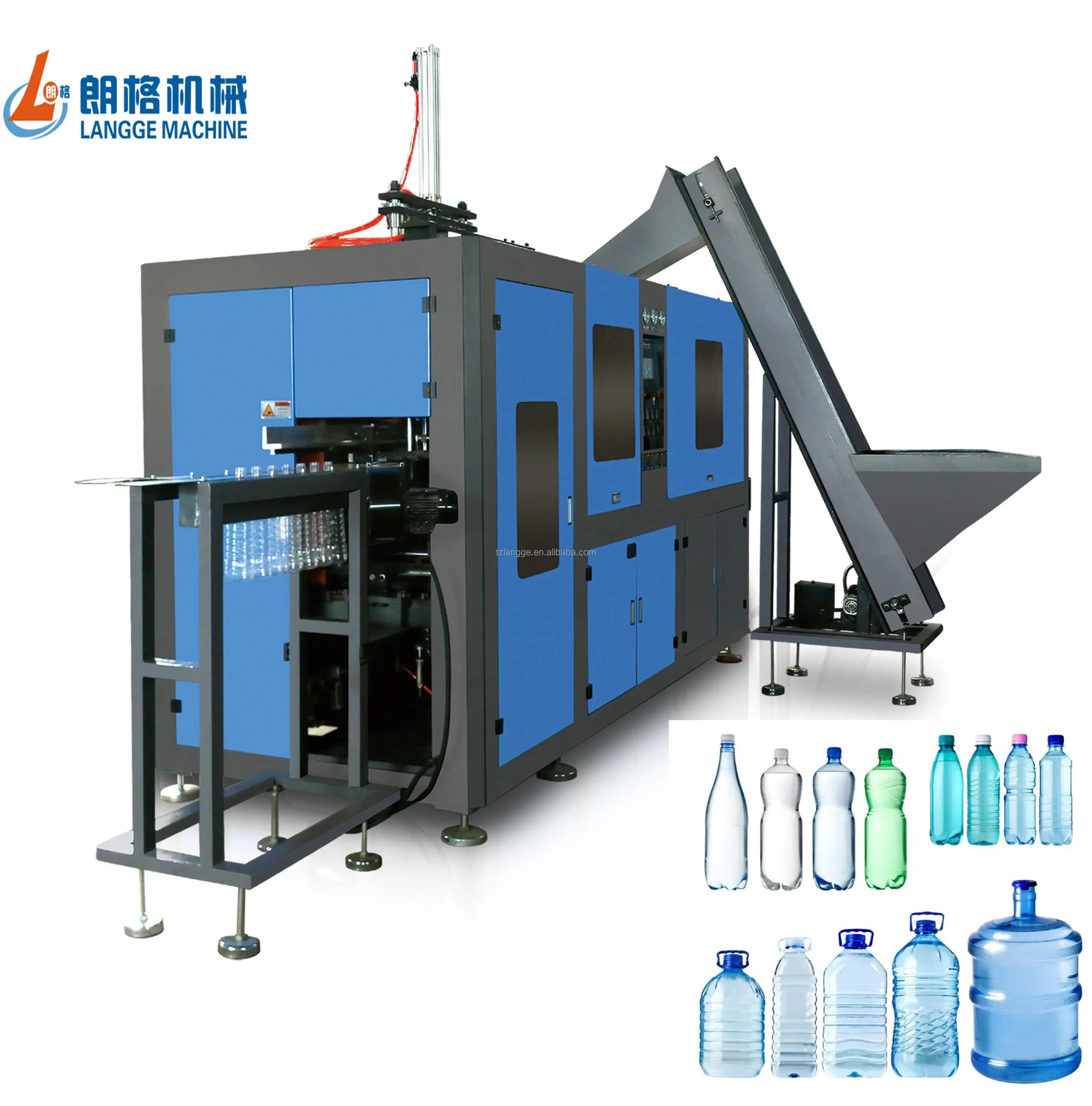

New water bottle manufacture Automatic PET bottle blow molding machines price for sale

Share on (60698896157):


Price:

Quantity:


Product Overview

Description


_01



Product Description

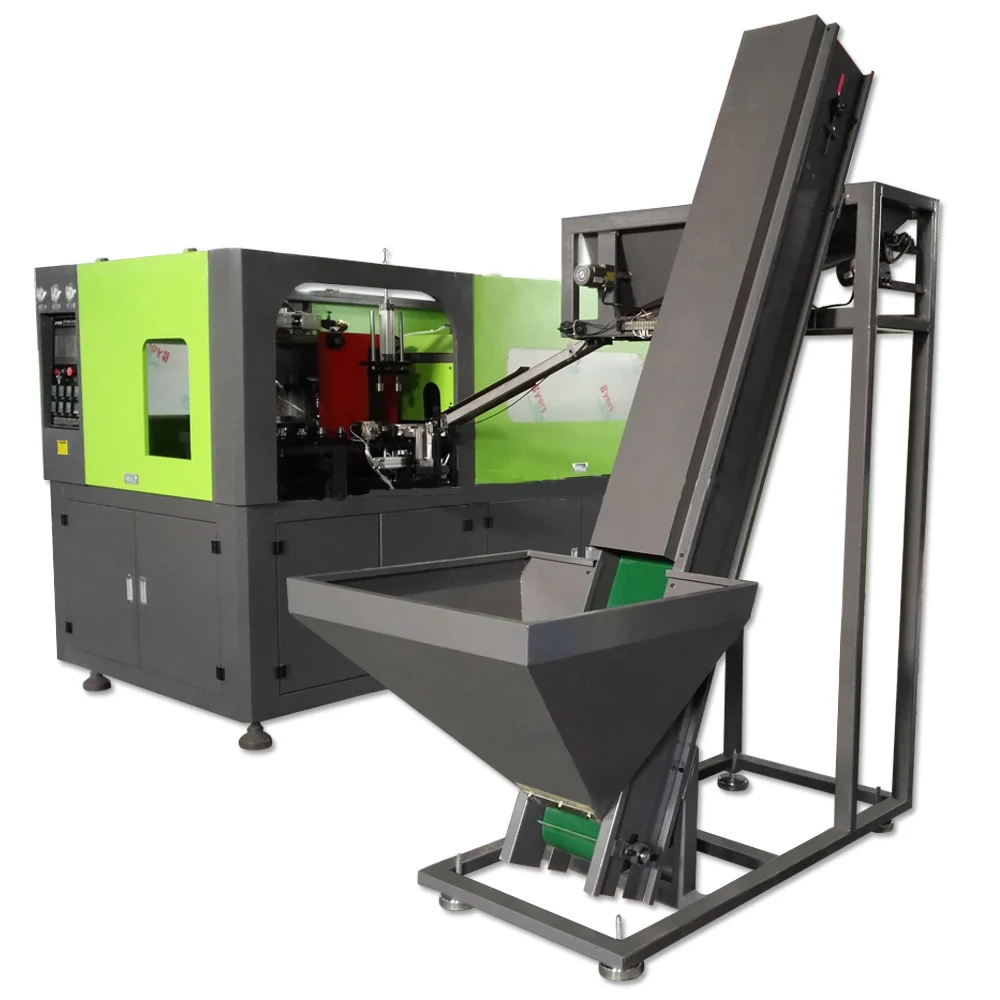

_02 2


A. Stable performance with advanced PLC.
B. Conveying preforms automatically with conveyor.
C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
D. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
F. No contamination and low noise.
G. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
H. Strong clamping force with high pressure and double crank links to lock the mold.
I. Two ways of operating: automatic and manual.
J. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
K. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
L. Contamination is avoided for the bottle body.
M. Ideal effect of the chilling with the chilling system.
N. Easy installation and starting










































































































ITEMUNITLGE-2-5LG
Number of cavitycavity2
Theoretical Outputpcs/hr1200-1400
Max.container volumeL5
Max.neck diametermm130
Max.container diametermm180
Max.container heightmm330
Mould Thicknessmm240
Mould Strokemm210
Streching strokemm228
Heat Lamp Amount pcs28
Max.heating powerkw42
Power of Main Blowerkw43
Actual power consumptionkw20-30kw
Working PressureMpa0.8
Low pressure consumingLtr/min1600
Blowing pressureMpa3.5
High pressure consuming Ltr/min2400
Measurement of Main Blowermm2280*2200*1800
Weight of Main Blowerkg2600

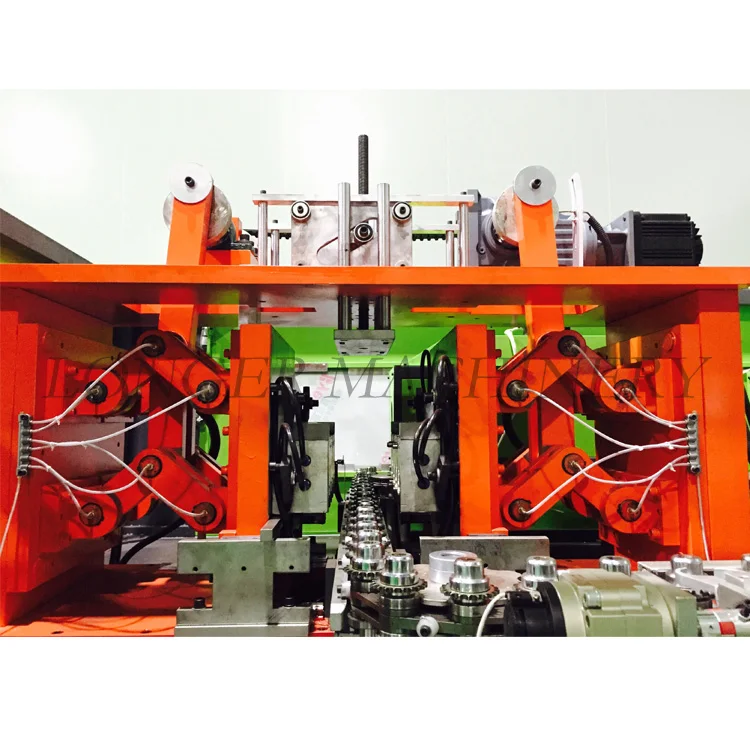

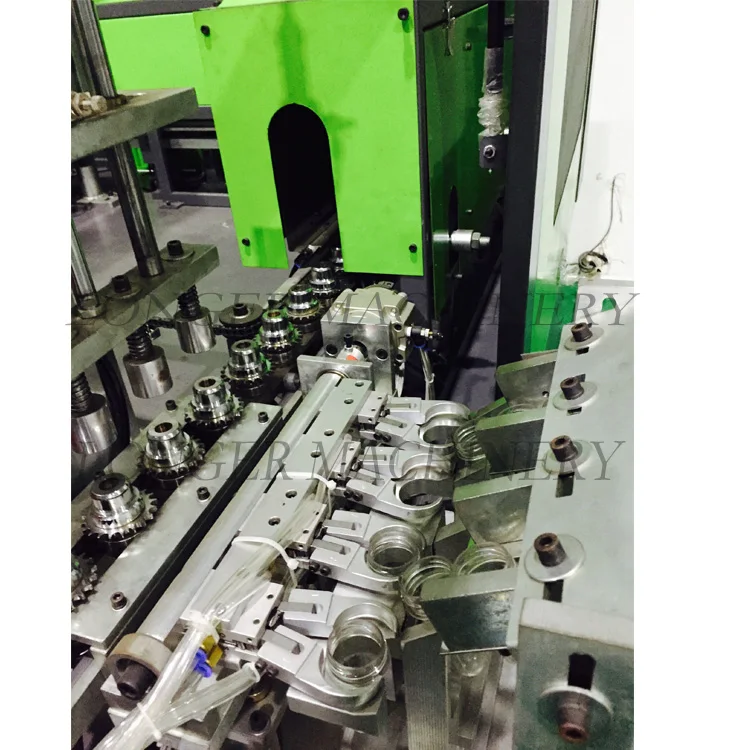

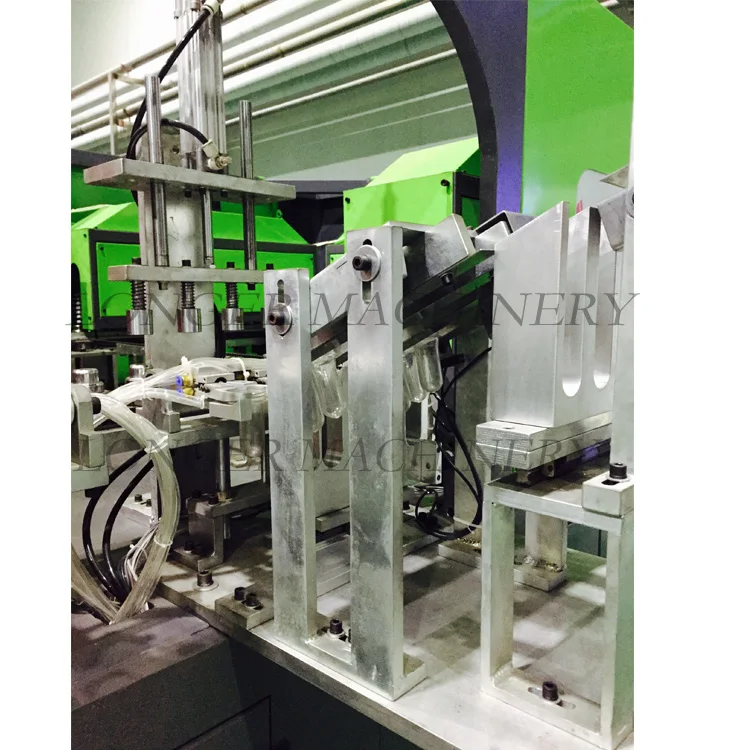

auto detail

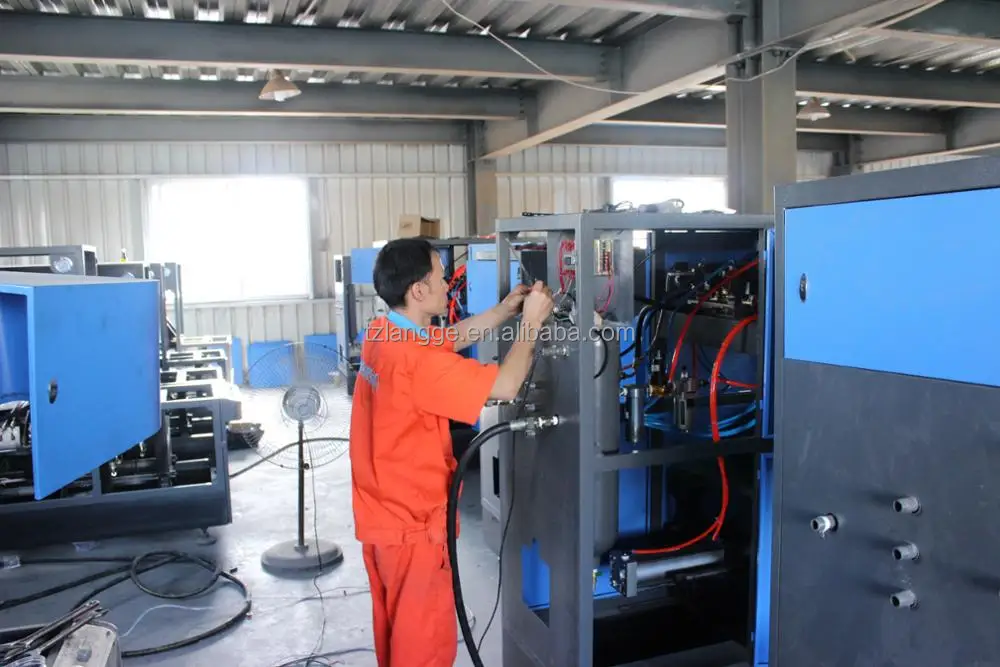

About us


_08_09





Blow process


_10





Packaging


_11 _12
