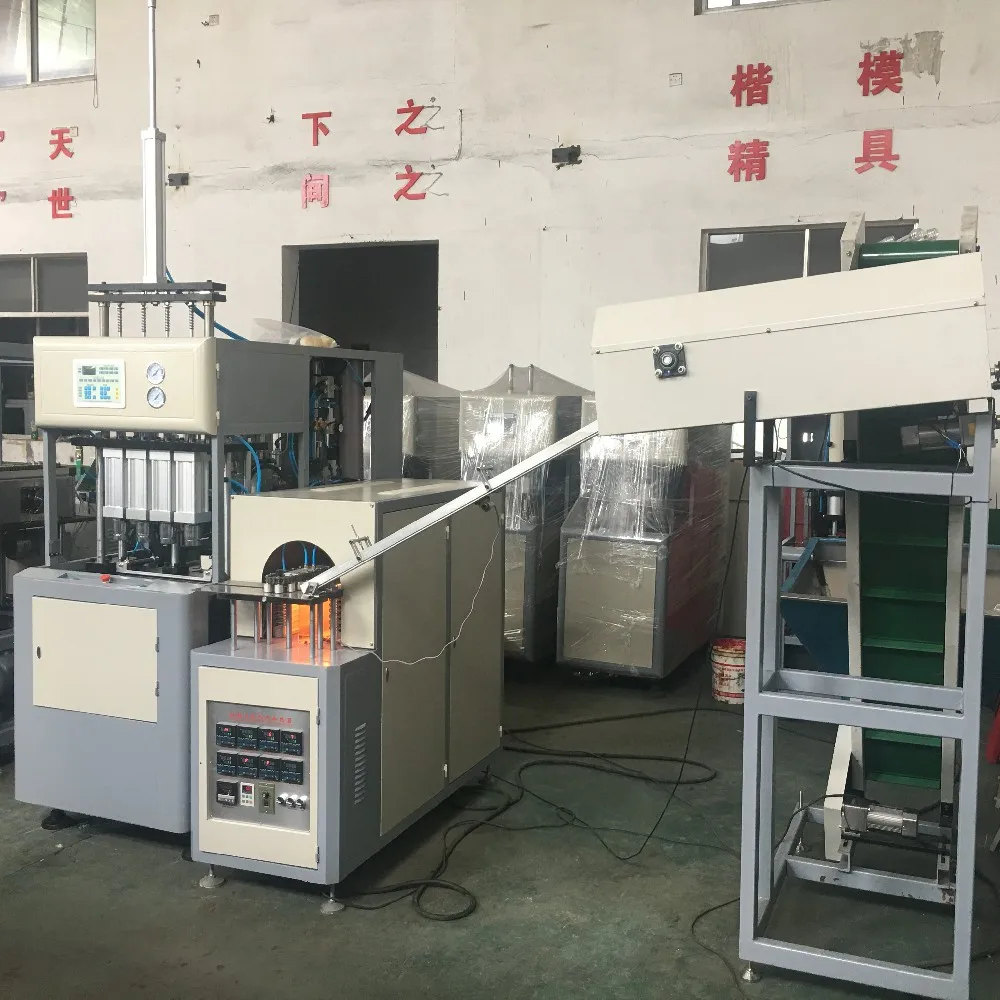

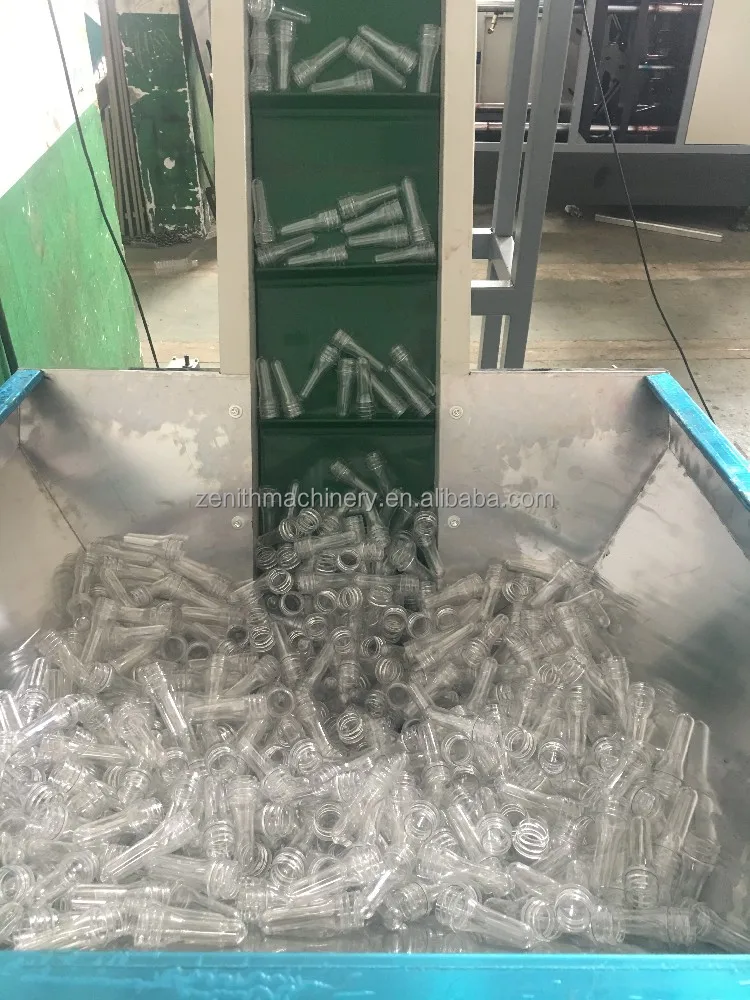

4cavity semi automatic PET bottle blowing machine price with preform autoloader
- Category: >>>
- Supplier: Zhangjiagang Zenith Beverage Machinery Co. Ltd.
Share on (60698929324):
Product Overview
Description

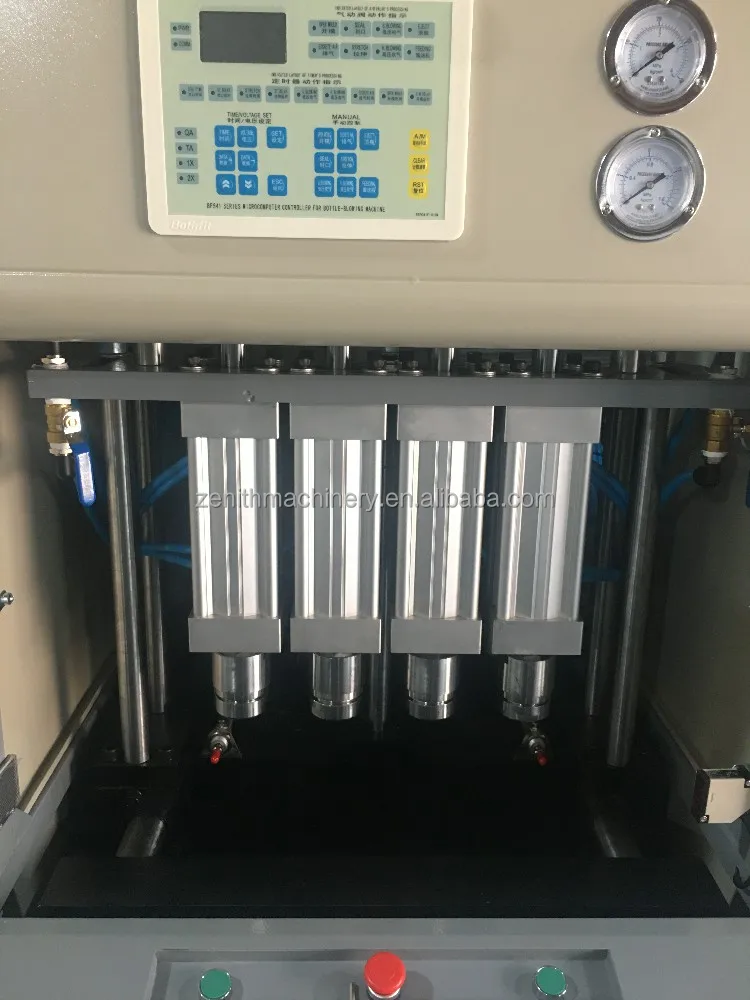

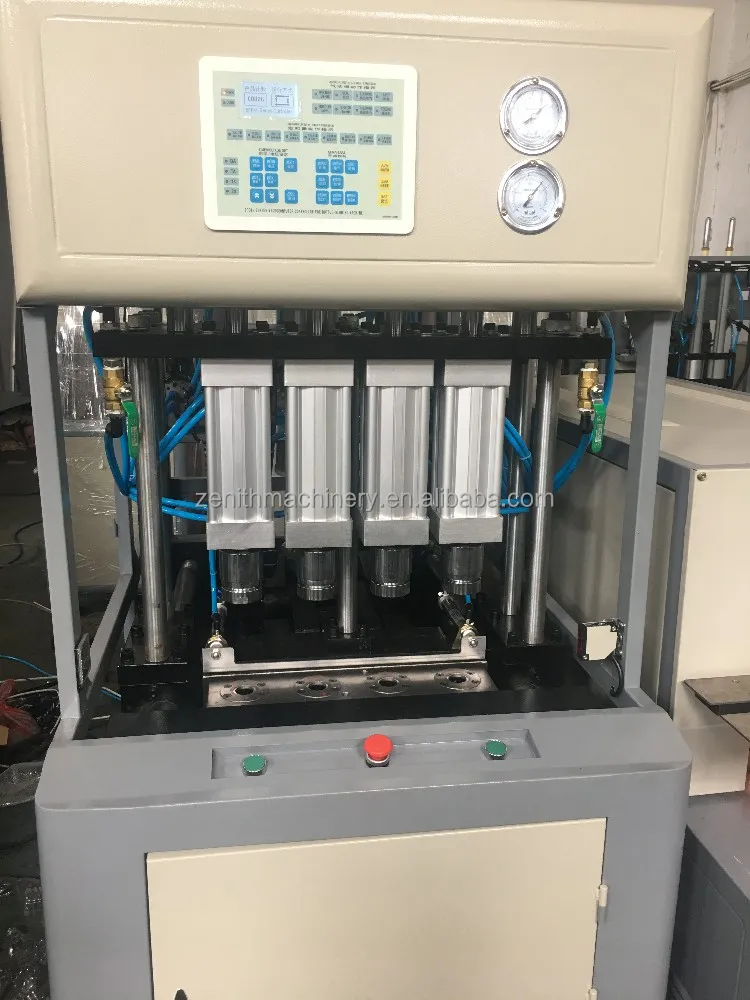

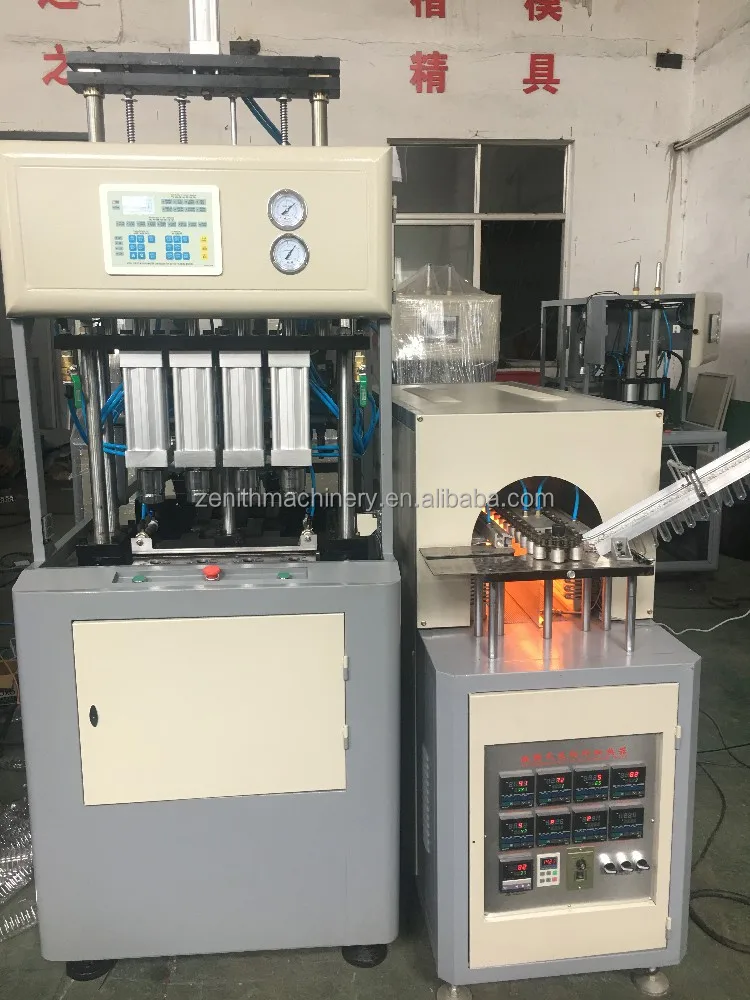

\t\t\t\t\t\t\t\t\tMachine Main photos \t\t\t\t\t\t\t
Product Description
Product Application
PET bottle blowing machine price is low cost and high production,

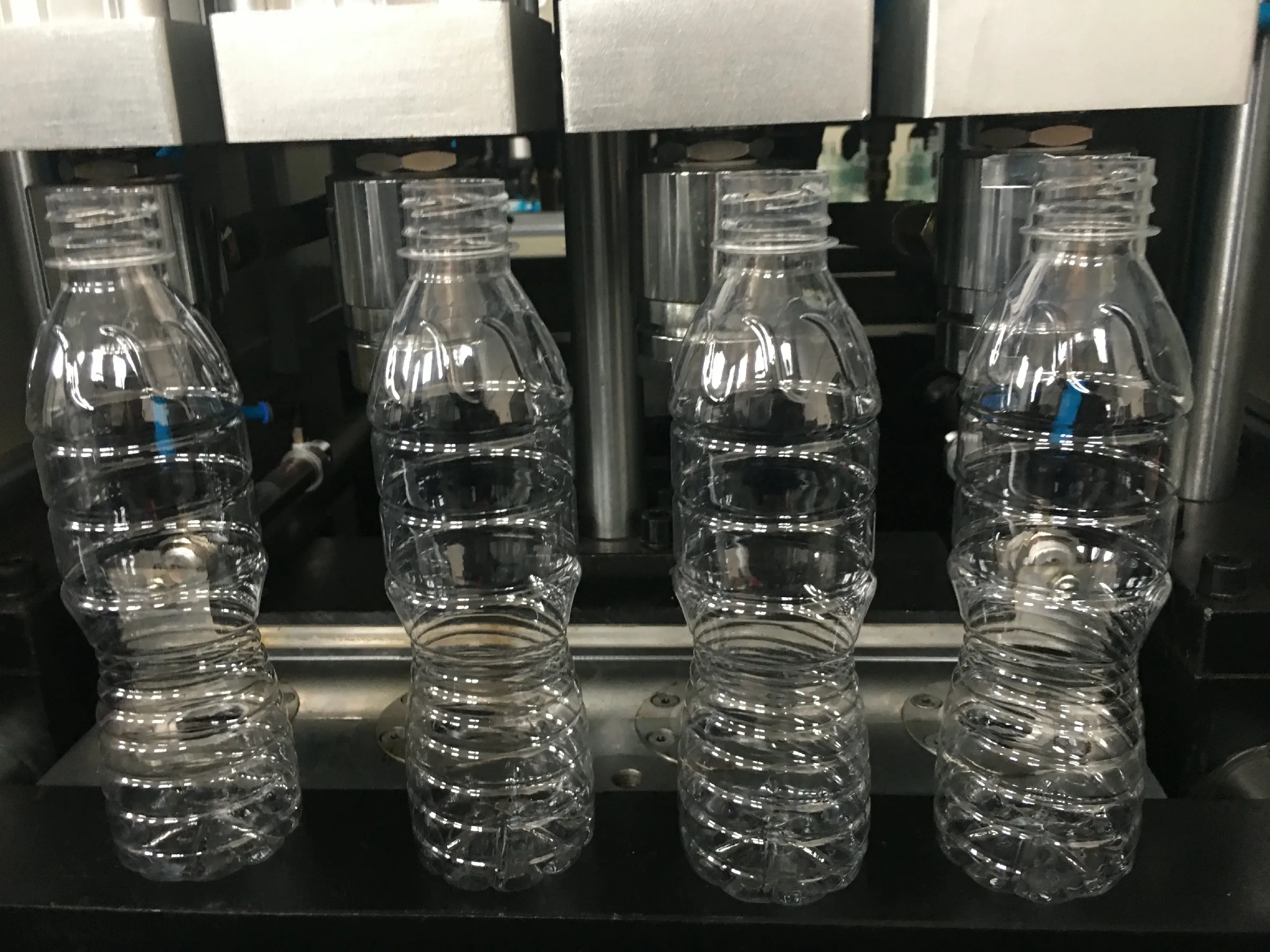

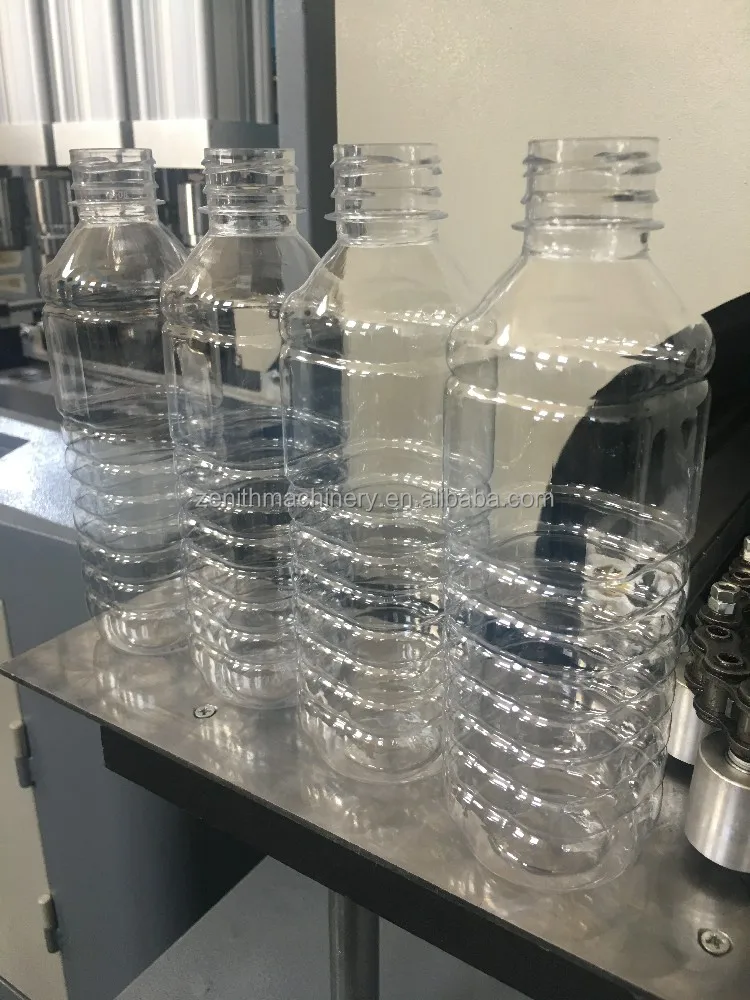

it is applied for 50ml-2000ml small volume bottle production,
PET bottle blowing machine is best suitable for medium scale production; the preforms automatic loaded and heated in infrared oven, then the heated preforms manually put into blow mould to stretch blowing into bottles,
bottle blowing machine main advantage is this machine can achieve double output production capacity than 2cavity blow molding machine, by just one workers,
Main Advantage

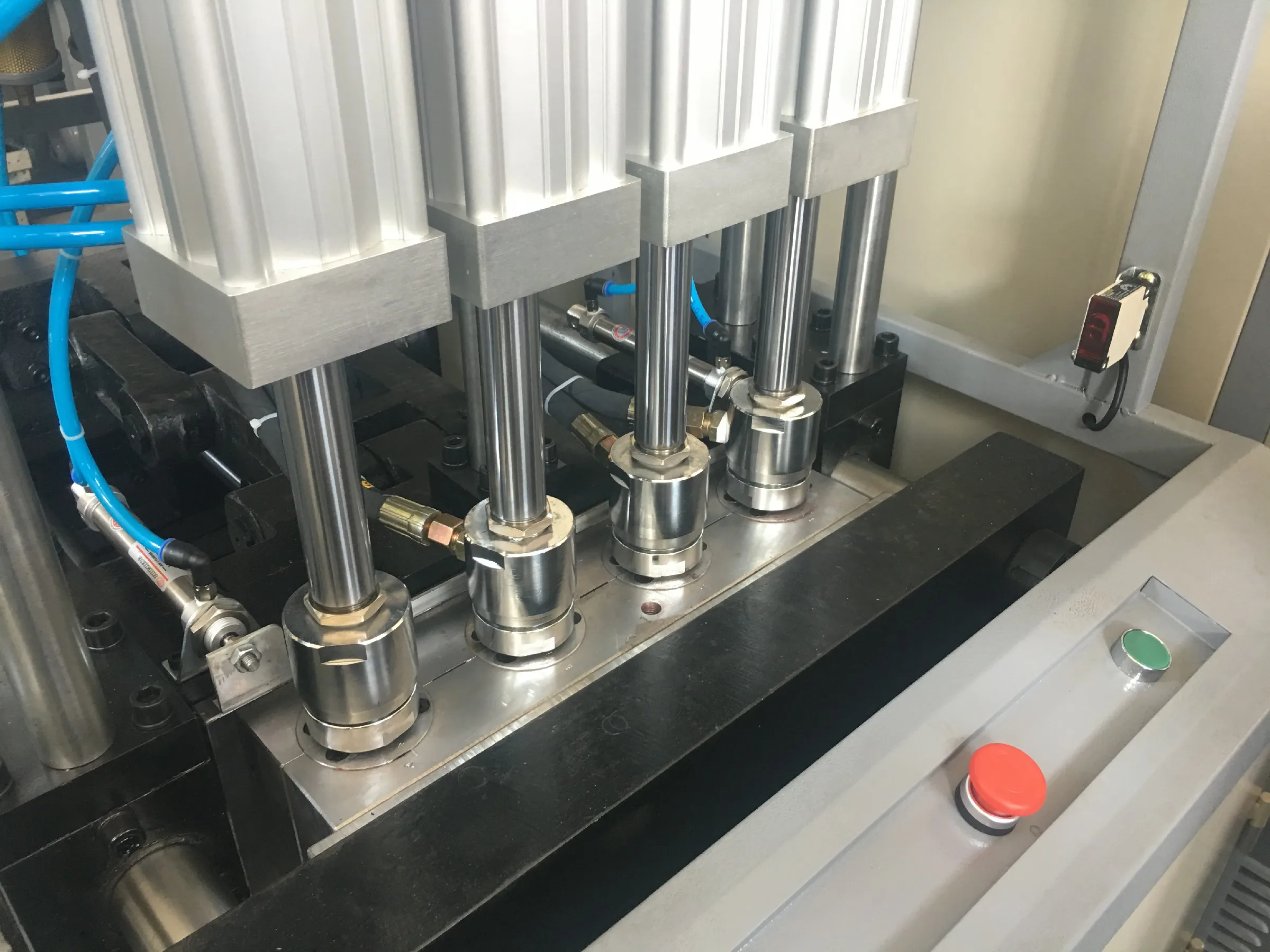

big flow rate blowing valve design guarantee smooth and continous blowing,with pre blow function gurantee the blowed bottle with evenly thickness,

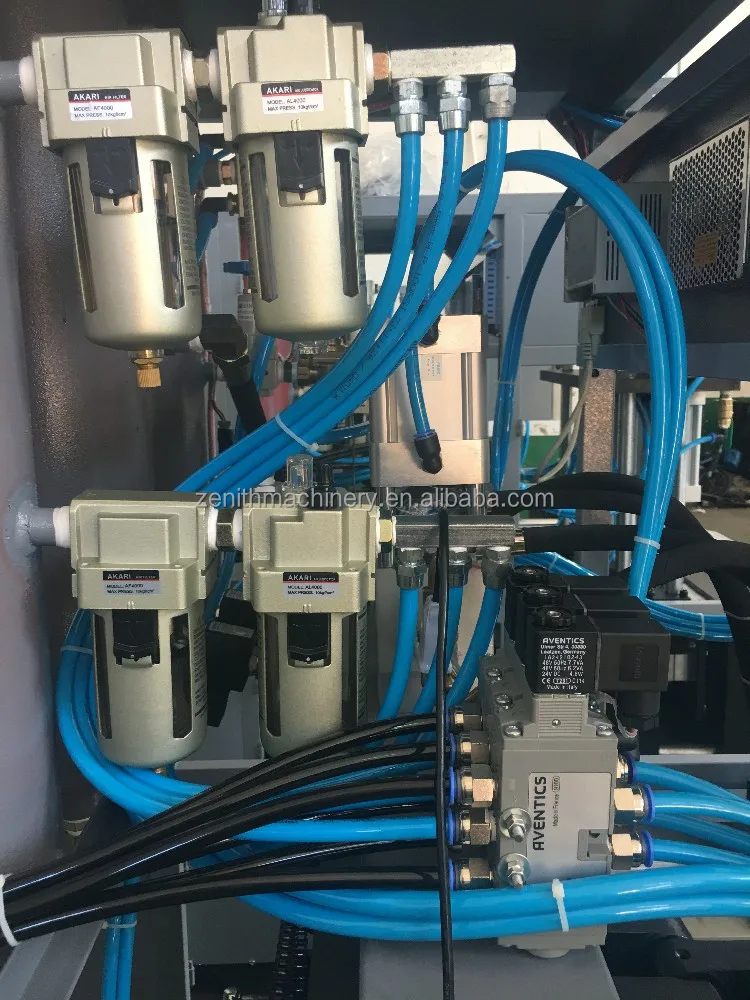

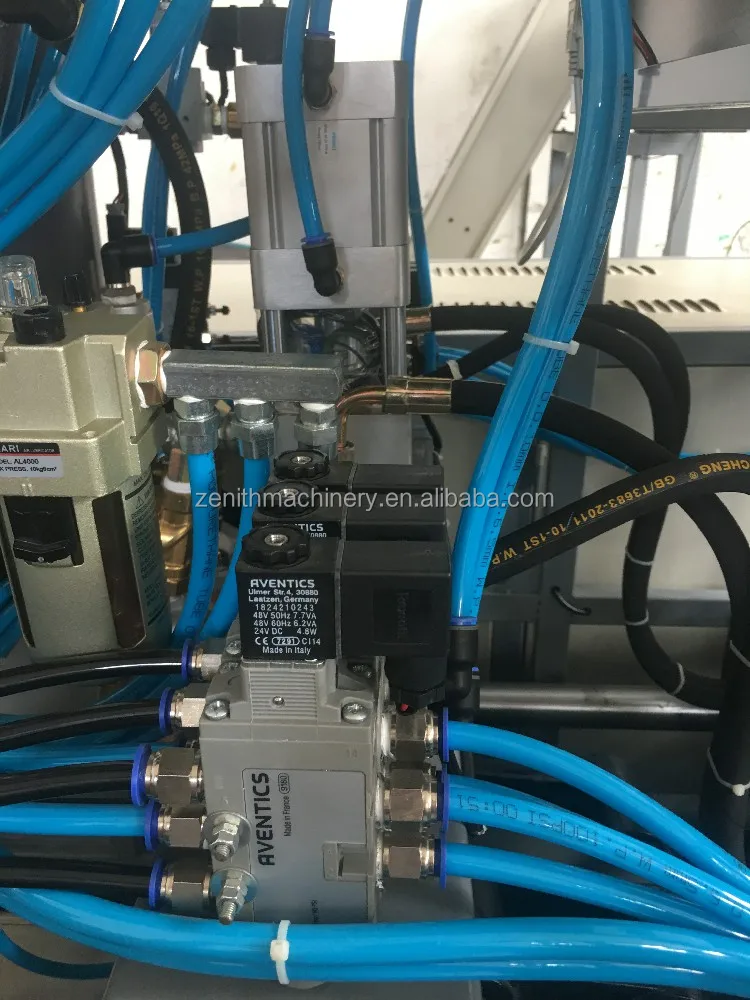

Germany brand solenoid valve guarantee the blowing machine action stable,

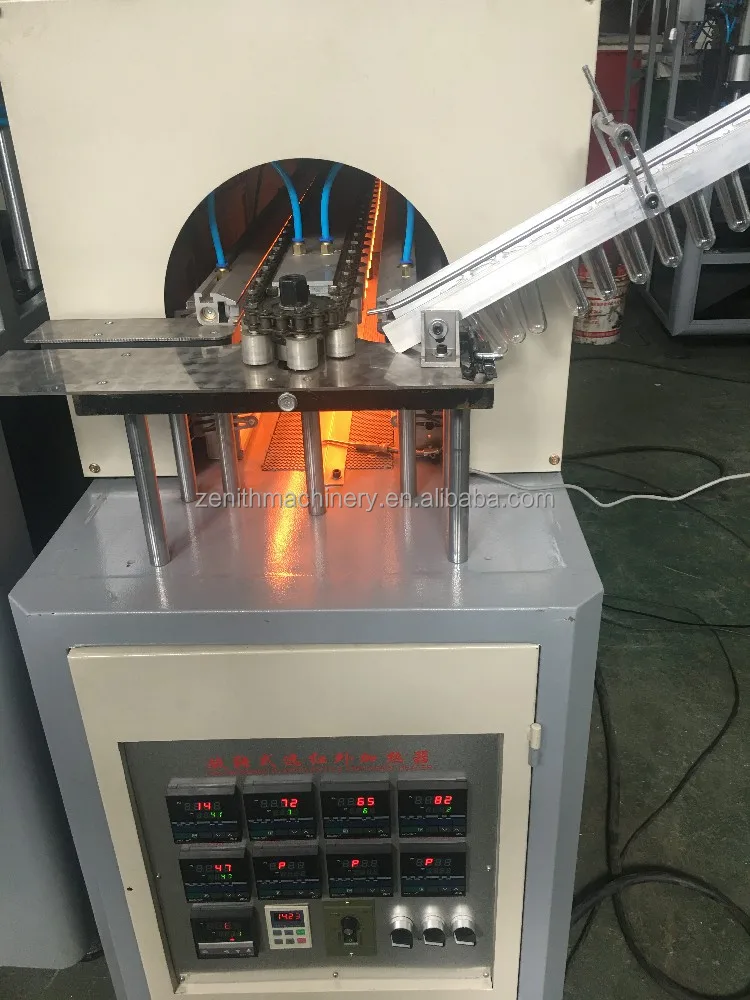

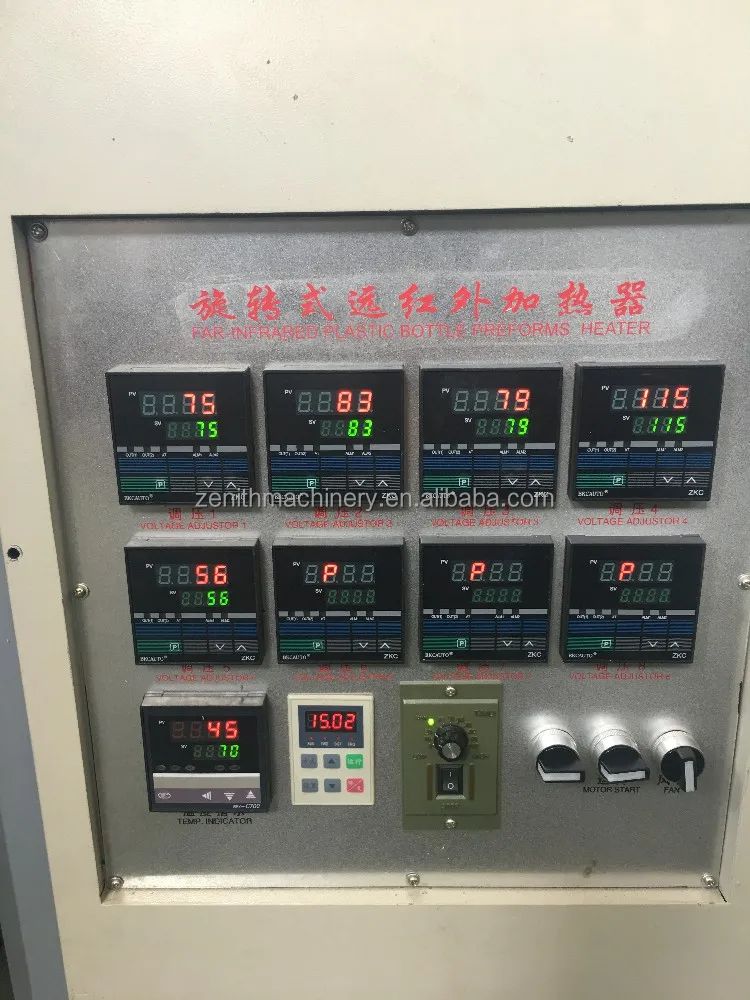

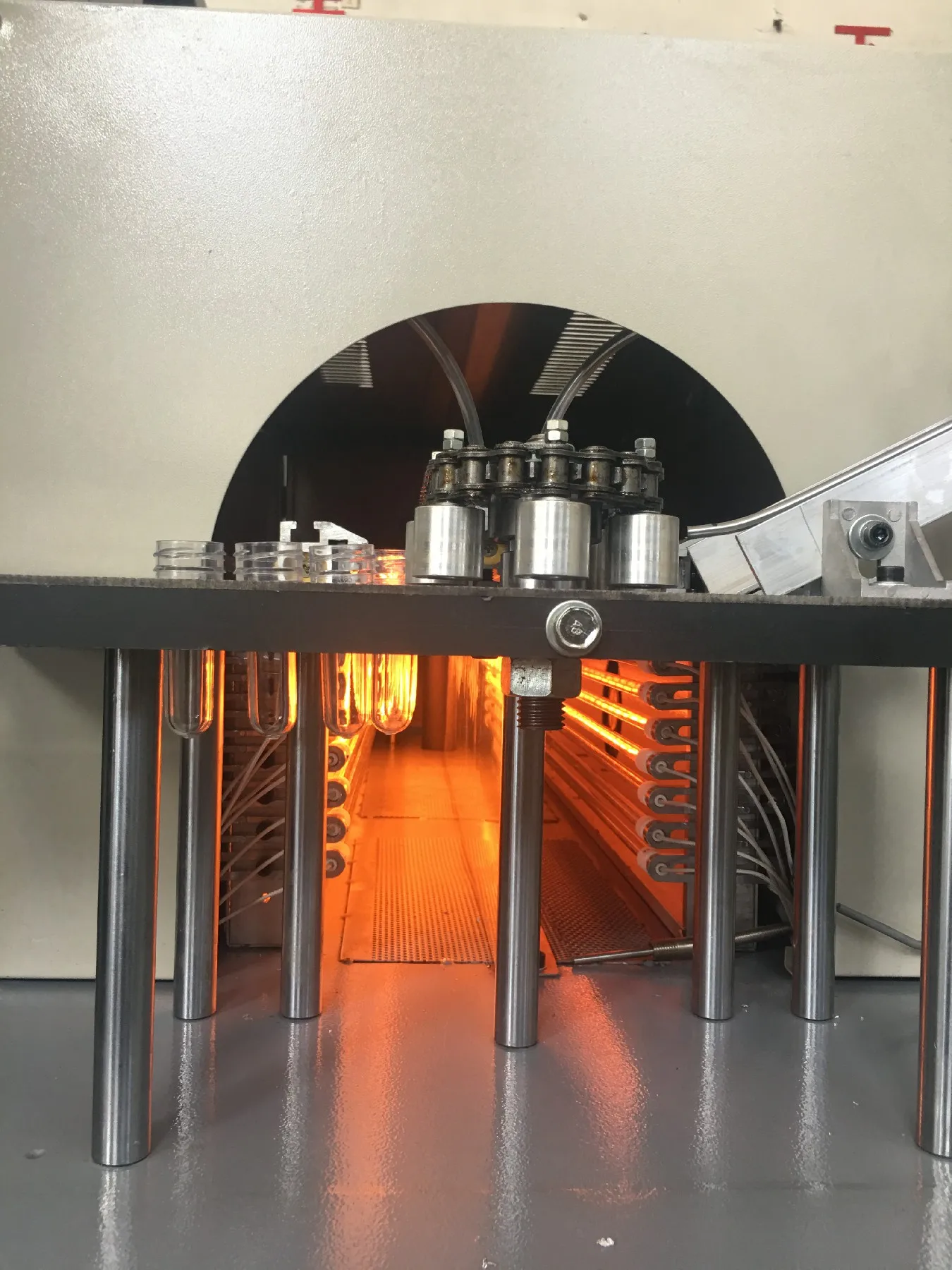

Infrared heating oven Temperature by Temperature control module gurantee the heating stable,
The machine is controlled by PLC system, with menu of different language for easy setting
\t\t\t\t\t\t\t\t\tMain Specification \t\t\t\t\t\t\t
MODEL | Unit | ZAB-4-2200 | ||
Products | Raw material | PET | ||
Max.Capacity of bottle | L | 2 | ||
Theoretical production capacity | BPH | 2200 | ||
Max.neck diameter | mm | 38 | ||
Max.bottle height | mm | 360 | ||
Max.bottle diameter | mm | 120 | ||
Molding unit | Clamping force | Kn | 180 | |
Max.mould plate dimension(L*H) | mm | 420*640 | ||
Mould opening stroke | mm | 200 | ||
Max.Mould stretching stroke | mm | 400 | ||
Max.Mould thickness | mm | 240 | ||

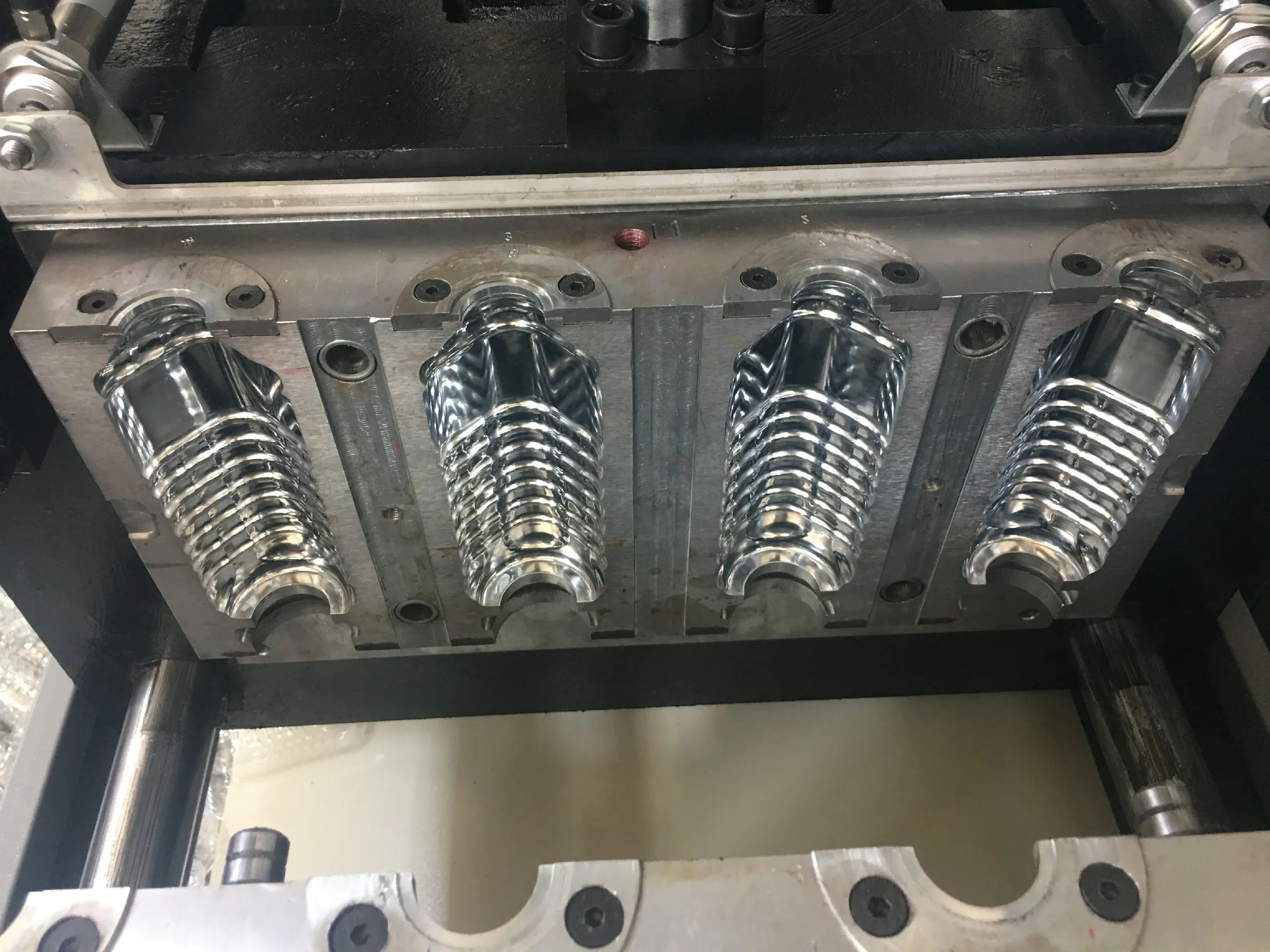

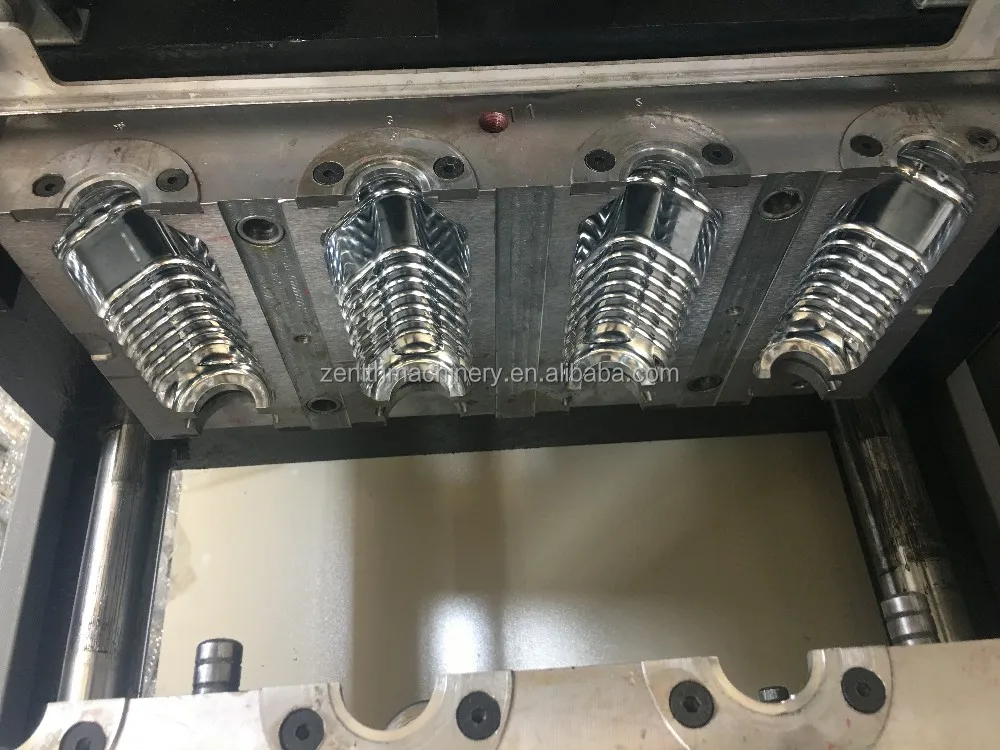

Number of cavity | cavity | 4 | ||
Electricity | Total power consumption | Kw | 12 | |
Voltage/frequency | v/hz | 380v 220v 3phase /50hz 60hz | ||
Compressed Air system | Operation pressure | Mpa | 0.8-1.2 | |
Blowing pressure | Mpa | 30 | ||
High pressure Air consuming | M3 /min | 2.4 | ||
Air Cooling dryer | M3 /min | 2.0 | ||
Air filters 2pcs | M3 /min | 2.0 | ||
Air tank | L | 300 | ||
Chilled water | Water chiller | recyling cooled water 20degree | ||
Machine size and weight | Blower dimension(L*W*H) | m | 1.70x0.90x2.12 | |
Blower weight | Kg | 1000 | ||
Heater dimension | m | 2.18x0.70x1.75 | ||
Heater weight | Kg | 400 | ||
Preform autoloader dimension | m | 1.50x0.65x2.08 | ||
preform autoloader weight | Kg | 220 | ||
\t\t\t\t\t\t\t\t\tComponents List \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tAccessory machines \t\t\t\t\t\t\t
Shangair brand High Pressure Air compressor
High pressure Air Tank

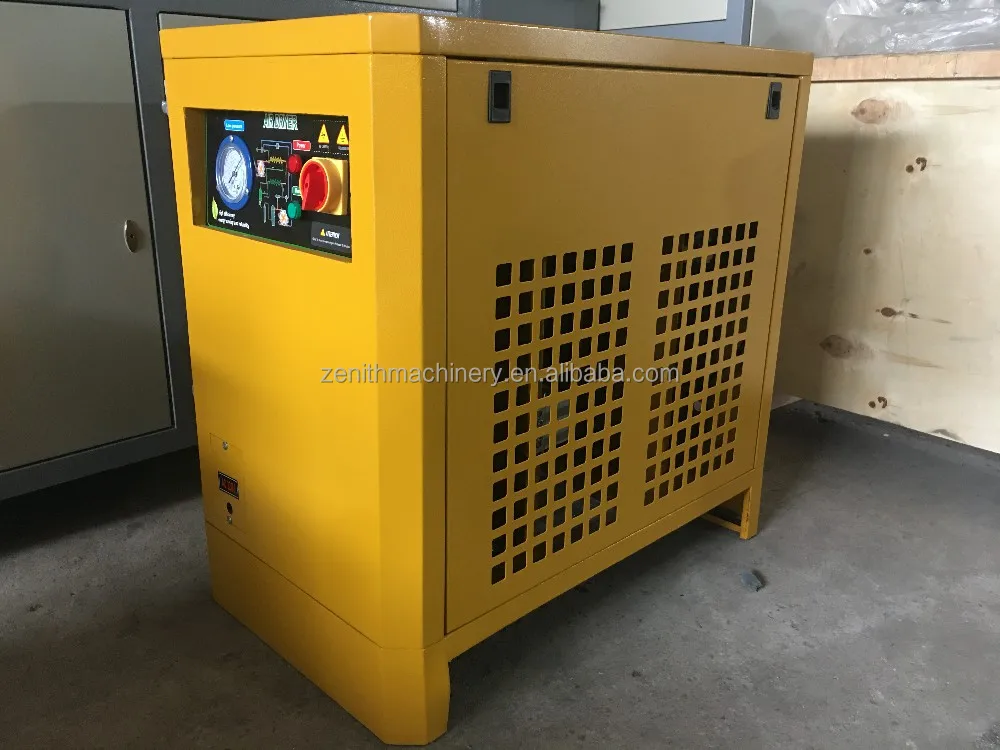

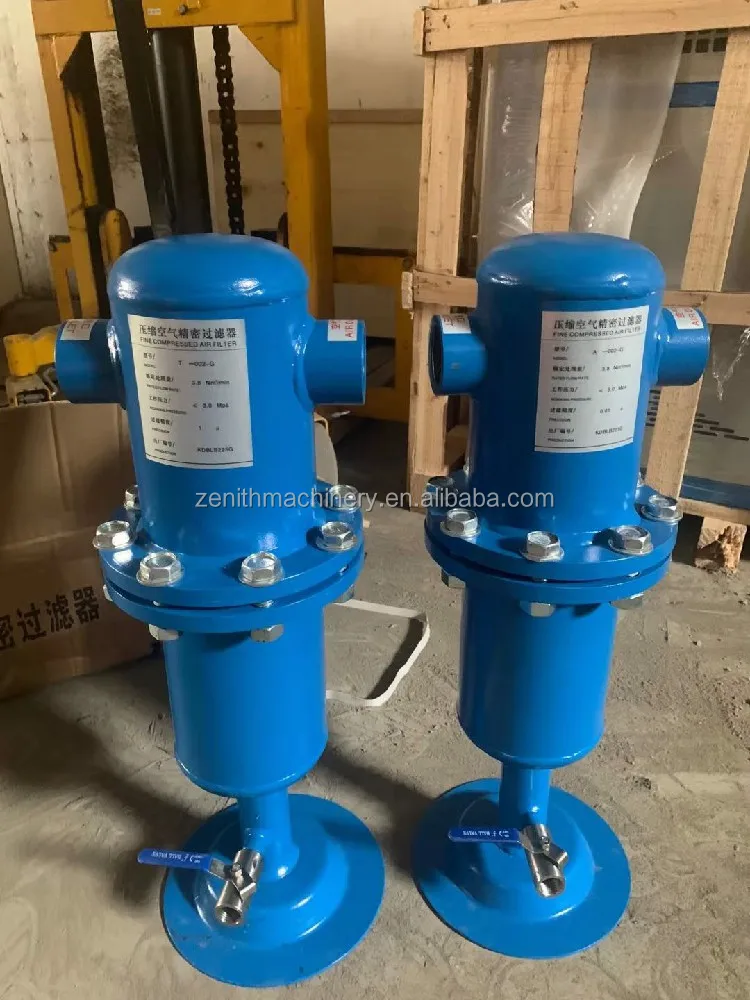

Air Cooling Dryer With two Air Filters

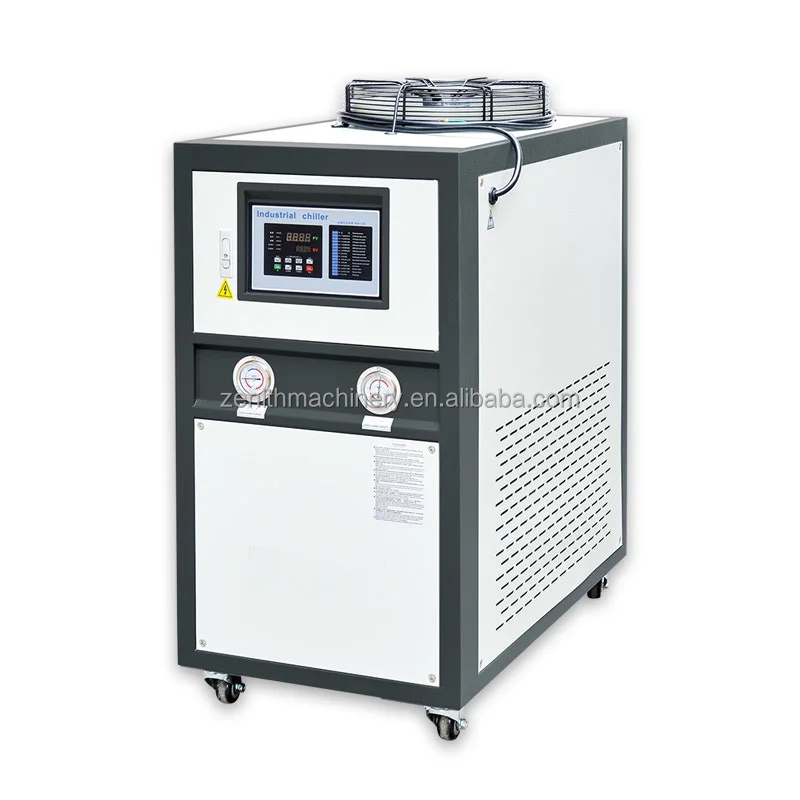

Water Chiller Air Cooling Type
