Polyethylene PE Anti corrosion wrapping tape for Inner layer of pipeline corrosion protection

Product Overview

Description

Polyethylene PE Anti corrosion wrapping tape for Inner layer of pipeline corrosion protection



       Polyethylene PE Anti corrosion wrapping tape for Inner layer                        of pipeline corrosion protection



 ♦ Specifications

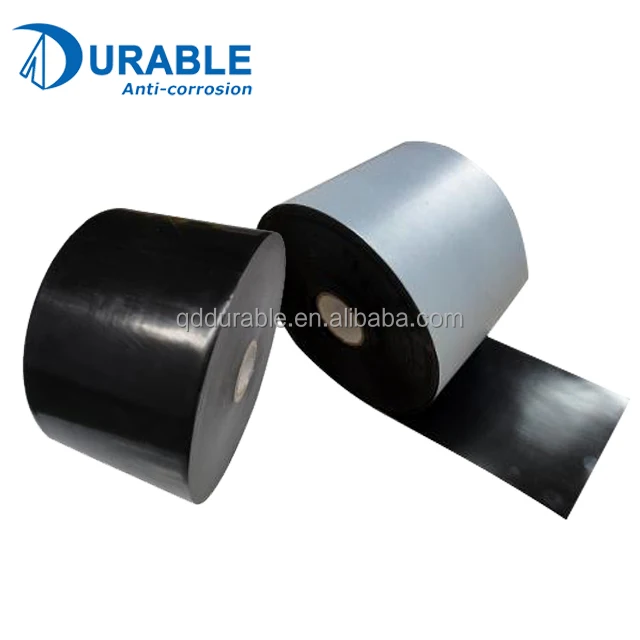

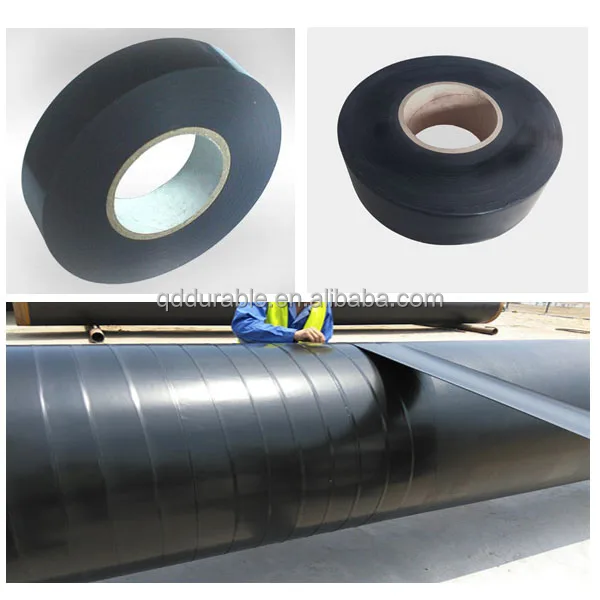

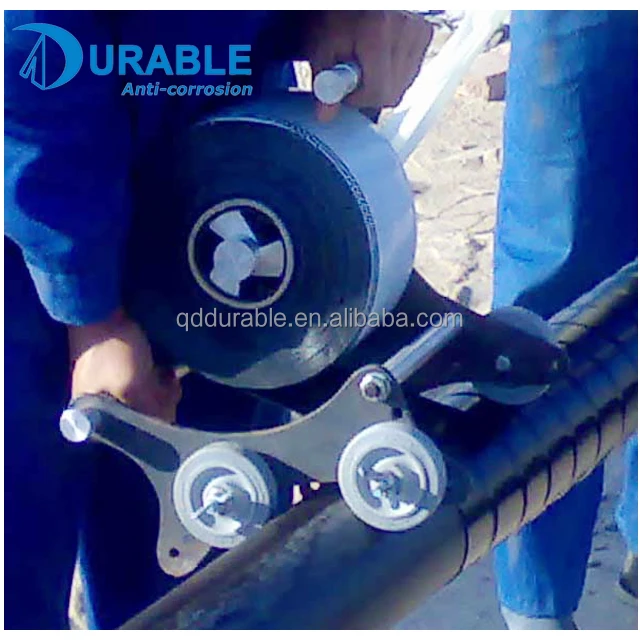

Polyethylene anti-corrosion PE tape Inner Layer Tape T100:  This kind of the polyethylene anti corrosion tape can be applied after the liquid adhesive and before the outer-layer tape by hand or with a wrapping machine. The tape consists of two layers:the adhesive layer and film backing. The adhesive layer of the PE corrosion protection tapes is butyl rubber and the film backing of the Polyethylene corrosion resistant tape is high quality polyethylene. This kind of the polyethylene anti corrosion tape meets ASTM standard.



♦ Structure :

Polyethylene anti-corrosion PE tape Inner Layer Tape T100 : consists of two layers, adhesive layer and film backing

Adhesive: butyl rubber

Outer layer: Special blend of stabilized polyethylene



♦ Application :

Polyethylene anti-corrosion PE tape Inner Layer Tape T100  :

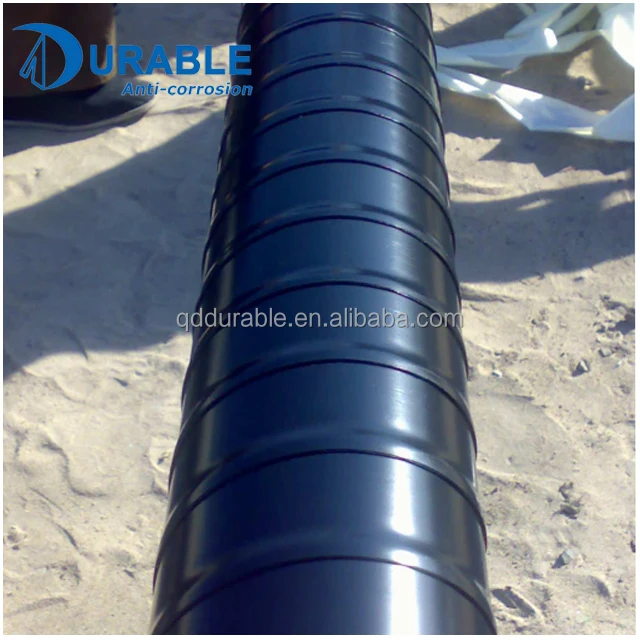

Cold applied tape coating system for corrosion protection of Oil, Gas, Petrochemical, and Waste Water

underground or overhead pipelines.

 Its application should after Primer and before Mechanical Protection Outer Layer.



  ♦ General Properties of PE Tapes inner layer tapes:



Physical Properties	Typical Value	Test Method
Total thickness	0.35-1.00mm	ASTM D 1000
Backing thickness	0.22-0.42mm	ASTM D 1000
Adhesive thickness	0.13-0.62mm	ASTM D 1000
Width	50-750mm
Length	15-200m
Backing color	Black
Tensile strength	64.5 N/cm	ASTM D 1000
Elongation	300%	ASTM D 1000
Peel Adhesion to primed steel pipe	34 N/cm	ASTM D 1000
Cathodic Disbondment	6.4mm	ASTM G 8
Dielectric Strength	27.0 KV	ASTM D 149
Volume Resistivity	2.4×1015 ohm.cm	ASTM D 257
Water Absorptivity	0.06%	ASTM D 570
WaterVaporTransmissioinRate24 h	0.13 g/ m2.24h	ASTM F 1249
Application Temperature	-34ºC to +85 ºC
Max Service Temperature	+85 ºC

Company Simple Introduction:



We are professional manufacturer and has twenty years experience in anti corrosion industry. Our main products includes

•          Petrolatum Tapes
• Refined wax anti-corrosion tapes
• Polypropylene fiber woven PP Tapes
• Polyethylene anti-corrosion PE tape
• Anti-corrosion Heat Shrink Sleeve and materials
• Viscoelastic Body Adhesive Tape
• Marine Steel Structure Pile Corrosion Protection Coat System
• Magnesium Anode, Magnesium Ribbon anode
• Aluminum anode , Zinc Anode,
• High Silicon Cast-Iron Anode
• Epoxy Coated Steel Reinforcing Bar

 Our products are widely used to many important projects and water heater factories, Hongkong-Macau-Zhuhai bridge, Hangzhou Bay bridge, and Sinopec, Haier, AOSmith etc,.
