Api 7k spider well drilling Y Slip Type Elevators oilfield equipment
- Category: Elevator >>>
- Supplier: Shanghai Xiqi Import& Export Co. Ltd.
Share on (60699006564):
Product Overview
Description
Product Description

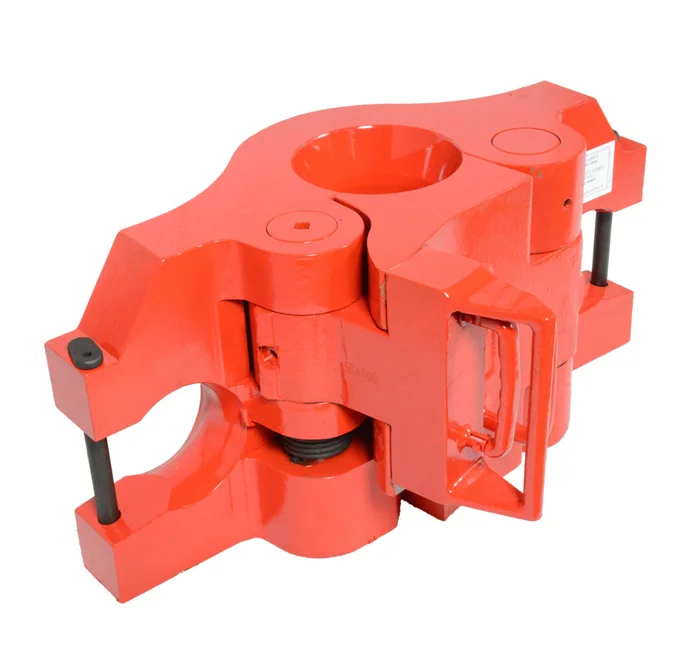

1.The Y Slip Type Elevators are hoisting tools for handling tubing,drill pipe,casing,electric submersible pump and other tubular goods in oil and gas fields.It is especially fit to integral joint tubing and non-coupled casing .
2.It is constructed in two halves of practically the same weight,four slip bodies and some inserts,providing balance and easier opening and closing.
3.They are designed and manufactured according to API Spec" API Spec 8C-specification for drilling and production Hoisting Equipment.

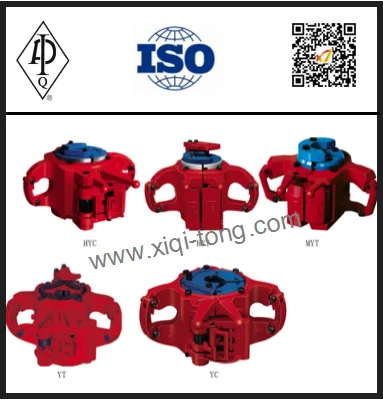

Model | YT | YC | HYT | MYT | MYT | |
Pipe Size | mm(in) | 33.4-88.9 (1.315-3 1/2) | 88.9-117.8 (3 1/2-7) | 60.3-88.9 (2 3/8-3 1/2) | 33.4-73 (1.315-2 7/8) | 26.7-52.4 (1.05-2 1/16) |
Max.Lode | KN | 670 | 670 | 1350 | 360 | 180 |
Tons | 75 | 75 | 150 | 40 | 20 | |
