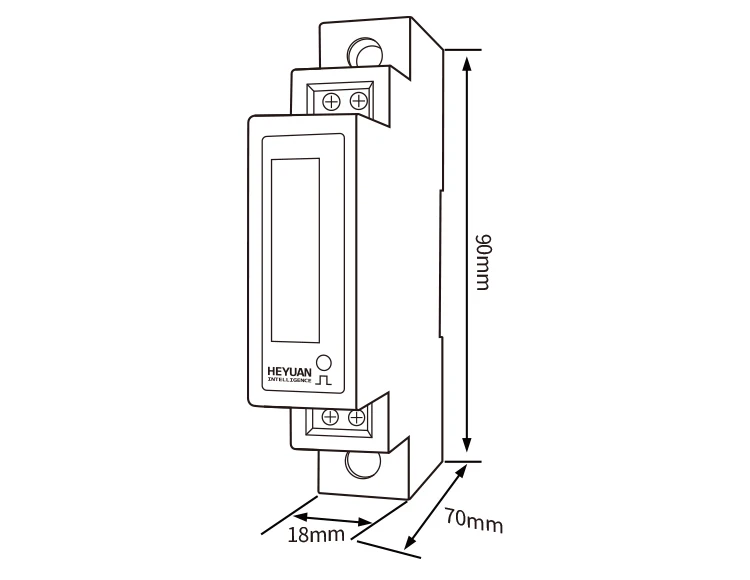

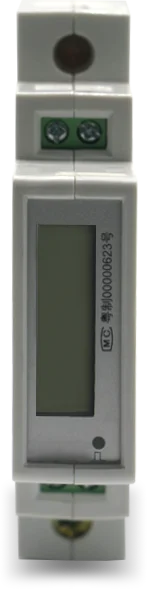

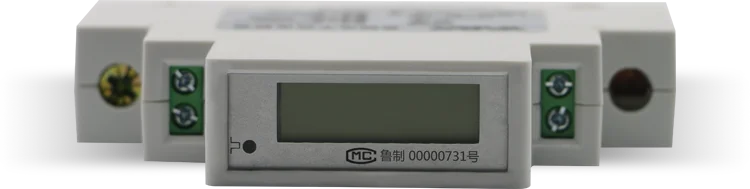

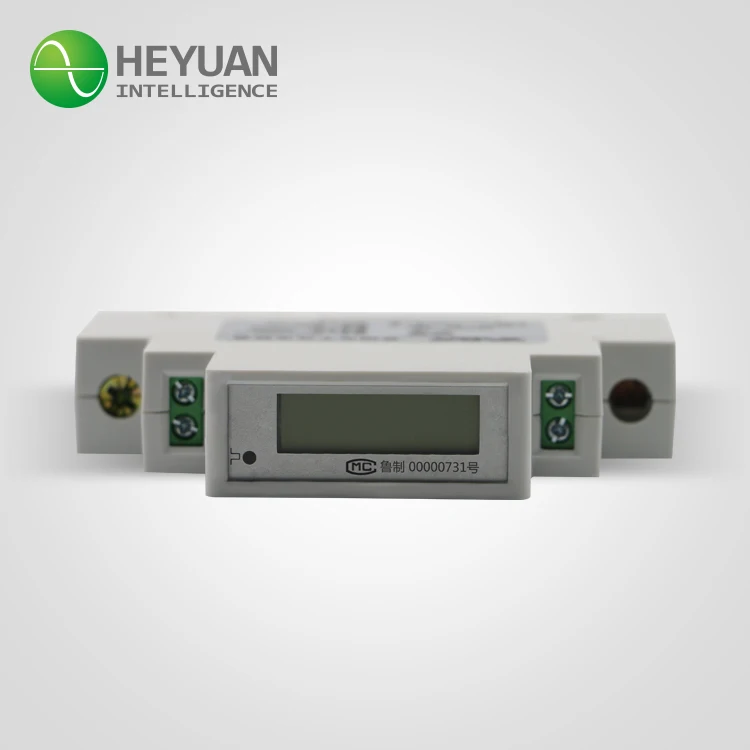

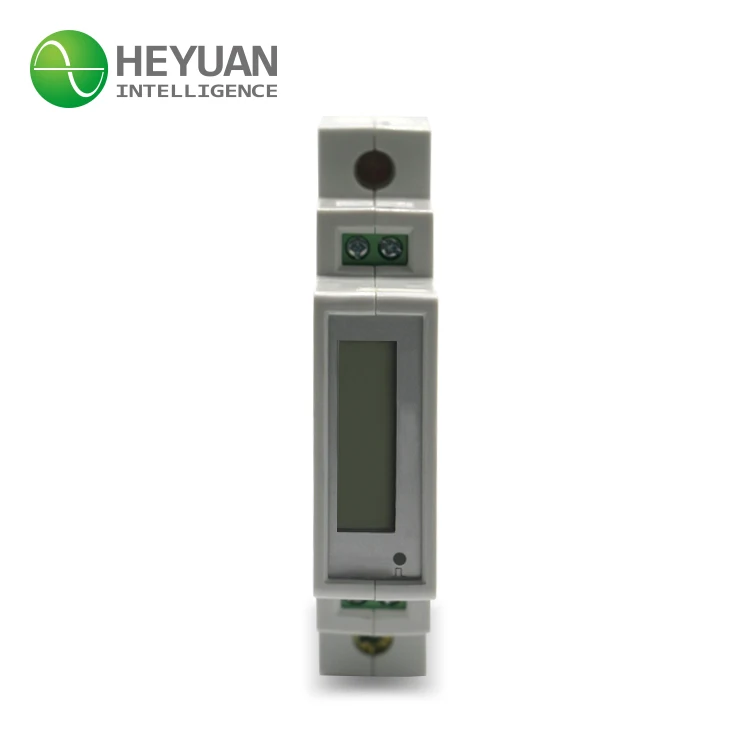

DZS100 1P Ethernet Single phase din rail electric digital power meter rs485

Series of DZS Power Meters are used for measuring and monitoring the power distribution system. This series combines the measurement, the analysis and the operation together. People can check the figure of current or voltage by using the keys on the meter, and through the interface of RS485. The meter can upload the information to an upper machine, which makes the information become clearer, and the operation become easier.

Functions

• Measuring single phase current, single phase voltage, active power, reactive power, apparent power, frequency, power factor, active energy, reactive energy, and some other parameters of power;
• Pulse Output of active energy;
• Output of PPS;
• 1 interface of RS485 with Modbus RTU communication protocol;
• LCD display

Product Parameters
