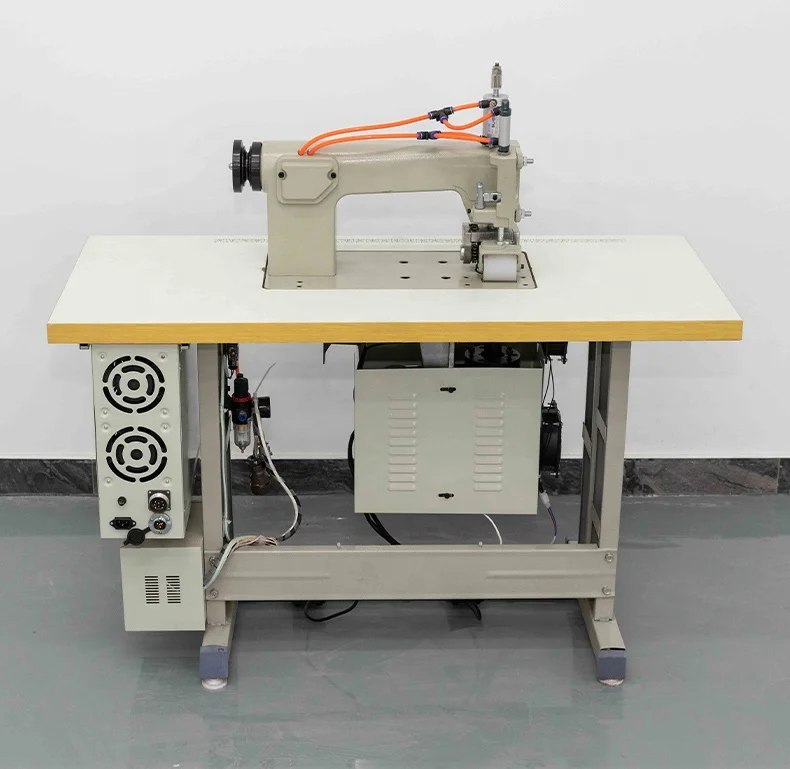

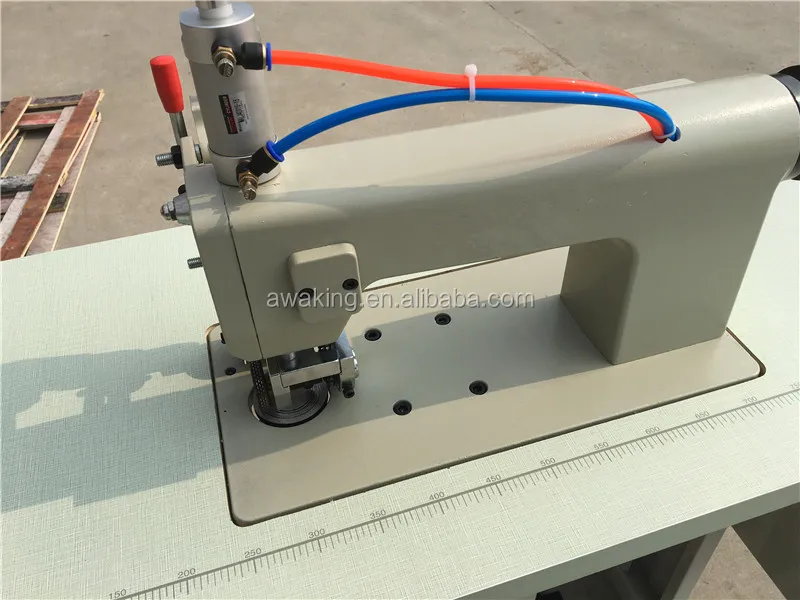

Industrial Ultrasonic Sewing Machine for leather OEM BRAND

Product Overview

Description





Basic components
1. New type PC intellectual ultrasonic generator;
2. 20KHz ultrasonic transducer unit;

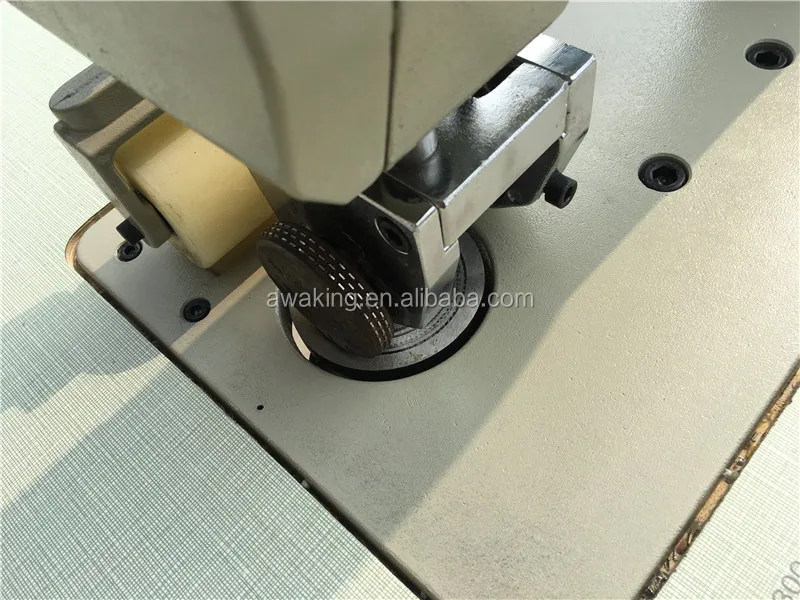

3. Bottom horn with synchronization rotation function;
4. Double-motor speed adjustment system;

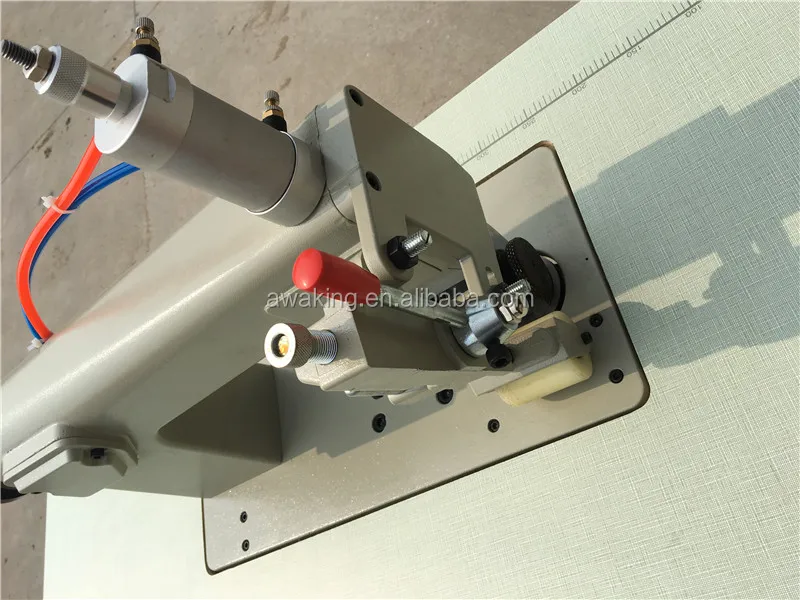

5. Manual(Pneumatic) roller lifting system;
Characteristics
1. Built-in PC chips, multi-circuit ultrasonic protection system to make the machine run safely;
2. Strong ultrasonic power with three adjustable gears (maximum, medium and minimum), meets
the welding requirements of different materials and thicknesses;
3. The performance of the machine reaches international level with automatic frequency tracking system and ultrasonic soft-starting technology;
4. The auto rotation of the bottom horn makes the wearing evenly, prolong its life and improve processing quality;

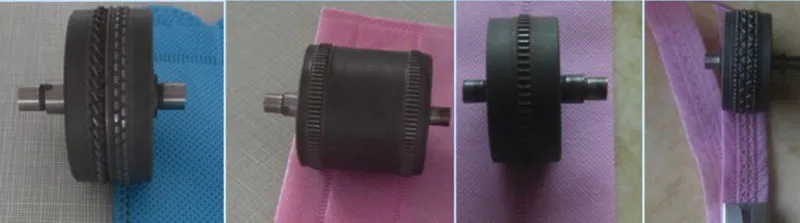

5. Variety of roller patterns, other roller designs avaliable according to customer requirements;
6. Four times faster than sewing machines, minimal operator training required.
Functions
1. Trimming: Straight or curvilinear edge cutting and edge treatment for melting, so smooth, no rough edges;
2. Sealing: Two or more layers of fabric stitched together without thread replacing the sewing needles, good welding strength;
3. Hole making: Cut out the various patterns of holes, and treatment of side melting;
4. Slitting: Single or more cutting of the material at the same time, and treatment of side melting without burr;
5. Forming: Simultaneous cutting, sealing and embossing to make production in one time.

Technical parameter
Source power
220V±5V or 110V avaliable
Input power
1800-2500W
Output frequency
20KHZ
Working speed
0-20m/min
Roller size
Width: 0-60mm; Diameter: Ø50-Ø60mm
Dimension(L*W*H)
1200*600*1200mm
Net weight
100KG
Suitable materials
All kinds of artificial leather and fabric, nonwoven fabric, spun-bonded cotton, thermoplastic film, chemical plastic piece. such as nylon, polyster, ABC, PC, PVC, PE, PP, PS, etc.
Applications
Apply to lace clothing, ribbon, decoration products, handkerchief, tablecloth, curtain, bedspread, pillowcase, quilt cover, tent, raincoat, disposable operating coat and hat, disposable mask, non-woven fabric cloth and so on.

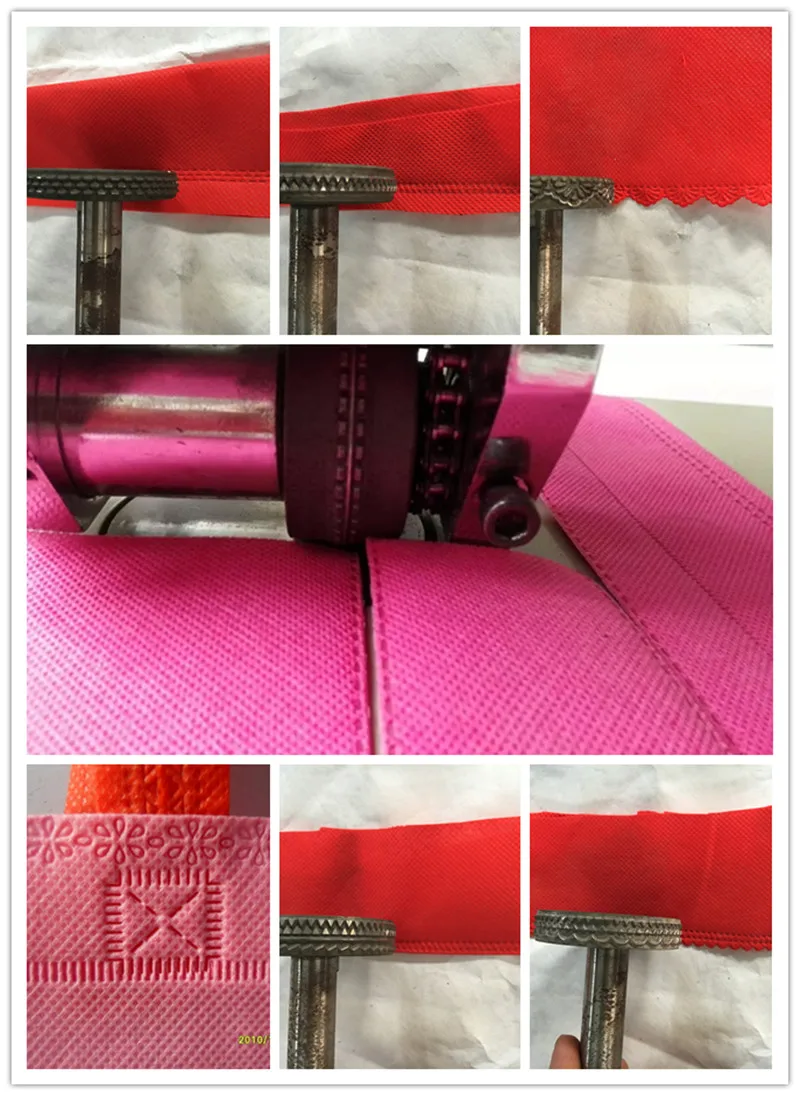

Fabric sample
