Для палаты интенсивного лечения колесо для литья под давлением для стол рицинус колеса
- Category: >>>
- Supplier: Fujian Secure Medical Technology Co. Ltd.
Share on (60699037247):
Product Overview
Description
Product Description

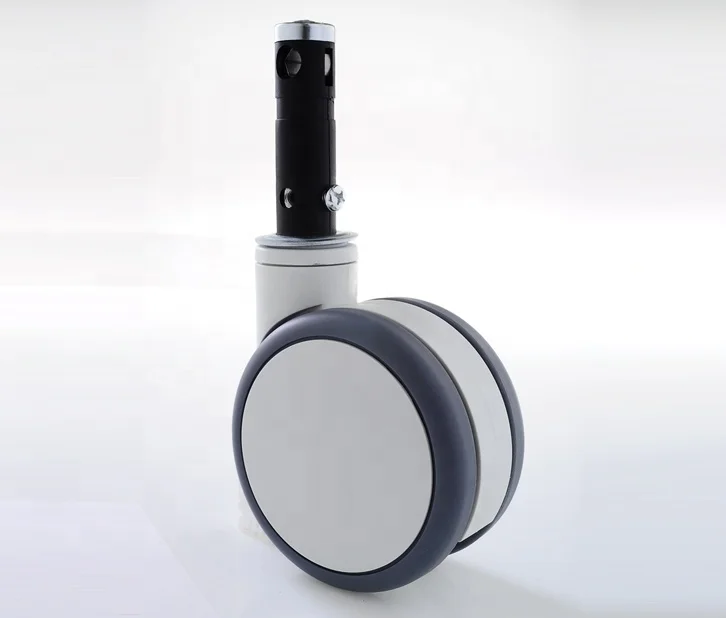

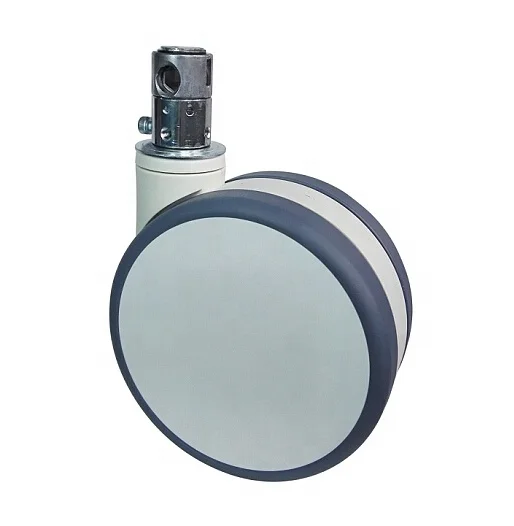

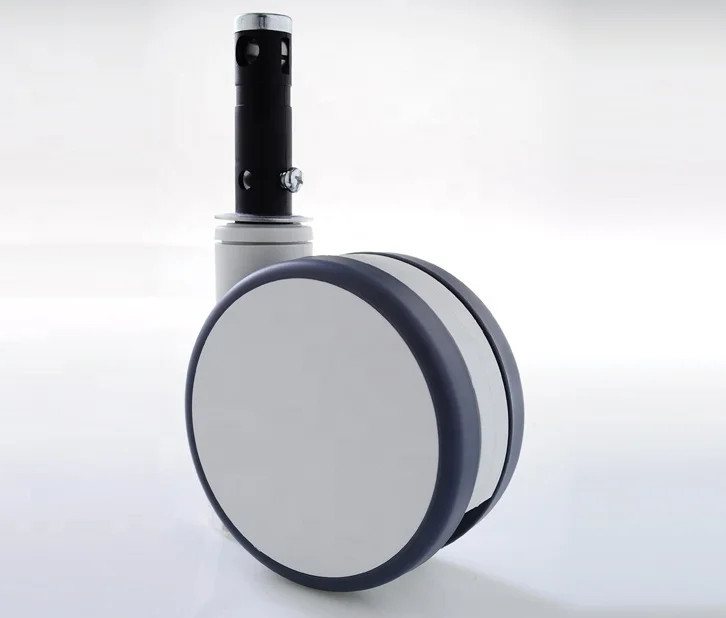

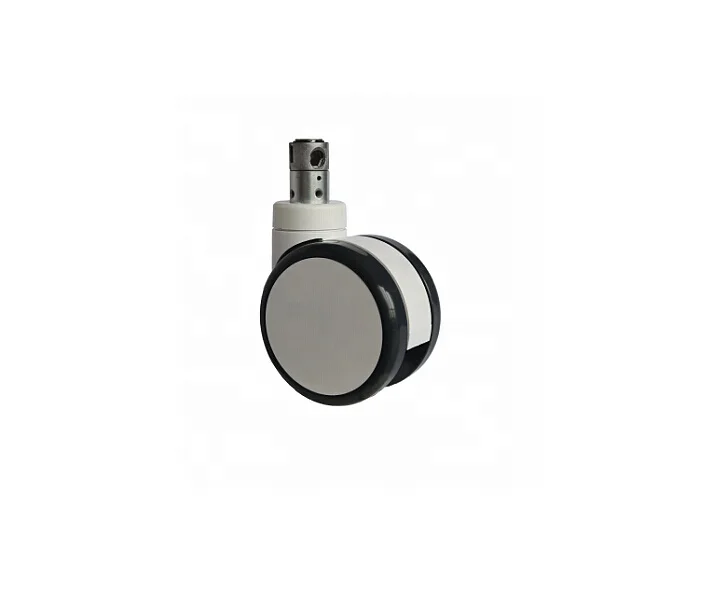

-1.Twin wheel central locking castor with total brake or free, directional lock .
-2.Body swivel axis and both wheels apply precision ball bearing.
-3.Castor size: 125mm
-4.Fitting type: 28*96 or 32*50
-5.Used on beds, medical trolley,medical equipment,etc
-6.Data

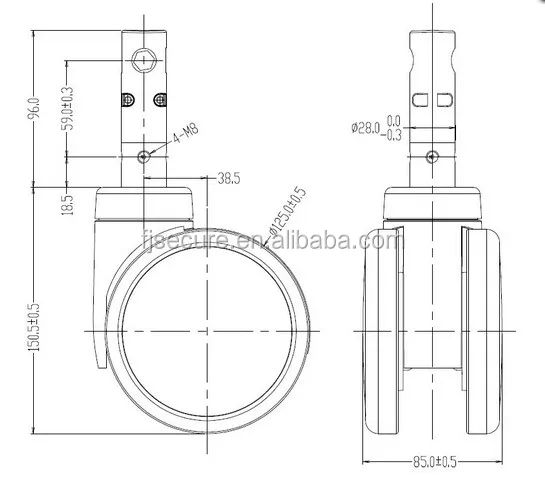

A125C-062-D28X96-2D45
Caster with directional lock,total lock and free Functions. Twin wheels with precision ball
bearing and covers. Aluminum housing have better load capacity. High load-bearing capacity
TPU wheel tread assures of quiet and stable rolling.
| Wheel Diameter | 125mm |
| Tread Width | 11mm |
| Caster Width | 85mm |
| Stem diameter | D28mm |
| Stem length | 96mm |
| Offset | 38.5mm |
| Swivel Radius | 102mm |
| Swivel interference | 150mm |
| Temperature | -30/+80℃ |
| Standard | EN12531 |
| Weight | 1.38KG
|
| Dynamic load capacity | 150KG |
| Static Load capacity | 180KG |

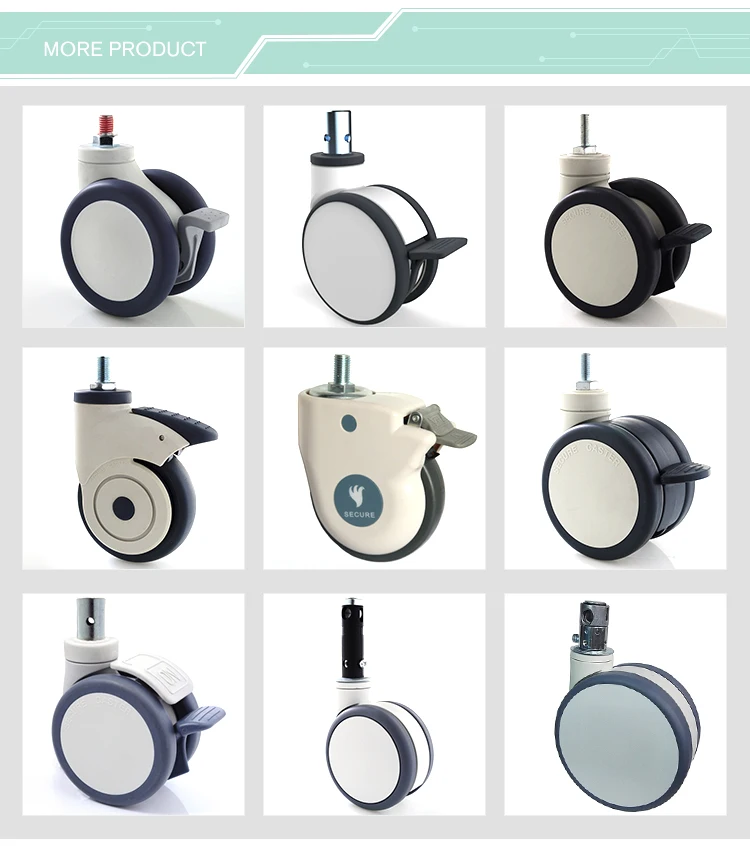

MORE PRODUCT
CERTIFICATE
OUR ADVANTAGE
OUR FACTORY
COMPANY PROFILE
EXHIBITION
Our Services
Secure offer OEM and ODM product, provide customized service for customers.
