Ultrasound analyzer for testing frequency
ltrasonic impedance Analyzer is developed by Tsinghua University of department of Automation and Institute of acoustics, Chinese Academy of Sciences. And mainly used in testing of piezoelectric ultrasonic device.
1. Dimension size: 24cmx14cmx (front 5cm, back 10cm), weight:1.95kgs. It is most portable ultrasonic impedance analyzer.

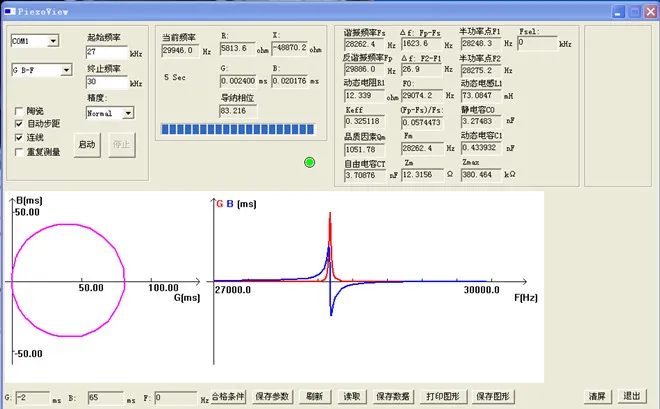

2. Touch screen, no pressing button,display all parameters and graphics, more intuitive.
3. Fast testing speed, it takes 10 seconds to test 2000 points one times.
4. The maximum testing frequency can be 5MHZ.
5. SIEMENS automatic patch manufacturing process, three years quality guarantee period.
Type | C520 | C530 |
Frequency Range | 1KHZ-500Khz | 1Khz-1Mhz |
Measurement Index | All parameter, graphics | |
Measurement Accuracy | < 1% | < 0.5% |
Measurement Speed | 10 second/piece(equivalent to 600 scan dots ) | 5 second/piece(equivalent to 600 scan dots ) |
Frequency Accuracy | ±15ppm | ±5ppm |
Phase Resolution | 0.15 degree | 0.15 degree |
Enviroment temperature | 10-40 cº | 10-40 cº |
Impedance Range | 1Ω~1MΩ | 1Ω~1MΩ |
Frequency Step | 0.1Hz~any | 0.1Hz~any |
Application | Ultrasonic equipment testing, ultrasonic cleaning, ultrasonic welding, ultrasonic medical | Inspection production line of piezoelectric ceramic below 1MHz |

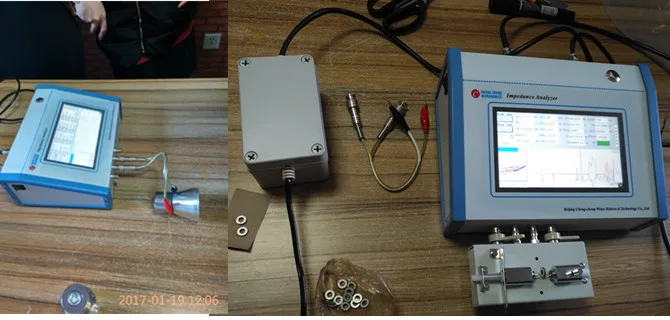

Two usage: one for testing transducer; another for testing piezo ceramics
We are dedicated to research and development in the ultrasonic field
Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer specializing in ultrasonic transducers, ultrasonic apparatus and piezoelectric ceramics.
Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a new product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into an easy task. This product has been widely used in distillation, mix and mill for various chemical procedures and has received much praise from our customers.
Our headquarter is located in Beijing, China. Our manufacturing base is in Baoding, Hebei province. Cheng-cheng Weiye also has two branches in Shenzhen and Zhangjiagang and two sales agents in Japan and the USA. At present, there are five departments of the company comprising R&D, Production, Domestic Sale, Export and After-sales service.
