pet plastic broom monofilament yarn making machine

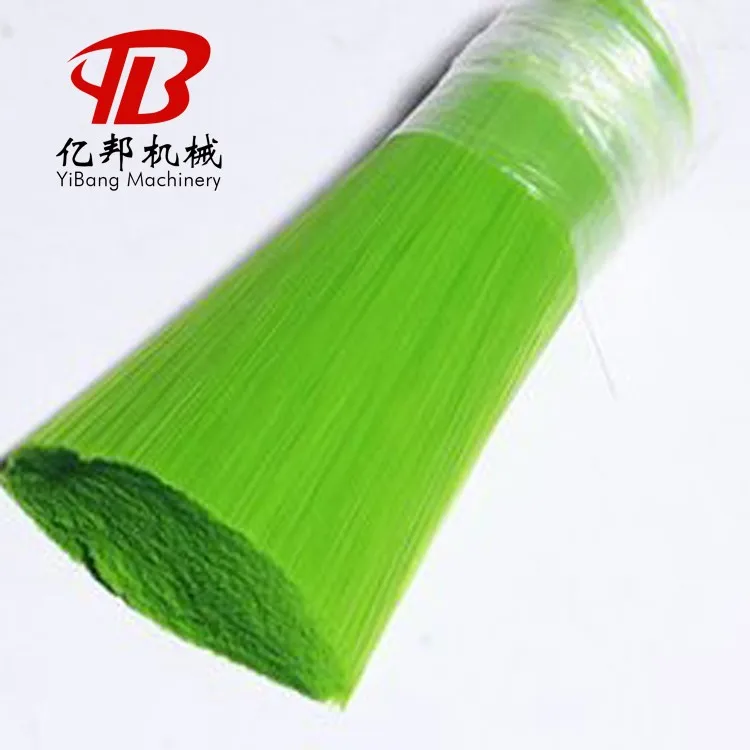

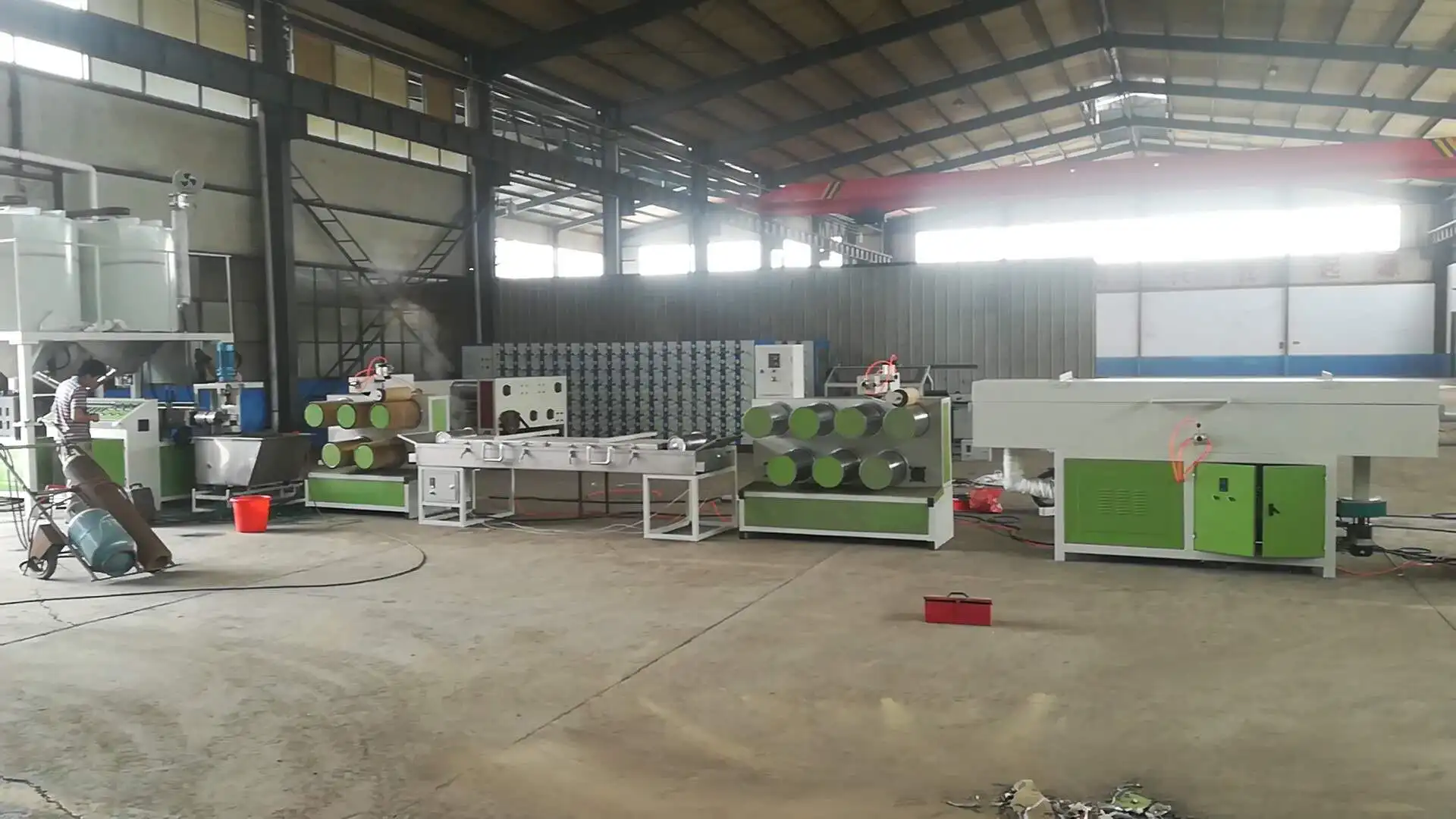

This machine is mainly used to make PET brush wire and rope etc. The production line includes extruder, cold water tank, stretching machines, hot water tank or hot oven, oil pumping and winder etc. The filament stability and uniform can be guaranteed with excellent mechanical capacity. The precise electric control system makes the machines be operated easily and high-efficiently.
Product Introduction
pet plastic broom monofilament yarn making machine
Product Parameters
Model | SS-65 | SS-80 | SS-90 |
Screw Diameter mm | Ф65 | Ф80 | Ф90 |
Screw Rotate Speed r/min | 30-70 | 30-70 | 30-70 |
Stretching Rate | 1:8 | 1:8 | 1:8 |
Total Power kw | 40 | 60 | 78 |
Productivity kg/h | 20-40 | 40-60 | 60-80 |
Dimension m | 16×2.1×2 | 20×2.1×2 | 25×2.2×2 |
Gross Weight T | 4 | 5 | 6 |
Product Details Show

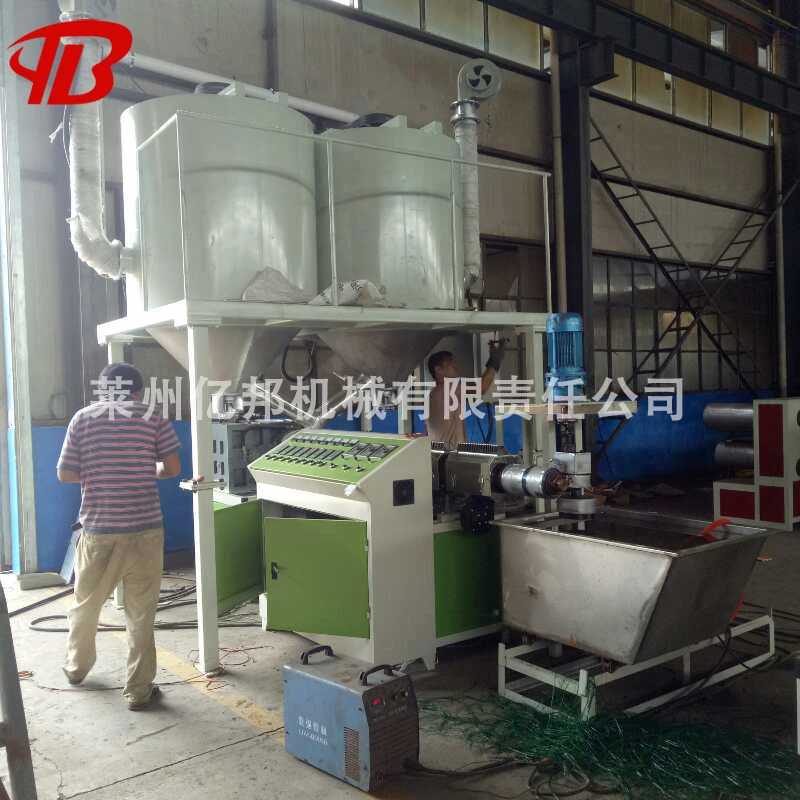

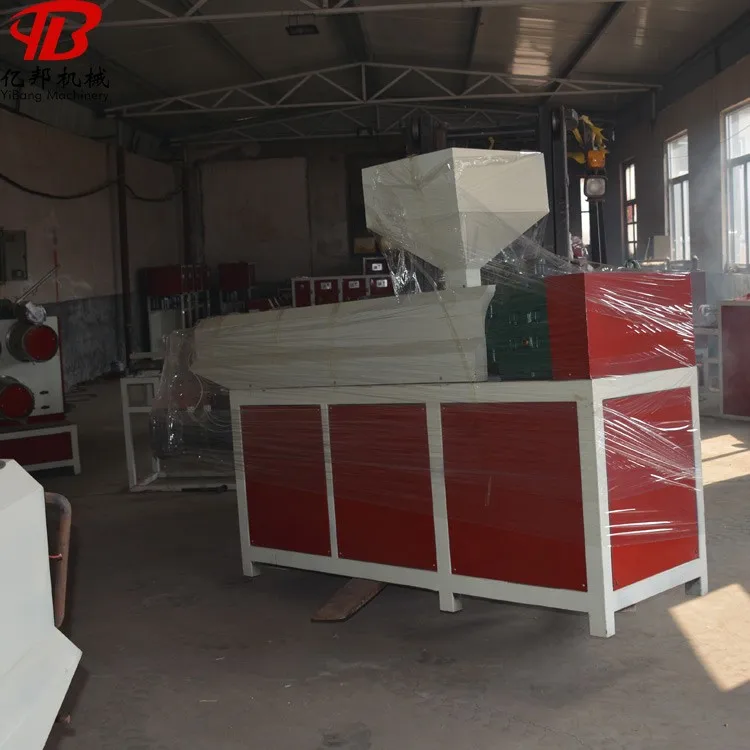

Drying crystallizer and extruder , cold water tank

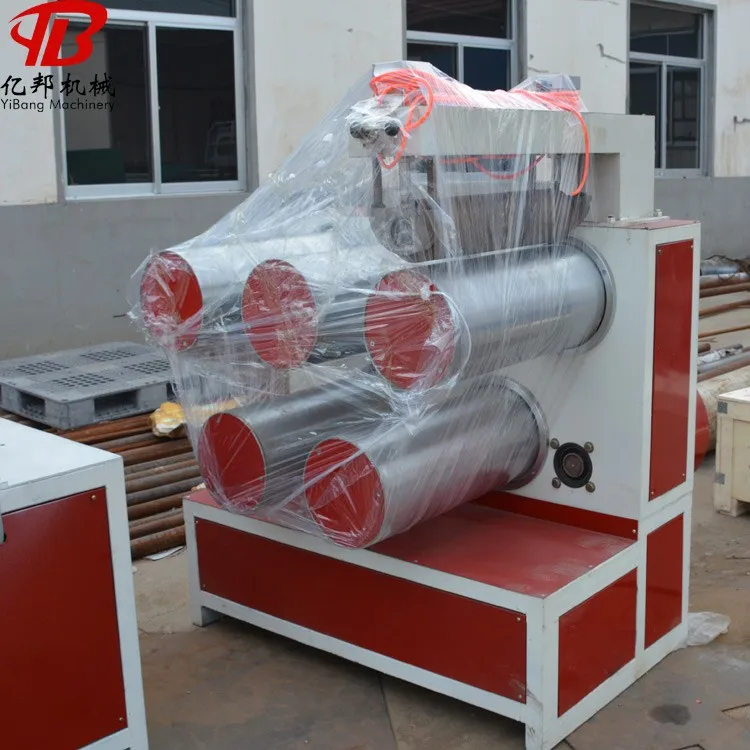

The first stretching machine

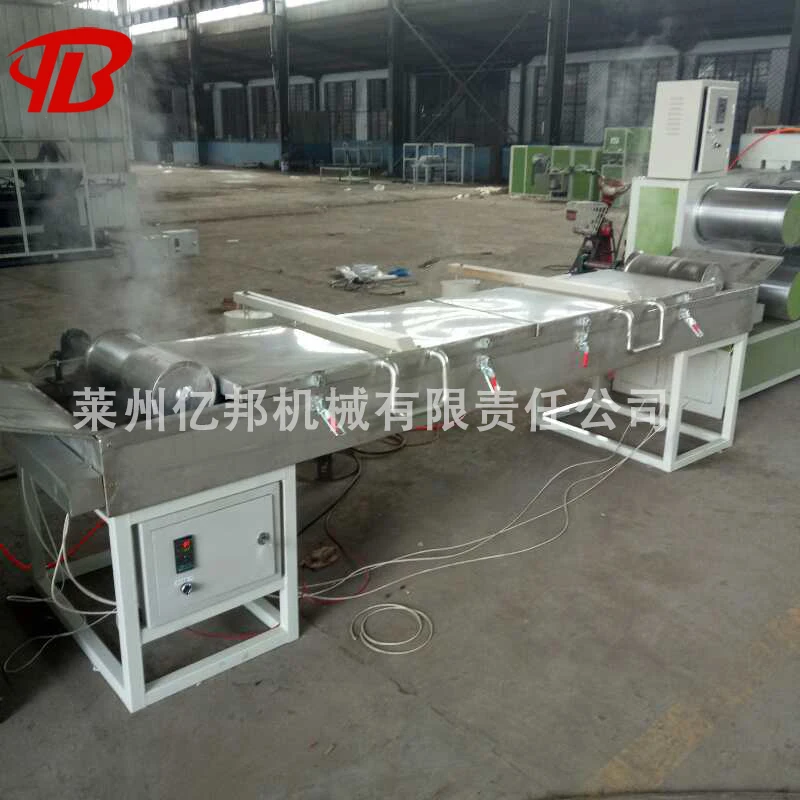

Hot water tank

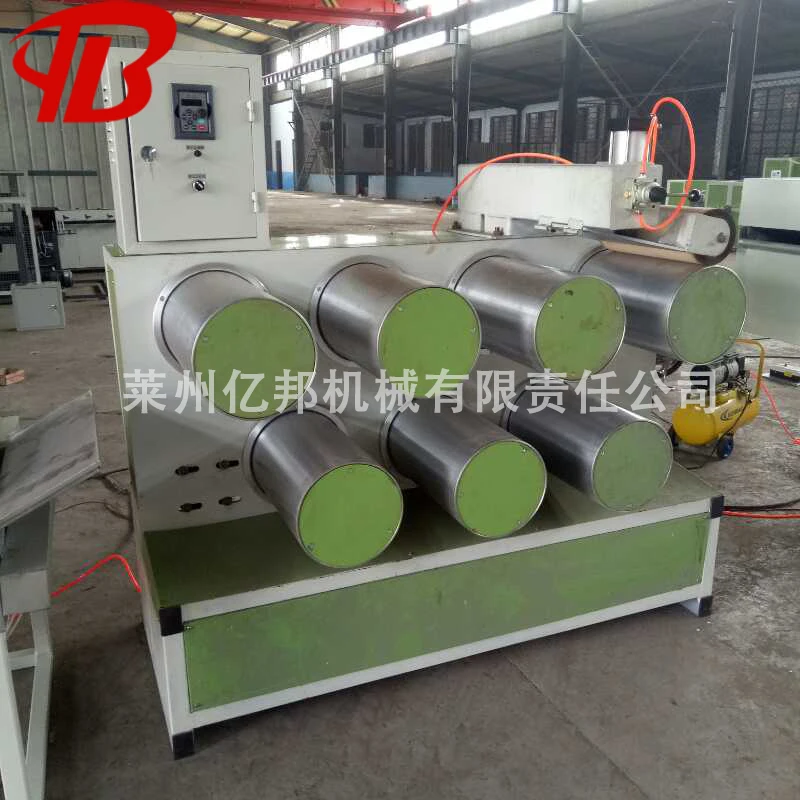

The second stretching machine--7 rollers

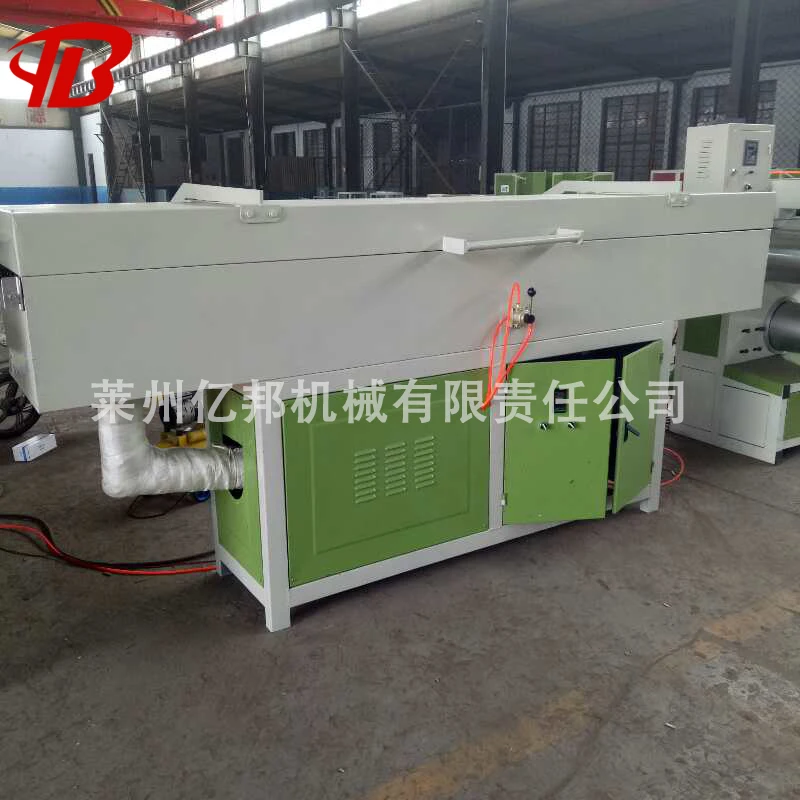

Hot air oven

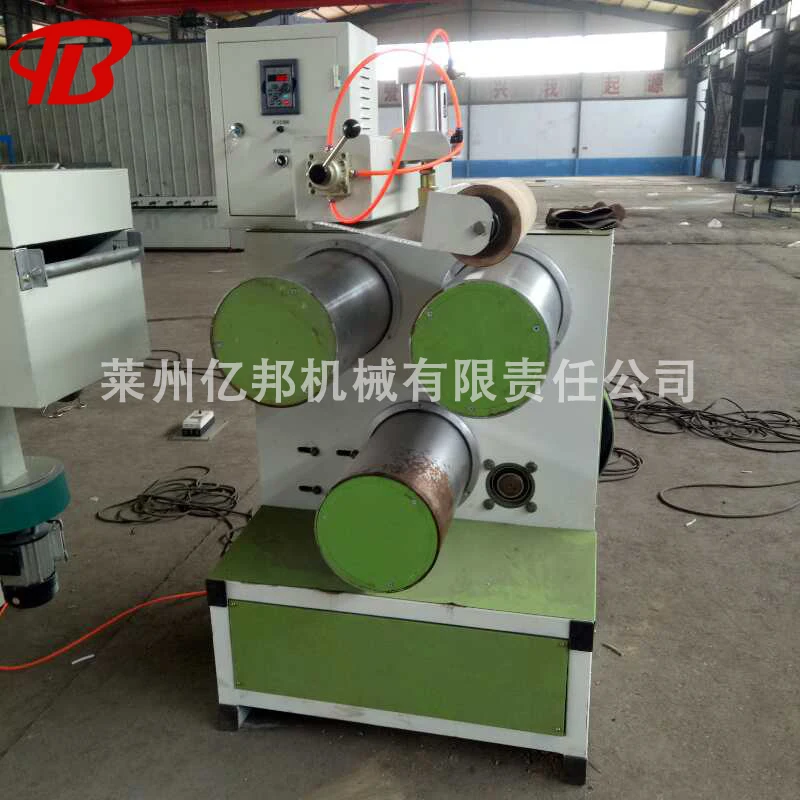

The third stretching machine --3 or 5 rollers

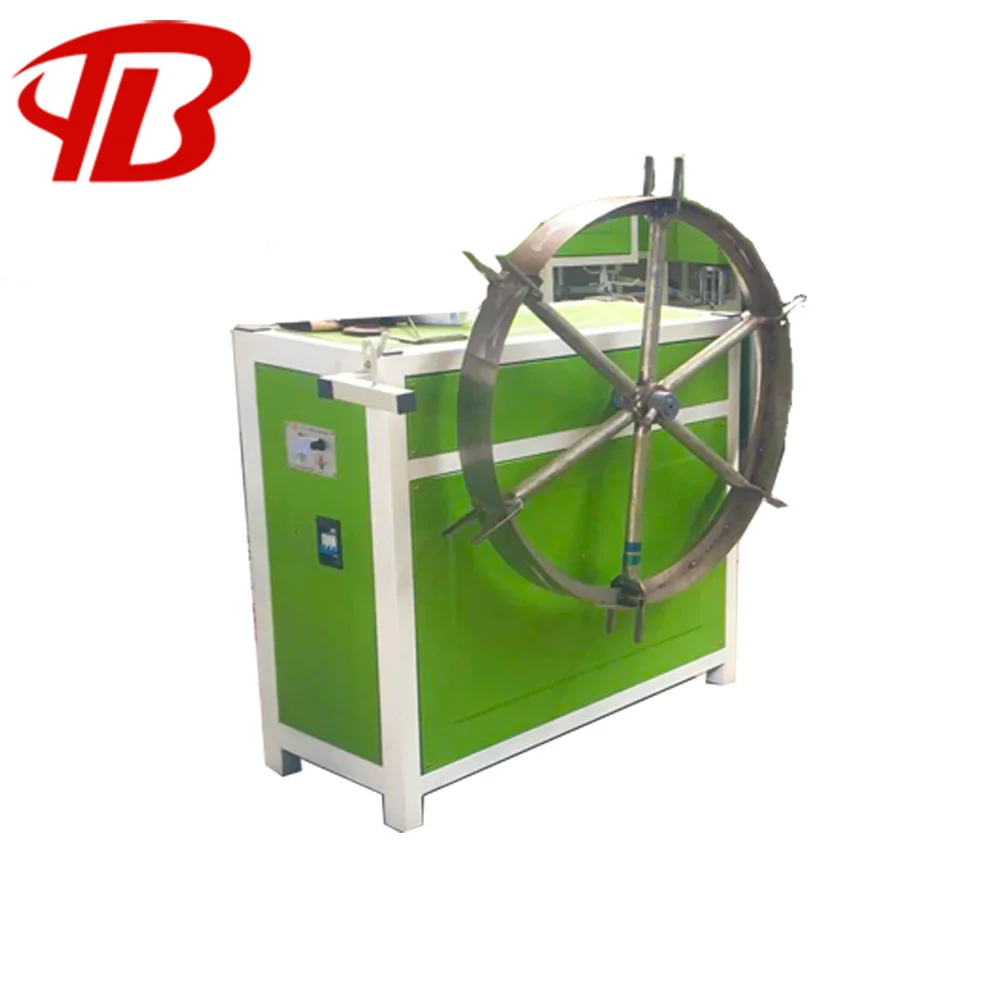

Frame type winding machine for brush or broom

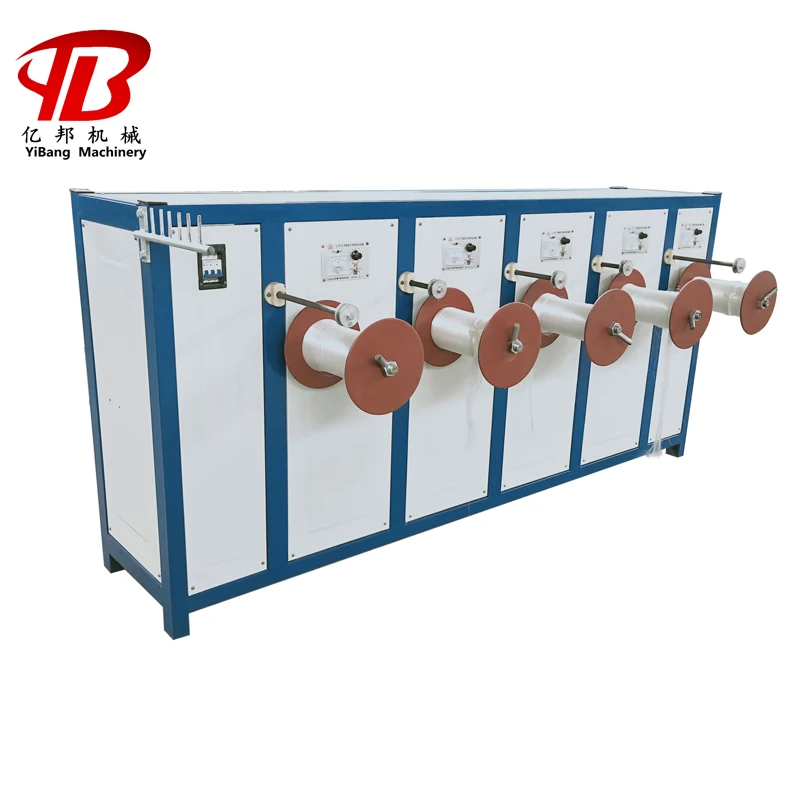

Iron bobbin winding machine for rope
