FSTN Transflecitve Positive Monochrome Graphic display 160X160 LCD Module
- Category: >>>
- Supplier: Shenzhen Saef Technology Ltd. [Guangdong China]Shenzhen
Share on (60699081400):
Product Overview
Description

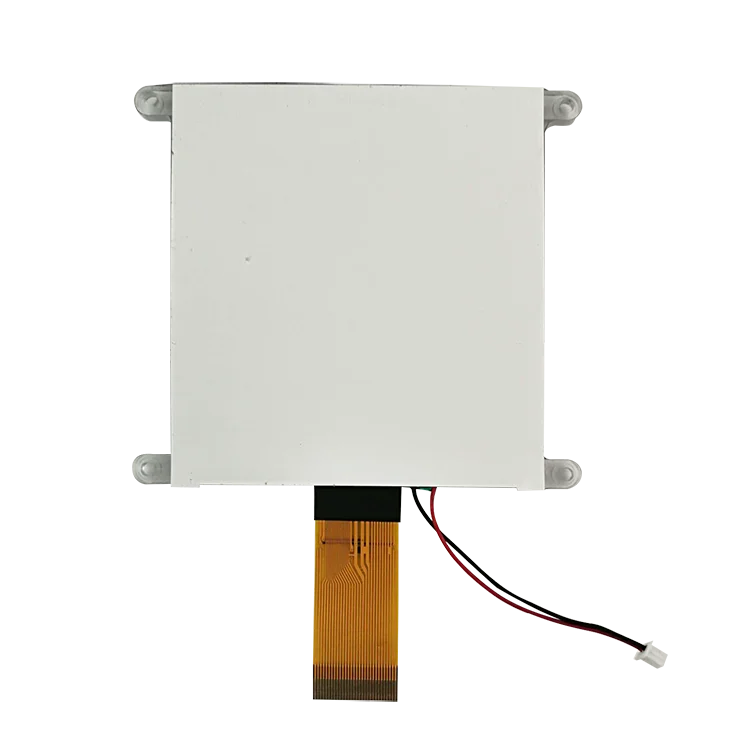

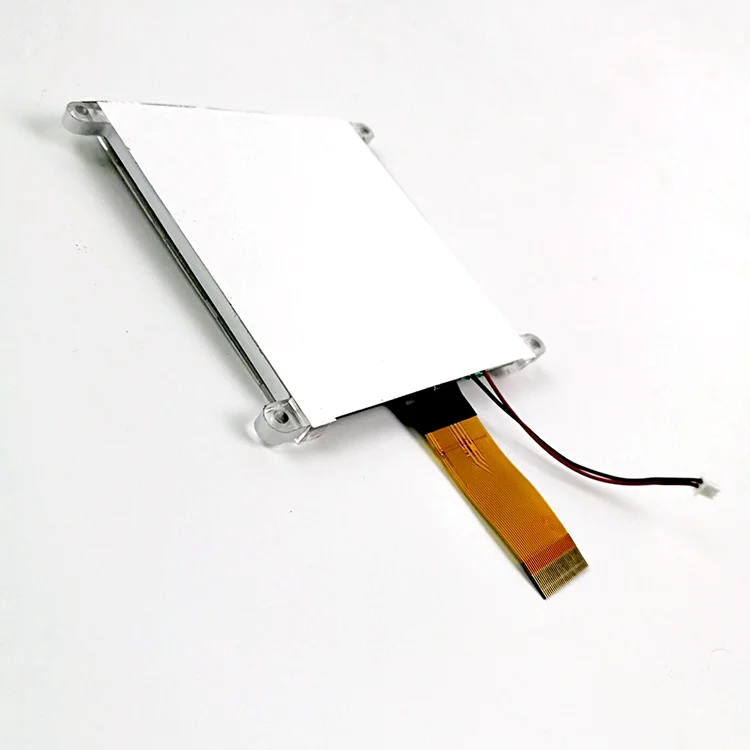

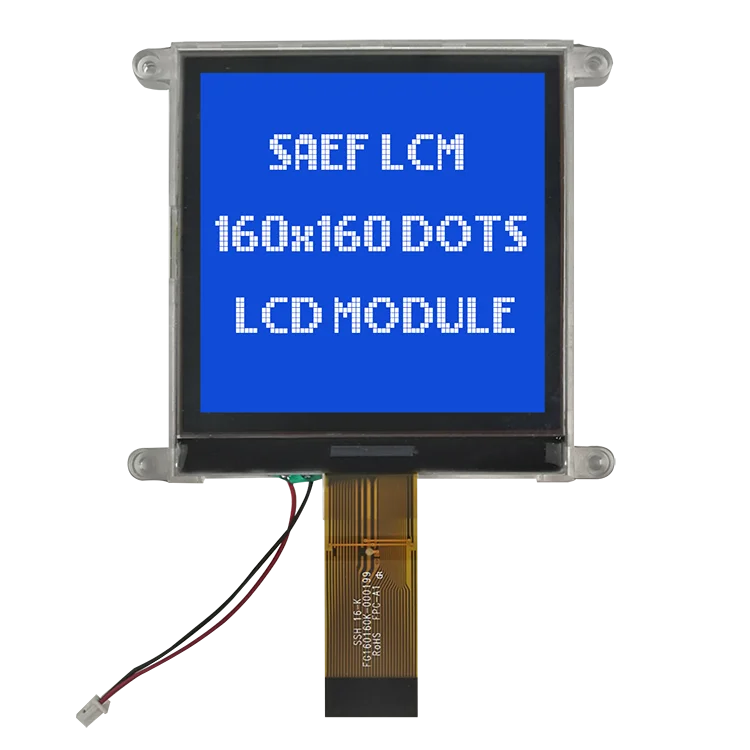

FSTN Transflecitve Positive Monochrome Graphic display 160X160 LCD Module
| Display Format | 160x160 dots |
| Outline Size | 80.0*72.5*5.0mm |
| View Area | 60.00*60.00 mm |
| Display Area | 54.38*54.38 mm |
| Dots Size | 0.32*0.32 |
| Dots Pitch | 0.34*0.34 |
| LCD Type | Transflecitve/Positive,1/160Duty,1/10Bias |
| Controller & Driver | UC1698U (COG) |
| View Direction | 6 O’Clock |
| Drive Method | 1/160 Duty , 1/12Bias |
| Interface Mode | 8 bit 6800,8 bit 8080 |
| VDD&VOP(Type) | 3.3 V & 16.3 V |
| Backlight Color | White, 3.0V, 90mA |
| Operation Temp. | -20°C to +70°C |
| Storage Temp. | -30°C to +80°C |
1> ISO9001 certificated, Factory Direct Supplied
2> RoHS Compliant, Lead Free, Reach Compliant
3> Competitive Price and Short Lead-time
4> Professional Team with Rich Experiences in Design/Mfg/Quality Control
5> Small MOQ Support & Fast Response to Customers
6> Long Product Life Time
Shenzhen SAEF Technology Ltd. is a manufacturer of LCD display modules and touch panel devices with well-equipped testing facilities and strong technical force.
With an experienced and professional team, we have exported our products to many countries and regions all over the world. Our products enjoy a good reputation among our customers.
We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
