Factory supplied complete set Tyre Retread Machines with ASME
Description
The tyres are placed in this Melion Curing Chamber and the Pre-cured Tread becomes adhered to the tyre through a vulcanizing process.
Parameters
Model:DN35-4A.4
Brand:Melion
Insulation layer: rock wool
Control Mode: Semi- automatic
Heating Mode:Indirect heating
Energy Source:Electric
Design Pressure:6.5Bar
Material:Carbon steel
Design Temperature:180ºC
Inner diameter(mm):3500
Working length(mm):4000
Tank Wall Thickness(mm):14
Over All Size(mm):5200*3900*4200
Suitable for sizes:18.00 X 25 to 27.00 X 49 ,45/65 X 45
Functions
1. Vulcanization process is automatic controlled
2. Quadruple safety interlocks is adopted by the door of the autoclave
3. Automatic control and manual operation control system is equipped
4. Multifunctional system controls temperature, pressure, time
5.Tyre Rail-Car equiped for easy transporting
6. High temperature silicone seal is used by the vessel door
7. Insulation:All insulation material are used with high quality materials,and cylindrical body is covered with stainless steel material which prevents the formation of cracks and rustiness and assures the reliabitlity of the insulation itself.

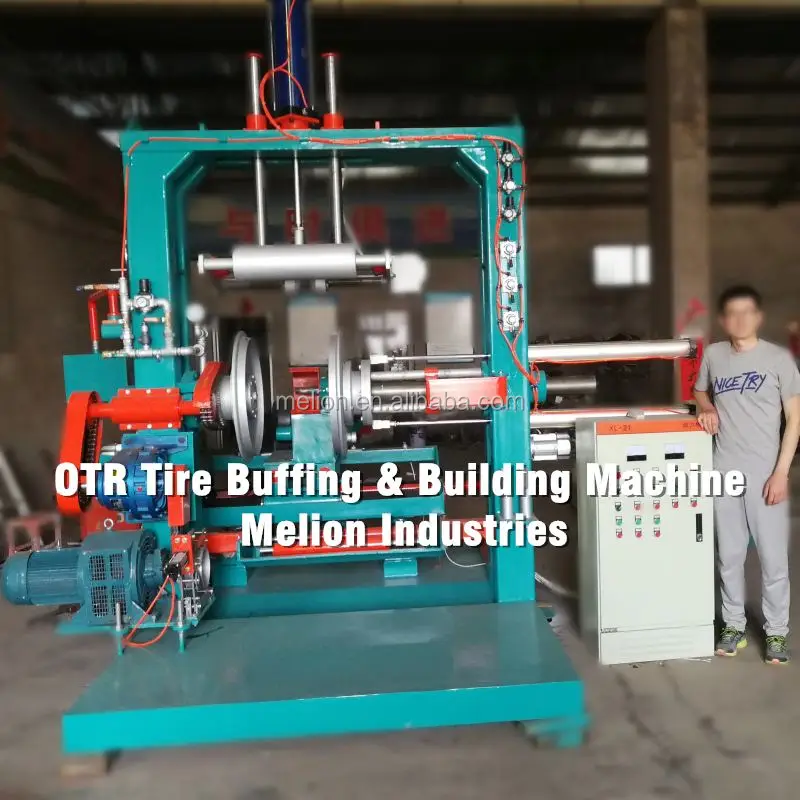

2.MELION OTR Buffing Machine
Description
The tyre's old tread is mechanically removed on high speed buffers.
Melion Parameters
Suitable Tyre Sizes: 25", 33", 35", 39", 45" and 49"
Buffing Head Speed:2980 r/min Powered by 18.5kw
Chuck wheel speed:42 r/min
Total Power:35KW
External Dimensions(LWH):=3700×3300×3000 mm
Weight:5200kgs
Inflating:1.5Bar
Functions
1.Manual Buffing Device for sidewall and shoulder buffing
2.Easy loading and unloading of tyres
3.Over-Inflating protection function engineered
4.Buffer Head air-Cooler incase of high temperature burning
5.Equiped with Dust Collector for collecting rubber granules
Description After Buffing the Tyre Casing needs a thin layer of Cushion Gum to be wrapped around its crown area.
Parameters
Suitable Tyre Sizes: 25", 33", 35", 39", 45" and 49"
Total power:9kw
External Dimensions (L×W×H):3500×3300×3500(mm)
Weight:4500kg
Functions
1.Over-Inflating protection function engineered
2.Easy loading and unloading of tyres
3.One big tread Roller and two side-rollers engineered
4.MELION ENVELOPE SPREADER
Description
8pcs unsharp-angled hand grip well-proportioned distribute on the circle,protect the envelope and increase of service life.
Functions
The power of lifting and expanding by air cylinder, save the labor force and engergy.
For double-enveloping, tyres are first fitted an outer envelope at the envelope-mounting table before the inner envelope is fitted into them. The enveloped tyres are then vacuumed out for preparation prior to curing. Type:Vertical
Our Services
As a tire retreading machines specialized manufacturing supplier who providing Turn-Key Service, Rizhao Melion Industry company provides customers with complete solutions all the time,including professional marketing planning,production line procedure analysis,suitable raw materials supply,free technical training and so on.
Complete Tire Retreading Solutions Supply
*Full Set Tire Retreading Equipment
*Precured Tread Rubber materials
*Cushion Gum
*Retreading Accessories and Tools
Melion Team Technical Support *Engineers available to service machinery overseas
