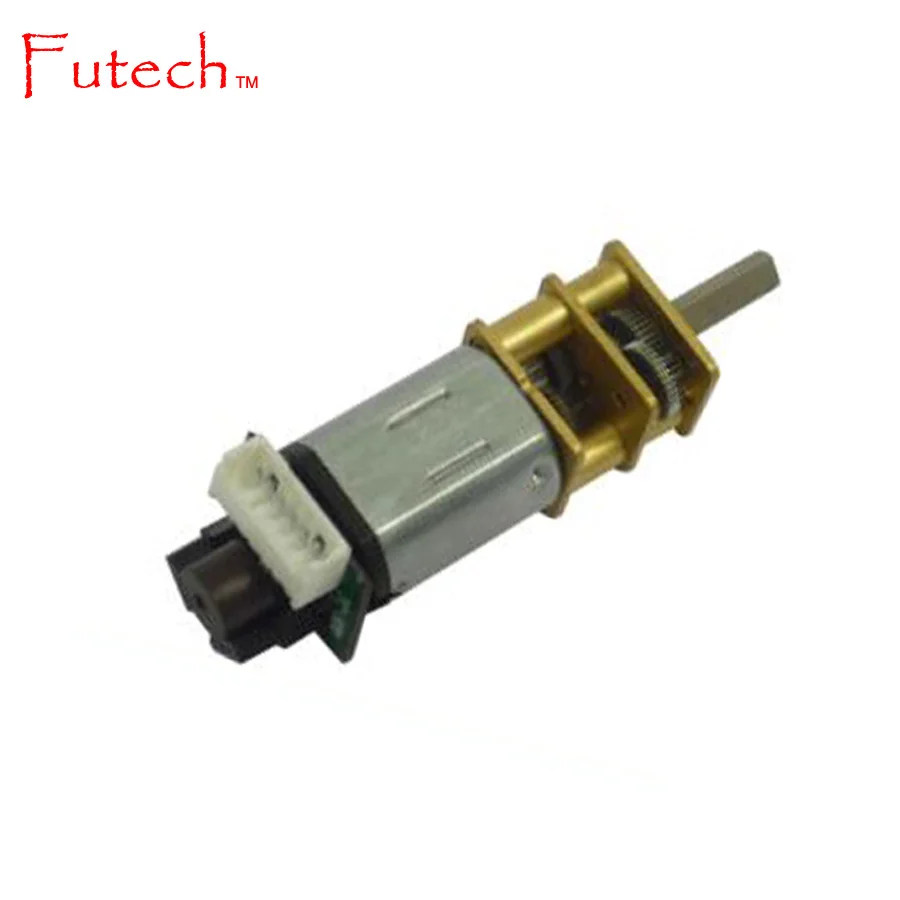

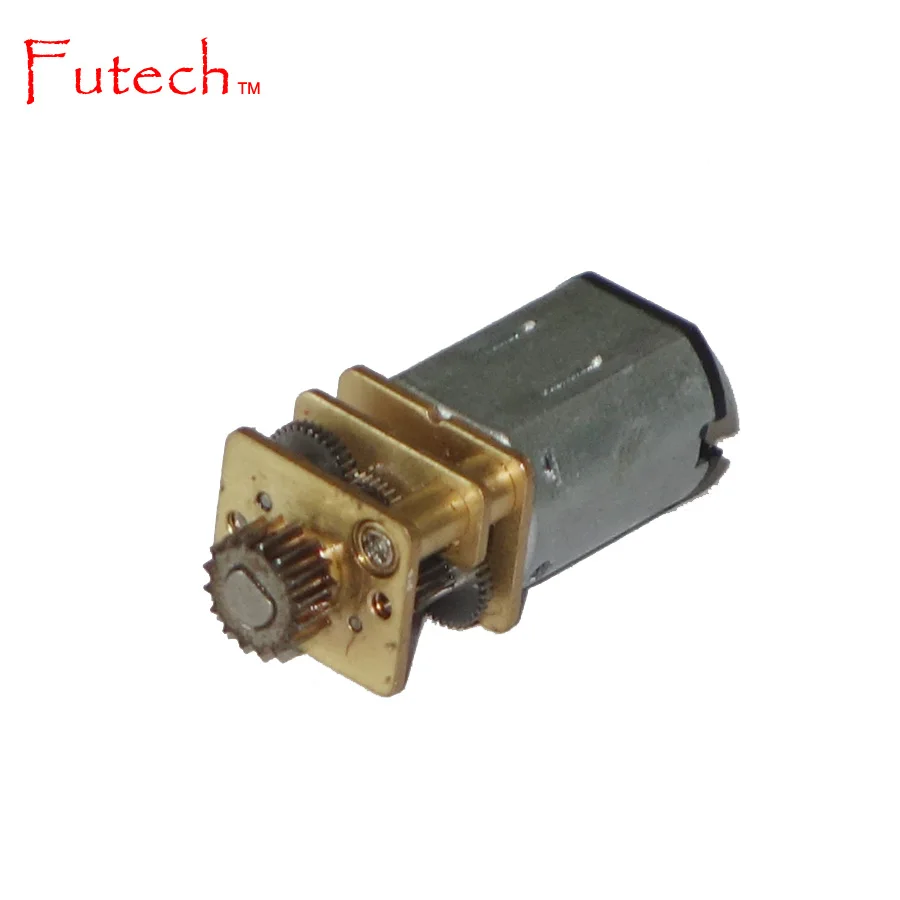

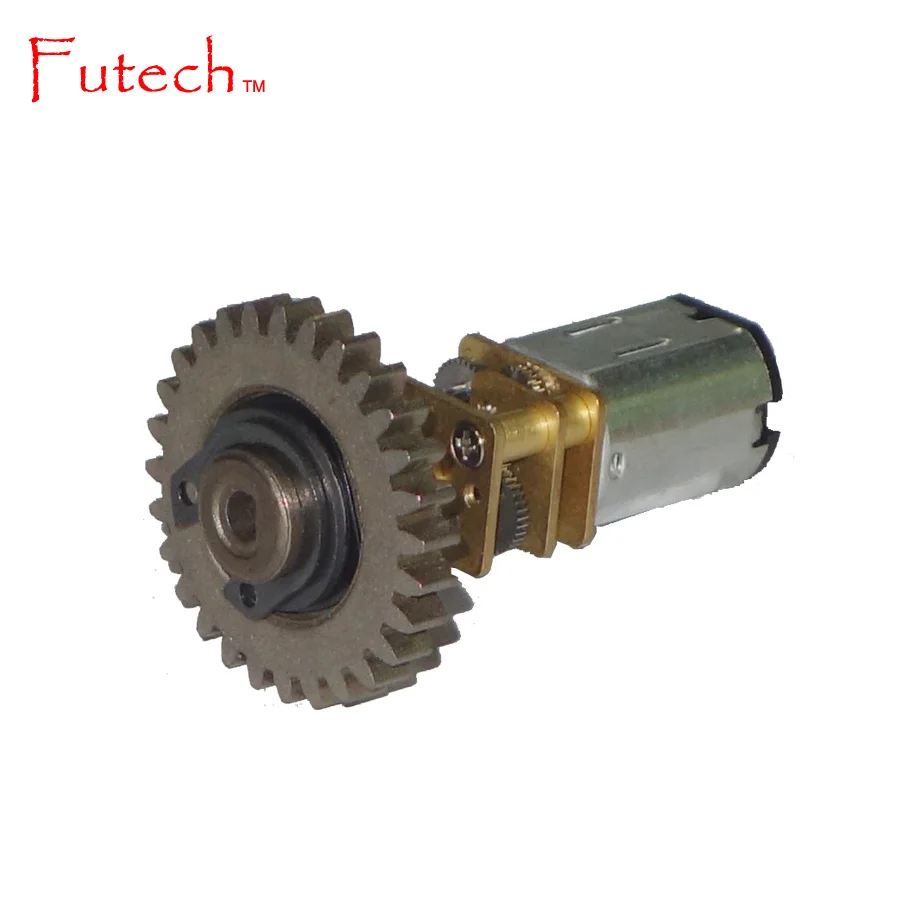

Mini High Torque DC Gear Motor with Gear Ratio 1/1000

Product Overview

Description

FT-12FGMN20  Mini High Torque DC Gear Motor with Gear Ratio 1 : 1000



DRAWING (mm)

 Remark: find the dimension "L" in the GEARBOX DATA below.



SPECIFICATIONS

The specifications are for reference only. Contact us for customized data.

Model number	Rated volt.	No load		Load				Stall
		Speed	Current	Speed	Current	Torque	Power	Current	Torque
		rpm	mA(max)	rpm	mA(max)	gf.cm	W	mA(min)	gf.cm
FT-12FGMN2000320000-1000K	3V	20	160	15	460	2000	0.31	780	5.5
FT-12FGMN2001215000-1000K	5V	15	40	12.5	80	1000	0.13	450	6000
FT-12FGMN2000610400-1000K	6V	10	50	7	110	1400	0.10	130	3900
FT-12FGMN2001220000-1000K	12V	20	35	16	160	2200	0.36	370	9600
Remark: 1 gf.cm≈0.098 mN.m≈0.014 oz.in    1 mm≈0.039 in



GEARBOX DATA

Reduction stage	2-stage	3-stage	4-stage	5-stage	7-stage
Reduction ratio	10	20, 30	50, 63, 100	150, 210, 250, 298	1000
Gearbox length (L) mm	9				12
Max rated torque Kgf.cm	0.3	0.4	0.6	1	1
Max momentary torque Kgf.cm	0.9	1.2	1.8	3	3
Gearbox efficiency	81%	73%	66%	59%	48%



MOTOR DATA

Motor model	Rated Volt.	No load		Load				Stall
		Current	Speed	Current	Speed	Torque	Power	Torque	Current
	V	mA	rpm	mA	rpm	gf.cm	W	gf.cm	mA
FT-N20	2.4	≤96	15800	≤330	12200	2.8	0.35	≥13	≥1150
FT-N20	3	≤45	12100	≤160	9390	2.1	0.2	≥9.4	≥540
FT-N20	6	≤20	10400	≤40	8000	3	0.25	≥12	≥150
FT-N20	6	≤35	15500	≤80	12400	4	0.52	≥16	≥350



CERTIFICATES: CE & ROHS



FAQ

Q: Can you make a motor with custom specifications?

A: Yes, actually this is what we are good at.

Q: Can you change the output shaft of the motor?

A: Yes, no problem.

Q: Does the motor rotate in both directions (CW and CCW)?

A: Yes, it does.

Q: What is the major difference between a spur gear motor and a planetary gear motor?

A: Generally speaking, the planetary gearing structure is much stronger than a spur one. Therefore, a planetary gear motor endures much higher torque than a spur gear motor in equivalent size.

Q: What is delivery time for a sample?

A: It depends, normally 1~2 weeks.

Q: What is delivery time for mass production?

A: 3~4 weeks if there is no additional requirements.

Q: What is the MOQ (minimum order quantity)?

A: No MOQ! Any quantity is acceptable.

Q: Do you have quality control?

A: Yes, it is a must. We do 100% inspection on all motors.

Q: Do you have warranty?

A: Yes, one year.

Q: Are you a real factory?

A: Yes, we are.

Q: How much does a sample cost?

A: We don’t expect to make any profit from samples. Please contact us and we’ll let you know.

Q: What are your payment terms?

A: 30% deposit, balance due before shipment or against shipping documents.

Q: Do you accept PayPal?

A: Yes, but for samples and for small amount of money only.

Q: How do you handle shipment?

A: a) For samples and small batches, we recommend FedEx and UPS express door to door. It is very fast, safe and convenient.

b) For mass production, we recommend shipment by sea and by airfreight and go with FOB/CIF/CFR terms.

Q: I don’t know too much about motor, can you recommend me a motor?

A: Sure. Normally we will ask you some questions regarding application, dimensions, rated voltage, speed at load/no load, torque at load/stall. i.e. a robot motor with diameter 37mm, 12V, 100rpm and 2Kgf.cm at load.

Q: How do I contact you?

A: Skype me, call me, or email me directly by scanning the QR code.



Or please fill in the form below.
