Uv sterilizer cabinet for cap sterilizing use
US $300.00-$950.00
Стерилизация при высокой температуре молока UHT/стерилизатор молока UHT
- Category: Sterilizer >>>
- Supplier: Shanghai Chun Nuo Machinery Co. Ltd.
Share on (60699207442):
Product Overview
Description
Product Introduction

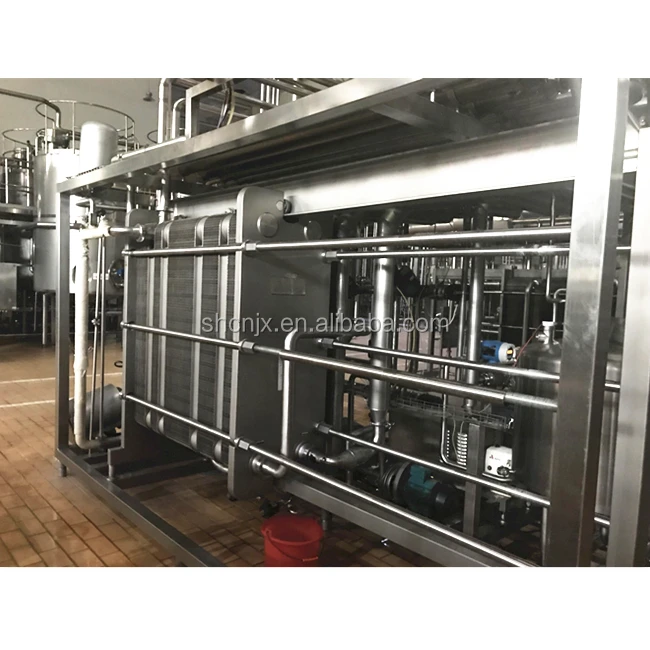

Milk UHT Ultra High Temperature Sterilization/UHT Milk Sterilizer

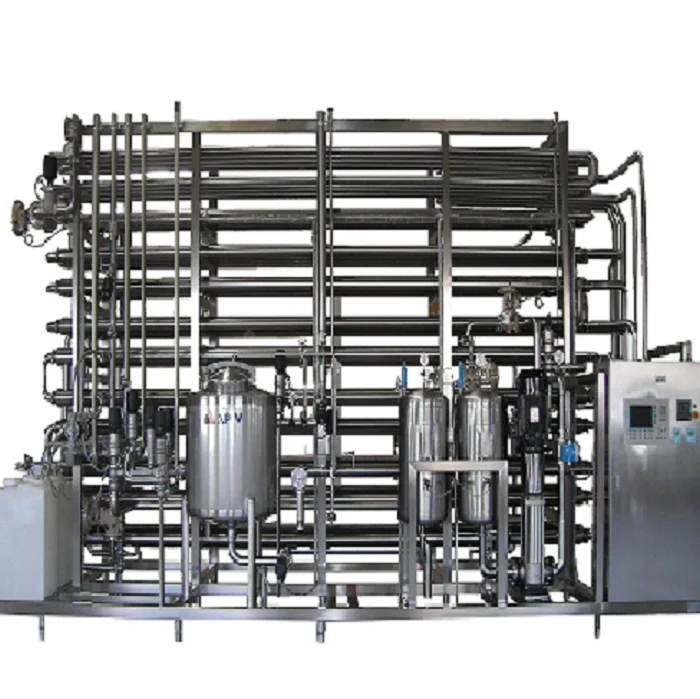

Tubular Ultra High Temperature Sterilizer
1. UHT sterilizer can be used in dairy/juice processing line.
2. Capacity:1---5T/H
3. Temperature: 115-137℃
4. Steam Pressure: 0.4Mpa.
5. Holding time: 3-5 S
6. It is suitable for liquid material, such as fresh milk, fruit milk, wine, soybean milk, and Chinese medicine, as well as sticky material, by completing with high pressure homogenizer.
| Model | Plate Type /Tubular ultra high temperature(UHT) sterilization equipment |
| Material | SUS 304/ SUS 316 |
| Capacity | 500L/H-20000L/H |
| Operation Mode | Full-automatic, Semi-automatic(PLC Control, touch panel) |
| Sterilizating Temparature | 115°C-137°C |
| Holding Time | 5-15S |
| Major Configuratons | plate heat exchanger, pump, valves, pipes, electric control box |
| Valve | pneumatic reversing valve, pneumatic rotary butterfly valve, steam reducing valve |
| Pipe | Stainless Steel Pipe |
| Pump | Centrifugal Pump, multi-centrifugal pump |
| Electric Control Box | Platinum thermistor,temperature controller solenoid valve, double-connection joint |
| Parts Brand | SpiraxSarco(Britain), Simens(Gemany), |
| Packing | Shrink wrapped-carton-pallet or in weaworthy wooden case |
| Shipping Mode | By Sea |
| Delivery Time | Depends on quantities you need. |
