Tailor Made Semi Auto 18L Conical Metal Bucket Pail Can Manual Slitting Equipment for Tin Can Making

Product Overview

Description



MACHINES SALES GUIDE:

BEFORE YOU READ FOLLOWING INFO., PLEASE PERPARE YOUR QUESTIONS TO GET MY SPECIFIC TURN-KEY SOLUTION OFFER FOR YOU. CHEERS!

1. What's your tin can look like and special requirement?

2. What's your tin can Dimensions?

3. What's your demand for production capacity (CPM)?

4. More information please go to www.jeitco.com



Related Equipment





Semi-Auto 18L Conical Metal Bucket Pail Can Manual Slitting Equipment for Tin Can Making

Model: GT1B5

Specification

Tin Can Making Machine Name	Semi Auto 18L Conical Metal Bucket Pail Can Manual Slitting Equipment for Tin Can Making
Model	GT1B5
Item Condition	Brand-New
Operation Mode	Semi-Automatic
Main Color	Silver
Main Frame Material	High Strength Steel for Tinplate Slitter
Slitting Method	Circular Knife
No. of Knifes (Slitting Die)	8-Group
Knife Material (Slitting Die)	High-grade Alloy Tool Steel (Cr12MoV)
Knife Adjustable	Horizontal Sliding
Max. Sheet Thickness:	0.4mm
Max. Sheet Width:	1050 - 1300 (mm)
Min. Sheet Width:	55mm
Standard	IEC60947, IEC34-1(Electrical), IEC72-1(Mechanical)
Construction Size	1500 x 1600 x 1105 (mm)
Feeding Table Size	720 x 1300 (mm)
Safety	Machine Fully Guarded
Usage	Tinplate Slitting for Canmaking
Motor Power:	1.1kw = 1.5HP
Motor Rotation Speed	900 RPM
Power Supply Required	400V-50/60Hz  230V 60Hz Three-Phase
Frequency	50/60Hz
Net Weight:	1100kg
No. of Phase	3-Phase power supply
Capacity:	Depends on speed of artificial Feeding
Lead time:	2 weeks
Warranty:	One Year for parts from shipping date
Motor	SIEMENS
Electrical System	Schneider
Material of Knife	High-alloy steel (Cr12MoV)
Packaging	Plywood Case (Standard Export Packaging)
Optional Extra	Grinding Machine
Operator Manual & Instruction	DVD supplied



Features



1. Operation:

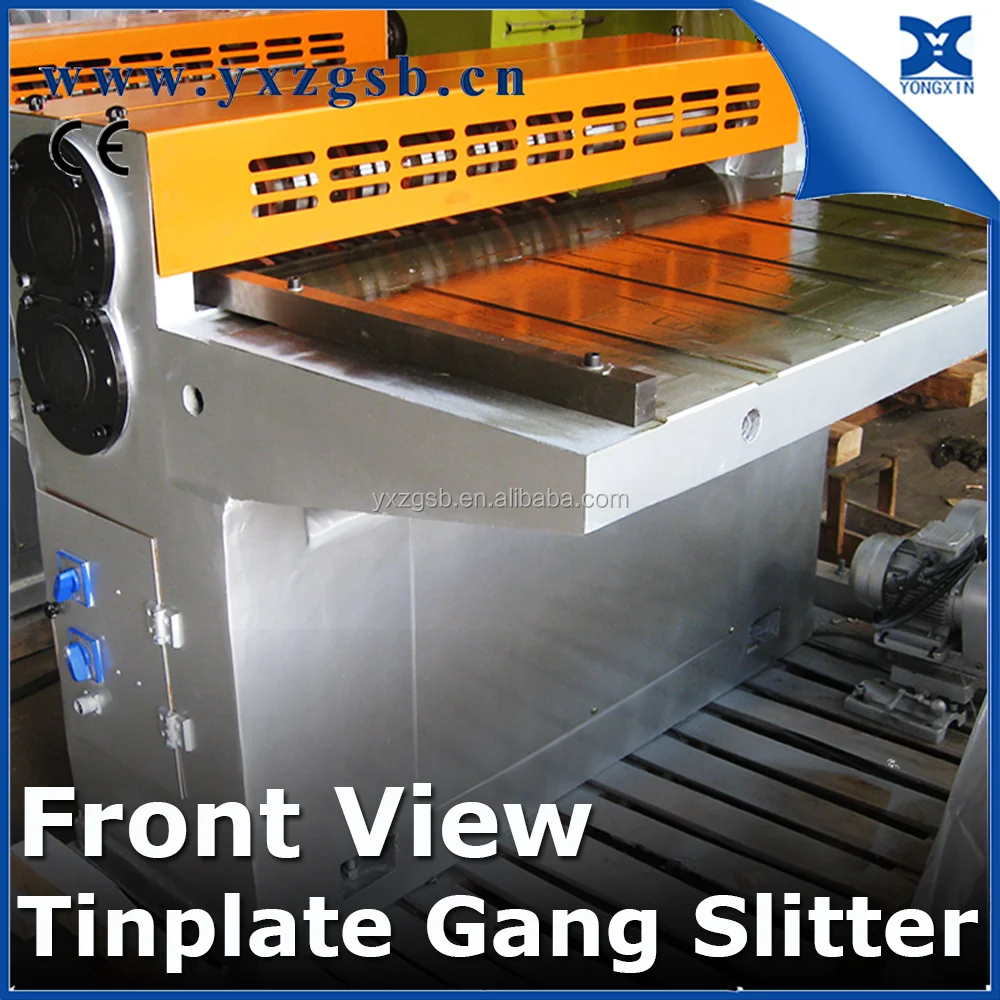

For Canmaking Sheet-Iron Shearing of tinplates into strips by rotary action of knives (cutters). Feeding is manual. Sheet one by one is to be placed on the feed table and to be pushed into the cutters with one side of the sheet all the time touching the side ledge which is preset at right angles to the cutter shafts.



2. Change over and Setting:

Cutters are mounted on specially designed holders which can slide on the cutter shaft to desired position. For firmly gripping to the cutter shafts, the holders are provided with gripper rings which can be tighted with screws provided for the purpose. The provision of gripper rings eliminates the screws coming in contact with the cutter shafts and thereby chances of damage to cutters is avoided. Precisely manufactured cutter shafts, holders and cutters permit quick change over for different strip widths.

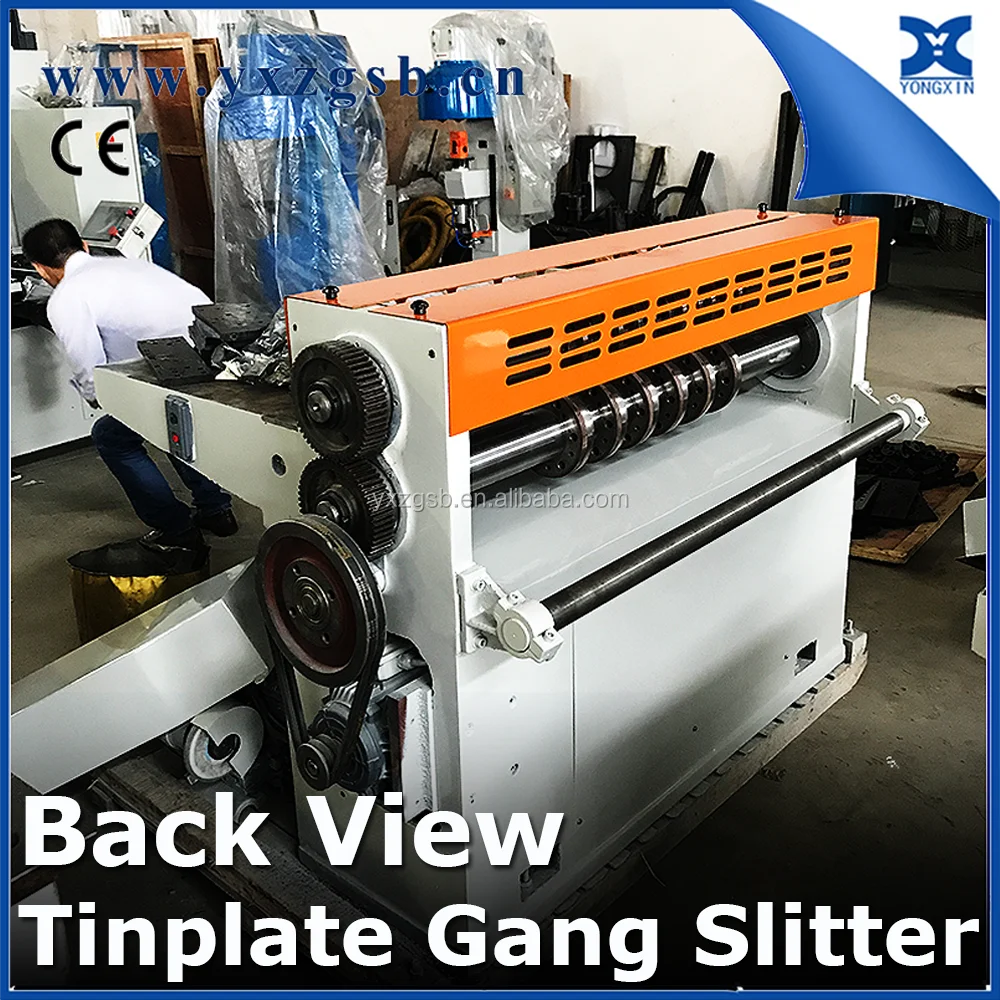

3. Main body: Fabricated in one piece construction. All bores and other machining carried out on precision horizontal boring machine.



4. Feed table: made of cast iron is machined to have smooth finish firmly fitted to the main body.

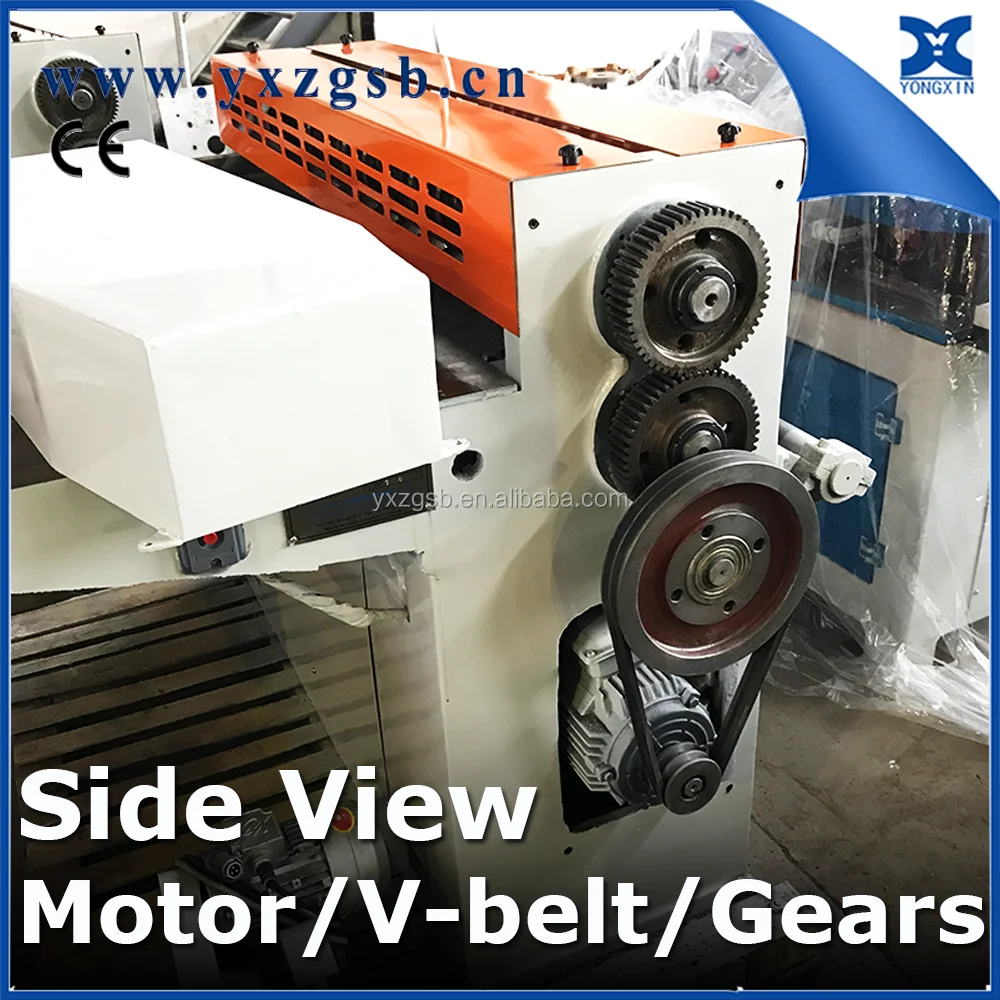

5. Drive: All drive shafts mounted on taper roller bearings Gears are helical of strong design and manufactured by hobbing process.

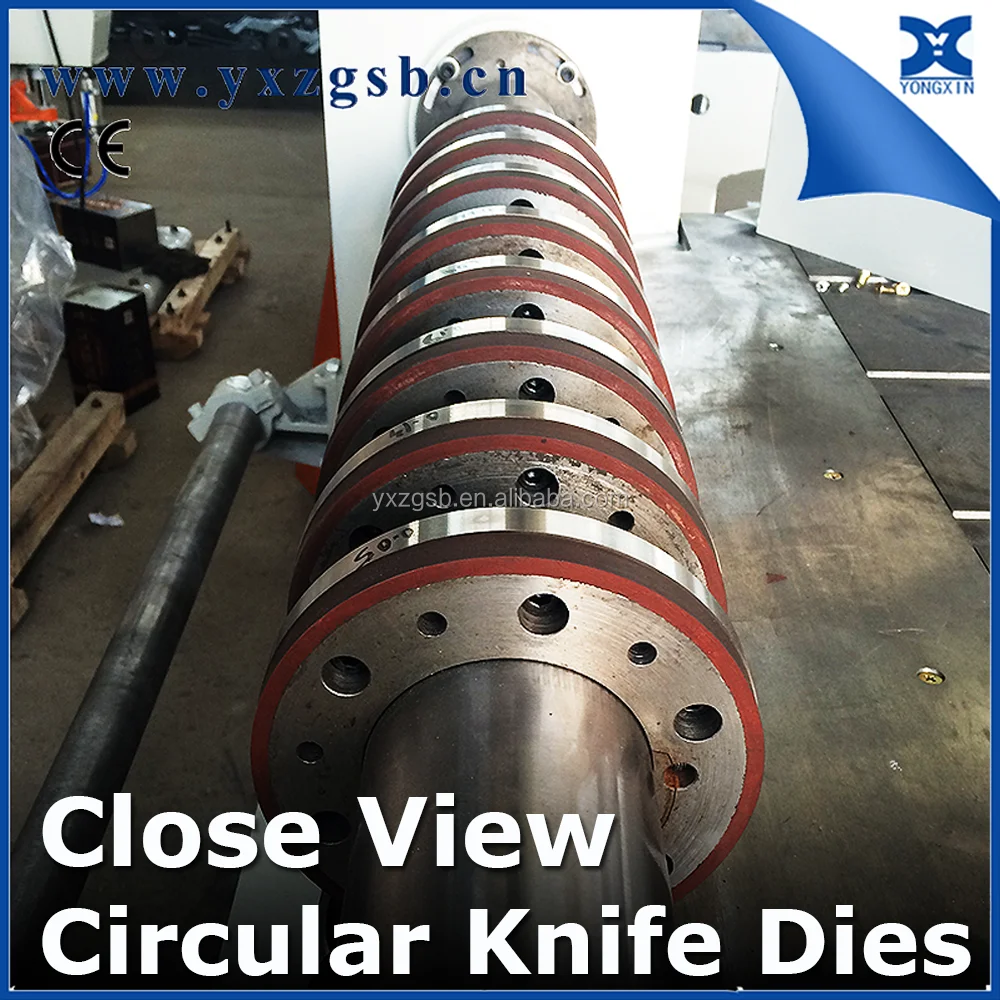

6. Cutter Shafts: For long life cutter shafts are hard chrome plated and precisely groud to very close tolerances.

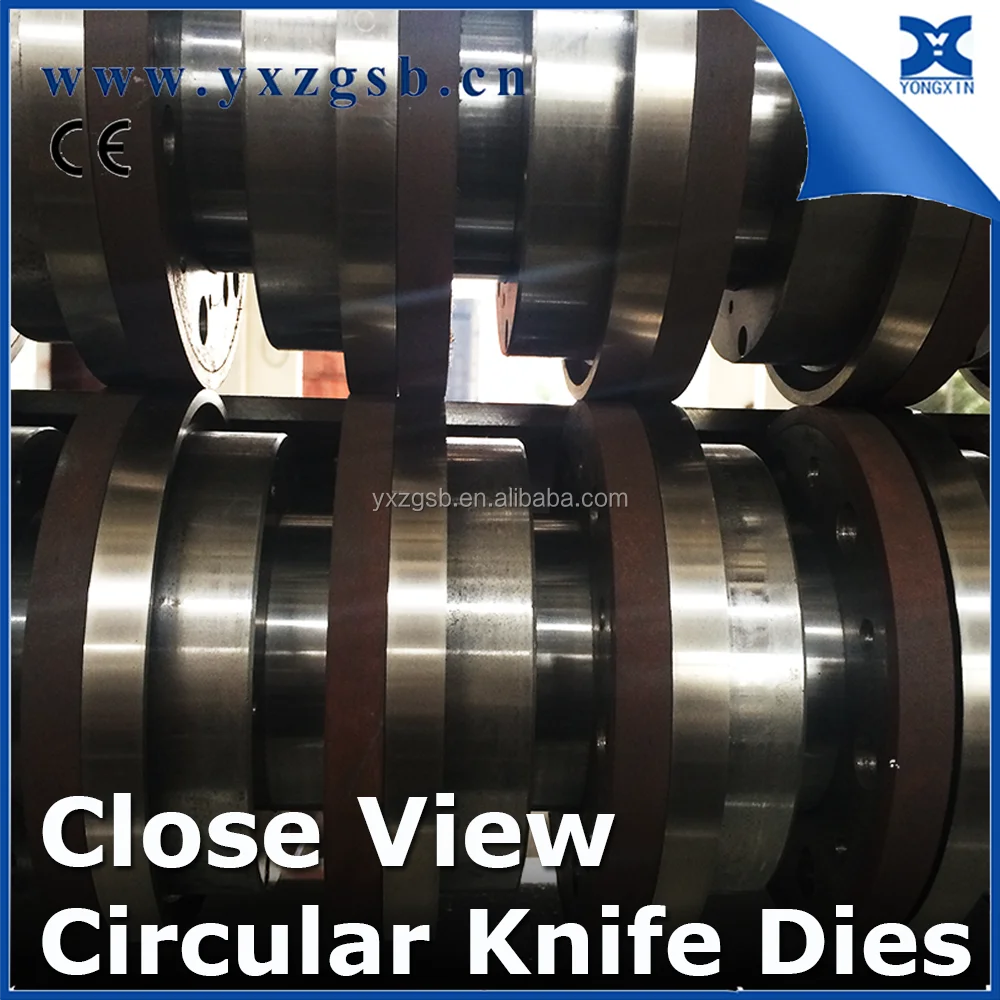

7. Cutters: Cutters are made of High-grade Alloy Tool Steel (Cr12MoV) hardened and groud to close tolerances and concentricity.



8. Grinding Attachment: Machine is provided with grinding attachment at extra cost. With this attachment it is possible to grind the cutter faces on the machine itself for periodical sharpening.
