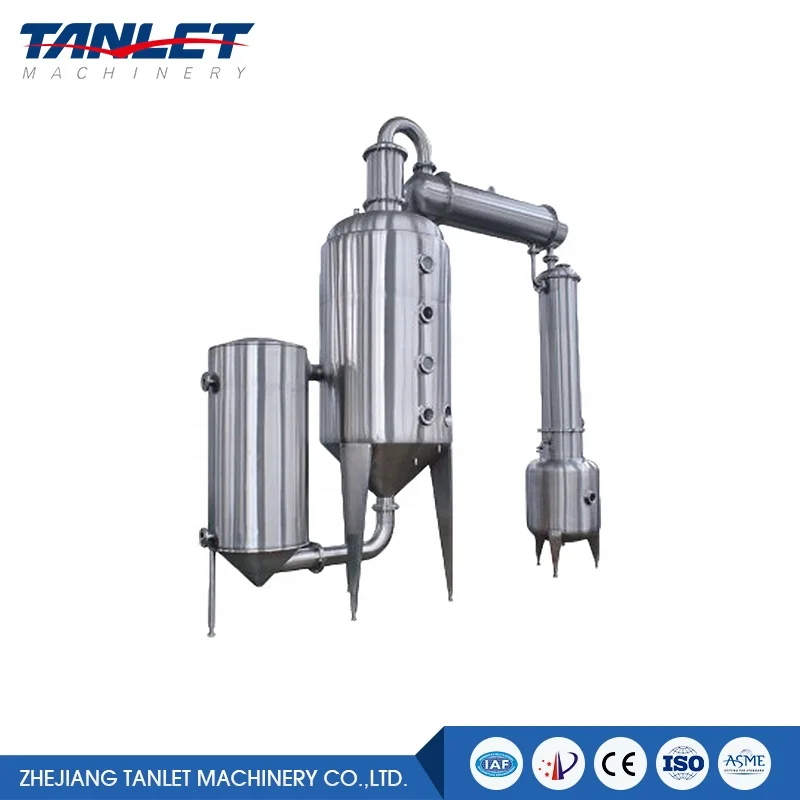

single effect vacuum evaporator fruit juice evaporation concentrator

The Single Effect Vacuum Evaporator Fruit Juice Evaporation Concentrator is composed of heater, evaporator, defoamer, condenser, cooler and liquid receiving tank. The parts that contact materials are all made of stainless steel. The equipment is applicable to evaporation and concentration of liquid materials in pharmacy, food, chemical industry and light industry etc. The concentrating time is short and the evaporation speed is high, which can better protect the heat sensitive materials from being damaged.

The concentrator is applicable to concentration of traditional Chinese herbal Western medicine, glucose, starch, MSG, dairy and chemical industry etc. It is especially suitable for low temperature vacuum concentration of heat sensitive substances.
It can carry out continuous sterilization and concentration. After carefully calculated and precisely designed and improved by professional designers of our company, it has more features and benefits than the original one. The period of being heated of materials is short and the evaporation temperature is low. It has small influence on the products color, flavor and nutritious content, which is especially applicable to concentration of milk etc.heat sensitive substances.

Main Parameters

The Series of Single Effect Evaporators Have Three Forms

WHZ Single Effect External Circulation Vacuum Concentrator

WZ Single Effect External Circulation Plate Type Condensing Vacuum Concentrator

WZS Single Effect External Circulation Vacuum Cream Reclaim Concentrator

1. WZ single effect external circulation vacuum concentrator is the ordinary type, which is used for evaporation of water solution.
2. WZH single effect external circulation vacuum recovery concentrator is the alcohol recovery type, whick is used for evaporation of alcohol solution. It has higher cooling area to ensure the alcohol recovery. Its recovery strength reaches 70~80%, the alcohol consumption rate is less than 5% and the alcohol temperature sfter the recovery is less than 40%.
3. WZS single effect external circulation vacuum ointment collection concentrator is used for single effect evaporation and thick ointment collection. After the normal single effect evaporation, the valves connecting the spraying tube and circulating tube in the heating chamber and evaporating chamber will be closed. The liquid materials will fully enter the evaporating chamber and through the jacket heating in the evaporating chamber, normal pressure type or pressure relief type concentration will be carried out. The concentration specific gravity of materials will be increased to 1.35~1.45

Cutting

Plasma Welding

Assembly

Final Product

User Demand Analysis

Once the project is confirmed, the product level, processing technology and consulting group are analyzed according to the actual demands of customers so as to provide suitable engineering plans, form a complete production line and calculate the budget.

Engineering Design

We carry out planning and designs on details of engineering plans through introducing internationally advances design conception to provide valuable project technological plans and ensure effective implementation of all steps.

Product Manufacturing

The approved production drawing is the basis for production and manufacturing. All equipment that is not manufactured on the site shall be indentified by our quality responsible person so as to meet the strict stipulations.

Automatic Control Integration

The installation of the system and the whole automatic project meets the GMP standard and FDA standard. According to our years of experience, the installation and process rules will help simplify the starting and commissioning of equipment.

Trial Running and Training

During the equipment commissioning, our engineers will provide guidance on the site and carry out various tests with respect to all performances of the equipment with customers. Approval will be received from users.

Verification Services

To ensure normal production, we can set up maintenance and servicing plans for a single machine, the whole production line or the whole factory and provide equipment maintenance services and offer fittings according to customer requirements.

Delivery & Transportation

All delivery terms are available: EXW, FOB, CIF, CFR, DAF, DDP, CIP, etc.

Shipped in 45 days after the deposit confirmed.

Packing

The equipment and accessories will be packed in the wooden case, to ensure safe shipping.

Payment Terms

T/T, L/C, Western Union, Paypal, Apple Pay, Online Payment, etc.

Here is a brief on us:
          Since 1998, with 20+ years of experience
               3 factories totally covered 40,000+sq.m.
               Annually sales $31.5 million, still keeps growing.
               30+ R&D, 200+ employees professional service.
               Leader of this industry in nationwide
