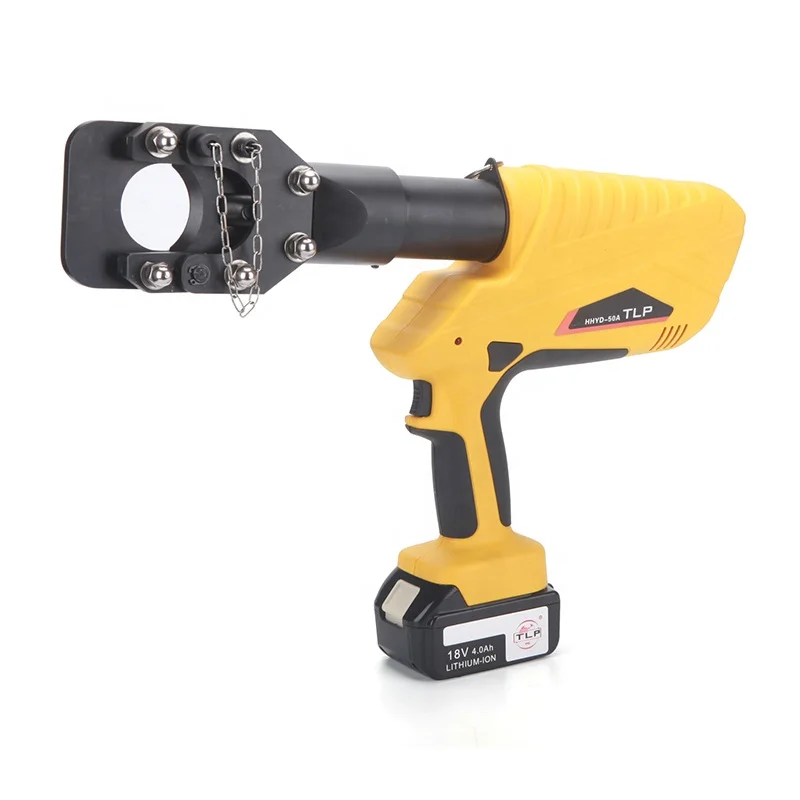

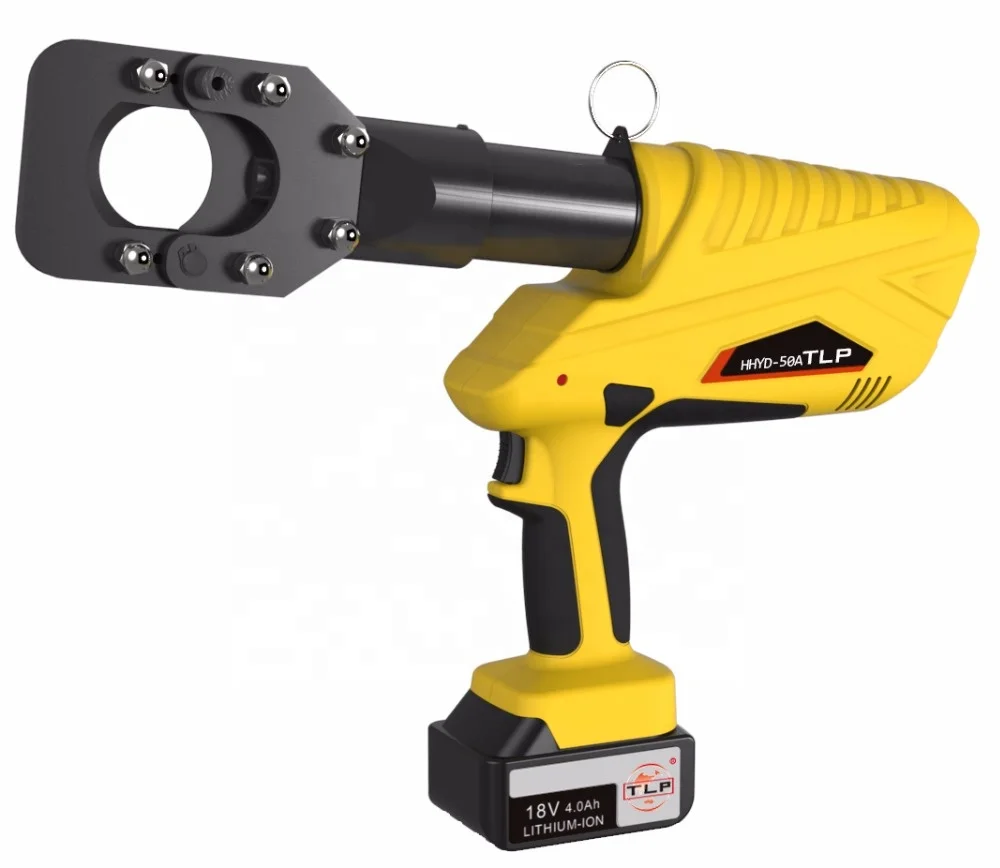

Electric Hydraulic Cable Cutter for ACSR, rebar, steel, armoured cable

Product Overview

Description



Apllication

Battery powered crimping tools are the most efficient solution for crimping applications. Simply press a button to apply the required force.

Two-sate hydraulic system automatically switches to power stroke after a fast speed. When the crimping is complete, the ram retracts automatically.







Specification

Model	HHYD-50A
Hydraulic Ram Output	8.5 Ton
Ram Stroke	50 mm
Battery capacity	70 cutting cycles
Crimping range	Φ50 mm (Copper, Aluminum and armored cable)
Crimping times	6s-18s(Depend on the size of cable)
Battery	18V/4.0Ah Li-ion
Charging times	2 hours
Crimping dies	16,25,35,50,70,95,120,150,185,240,300,400mm2
Qty of battery	2 pcs
Charger	1 pcs
Seals for the cylinder	1 set
Seals for the safety valve	1 set









Characteristics

Closed cutting head with bolt interlock, rotatable, flip top style
Two-stage hydraulic system features fast feed and power stroke upon reaching counter pressure, saving time.
10000+ cycle service life.
Press manual reset button to retract the ram when cutting is complete.
Press manual reset button to retract the ram in case of error.
Ram retracts to original position automatically when applied force exceeds rated capacity.
Audible buzzer and red LED light in case of error.
Quick motor stop for higher user safety.
Powerful 18V Li-ion battery with low battery warning.
Ergonomic 2-component grip area and balanced center of gravity.

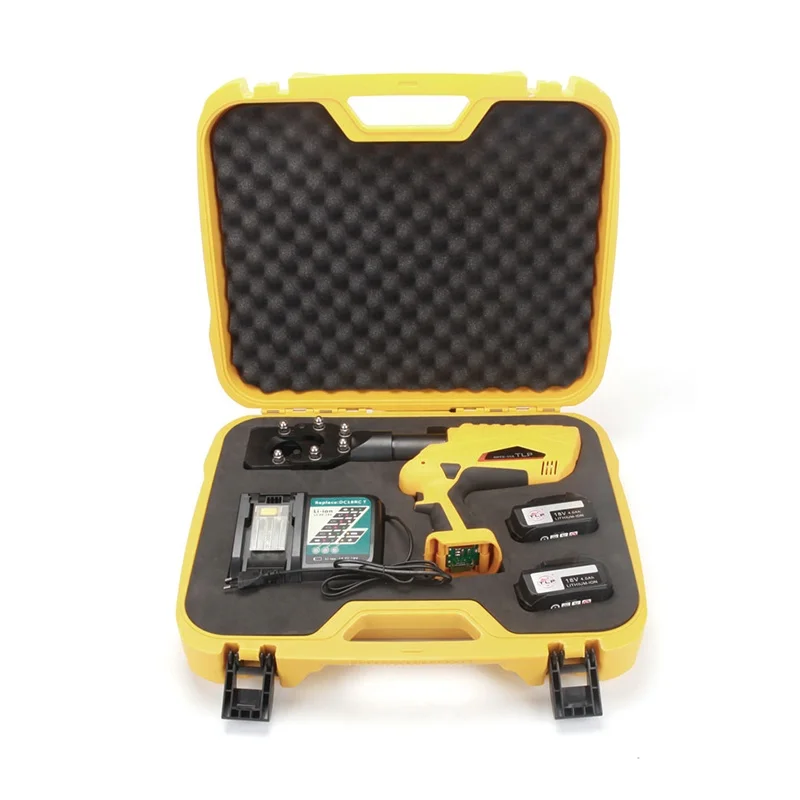

Sturdy plastic storage box.
