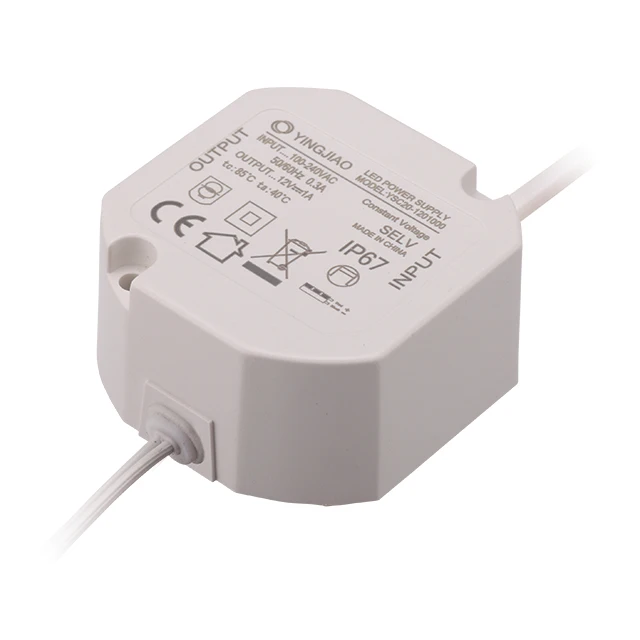

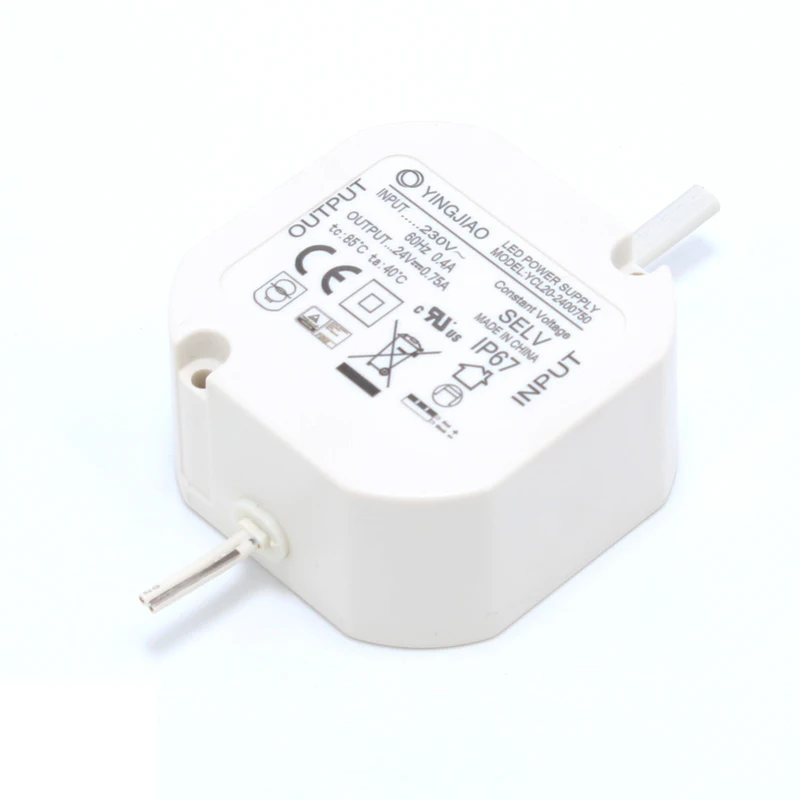

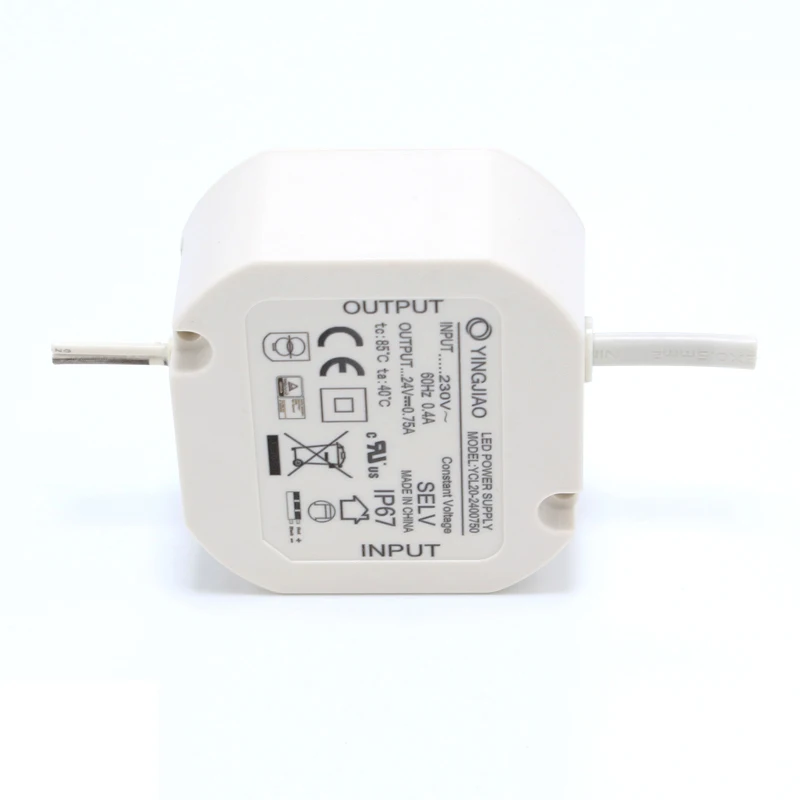

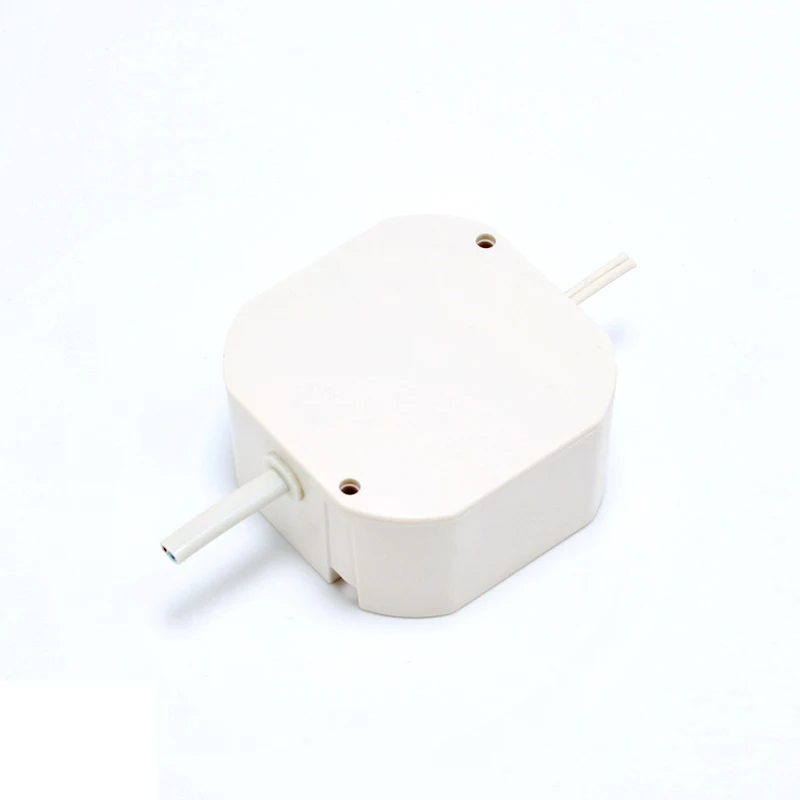

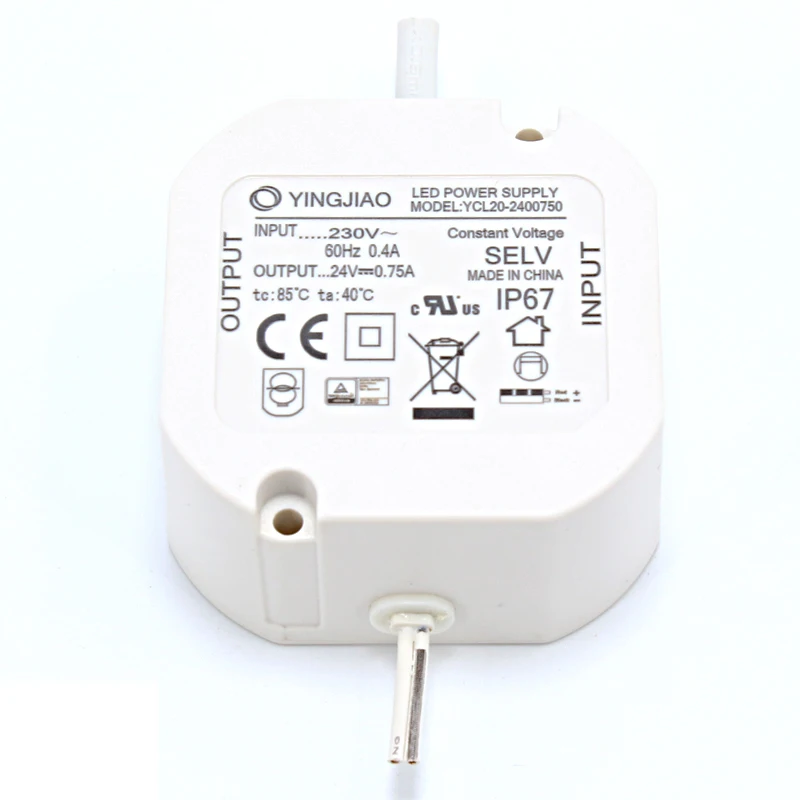

20W 24V 12V Constant Voltage Led Driver IP67 Waterproof Power Supply CE RoHS Approval
- Category: >>>
- Supplier: Ninghai Yingjiao Electrical Co. Ltd.
Share on (60699241765):
Product Overview
Description
20W 24V 12V Constant Voltage Led Driver IP67 Waterproof Power Supply CE RoHS Approval
Product Description
| Model: | YCL20R |
| Power: | 20W max. |
| Input: | 100-240VAC 50/60Hz |
| Output Voltage: | 6-48V |
| Output Current: | 100MA-2000MA |
| Inrush Current: | 65 Amps max. at 230VAC/50Hz,full load |
| Leakage Current: | 2.5mA Max. at 264VAC input |
| No Load Power Consumption : | <0.5W |
| Protections: | Short Circuit /Over Current /Over Voltage/over temperature protection |
| Short Circuit Protection (SCP): | Protection to Zero Voltage |
| Over Voltage Protection (OVP): | ≤Vout*150% |
| Over Current Protection (OCP): | 110%-180% |
| Working TEMP.: | -20°C-50°C |
| Working Humidity: | 5%-90% RH non-condensing |
| Storage TEMP.,Humidity and altitude: | -40℃ ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL. |
| Certificates and approvals: | CE,EMC,RoHS,REACH |
| EMI EMISSION: | Conducted disturbance at mains terminals:EN 55015 Radiation Test&Conduction Test: EN 55015 Magnetic Emission:EN55015:2013 Harmonic Test : EN 61000-3-2 Voltage fluctuation and Flicker Test : EN 61000-3-3 |
| EMS IMMUNITY: | ESD Test:IEC 61000-4-2 RS Test:IEC 61000-4-3 EFT/B Immunity Test:IEC61000-4-4 Surge Immunity :IEC61000-4-5 Conduted RF Immunity: IEC 61000-4-6 Power frequency magnetic field:IEC 61000-4-11 Voltage dips and interruptions,100% reduction: IEC 61000-4-11 Voltage dips and interruptions,30% reduction: IEC 61000-4-11 |
| MTBF: | 100000 hours minimum at full load at 25℃ ambient |
| Life: | 3-5 years alternative |
| Dimension: | 64*47.5*28mm |
| Weight: | 60g |
| Packing: | 1PC/PE BAG+WHITE BOX, CAN BE CUSTOM |
Details:
| Model: | YCL20-1201500 | YCL20-2400750 |
| DC Voltage: | 12V | 24V |
| Rated Current: | 1.5A | 0.75A |
| Current Range: | 0-1.5A | 0-0.75A |
| Rated Power: | 12W | 12W |
| Ripple & Noise(max.): | <1% | <1% |
| Voltage Tolerance: | ±5% | ±5% |
| Line Regulation: | ±3% | ±3% |
| Load Regulation: | ±5% | ±5% |
| Efficiency: | 84% | 84% |
| Setup,Rise time | 1 second max./40 MS max. | |
