Industrial water cooled refrigerator chiller laser water chiller S&A CW6000AI for machining center spindle and laser tube
- Category: >>>
- Supplier: Shenzhen Reliable Laser Tech Co. ltd
Share on (60699278319):
Product Overview
Description

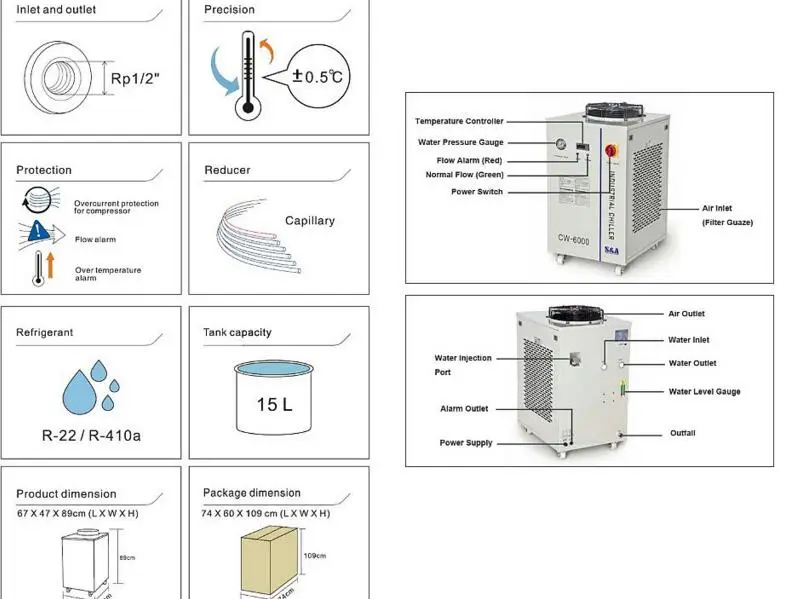

Parameters to S&A CW-6000AH water cooled chiller

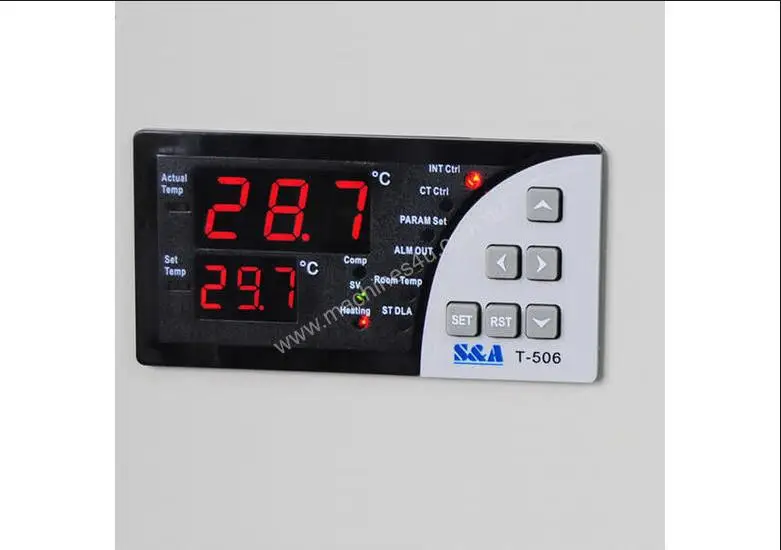

One - stop automatic intelligent temperature control:Different environment, it switches automatically to approximate control temperature without user's modified operation.
CW-6000AH: used in cooling 3 100w glass co2 laser tubes or 4 100w glass co2 laser tubes;
CW-6000AI: used in cooling single 100w CO2 Metal RF tube;
CW-6000AN: used in cooling single 100w Solid - state lasers, single 30-300w A semiconductor laser or single 22kw CNC spindle;
semiconductor laser,Single 100W co2 metal RF tube, a single 18kw CNC spindle or welding equipment;
CW-6002 doulble inlet and outlet(alternative); heater(alterative); Water purification configuration;
| Model | CW-6000AH | CW-6000BH | CW-6000DH | CW-6000AI | CW-6000BI |
| Voltage | 220V | 220V | 110V | 220V | 220V |
| Frequency | 50HZ | 60HZ | 60HZ | 50HZ | 60HZ |
| Current | 0.3~6.3A | 0.45~147A | 0.7~6.7A | ||
| Compressor power | 0.965KW | 0.895KW | 1.12KW | 0.965KW | 0.895KW |
| Refrigeration capacity | 3.015KW | 2.785KW | 3.145KW | 3.015KW | 2.785KW |
| Refrigerant | R-22/R-410a | ||||
Refrigerantcharge | 800 | 750g | 650g | 800g | 750g |
protection | Over current protection for compressor, flow alarm,over temperature alarm | ||||
Pump power | 0.05kw | 0.1kw | |||
Temperature control accuracy | -0.5°C~+0.5°C | ||||
Throttle | Capillary | ||||
Water tank capacity | 15L | ||||
| Outlet and inlet | Rp1/2" | ||||
Max lift | 12m | 25m | |||
Max flow | 13L/min | 16L/min | |||
N.W | 60kg | ||||
| G.W | 70kg | ||||
Dimensions | 67x47x89cm(L*W*H) | ||||
Packing dimensions | 74X60X109cm(L*W*H) | ||||
Other power supply models can be customized, with heating and higher temperature control accuracy to choose from.
