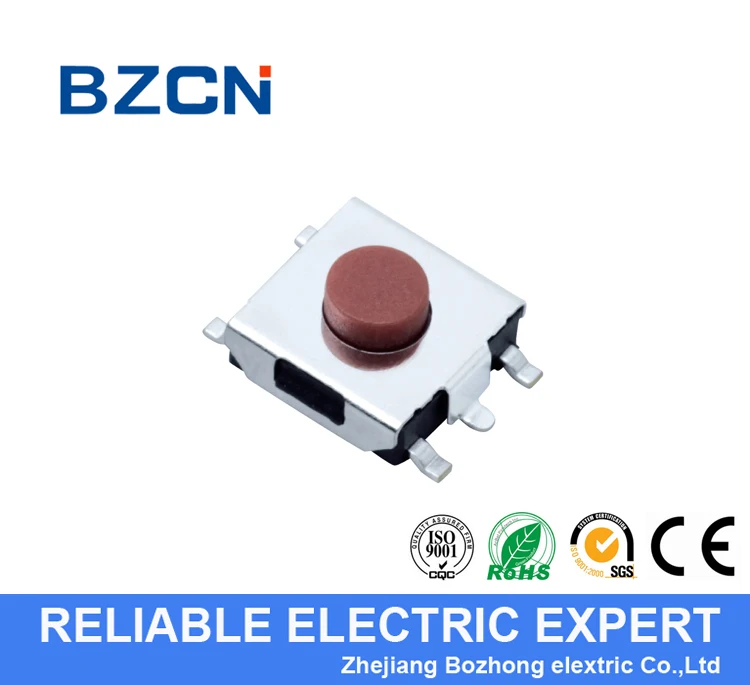

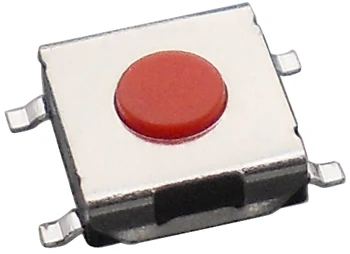

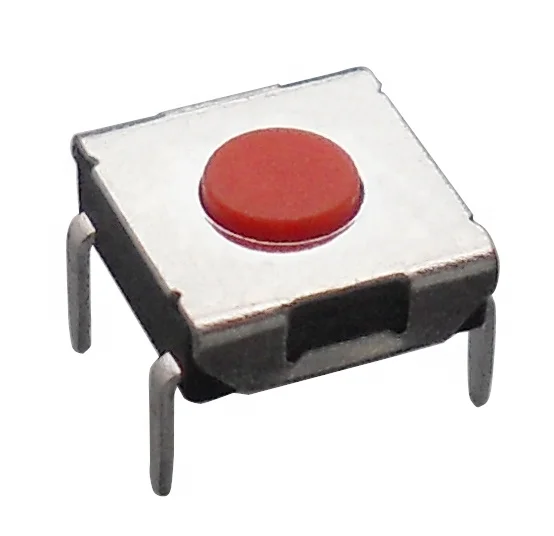

China BZCN 6.2x6.2 Long Life Normally open Momentary SMD Push earth terminal Tact Tactile Switch with 5 pin Micro switch

Share on (60699320943):


Price:

Quantity:


Product Overview

Description


First Page



Product Description




























































Model No.TS-E001/E002/E003/E004/E005/E006/E007
Terminal TypeSMD/SMT/DIP
Switch Rating50mA DC 12V
Operation Travel0.2±0.1mm
Operation TpyeMomentary
Operation Force160/180/250/400 gf
Operation Life300,000 Cycles
Contact Resistance≤100mΩ max
Insulation Resistance≥100MΩ/m  DC 250V
Dielectric StrengthAC 250V/m 50Hz
Operation Templerature -30℃  to + 85℃
Operation Humidity25-85% RH
Solder Ability260±5℃ for 3 seconds

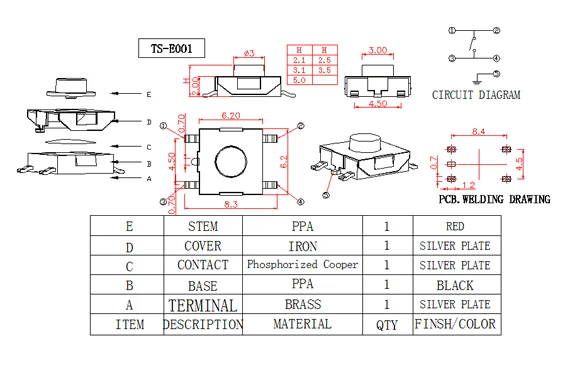

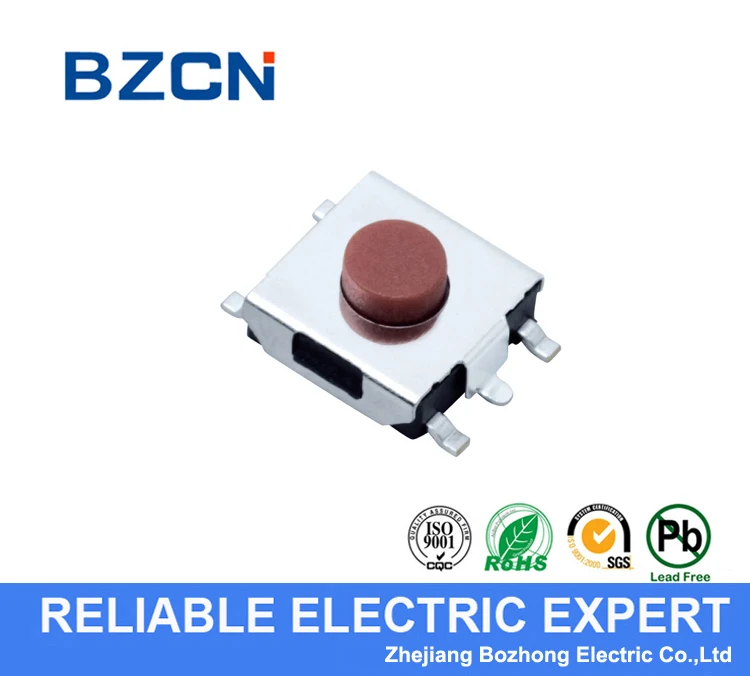

 TS-E001





TS-E001TS-E001

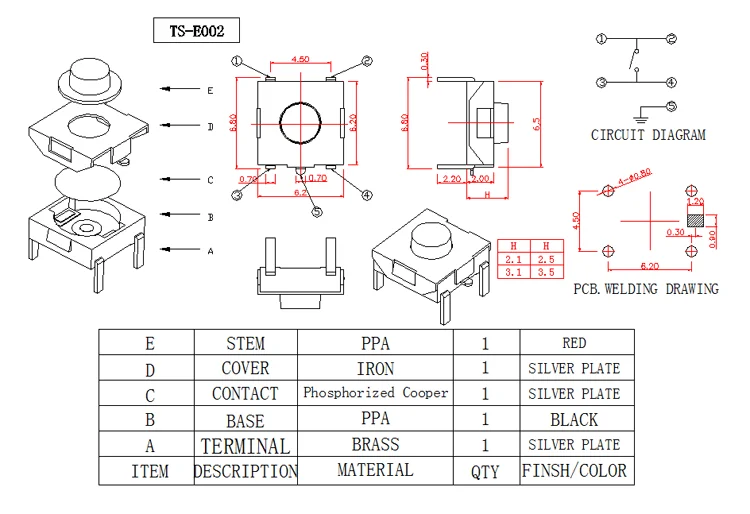

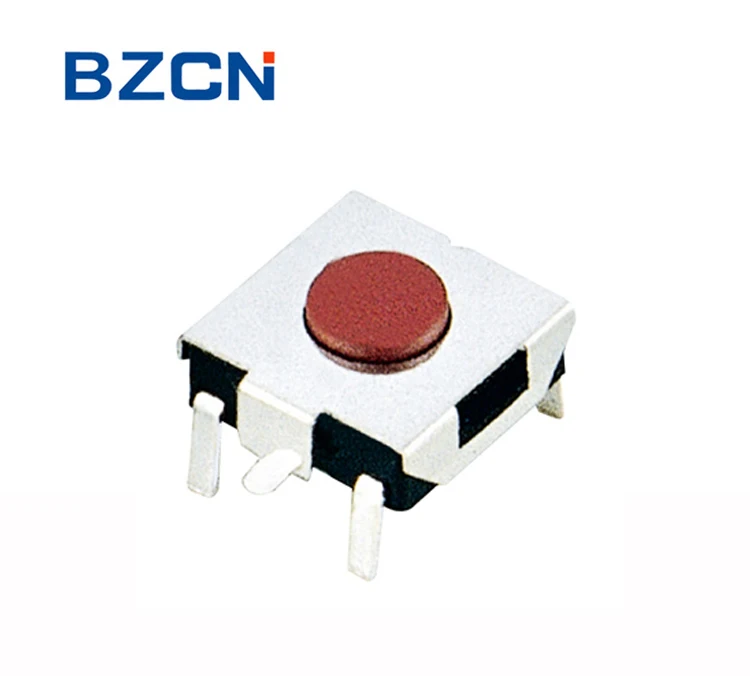

TS-E002

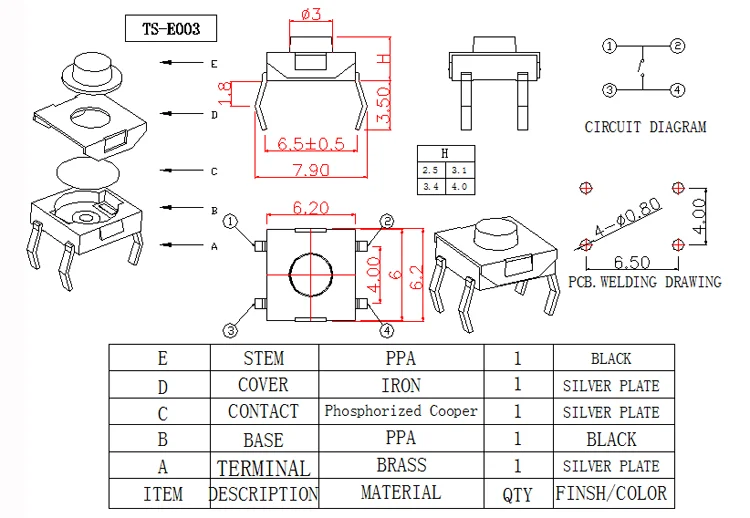

TS-E003

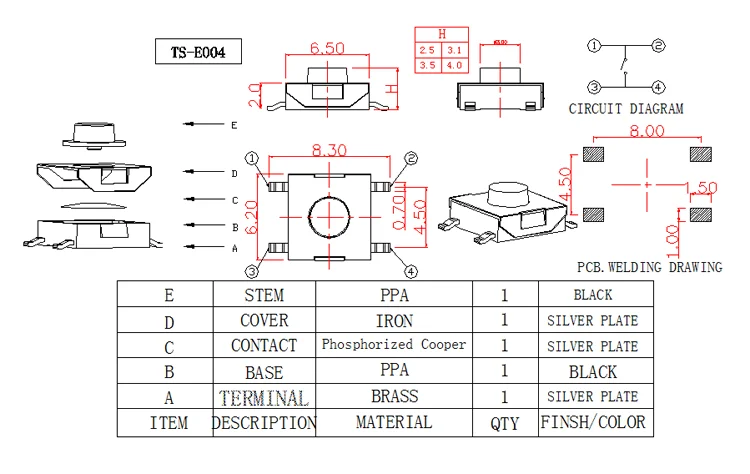

TS-E004


TS-E004 (6.2x6.2 ).jpgTS-E004.png

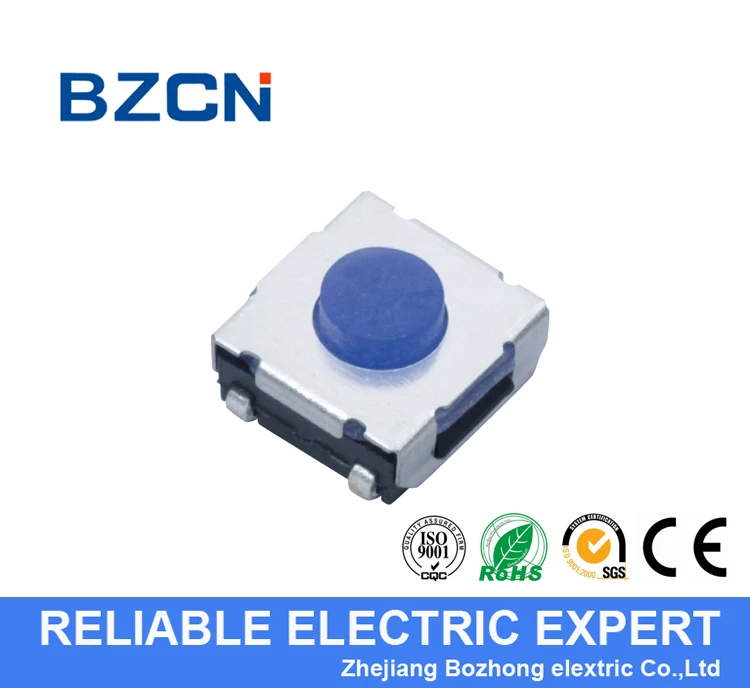

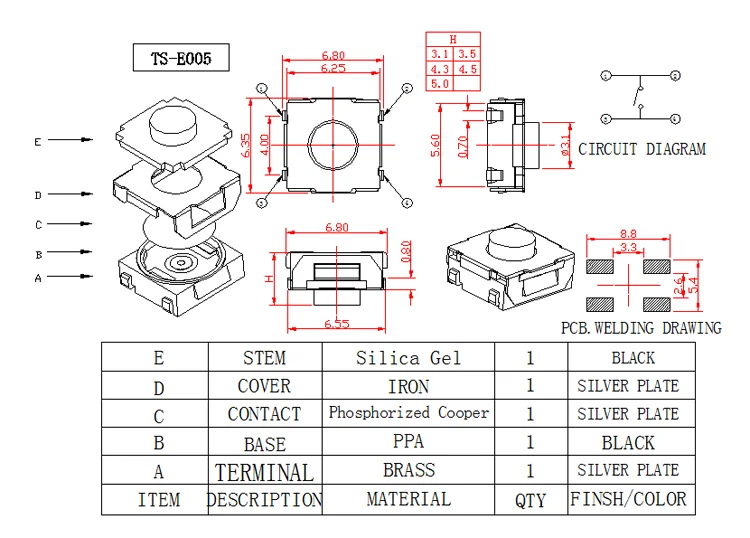

TS-E005

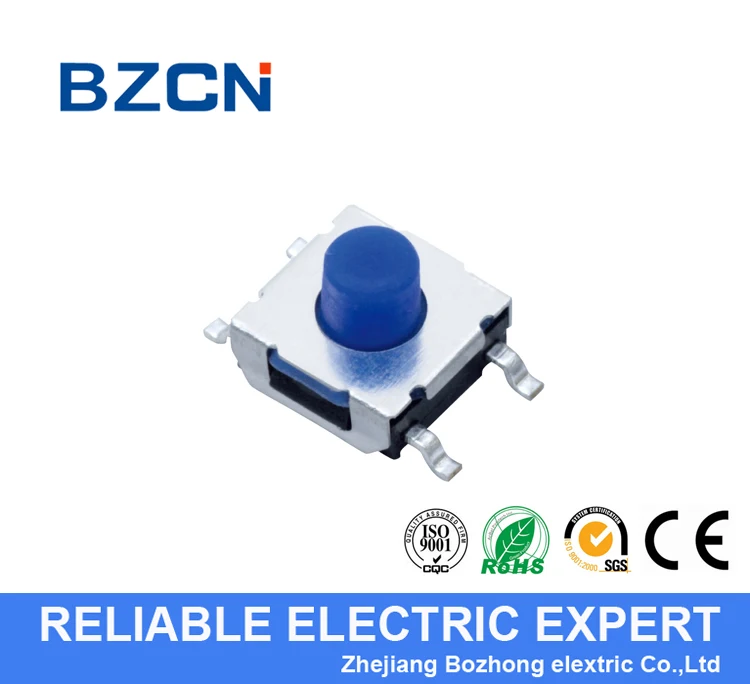

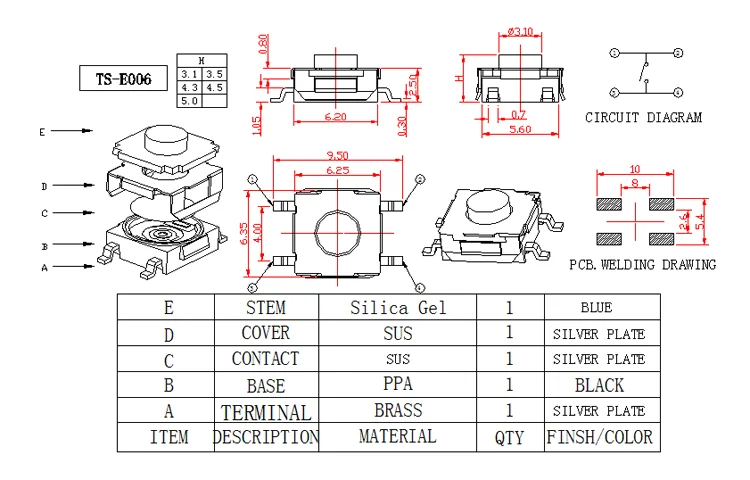

TS-E006

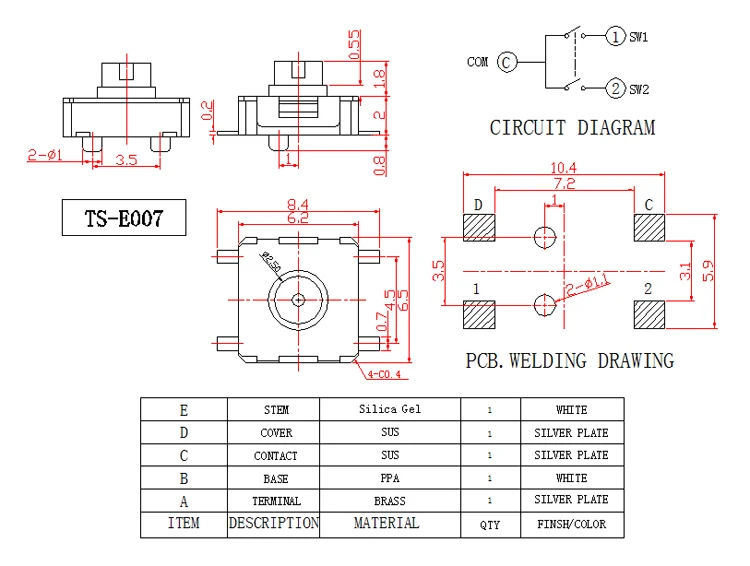

TS-E007
