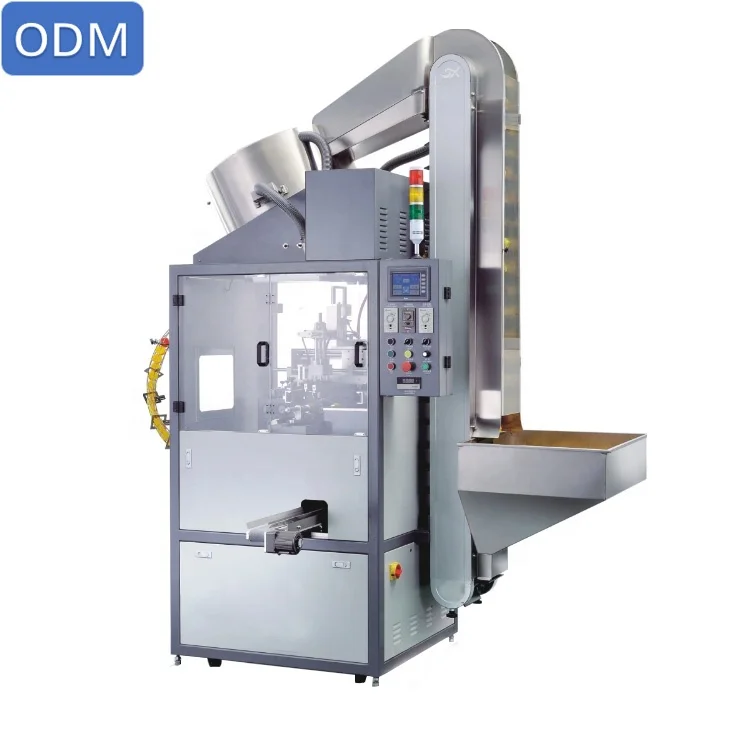

Automatic Plastic Aluminium Bottle Cap Side Rotary Hot Foil Stamping Printing Machine
- Category: >>>
- Supplier: Shenzhen Topper Printing Machinery Co. Ltd.
Share on (60699342304):
Product Overview
Description
Product Description

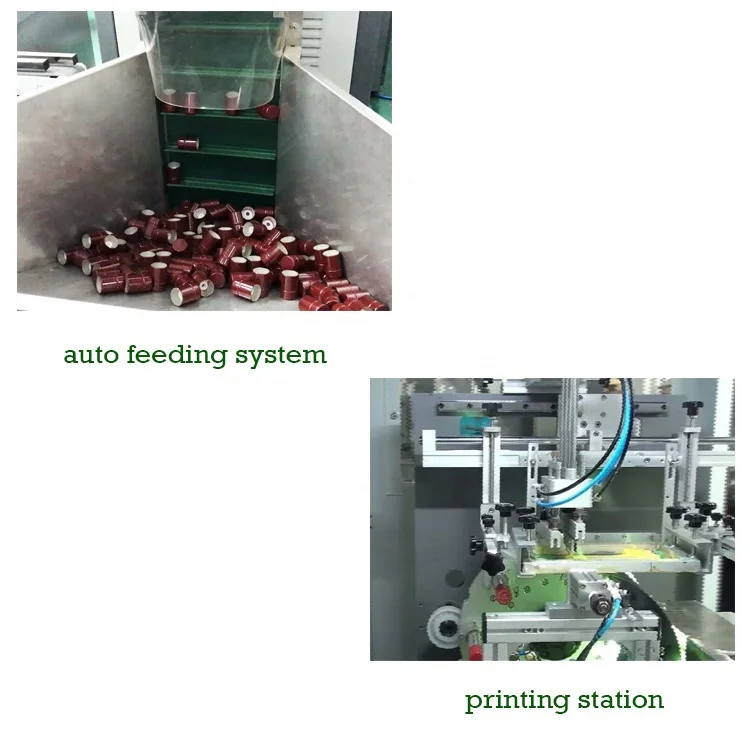

Auto feeding bowl
Using a vertical funnel elevator for feeding, with large capacity and fast speed
Holding fixture
Make the conveyor fixtures according to the size of the bottle cap, which can prevent the cap from moving during hot stamping
Touch panel
The time, temperature, and machine parameters of hot stamping can be controlled separately
Feature
1 Vertical cylinder pressure mechanism design, a strong pressure;
2 Stamping head can be adjuster for back-front,Left-right,Up-down, easy to operate safely and quickly; Used for 8-bit rotary type feeding mechanism, significant savings in preparation time, improve the stamping speed;
3 Stamping pressure, temperature, time stamping adjustable;
4 Automatic foil feeding , Foil collection, and adjustment;
5 Lift stamping head height adjustable;
6 Bin storage, automatic Crawler installef for cap feeding;
7 Automatically distinguish device between top or Bottom of cap to ensure the correct position into the gilt;
8 Automatic stamping process;
9 The use of advanced modular program-controlled device, together with touch-screen display control component of the operating system.
2 Stamping head can be adjuster for back-front,Left-right,Up-down, easy to operate safely and quickly; Used for 8-bit rotary type feeding mechanism, significant savings in preparation time, improve the stamping speed;
3 Stamping pressure, temperature, time stamping adjustable;
4 Automatic foil feeding , Foil collection, and adjustment;
5 Lift stamping head height adjustable;
6 Bin storage, automatic Crawler installef for cap feeding;
7 Automatically distinguish device between top or Bottom of cap to ensure the correct position into the gilt;
8 Automatic stamping process;
9 The use of advanced modular program-controlled device, together with touch-screen display control component of the operating system.
10. PLC control panel for easy operation.
Specification
Model | TH-100C |
Printing stations | 8 pcs |
Max printing diameter | 15-60mm |
stamping plate | 100*100mm |
Printing speed | 2000pcs/hr |
Rated Voltage | 220V 50Hz |
Air pressure | 6 bar |
Dimension(L×W×H) | L230*W140*H230cm |
Weight | 700kg |
Company Profile
Packaging&Shipping
FAQ
Q1. Are you a factory or a trading company?
A:We are a professional manufacturing factory,and the quality is guaranteed.
Q2. Can you do the production as customized?
A:Yes,we could produce the machine depends on your requirements.
Q5. What''s the MOQ, Delivery time ?
A:MOQ: 1 set
Delivery time: 25-30 workdays after receiving T/T 30% payment deposit
A:We are a professional manufacturing factory,and the quality is guaranteed.
Q2. Can you do the production as customized?
A:Yes,we could produce the machine depends on your requirements.
Q3. Why choose us?
A: a.We are a professional factory.
b. We have our own research and sales team.
c. We are golden supplier in Alibaba.
Q4. What service can you provide?
A:Before service: providing video、sample、testing、introduction.
After service: 1 year warranty、field maintenance and repair service.
A: a.We are a professional factory.
b. We have our own research and sales team.
c. We are golden supplier in Alibaba.
Q4. What service can you provide?
A:Before service: providing video、sample、testing、introduction.
After service: 1 year warranty、field maintenance and repair service.
Q5. What''s the MOQ, Delivery time ?
A:MOQ: 1 set
Delivery time: 25-30 workdays after receiving T/T 30% payment deposit
