12V and 24V Worm Drive Gear Motor DC

Product Overview

Description

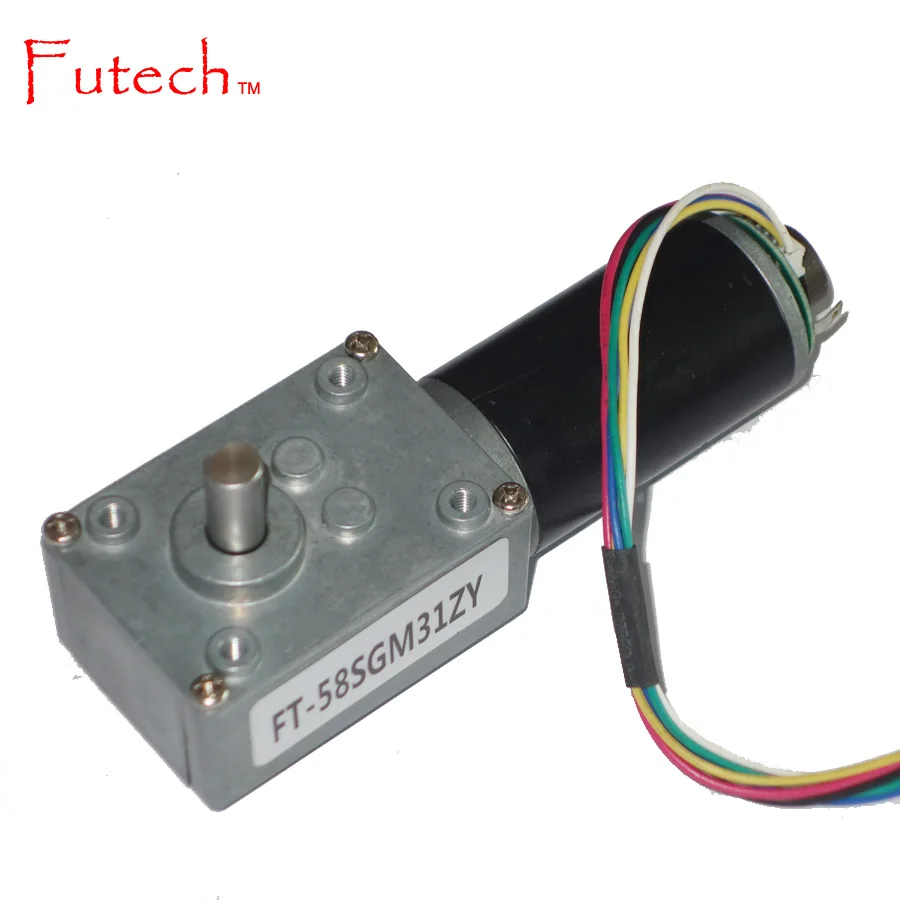

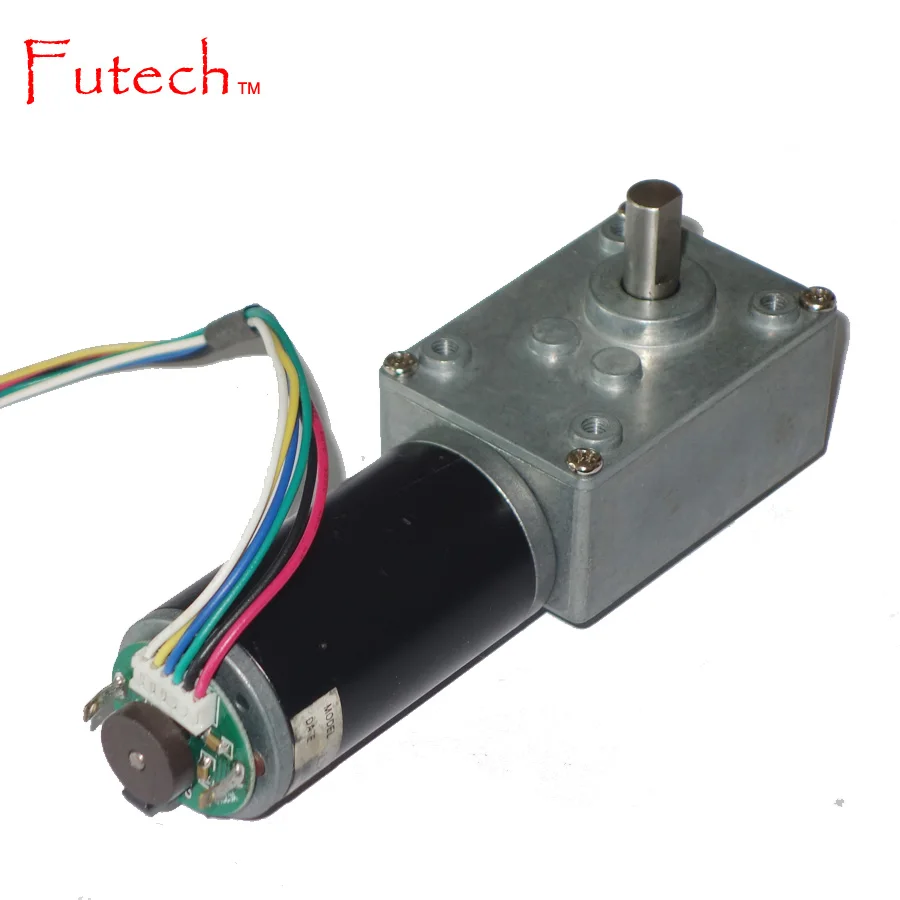

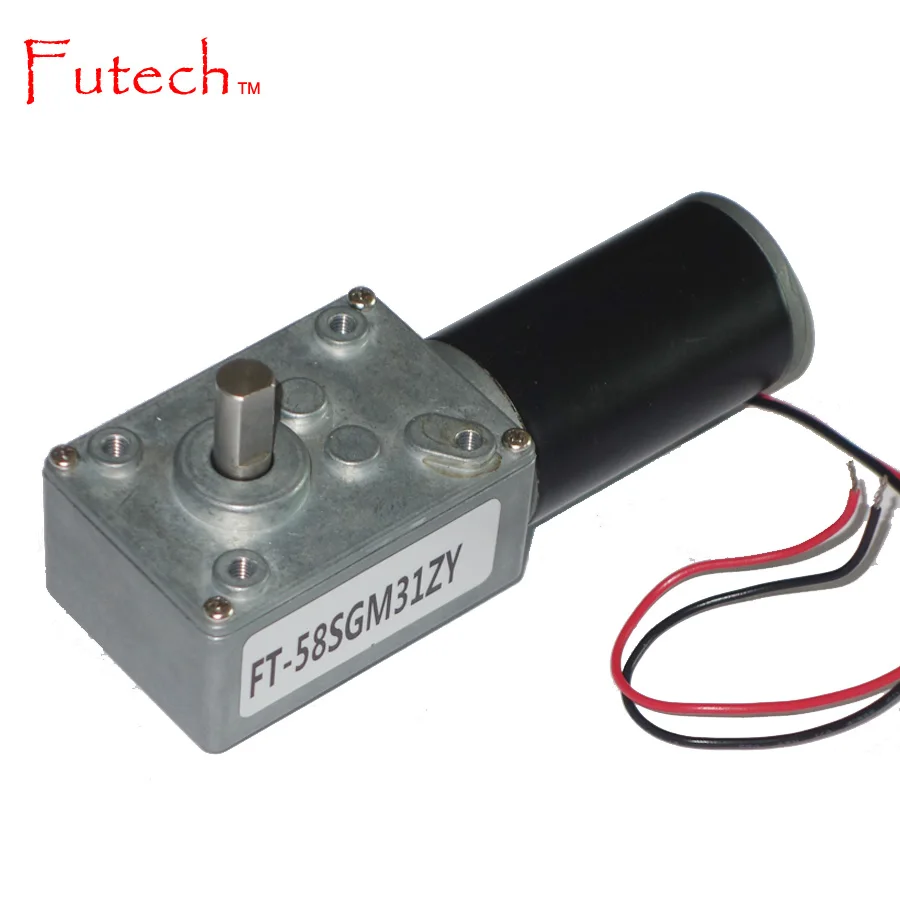

FT-58SGM31ZY  12V and 24V Worm Drive Gear Motor DC



DRAWING (mm)



SPECIFICATIONS

The specifications are for reference only. Contact us for customized data.

Model number	Rated volt.	No load		Load				Stall
		Speed	Current	Speed	Current	Torque	Power	Current	Torque
		rpm	mA(max)	rpm	mA(max)	Kgf.cm	W	mA(min)	Kgf.cm
FT-58SGM31ZY0129000-49K	12V	184	420	160	2200	3.5	5.75	8000	17.5
FT-58SGM31ZY0125500-73K	12V	74	300	55	1200	3.7	2.09	2880	14
FT-58SGM31ZY0129000-109K	12V	89	400	75	1650	4.6	3.54	5700	23
FT-58SGM31ZY0127000-109K	12V	69	400	58	1580	5.6	3.33	4700	25
FT-58SGM31ZY0129000-218K	12V	41	500	35	1600	8	2.87	6500	37
FT-58SGM31ZY0123500-290K	12V	12	100	8.5	450	8	0.70	1190	30
FT-58SGM31ZY0127000-634K	12V	11	550	9.2	950	19	1.79	7500	127
FT-58SGM31ZY0247000-109K	24V	64	230	45	1600	10	4.62	4500	23
FT-58SGM31ZY02410000-73K	24V	133	400	124	1200	3	3.82	10500	25
FT-58SGM31ZY0248000-73K	24V	108	120	89	1359	6.7	6.12	3700	30
FT-58SGM31ZY0249000-505K	24V	18	200	15.5	850	21	3.34	3600	128
FT-58SGM31ZY0244500-505K	24V	9	90	7.3	320	15	1.12	950	68
FT--58SGM31ZY0243500-634K	24V	5.5	120	3.5	500	31	1.11	820	74
FT-58SGM31ZY0245000-1327K	24V	3.7	150	3.2	550	35	1.15	2600	120
Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in    1 mm≈0.039 in



GEARBOX DATA

Reduction stage	3-stage	4-stage
Reduction ratio	26, 54, 75, 106	202, 250, 313, 402, 528, 663, 804, 1327
Max rated torque Kgf.cm	7	10
Max momentary torque Kgf.cm	12	17
Gearbox efficiency	53%	48%



MOTOR DATA

Motor model	Rated Volt.	No load		Load				Stall
		Current	Speed	Current	Speed	Torque	Power	Torque	Current
	V	mA	rpm	mA	rpm	gf.cm	W	gf.cm	mA
FT-31ZY	12	≤180	5500	≤750	4100	130	5.5	≤520	≤3500
FT-31ZY	12	≤300	9000	≤1500	6700	300	21.0	≤1200	≤6500
FT-31ZY	24	≤100	3500	≤100	2600	90	2.5	≤360	≤850
FT-31ZY	24	≤160	5500	≤320	4100	130	5.5	≤520	≤1700



CERTIFICATES: CE & ROHS



FAQ

Q: Can you make a motor with custom specifications?

A: Yes, actually this is what we are good at.

Q: Can you change the output shaft of the motor?

A: Yes, no problem.

Q: Does the motor rotate in both directions (CW and CCW)?

A: Yes, it does.

Q: What is the major difference between a spur gear motor and a planetary gear motor?

A: Generally speaking, the planetary gearing structure is much stronger than a spur one. Therefore, a planetary gear motor endures much higher torque than a spur gear motor in equivalent size.

Q: What is delivery time for a sample?

A: It depends, normally 1~2 weeks.

Q: What is delivery time for mass production?

A: 3~4 weeks if there is no additional requirements.

Q: What is the MOQ (minimum order quantity)?

A: No MOQ! Any quantity is acceptable.

Q: Do you have quality control?

A: Yes, it is a must. We do 100% inspection on all motors.

Q: Do you have warranty?

A: Yes, one year.

Q: Are you a real factory?

A: Yes, we are.

Q: How much does a sample cost?

A: We don’t expect to make any profit from samples. Please contact us and we’ll let you know.

Q: What are your payment terms?

A: 30% deposit, balance due before shipment or against shipping documents.

Q: Do you accept PayPal?

A: Yes, but for samples and for small amount of money only.

Q: How do you handle shipment?

A: a) For samples and small batches, we recommend FedEx and UPS express door to door. It is very fast, safe and convenient.

b) For mass production, we recommend shipment by sea and by airfreight and go with FOB/CIF/CFR terms.

Q: I don’t know too much about motor, can you recommend me a motor?

A: Sure. Normally we will ask you some questions regarding application, dimensions, rated voltage, speed at load/no load, torque at load/stall. i.e. a robot motor with diameter 37mm, 12V, 100rpm and 2Kgf.cm at load.
