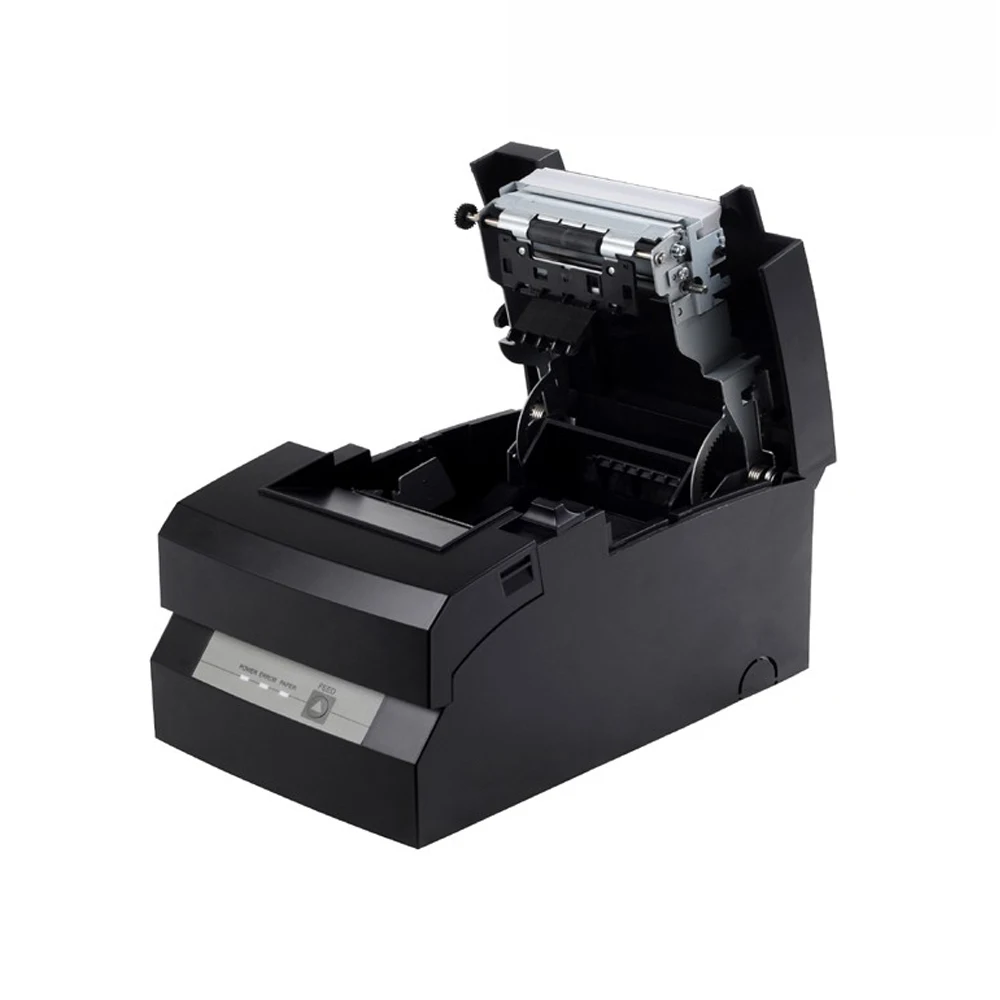

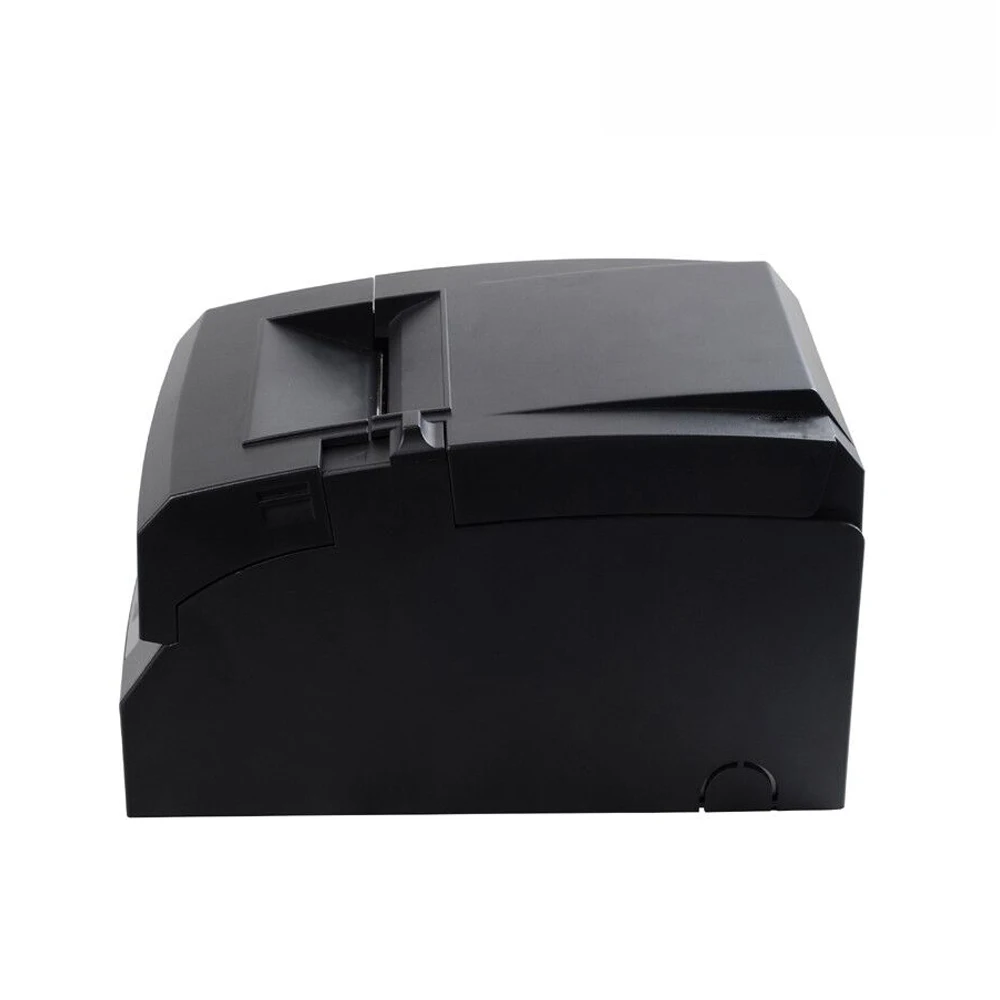

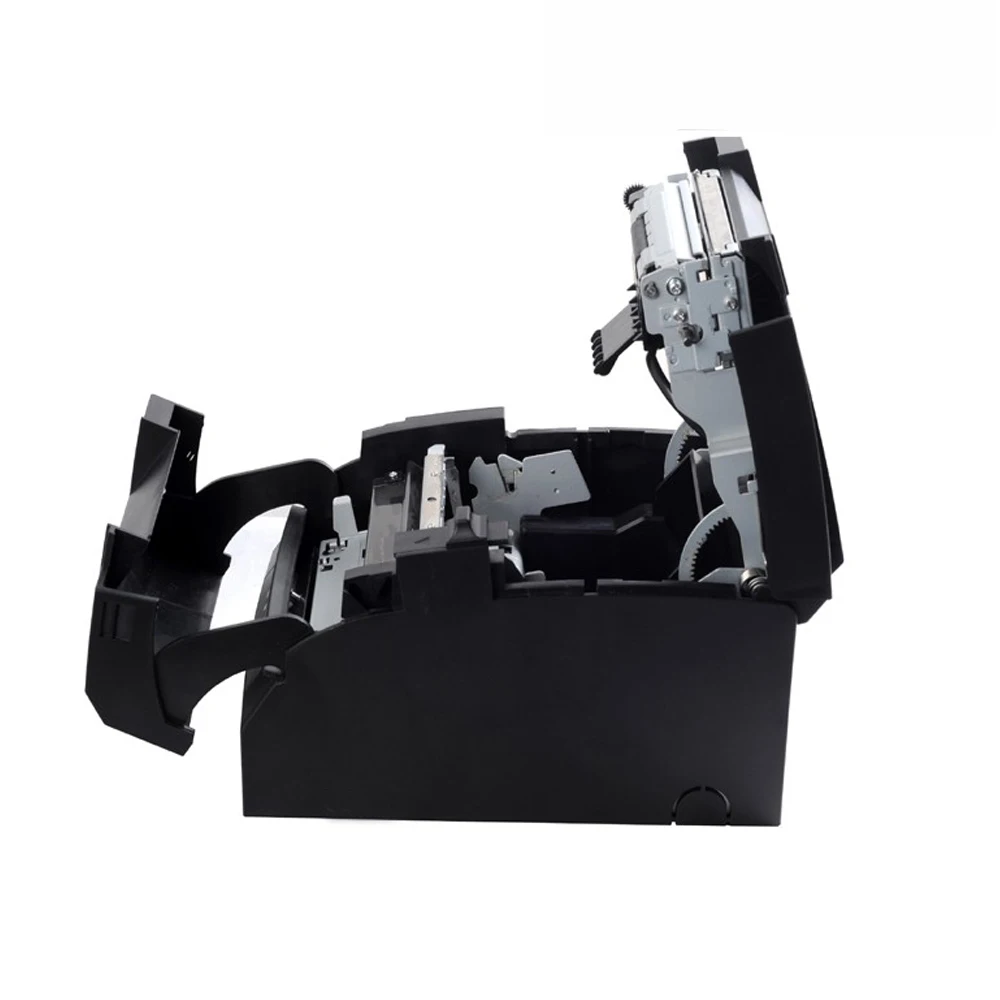

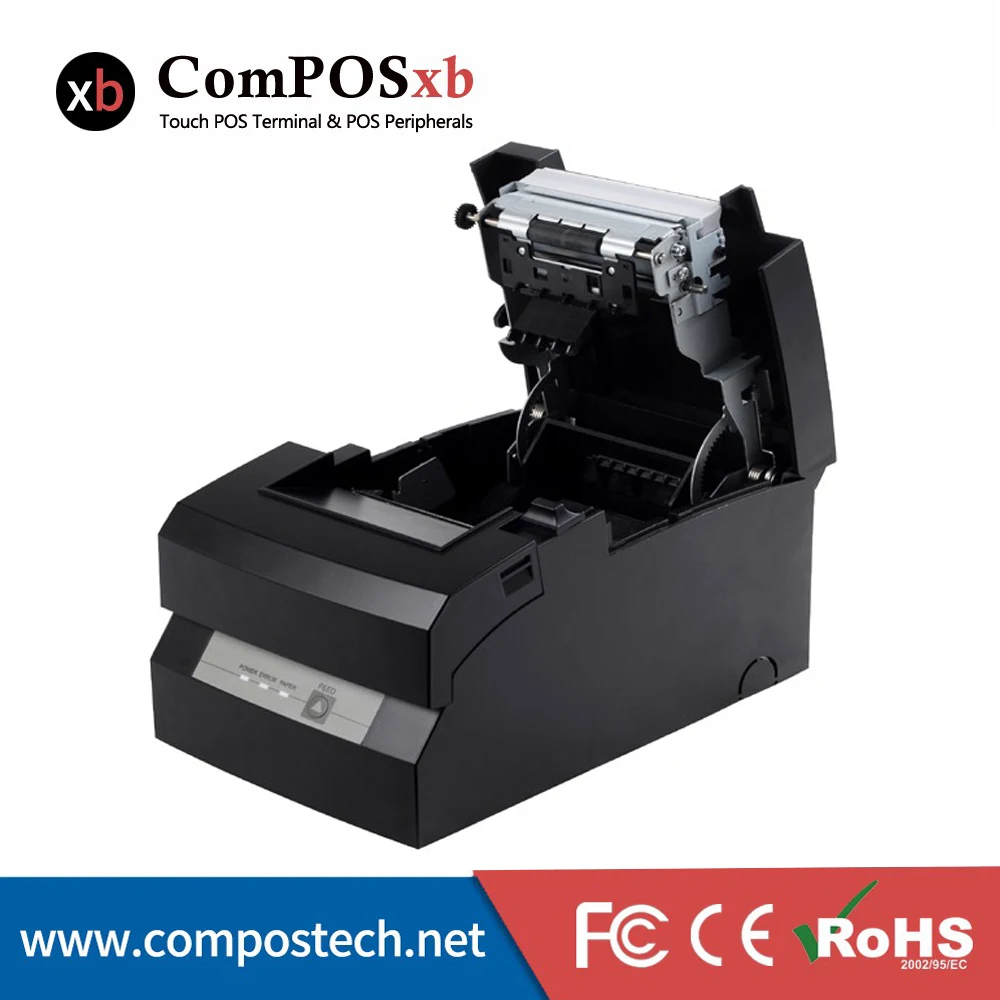

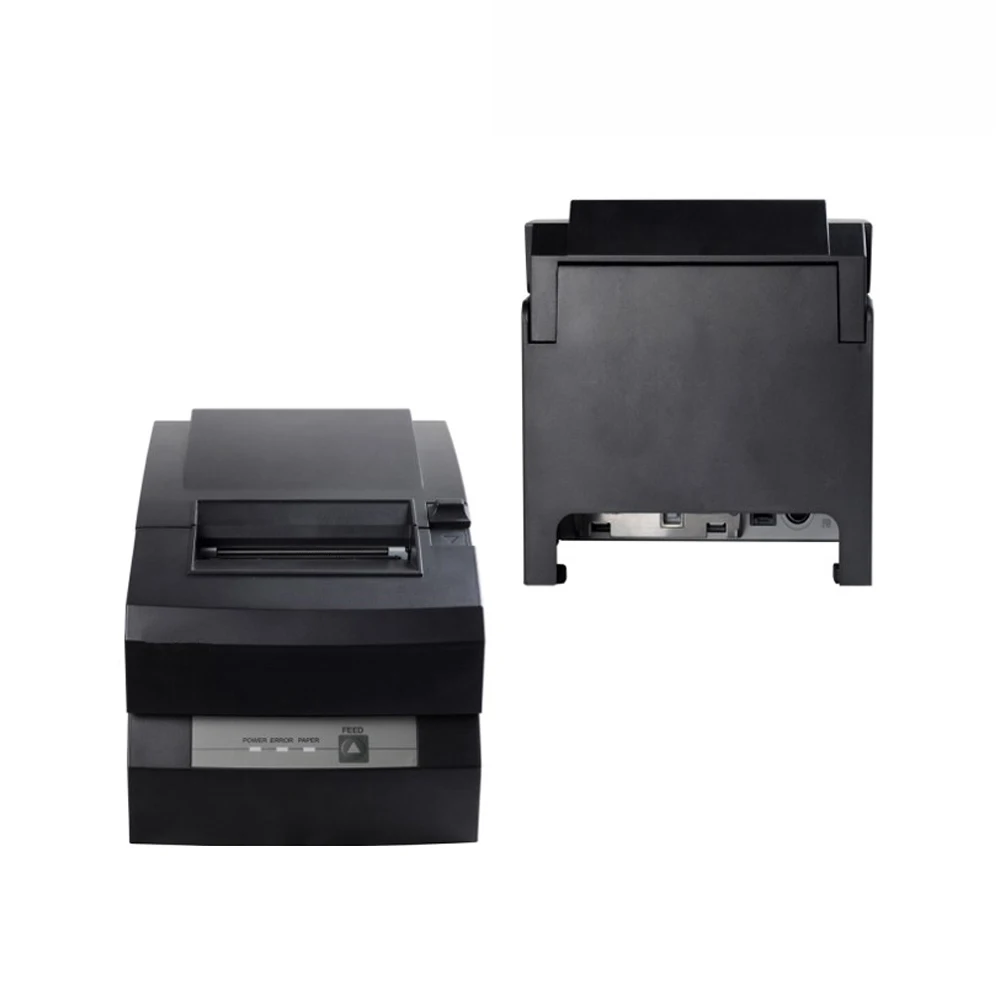

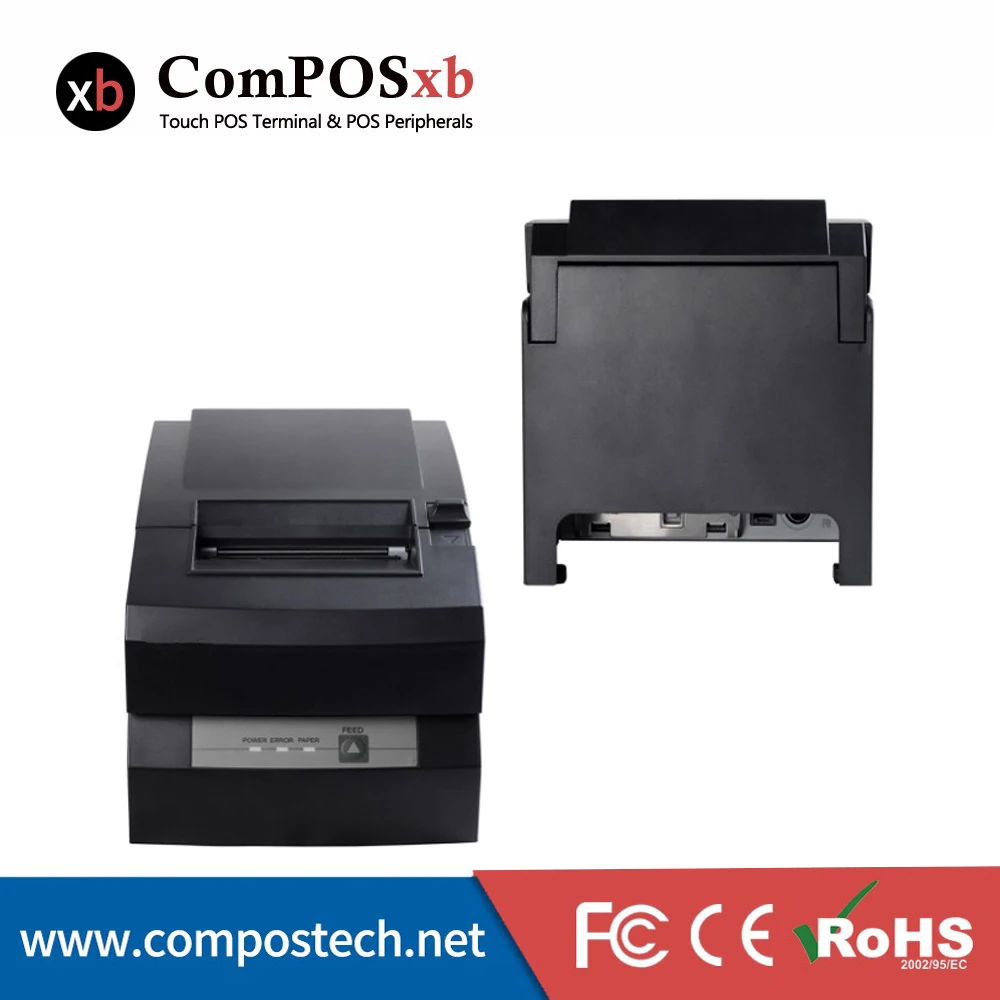

9 Pin serial impact dot matrix printing/76mm paper Dot Matrix printer 76mm Impact Dot matrix Printer (USB LAN ETHERNET)

Printing

Printing method

9-Pin serial impact dot-matrix printing

Print width

63.5mm

Column capacity

400 dots/line

Printing speed

4.5 line/s

Interface

Serial+USB+Lan

Printing paper

75.5±0.5mm×φ80mm(max)

Line spacing

4.23mm (Adjustable by commands)

Column number

76mm paper: Font A - 32 columns /Font B - 42 columns / Chinese,traditional Chinese - 16 columns

Character size

ANK,Font A: 1.6×3.1mm(9×9 dots) Font B: 1.2×3.1mm(7×9 dots)Chinese,traditional Chinese: 2.7×2.7mm(16×16 dots)

Cutter

Auto cutter

Full or partial ( Optional)

Character

Extension character
sheet

PC347(Standard Europe),Katakana,PC850(Multilingual),PC860(Portuguese),PC863(Canadian-French),PC865(Nordic),West Europe,Greek,Hebrew,East Europe,Iran,WPC1252,PC866(Cyrillic#2),PC852(Latin2),PC858,IranII,Latvian,Arabic,PT151(1251)

Power

Power adaptor

Input:AC 110V/220V, 50~60Hz

Power source

Output:DC 24V/2.5A

Cash drawer output

DC 24V/1A

Physical characteristics

Weight

2.2 KG

Dimensions

247×156×143mm (D×W×H)

Environmental Requirements

Work environment

Temperature (0~45)  humidity(10~80%)

Storage environment

Temperature(-10~60℃) humidity(10~80%)

Reliability

Cutter life

1million cuts

Printer head life

10 Million Lines
