Construction Equipment Small Concrete Mixer Plastering Machine
- Category: Concrete Mixers >>>
- Supplier: Guangdong Tupo Robot Engineering Co. Ltd.
Share on (60699377319):
Product Overview
Description
Product Description
New technology wall plastering rendering machine
Feature:The appearance of TUPO rendering machine significantly reduces the labor intensity of plasterer, improves the plastering efficiency, and shortens the construction period which contributes the development prosperity of construction industry.
Application:
1. Automatic wall rendering machine is the ideal equipment for residential buildings, office buildings etc.
2. It can plaster on cement wall, brick and concrete wall, hollow wall , light body brick, baking free brick wall etc.
3. The rendering material could be lime, cement mortar , foam mortar, gypsum etc.
4. It could be adjust different thickness to suit each operation.
Technical Parameter
| Model | TUPO-9 |
| Weight | Approximate.150kg |
| Power | 380V/220V (optional),50Kz-60Hz,0.75KW |
| Working efficiency | 500-600 Sqm/day |
| Plasting thickness | 0.2cm-3.5cm |
| Coating Thickness | 5mm-30mm |
| Electricity | Single/Three Phase |
| Plastering height | 3.5-5M |
| Position | Industry microcomputer automatic vertical system |
| Plastering plate | Stainless steel steel |
| Length of Plastering Trowel | 1200mm |
| Plastering width | 1200mm |
| Package | Wooden Case Suitable for Long Way Transporation |

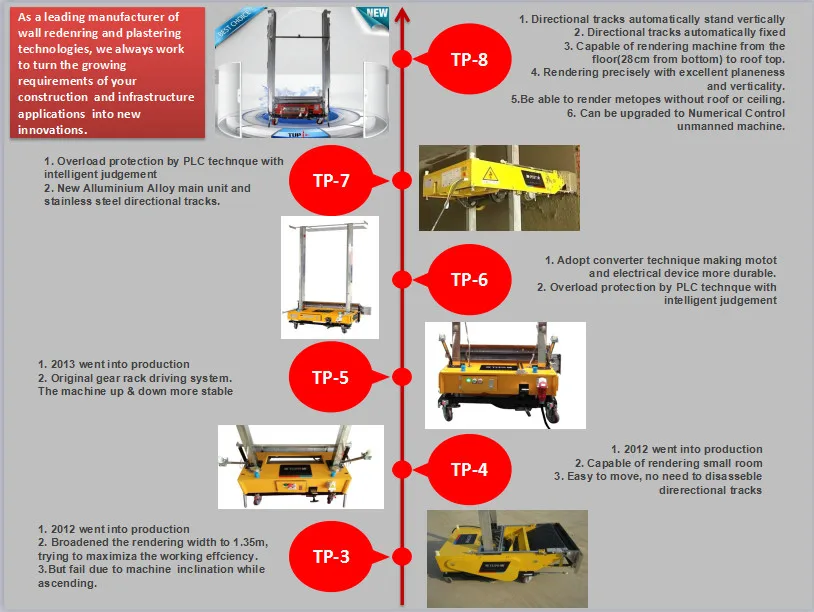

Our step:
Our boss Mr wang use 12 years to develop the plastering machine,the new machine we use is TOPO-8

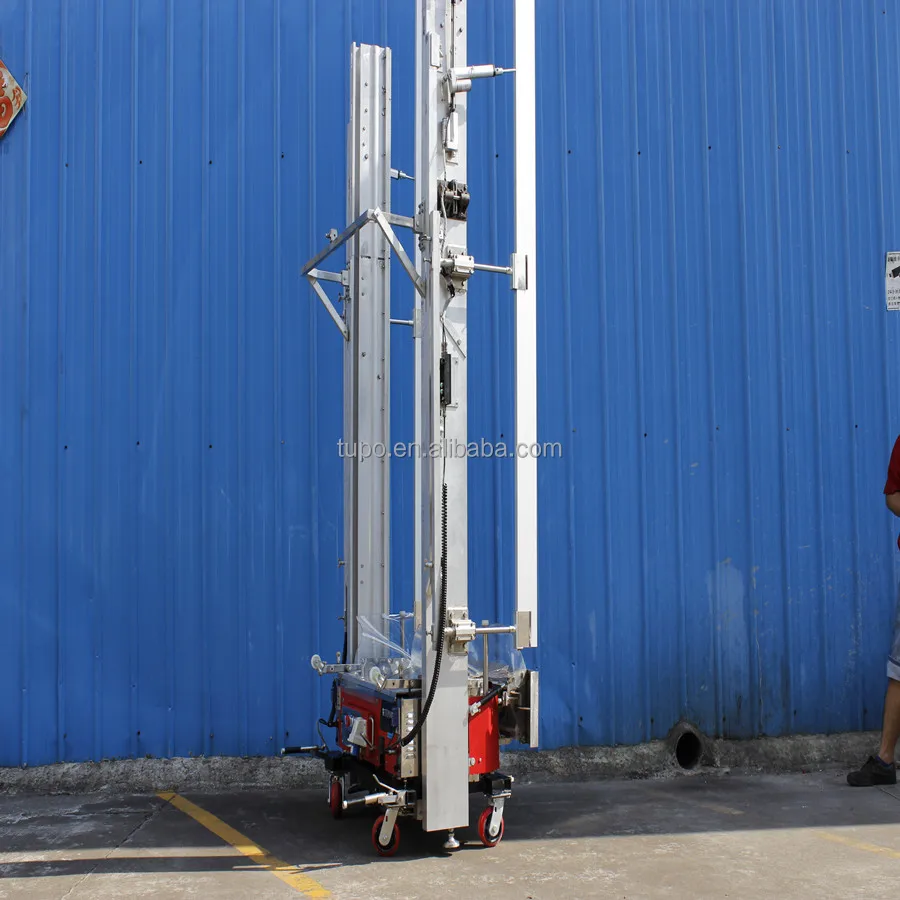

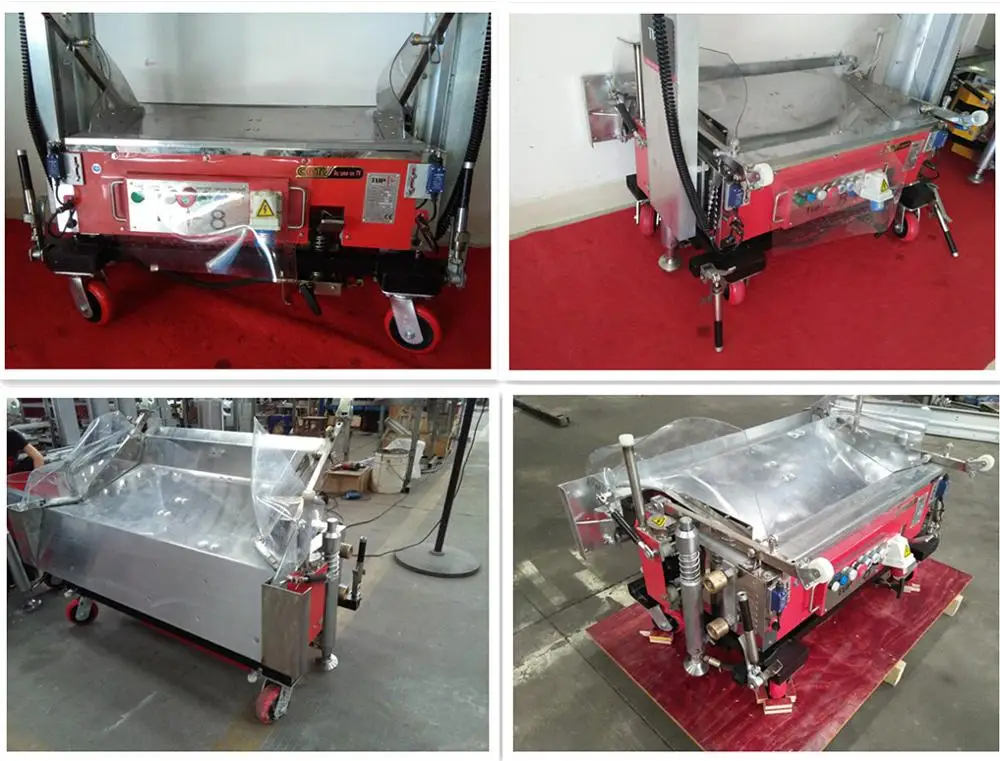

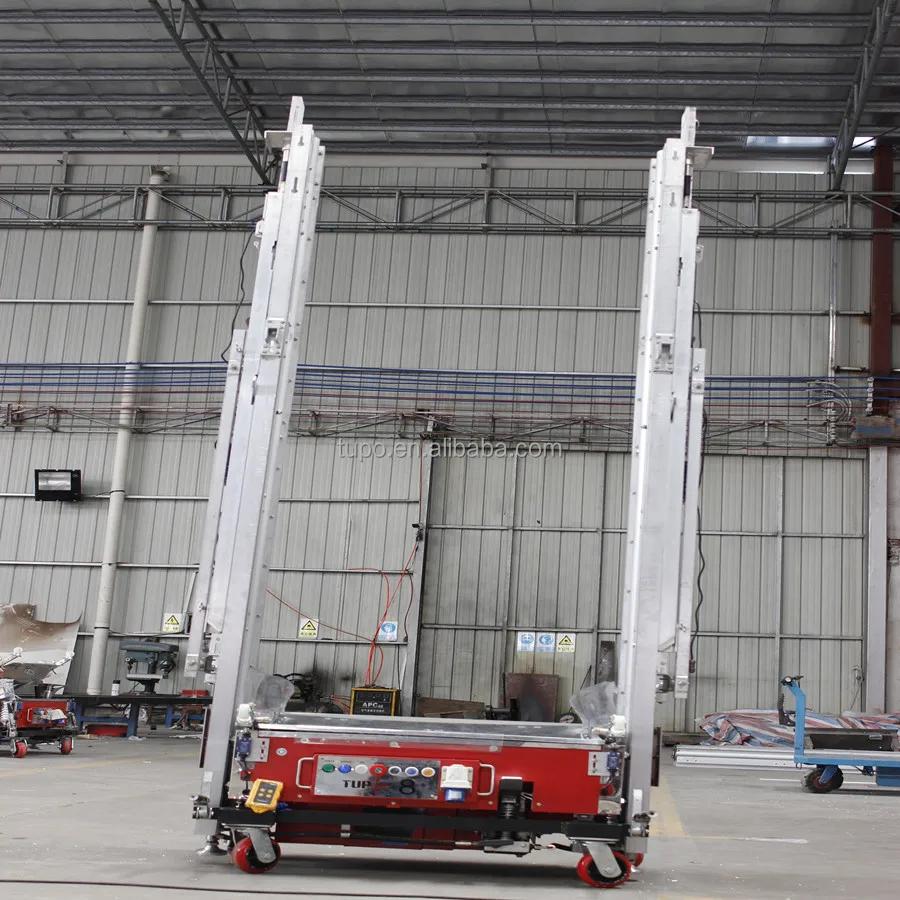

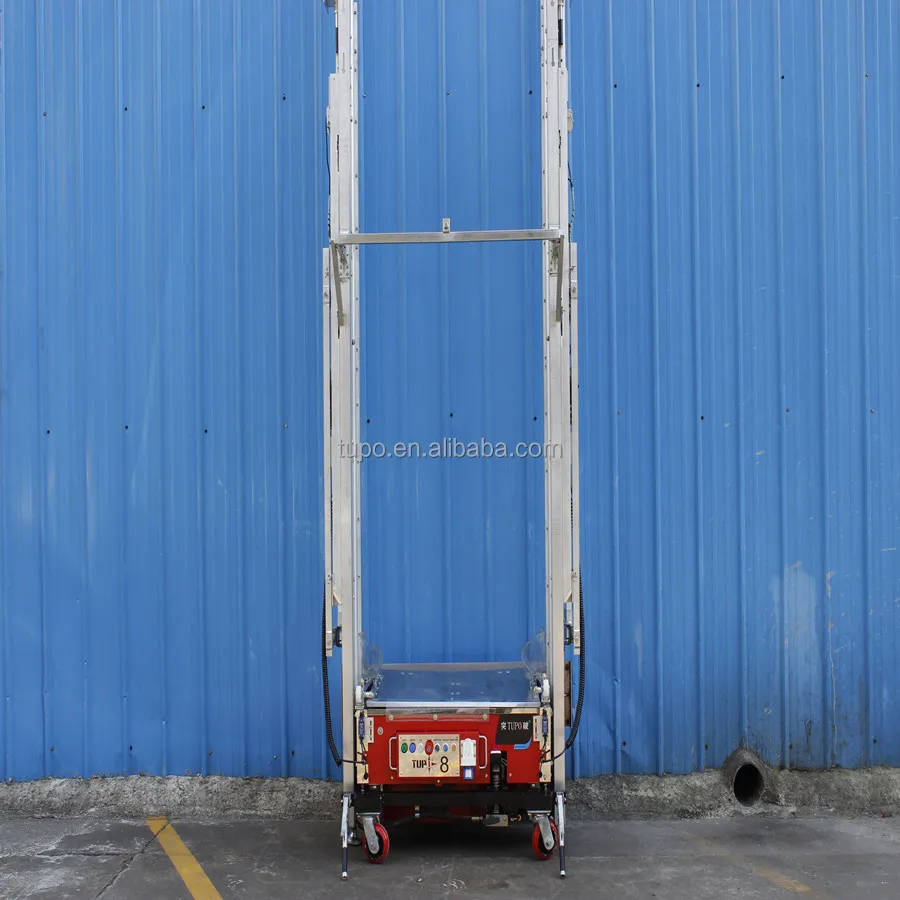

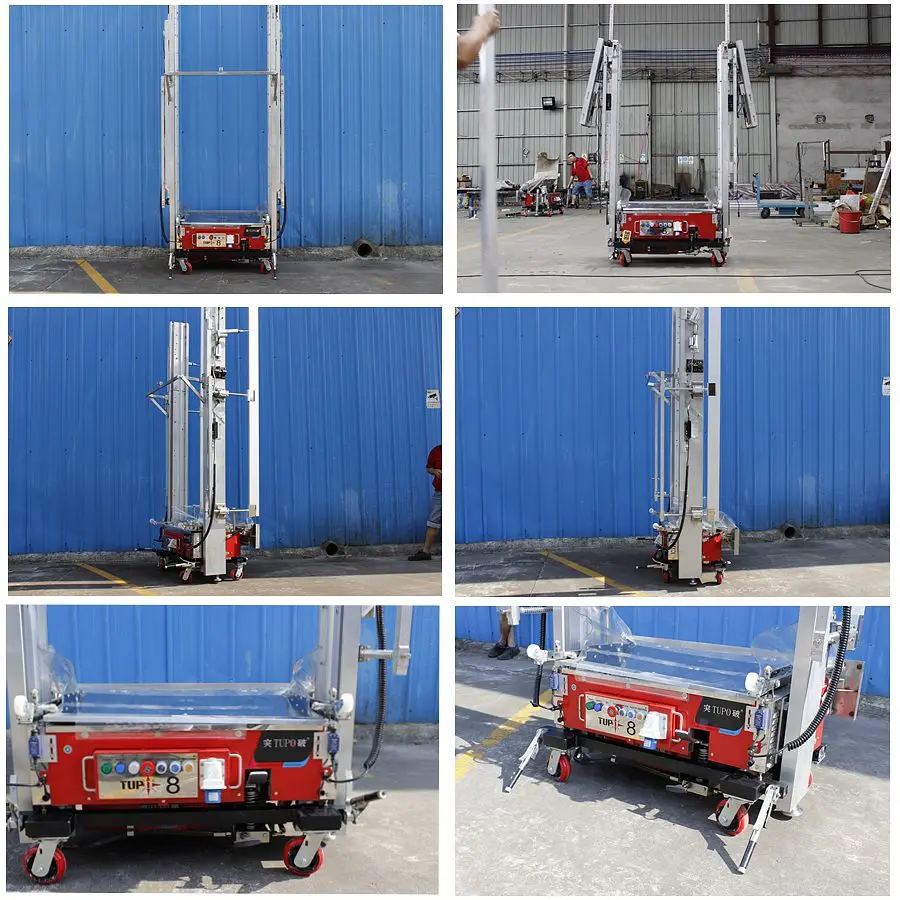

Detailed picture

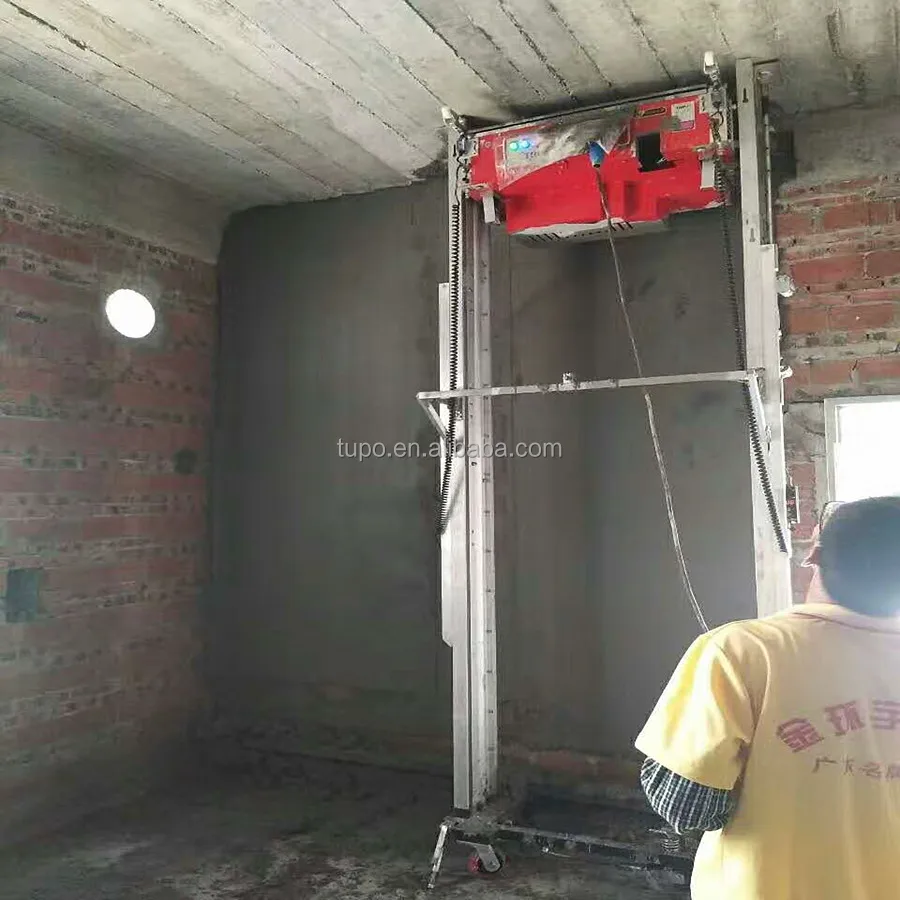

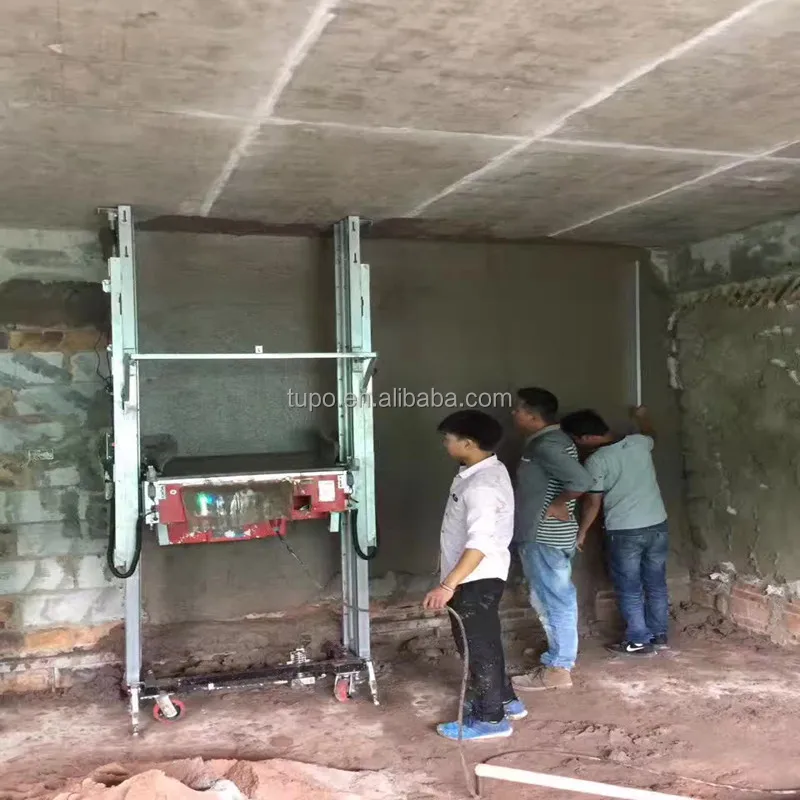

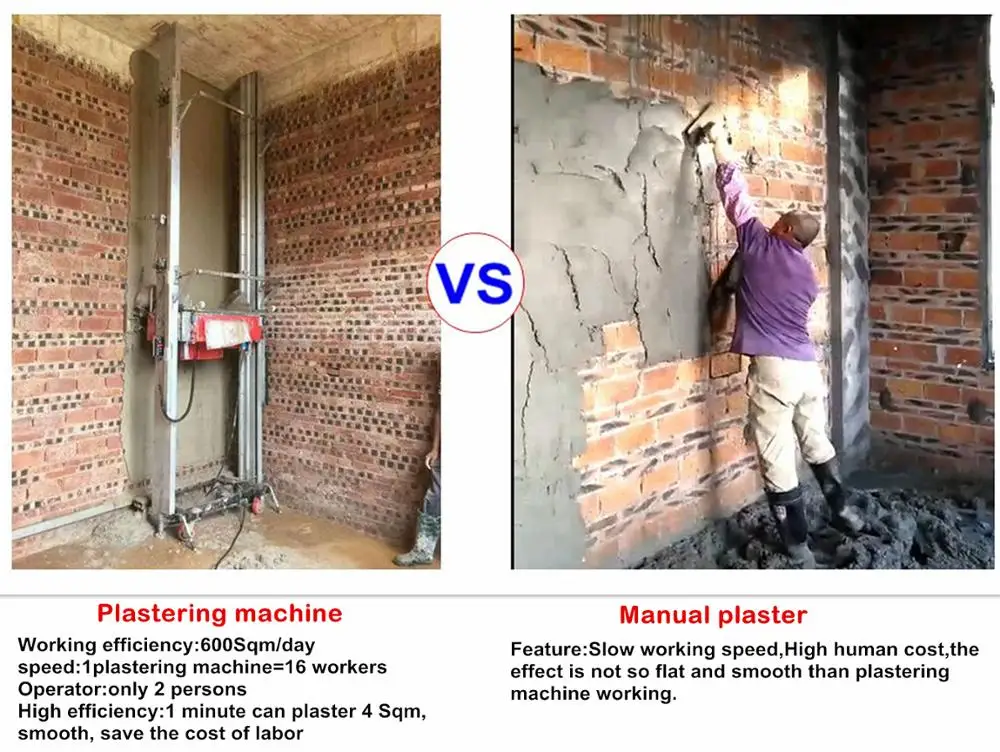

Working picture
Use procedure

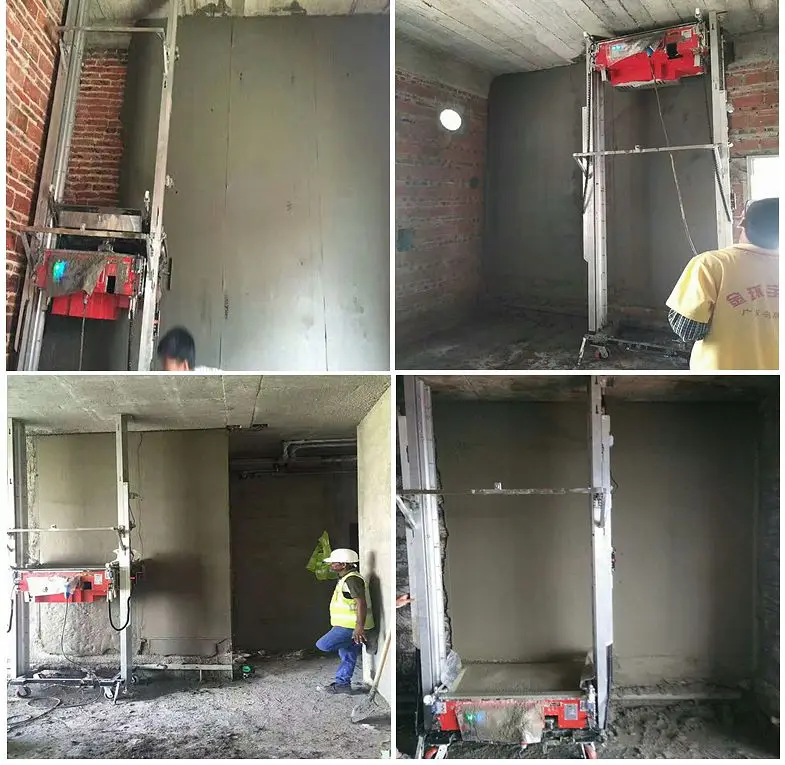

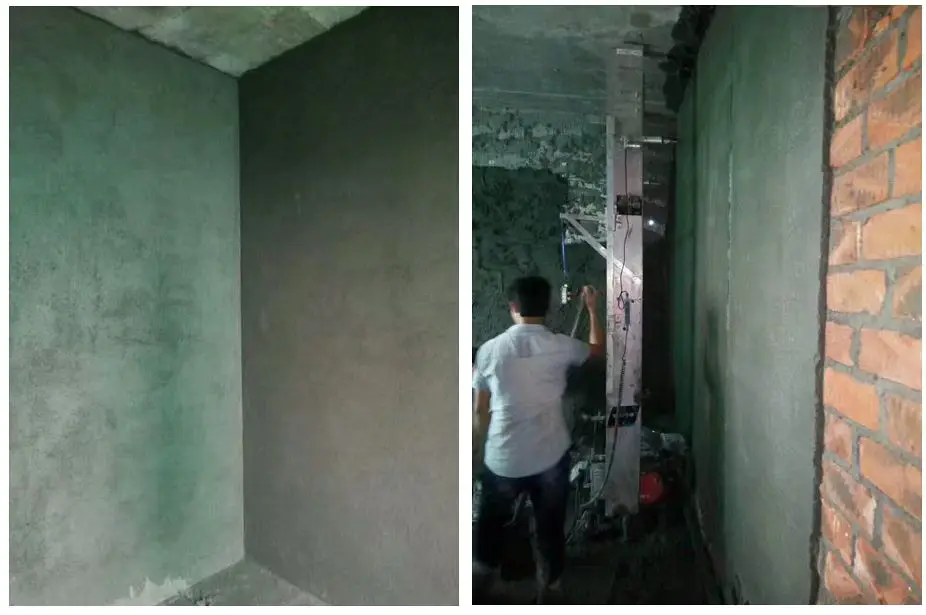

Wall effect that use plastering machine to work
Packaging & Shipping
FAQ
I. What is RENDERING MACHINE?
RENDERING MACHINE is also called Automatic Rendering Machine, Automatic Plastering Machine, Wall Rendering Machine, Wall Plastering Machine Etc. It is unique and perhaps one kind of automated rendering machinery ideally suitable for the construction/building industry. It works with conventional cement mortar which brings it to a smooth, flat finish with variable and adjustable thickness to suit each application.
II. What finish can be achieved?
Depending on how fine or course the sand is, our RENDERING MACHINE can produce smooth and flat render finish.
III. How much thickness should be applied?
The same principles apply as the way you render by hand. However, if required, RENDERING MACHINE enables you to achieve from 5 mm up to 30mm render.
IV. What is the render height ?
It can reach up to 5 meters.
V. How is the render quality?
There are two vibrators on the rendering trowel, which gives you a high quality render. RENDERING MACHINE enables you to get finish render as follows:
Vertical : the difference between top and bottom is within 2 mm.
Horizontal: the difference from side to side is within 2 mm.
VI. Does machine need a special mix or compound?
No, the mortar recommended for RENDERING MACHINE is the same mortar that you use when render by hand. It can work with the traditional cement mortar, however lime or gypsum or other additives can be added into the mixture if needed.
VII. How is RENDERING MACHINE used?
Operating our RENDERING MACHINE is as easy as 1, 2, 3.
1. Secure machine
2. Load mortar
3. Press start button
VIII. Is it difficult to operate RENDERING MACHINE?
No. It’s very easy to operate RENDERING MACHINE and it doesn’t require special or advanced technical training. Half a day’s training is enough for a person to operate machine themselves.
Problems Meet And Solutions:
I. press start button, there is no respond from machine
1. check if the two livers have been pulled up.
2.check if the stop switch on the left side of machine works by pressing the switch
3.check the power supply
II.press start button ,machine goes up but the conveyer is not rolling.
1. switch on the conveyer switch.
2. check the chain on right side of machine , if the chain is rolling, that
mean the conveyer is loose. In this case, we have to tight the conveyer by
adjusting the screws on both side of machine closer to the plastering trowel.
III. Machine reach to ceiling but no stop automatically
Cut off power supply by turning off main switch, next turn on main switch to connect power supply, and then machine comes down automatically.
IV. Machine comes down but stops in the middle. (machine will be automatically stopped when meet difficult )
1. check if the directional pipes are clean .
2.shake the directional pipes to make machine comes down.
3.release the hydraulic a little to enable machine come a bit down, and secure hydraulic & pump.
V. Machine goes up and stops in the middle
1. Cut off power supply by turning off main switch, next turn on main switch to connect power supply, and then machine comes down automatically.
2.check if anything in the plastering trowel prevents machine going up
3.check if anything on the wall prevents machine going up
Company Information
The original inventor of automatic rendering machine is Mr.Wang Jianhu who is the president of FOSHAN TUPO MACHINERY MANUFACTURE CO.,LTD. TUPO for short.
TUPO company is the biggest manufacturer of automatic rendering machine in the world who has the topping technology of wall rendering and high-class R&D team. We can offer the best working project according to different metopes conditions.
In 2013,we marketed our new generation machine TUPO-5.The biggest TV media of China CCTV interviewed the company director Mr.Wang jianhu who is the inventor of this machine.
Why Choose TUPO rendering machine?
Rendering machine is also call Plastering machine
1.Professional :Over 9 year R & D and production experience.China most influential plastering machine brand.
2.Influence:In 2013 ,The biggest TV media of China CCTV interviewed the company director Mr.Wang jianhu who is the original inventor of this machine.
3.Quality: 13 patents for invention , and CE certification .Master the core technology of the machine.
4.Service:After sales engineers have about 9 years experience , to provide you with the perfect after-sales service.24 hours engineering online services .
