Product Overview

Description

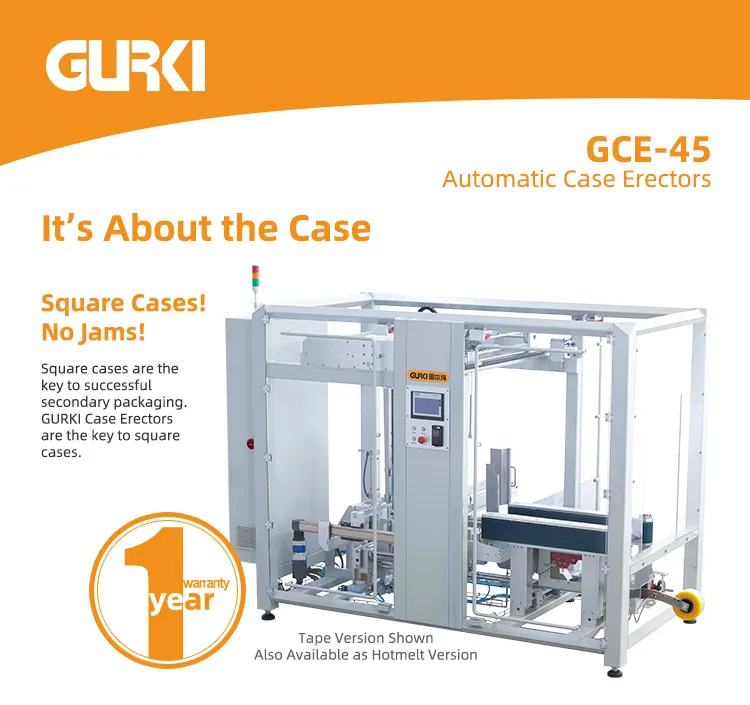

INTRODUCTION

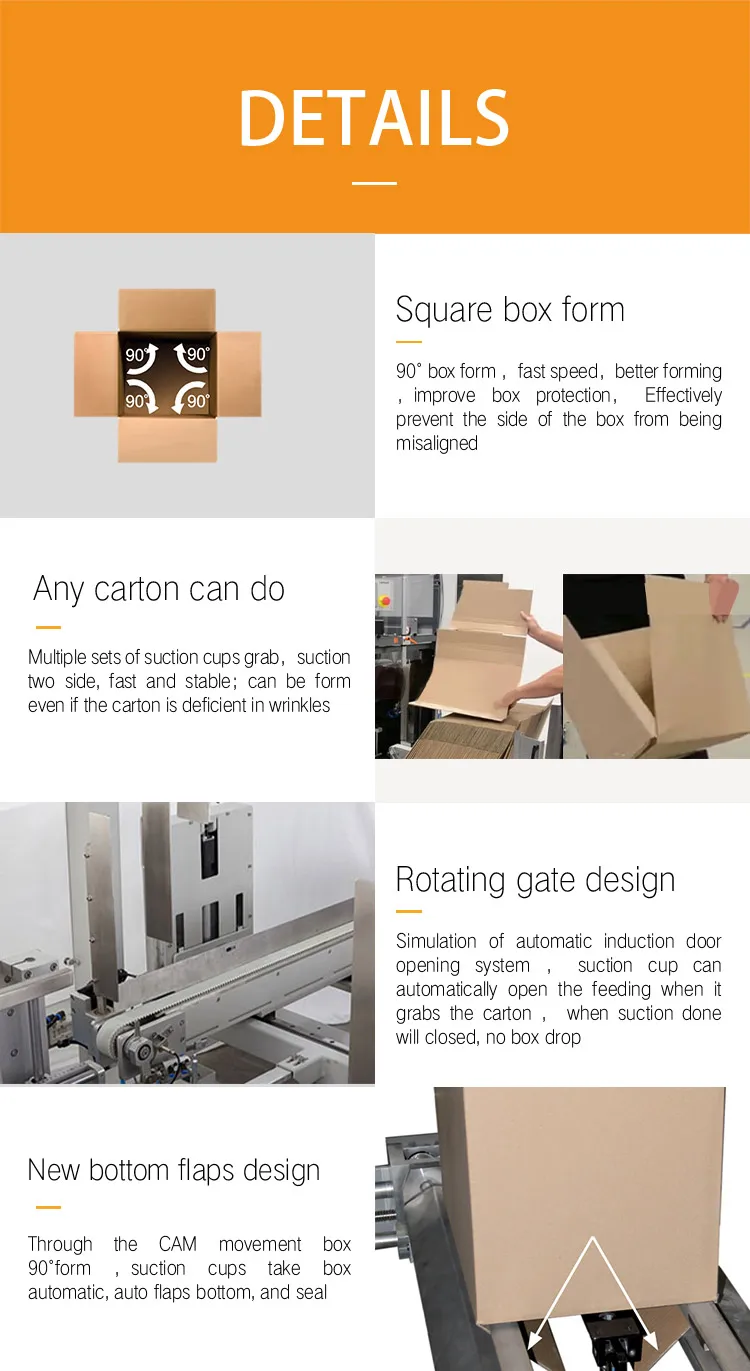

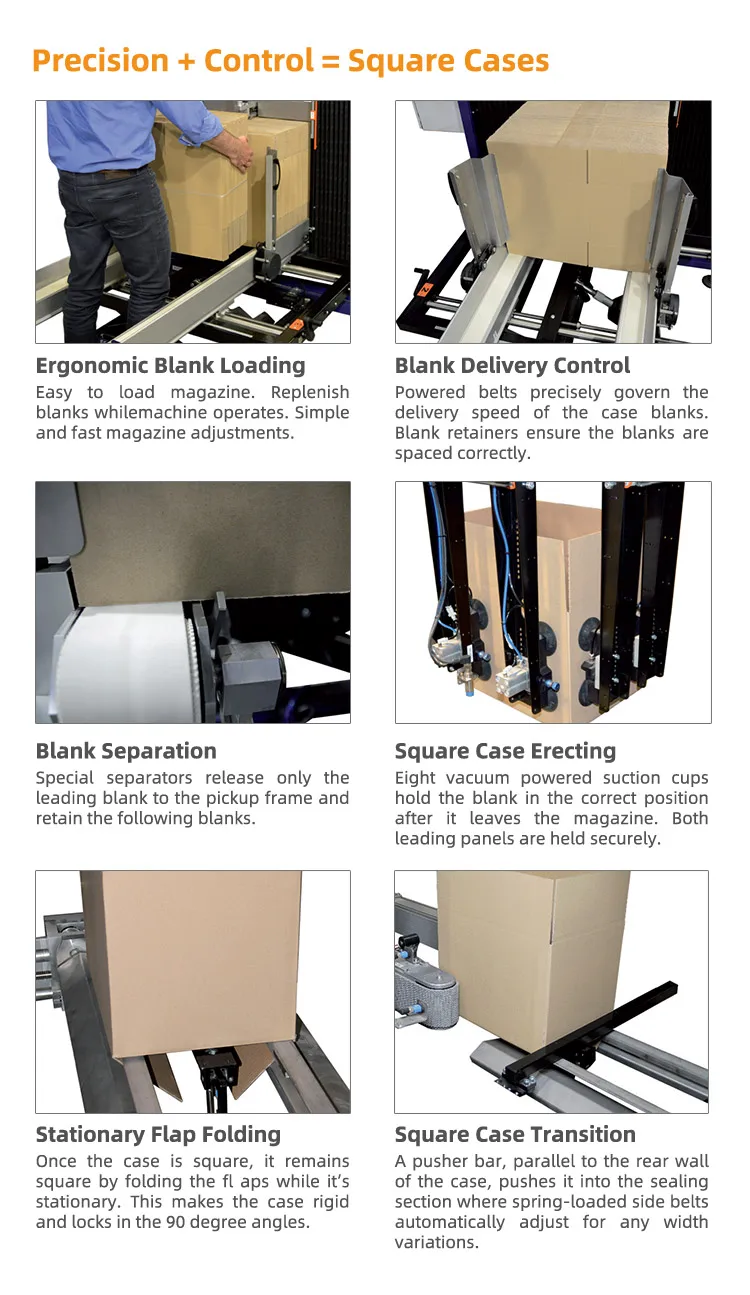

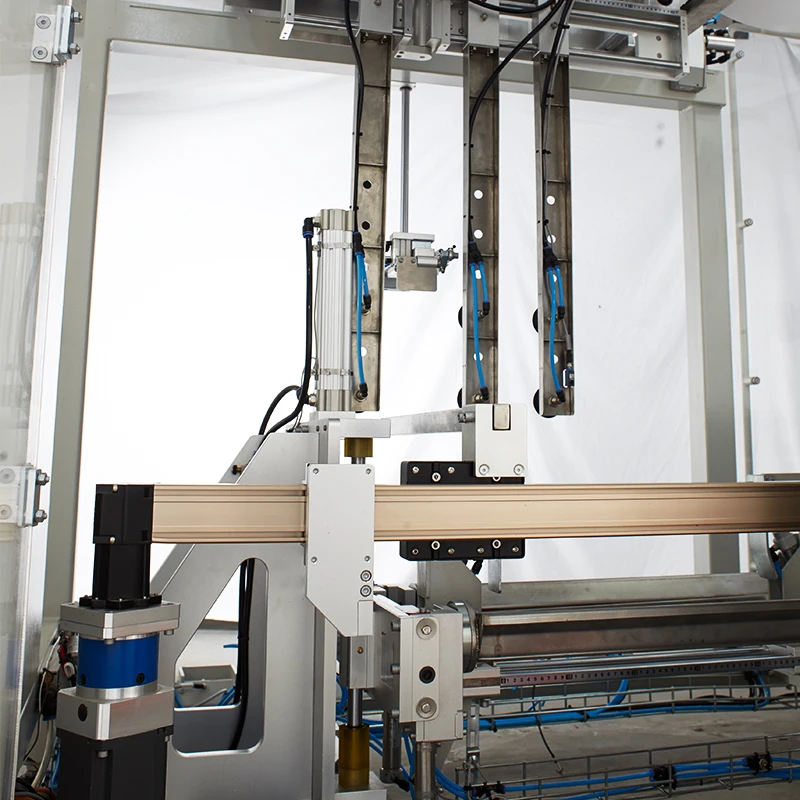

High-speed servo vertical carton erector is designed for high requirements of box ， machine adopts electric eye automatic induction, servo control and drive design to ensure four sides of the box can be accurately grabbed and formed by the suction cup ，to make 90 degree in four corner of box， Servo control of the whole storage ， Simulation of automatic induction door opening system ， Movable gate design to break tradition carton erector defect of scratch the surface of the box when it take box by suction cups ， Protect all side of box ， suction cup can automatically open the feeding when it grabs the carton ， when suction done will closed, no box drop ， high efficiency of box forming 。 horizontal form mechanism to flaps bottom ，fast peed， Better protect of box ， even if the box is wrinkled, soft, broken cardboard can be easily formed ，speed is 20 boxes per minute， widely used in food, medicine, beverage, tobacco, daily chemical, electronics and other industries 。


CHARACTERISTICS

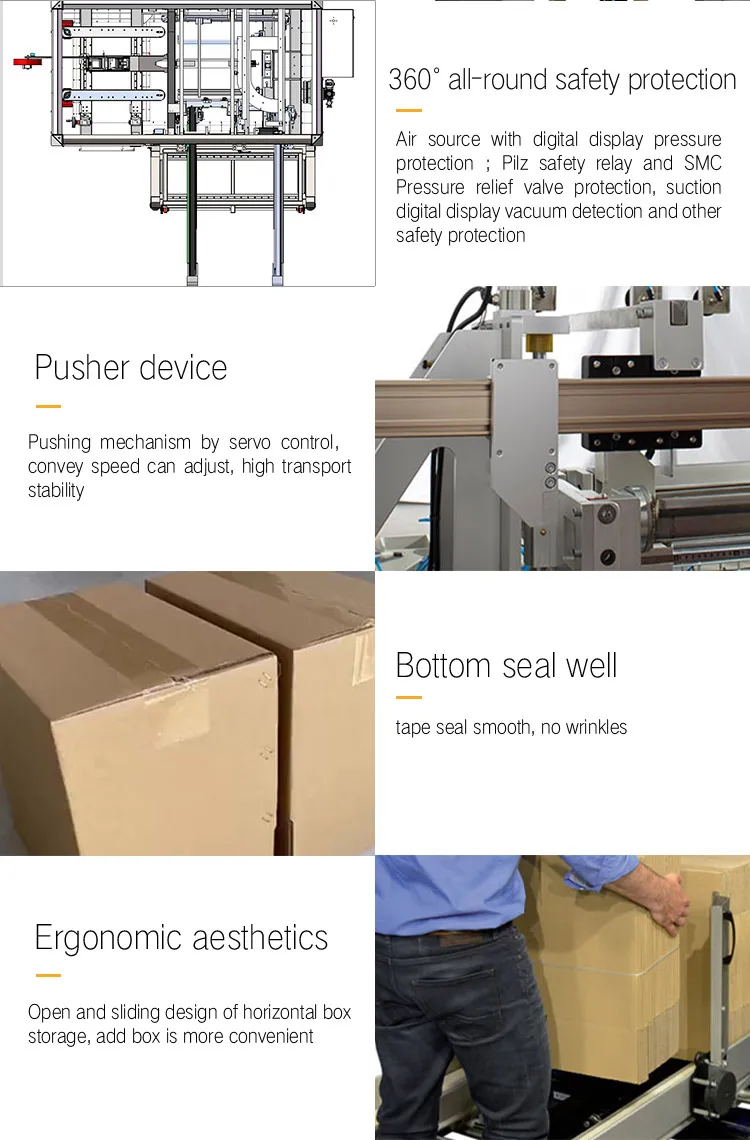

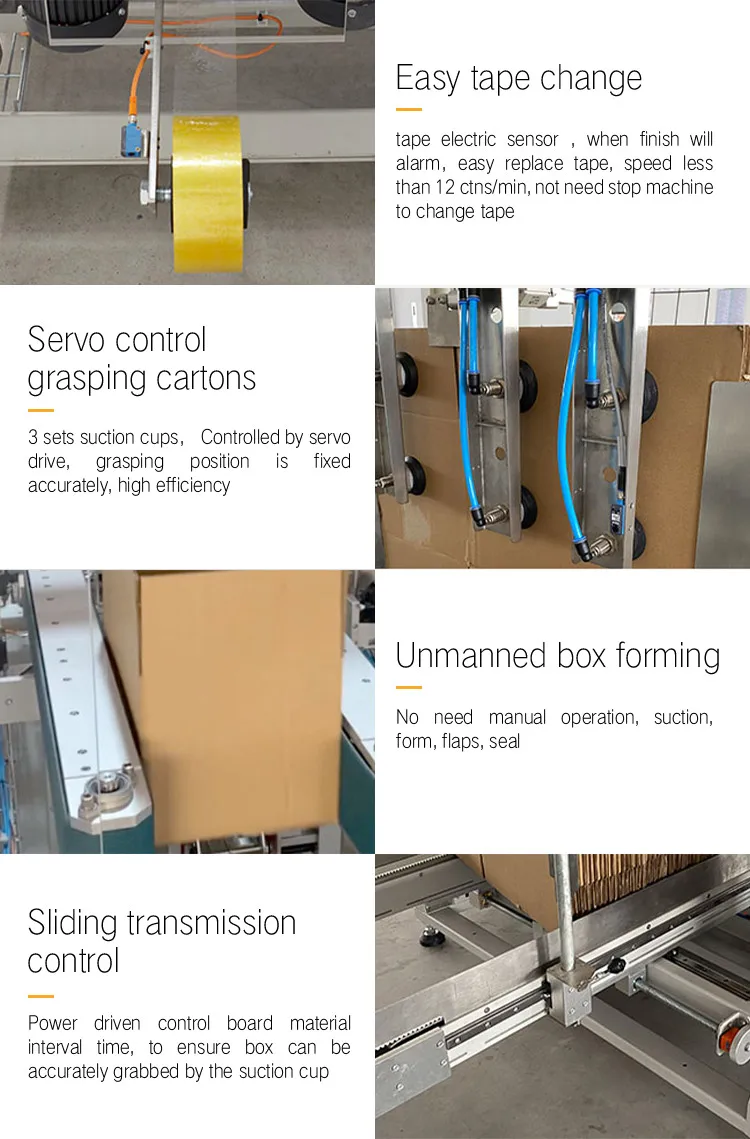

High Efficiency Form：90° box form, fast and stable, even if the carton has a lack of wrinkles can be form ； Protection: Dual safety loop design ，when open the door or press E-stop whole machine will stop, CE Compliant, High Stability: The clamping belt adopts large area flexible clamping, box transport will not jump, not need the press plate High Speed : Adopt new style tape head, tape speed 50m/min Ergonomic aesthetics： Open and sliding design of horizontal box storage, add box is more convenient 。 Easy Opteration： Humanized operation interface and flexible data storage, convenient to change different box size； 24 hours no stop： Replace the tape not need stop machine, continuous forming box without stop .

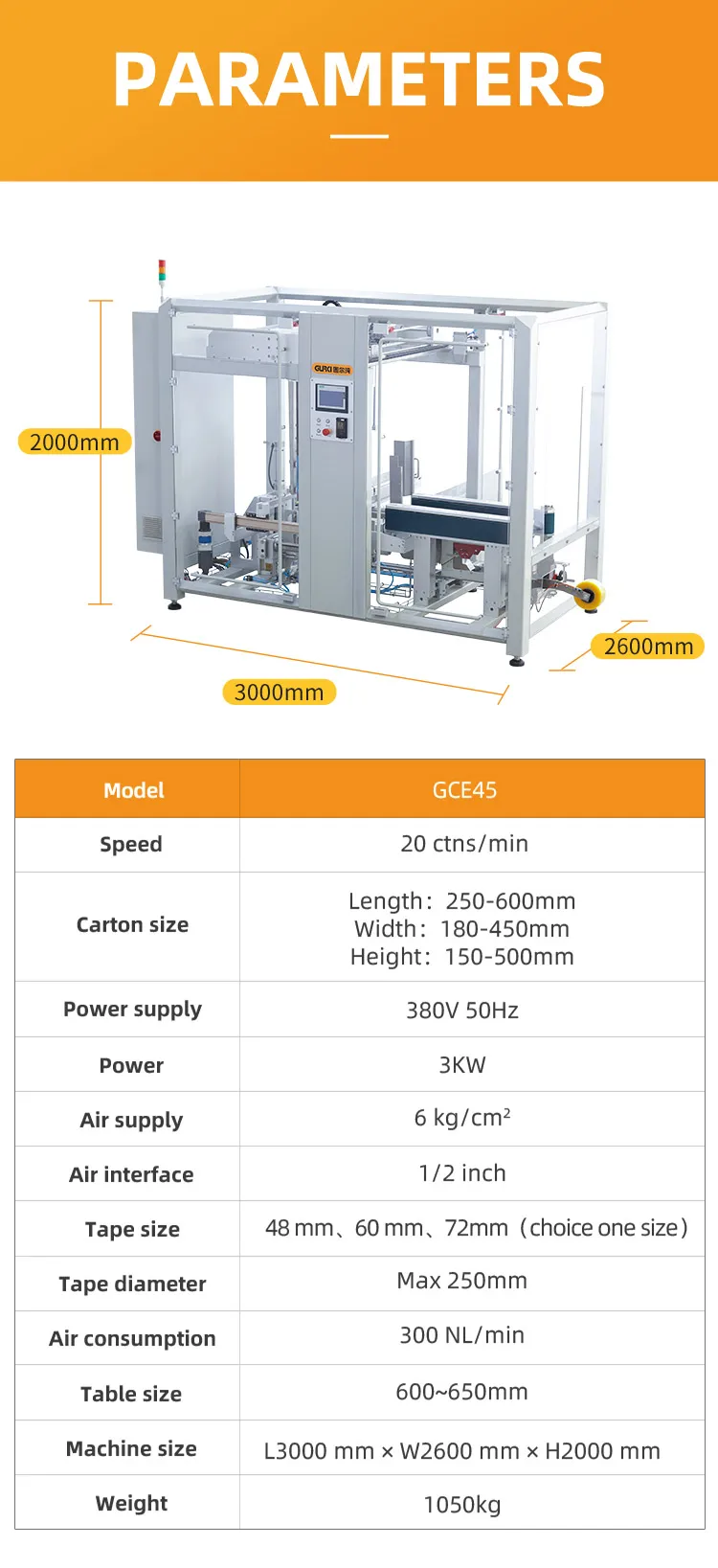

Model
Parameters
Speed
20 ctns/min
Carton size
Length：250-600mm Width：180-450mm Height：150-500mm
Power supply
380V / 50Hz
Power
3 KW
Air supply
6 kg/cm2
Air interface
1/2 inch
Tape size
48 mm、60 mm、72mm（choice one size）
Tape diameter
Max 250mm
Air consumption
300 NL/min
Table size
600~650mm
Machine size
L3000 mm × W2600 mm × H2000 mm
Weight
1050 kg
Motor
SEW
Servo motor
Siemens
PLC
Siemens
Touch screen
Siemens
Pneumatic component
SMC and AirTAC
Sensor
LEUZE
Frequency changer
Mitsubishi
