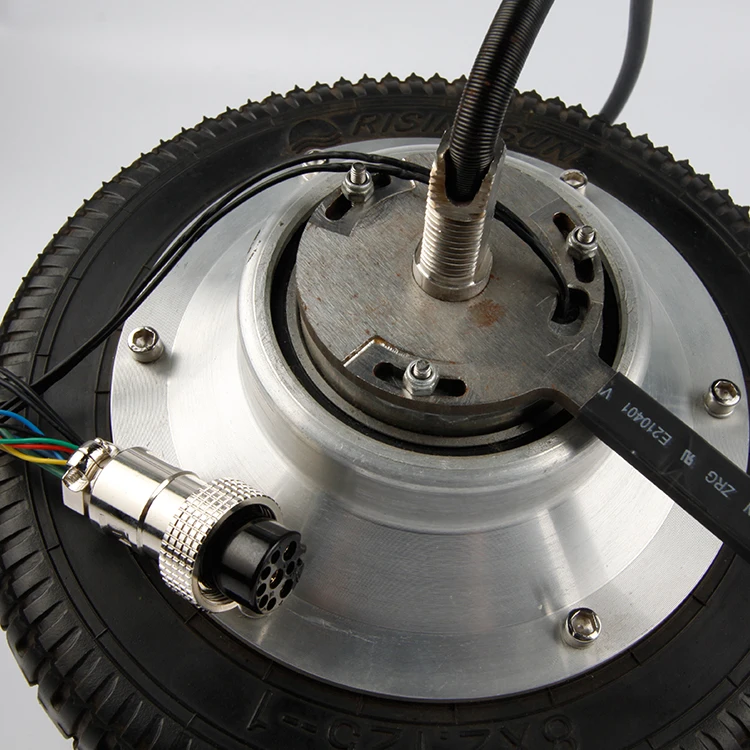

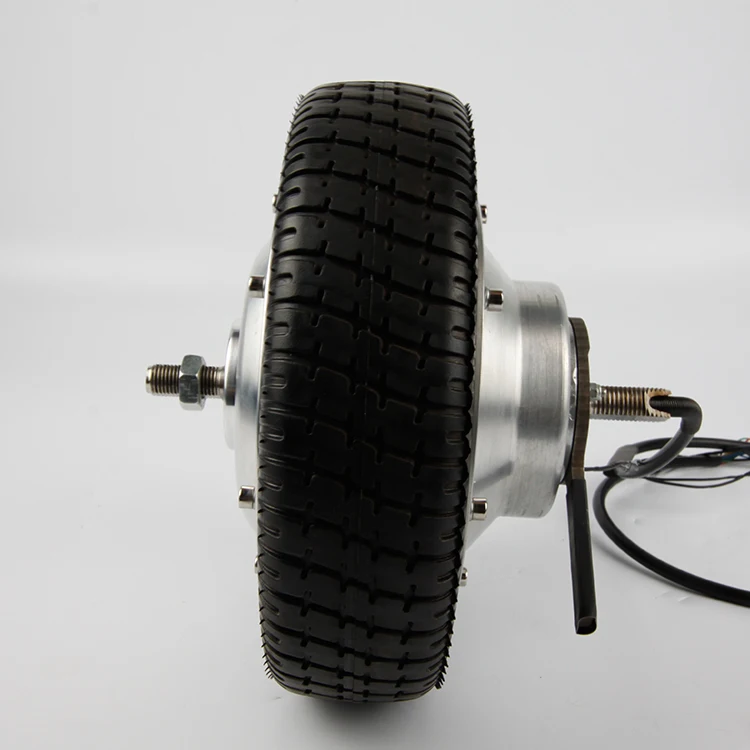

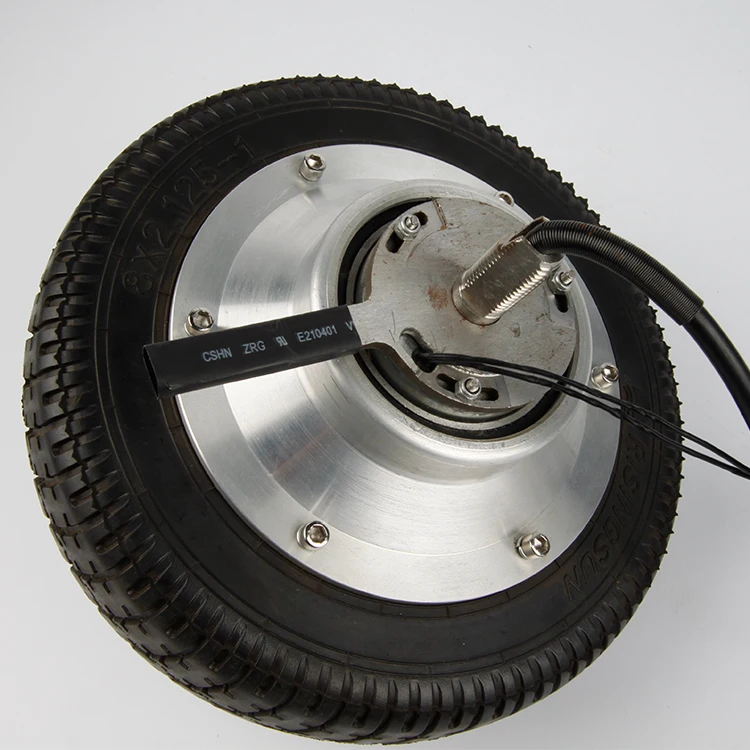

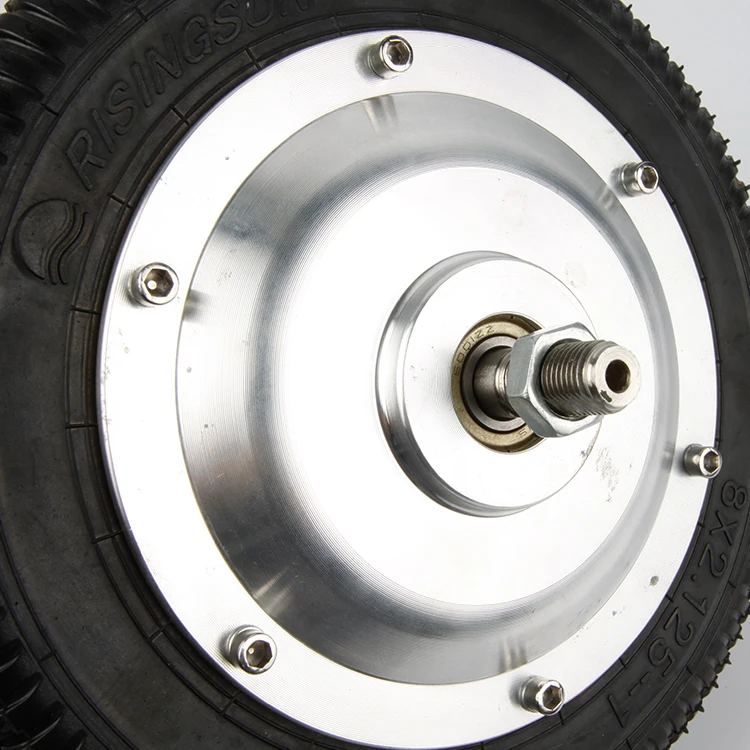

Electric Wheel Hub Motor/Wheelchair Gear Motor

Product Overview

Description

ù

  This rigid-wheel motor, which is featured by high efficiency, being easy to install,

low energy consumption, low noise and high stability, will be assembled onto the wear-resistant

tyre of strong grip and is especially suitable for small scooters and folding bikes.





Item:	DCS-8	Design:	Brushless
Voltage:	12V 24V 36V 48V	Electric motors:	Brushless dc motor
Tire type:	Solid Rubber	Colour:	Silver
Structure:	Permanent Magnet	Torque:	10~35Nm
Rated voltage:	12/24/36/48V	Rated Power (Watts):	65-180/180-250/250-350/250-500
Speed:	5-25km/h	Speed (RPM):	100-600rpm
Wheel type:	Aluminium material	Scope of application:	Wheelchair,robot,Electric bicycle

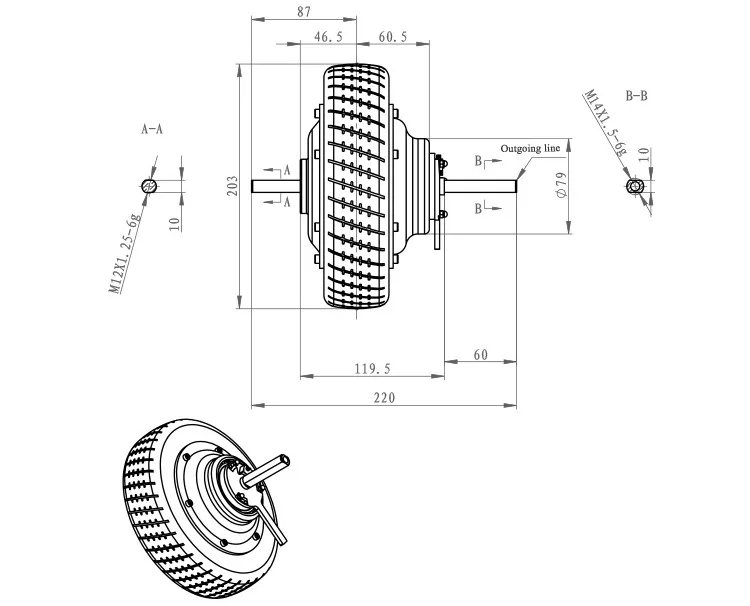

Length:	203mm	Net Weight (Kg):	2.3
Gross Weight (kg):	3.1	Effectiveness:	75-86%
Production:	Jiangsu China	Rim size:	8 inch
Product Features:	Waterproof,Totally Enclosed Small volume, light weight, large torque, high efficiency, stable performance, cost-effective superior
