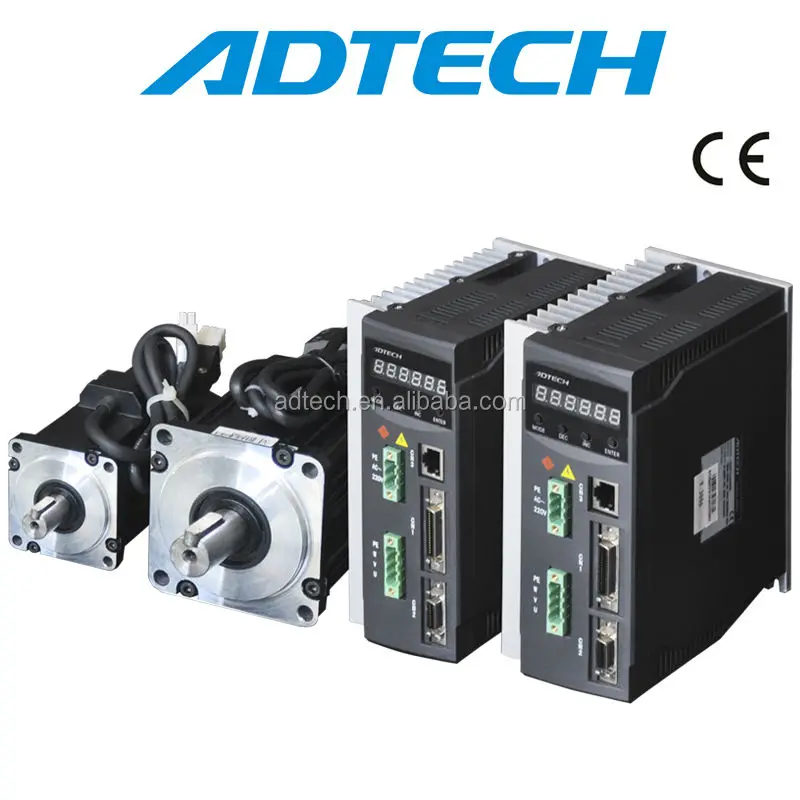

QS7 series AC Servo 2500lines INC Motor Drive range 1.5kw to 3.7kw Servo system kit

Product Overview

Description



ADTECH QS7 series AC Servo 2500lines INC Motor Drive range 1.5kw to 3.7kw Servo system kit

 ADTECH QS7AA030M AC Servo Driver of Feature:

• The characteristics of last generation QS6 servo drivers have been fully retained.
• AC sine wave control, smooth torque, no impulse.
• 2500 line incremental photoelectric encoder, high positional accuracy, rotation positional accuracy can reach 1/10000R.
• Speed ration can be as large as 1:5000, has stable torque characteristics from low speed to high speed.
• Adopting high speed FPGA processing, motor fastest rotation speed can be 5000RPM.
• Rich and complete parameter setting can be configured with different ways of working and operating characteristics to adapt to different requirements.
• Possess position, speed and torque control mode, has applications in a wide range.
• Use intelligent Space Vector control (SVPWM), has much larger torque and much less noise than traditional SPWM.
• Up to three times overload design, stronger load ability.
• Perfect protection function: over current, overvoltage, over heat, encoder abnormal etc.
• Perfect condition monitoring function, such as positional deviation, rotate speed, feedback impulse, command impulse etc.

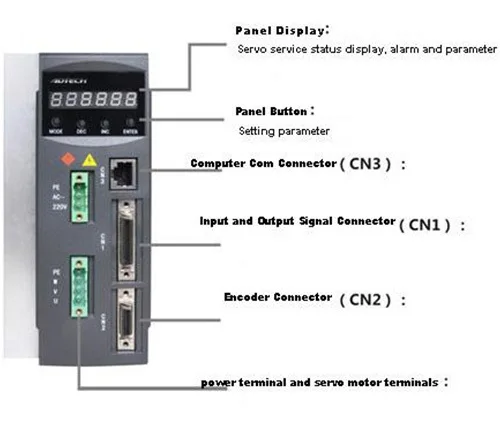

ADTECH QS7AA030M AC Servo Driver of Function:

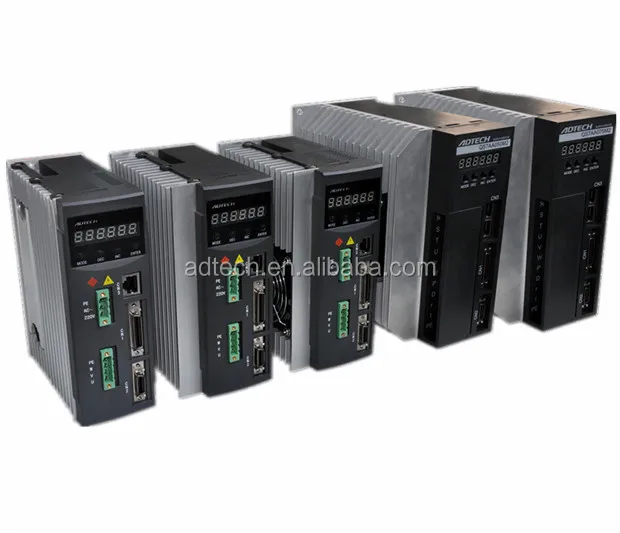

The other's products of ADTECH: motion controller, servo motor & driver



Headquarters of ADTECH in Shenzhen:



Factory:



Certificate:







          Any question, please let us know, we will be glad to support you.
