SHENZHEN Special LCD Monitor TV Control Video Monitor
- Category: >>>
- Supplier: AZUQI INTERNATIONAL LIMITED [Hong Kong S.A.R.]AZUQI
Share on (60699497823):
Product Overview
Description
SHENZHEN Special LCD Monitor TV Control Video Monitor
Application Field:
SOHO Offices
Shopping Mall
School
Government Users
Economy Solution Feature:
HDMI Input
Video Input/Output:
Display CVBS Signal by BNC Connector
Resolution: SXGA (1280x1024 )
Built in 3D Comb Filter
I. Specifications:
| Model No. | AKA-1718MA | |
| Display | Screen Size | 17" 5:4 TFT Color LCD |
| Max. Resolution | SXGA (1280x1024) | |
| Pixel Pitch | 0.264 mm | |
| Brightness | 300cd/m² | |
| Contrast Ratio | 1000:1 Typical | |
| Viewing Angle (U/D/L/R) | 80/80/80/80 | |
| Display Color | 16.7Million | |
| Response Time | 5ms Typical | |
| Power Consumption | Approx. 17Watts | |
| Video System | NTSC / PAL | |
| Interface | Solution No. | M5 ( Premium Solution ) |
| Video 1 Input | CVBS Input (BNC type) x1 | |
| Video 2 Input | CVBS Input (BNC type) x1 | |
| Video 2 Output | CVBS Output (BNC type) x1 | |
| PC-RGB Input | VGA (15Pin D-Sub) x1 | |
| Audio Input | Stereo 3.5mm Input x1 | |
| Audio Output | Stereo 3.5mm Output x1 | |
| S-Video Input (Option) | 1 | |
| HDMI Input | 1 | |
| DC 12V Input | 1 | |
1 (Compatiable with JPEG, BMP,PNG; | ||
| USB Input | RM, MPEG1, MPEG2, RMVB, MOV, | |
| MJPEG, DivX; WMA, MP3, M4A) | ||
| Features | Built in Comb Filter | 3D |
| Built in De-interlace | 3D | |
| Source | VGA/VIDEO 1/VIDEO 2/HDMI | |
| Multi Language | English, Chinese, French, German, Spanish, etc | |
| Audio | Built-in Speakers | 2 |
| Cabinet | Color | Black |
| Material | ABS Plastic | |
| Wall Mount | VESA | |
| Base Stand | Desk Top Stand | |
| Circumstance | Operating Temperature | 0 ~ 50° C / 32 ~ 122° F |
| Storage Temperature | -20 ~ 60° C / -4 ~ 140° F | |
| Packing | Unit N.W./G.W. | Approx. 4KG/5KG |
| Gift Box Dimension | 430x145x375 mm (LxWxH ) | |
| Regulations | RoHs, FCC , CE, C-tick, and so on. | |
| *Specifications are subject to change without notice. | ||
II. Product Details:

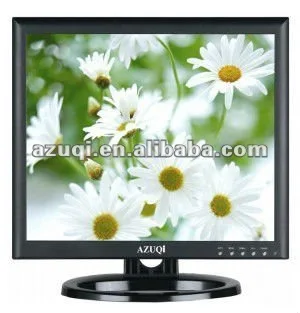

I. Front View
*There are 4 types physical appearances for options.
1. Empty Base + No Protection Glass
2. Empty Base + Protection Glass
3. Solid Base + No Protection Glass
4. Solid Base + Protection Glass

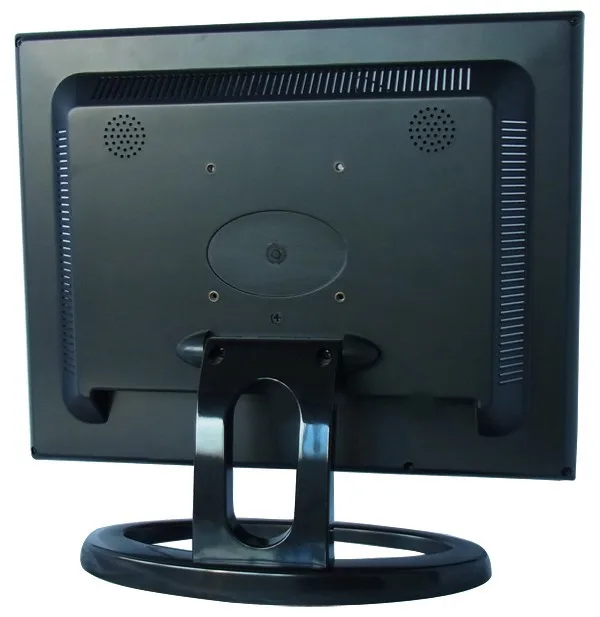

II. Back View with Empty Base
III. Interface (For Refence Only):
IV. Factory overview and certification:
V. Our Service
1. Inquiries would be replied within 48 hours
2. OEM/ODM service is available:
Silkprint OEM logo on the monitor; big quantities order would share customized gift box.
3. After-sale service:
All products have been strictly checked the quality and packed perfectly before shipping;
All products would share 1 year warranty after delivery according to our RMA policy;
4. Payment term:
TT,Western Union and trade assurance.
5. Delivery
We have strong relationship with many express agents and logistic companies. And some of our forwarder partners as follows:
Want to konw more details? Please contact me without hesitate.
