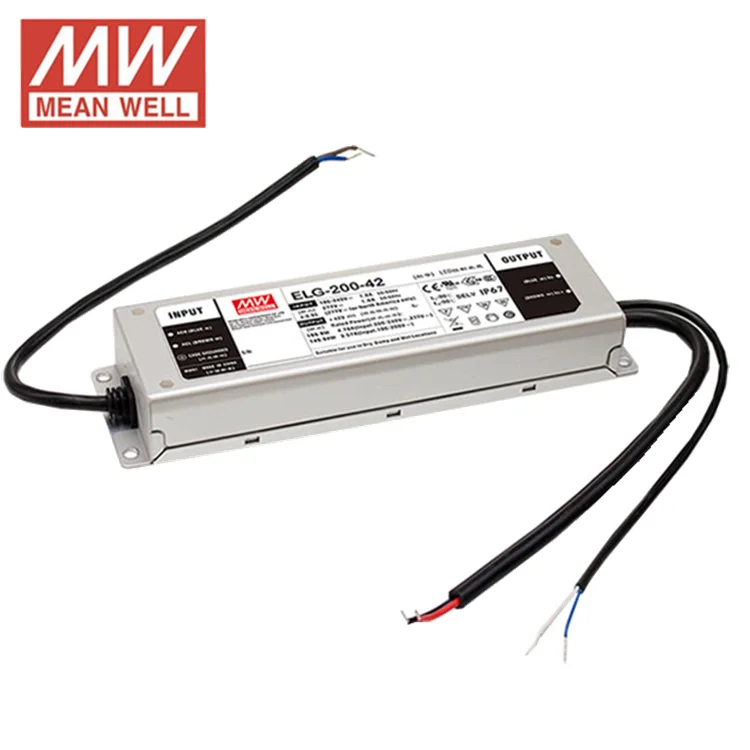

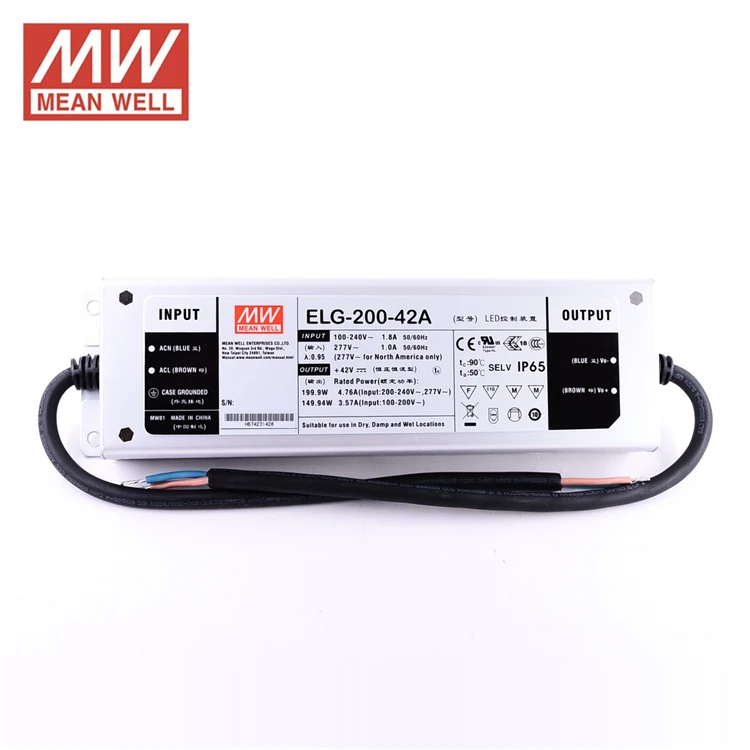

Original MEANWELL led driver 200W 32 volt dc power supply ELG 200 36A

Features:

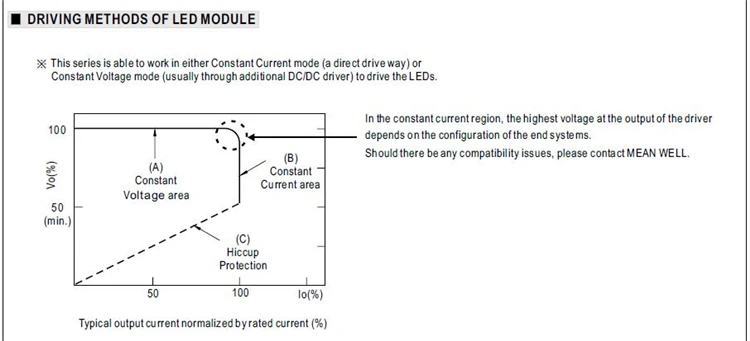

• Constant Voltage + Constant Current mode output

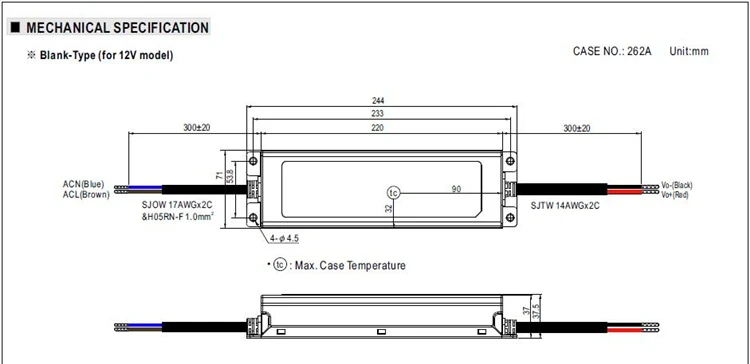

• Metal housing design with functional Ground
• Built-in active PFC function
• No load  / Standby power consumption <0.5W
• IP67 / IP65 design for indoor or outdoor installations
• Function options: output adjustable via potentiometer; 3 in 1 dimming(dim-to-off); Smart timer dimming, DALI
• Typical lifetime> 50000 hours
• 5 years warranty

Application:

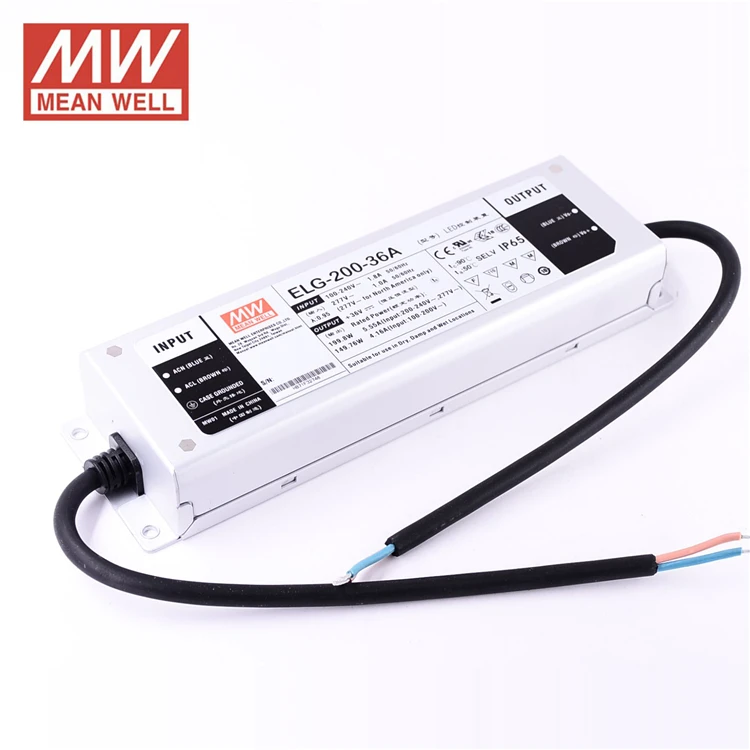

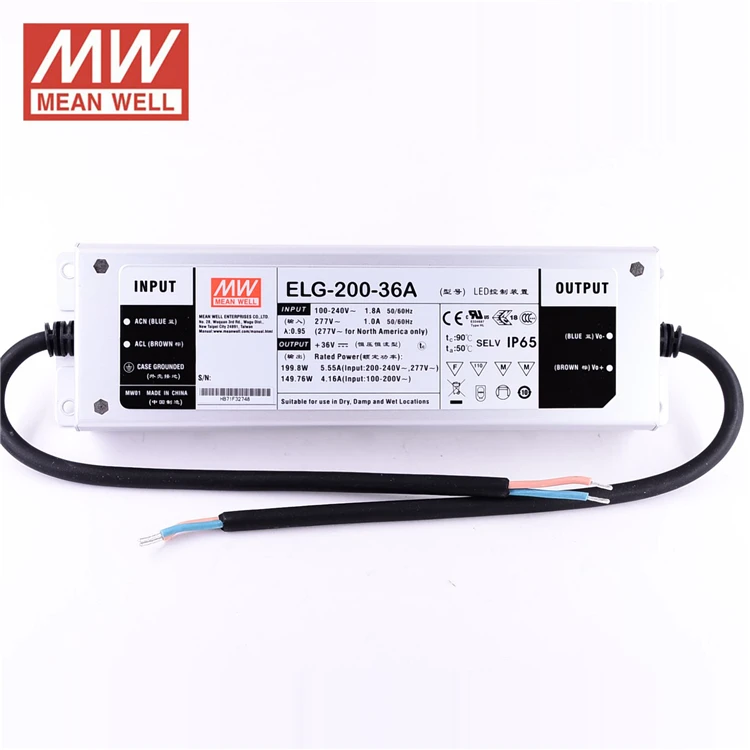

Model No.: Original MEANWELL  led driver 200W 32 volt dc power supply ELG-200-36A

ELG-200 series is a 200W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-200 operates from 100-305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for-40℃ ~+90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-200 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system

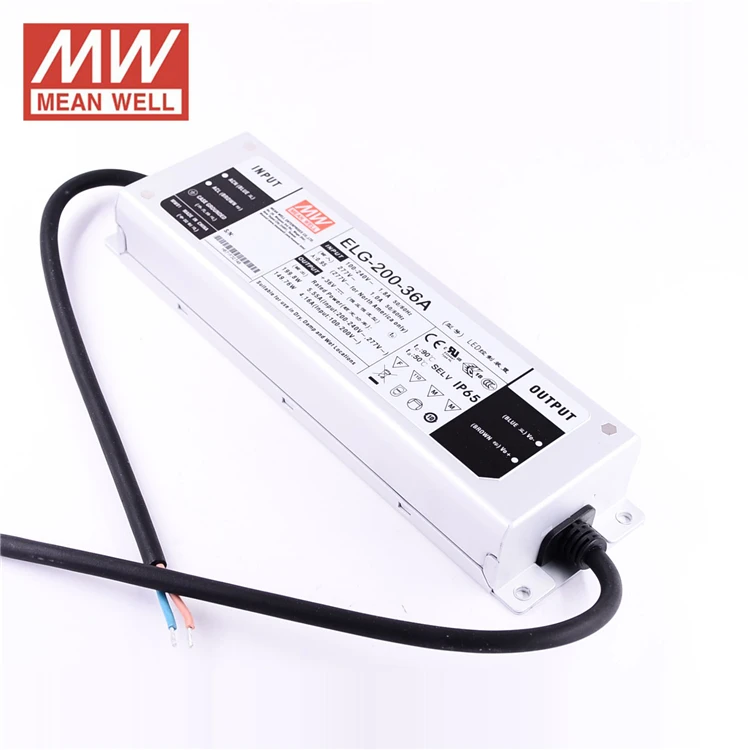

Model No.: Original MEANWELL  led driver 200W 32 volt dc power supply ELG-200-36A

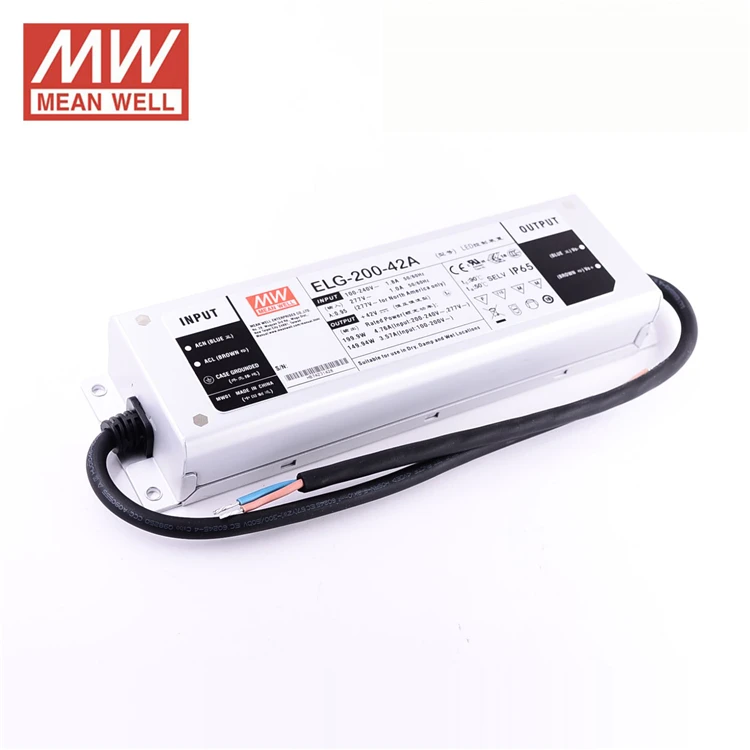

Model No.: Original MEANWELL  led driver 200W 32 volt dc power supply ELG-200-36A

1.       All inquiries will be replied in 12 hours

2.       All MEANWELL products are 100% original

3.       Delivery time: 1-5 working days

4.       Warranty: 2-7 years for different models

5.       Offer aftersales service until you are satisfied

Q1. Can I have a sample order firstly?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 1-2 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit ?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order ?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.

Q6: Do you offer guarantee for the products?

A: Yes, we offer 2-7 years warranty to our products.
