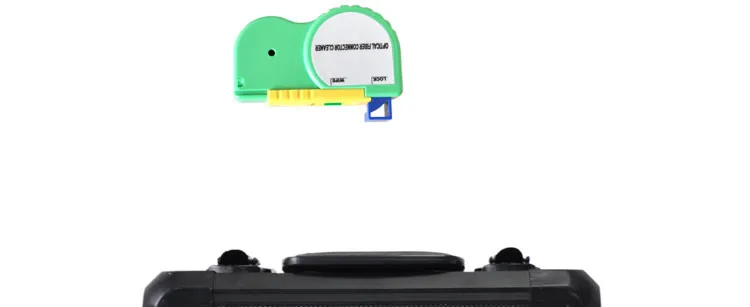

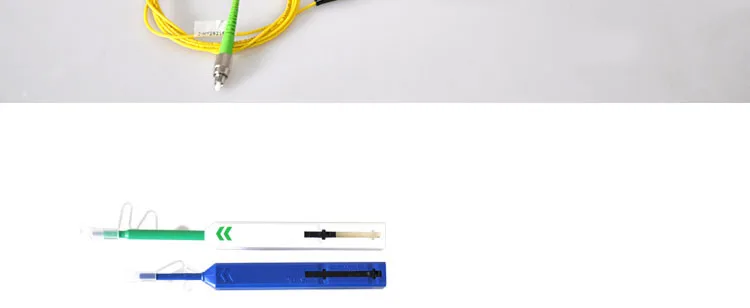

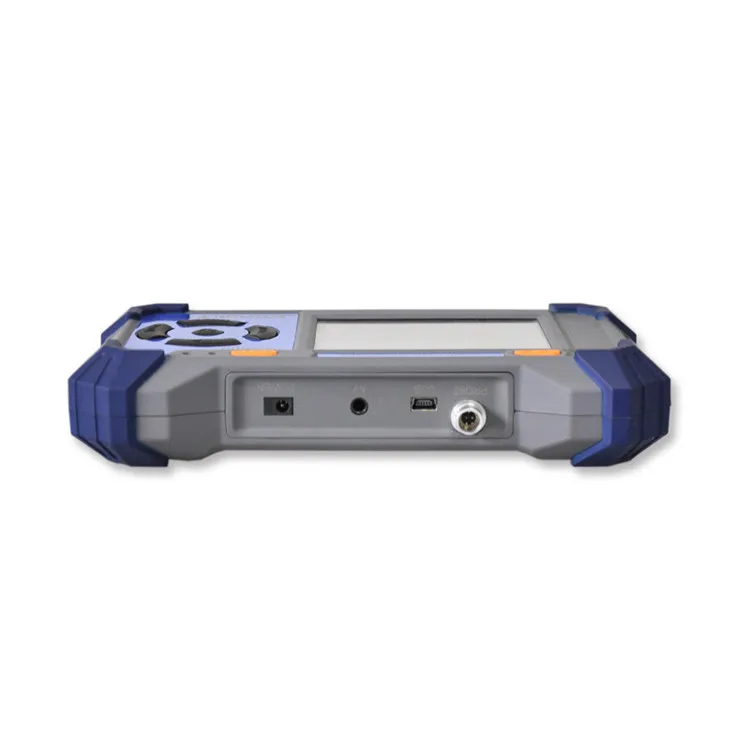

Fiber Inspection Probe Tool Kits with One Click Cleaning Pen and Cleaning Box and Camera Function

Product Overview

Description

SNP5005H Handheld Video Fiber Optic Connector Inspection Microscope with Cleaning Tool Kits

Overview

Reliability and performance of a fiber optic link largely depends on the quality of interconnects. Contaminated connectors can cause the mating surfaces to separate leading to high insertion loss and back-reflection. Furthermore, some dirt particles can even scratch or dig into the glass causing permanent damage to the end-face of the connector. Therefore, inspection of fiber optic connectors should be performed whenever a connection is to be made.

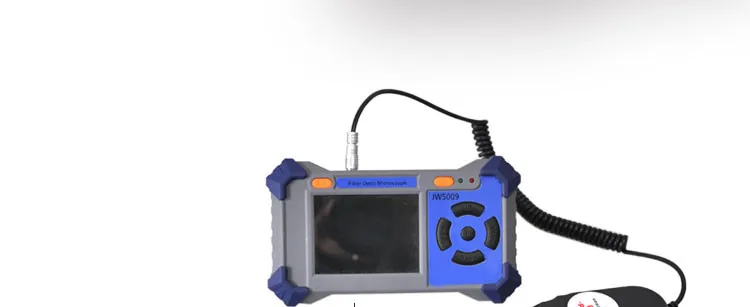

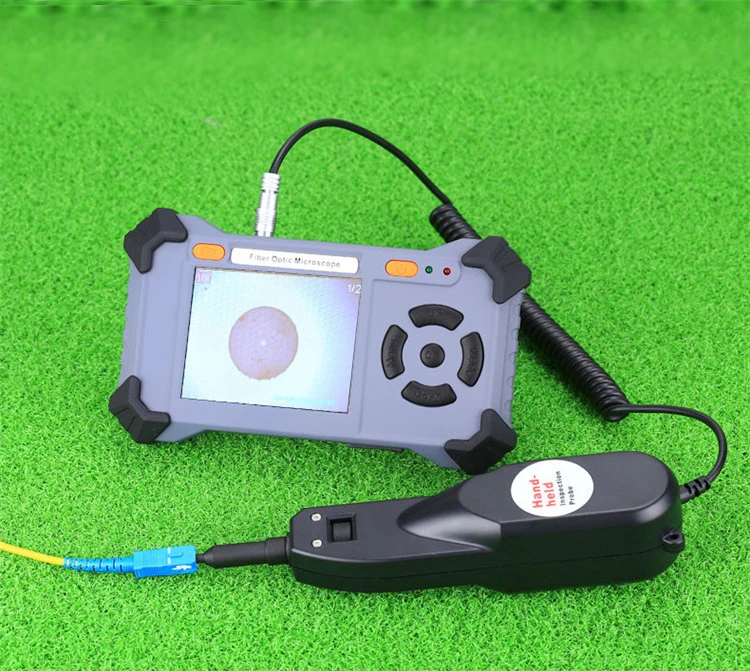

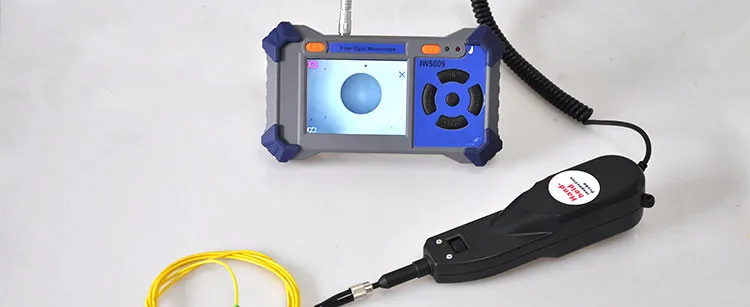

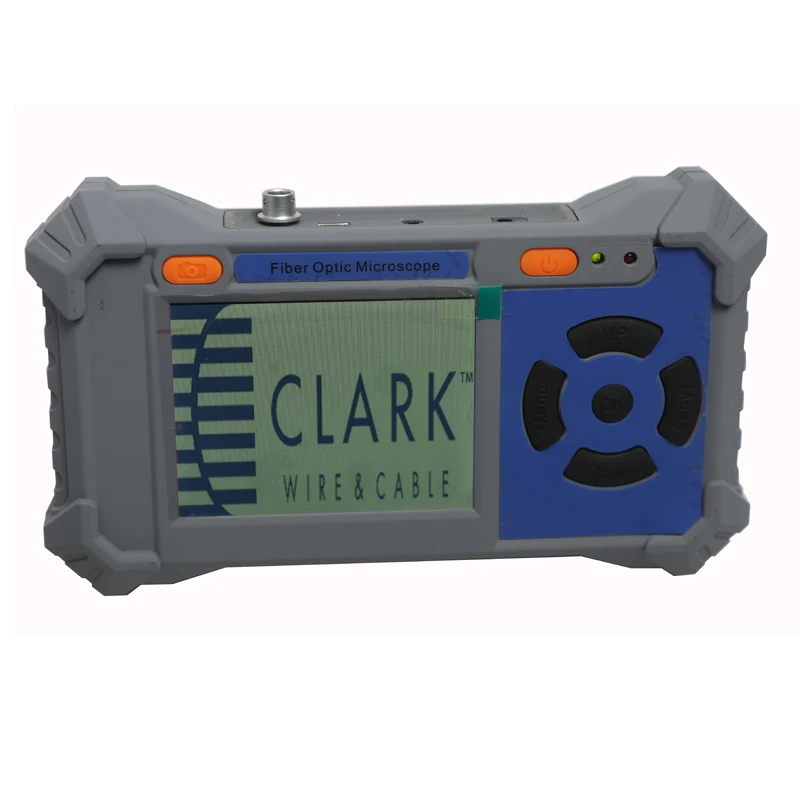

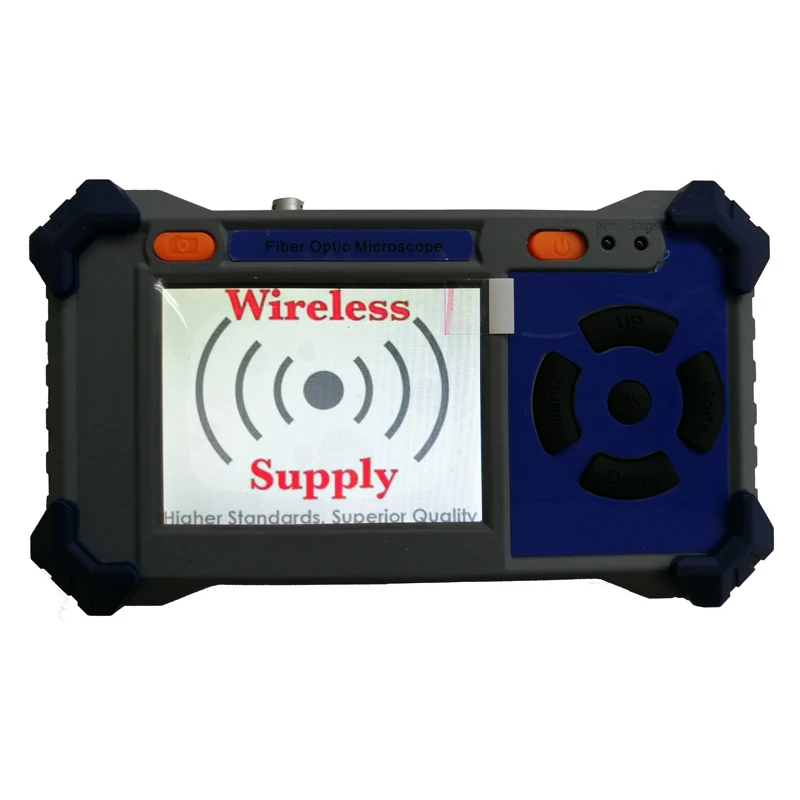

The SNP5005H is a handheld microscope specifically designed for fiber optic connector end face inspection.



Features

FC/SC/ST/E2000/LC/MU/MPO compatible

3.5-inch TFT display

Up to 250x overall magnification

4x digital zoom

SD card storage up to 8G

Snapshot, video recording and playback

PC plug-and-play



Description

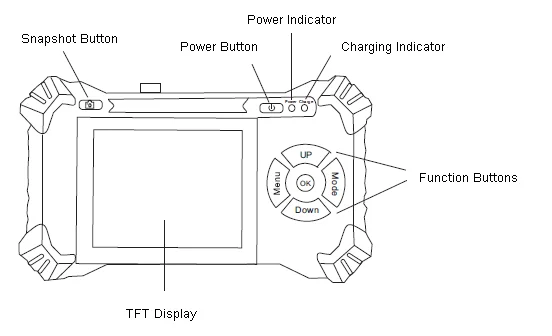

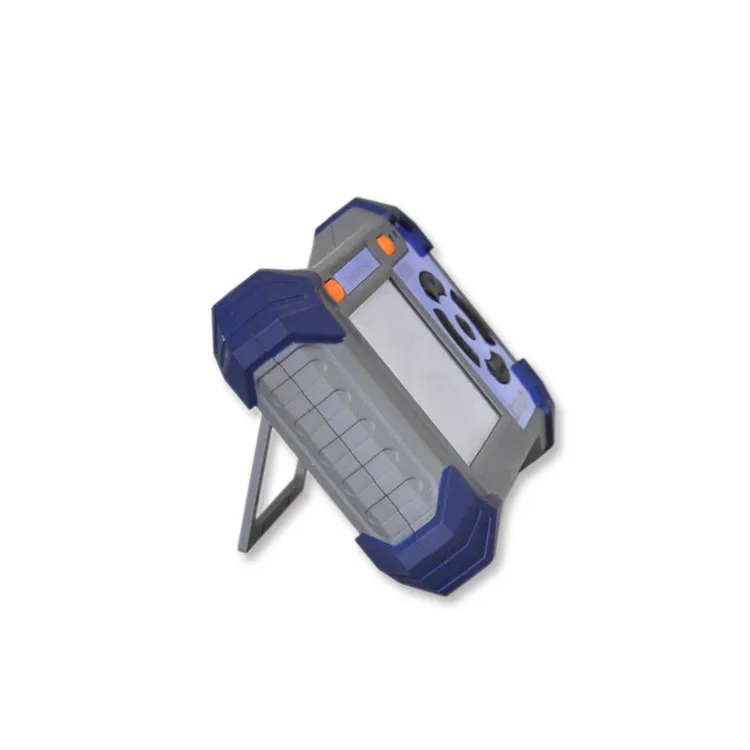

1.  Main Unit

2.  Probe



Operation

1. Main Unit

1.1  Power on/off

Press the Power Button briefly to turn the unit ON or OFF.

1.2  Screen capture and video recording

Press the Snapshot Button for instant screen capture or press the Mode Button and follow the screen menu to record and playback.

1.3  Battery charging

Charging of the internal battery will automatically start as soon as the charger is plugged into the main unit. The charging indicator will light until charging is complete.

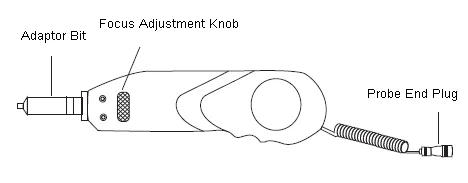

2. Probe

2.1 Focus adjustment

Gently rotate the focus adjustment knob to bring the image into focus. Do not overturn the knob or damage to the optical system may occur.

2.2 Adaptor bits

Always install adaptor bits gently and co-axially to avoid damage to the precision mechanism.

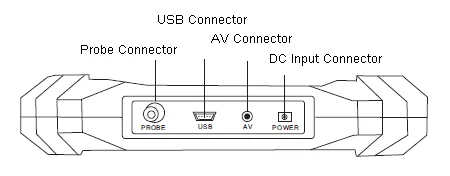

2.3 Connection with the main unit

When connecting, insert the end plug to the main unit’s probe socket until a light click is heard. When disconnecting, simply grab and pull the outer ring of the plug.



Specifications

Mainframe
Display	3.5” TFT-LCD, 320 x 240 pixels
Dimensions	170mm x 100mm x 40mm
Weigh (including battery)	200g
Power Supply	Replaceable battery or universal input 5V DC adapter
Battery	Rechargeable Li-Ion, 3.7V / 1450mAh
Battery life	> 3 hours (continuous)
Charger/AC adapter	US, EU, UK and Australian versions available
Image / Video Storage	8GB SD card
Operating Temperature	-20°C to 50°C
Storage Temperature	-30°C to 70°C



Inspection Probe
Magnification	400X (9” monitor); 250x (3.5”monitor)
Detection Limit	0.5μm
Focus Control	Manual , in-probe
Principle	Bright field reflected light microscopy
Dimensions	180mm x 40mm x 30mm
Weight	200g

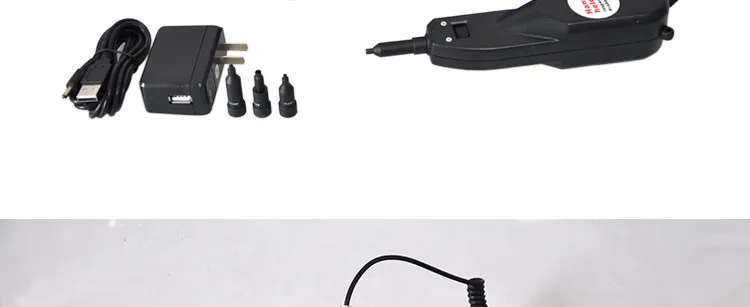

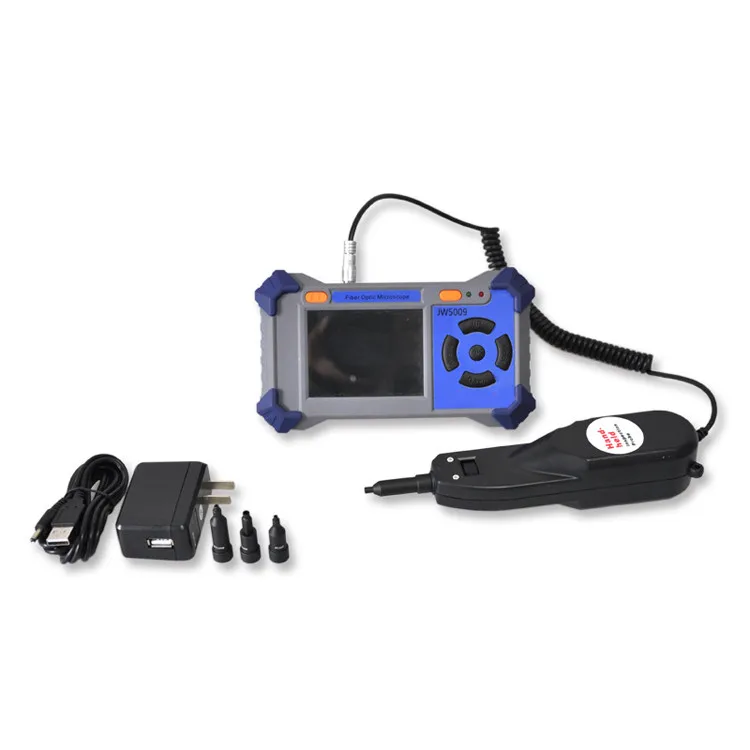

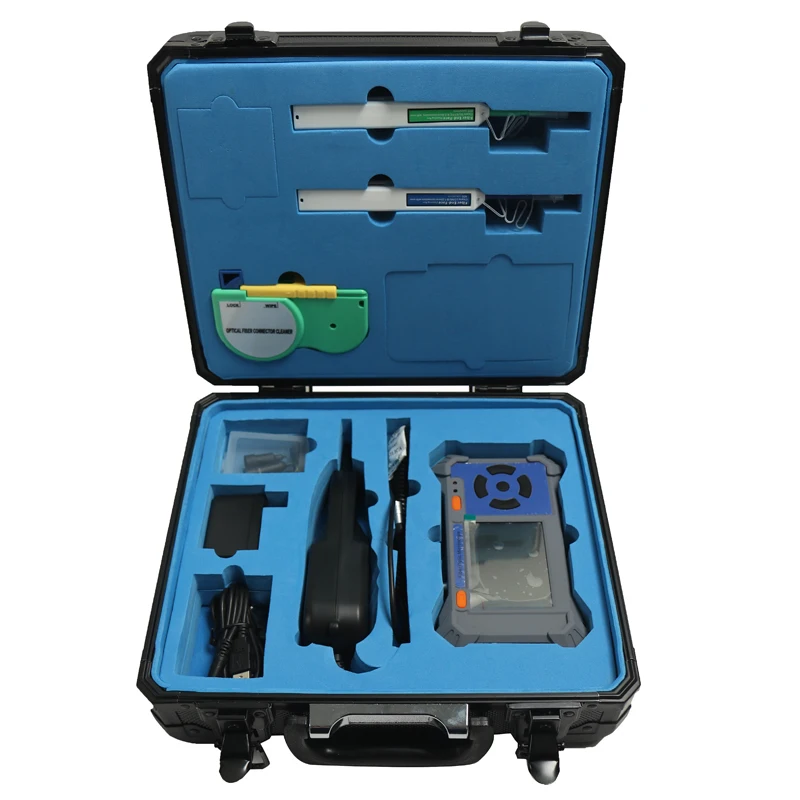

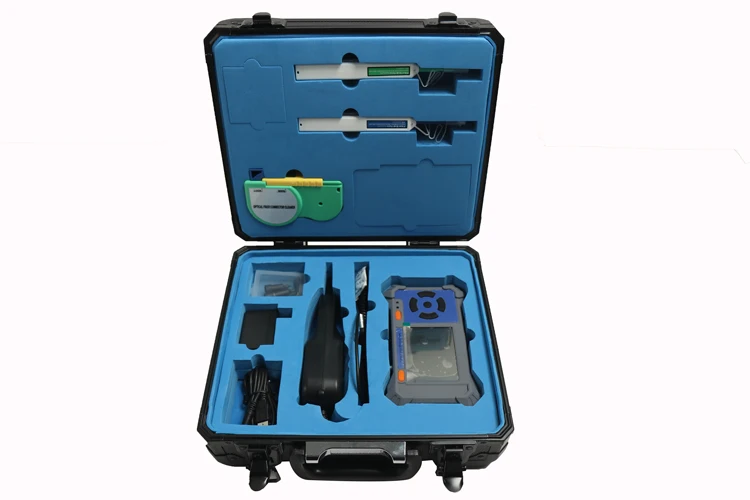

Standard Accessories
Inspection Probe	x 1
Mainframe	x 1
AC power adapter/battery charger	x 1
Rechargeable battery pack	x 1
2.5mm tip for PC male connectors	x 1
1.25mm tip for PC male connectors	x 1
Tip for SC / FC PC female connectors	x 1
Tip for LC PC female connectors	x 1
Tip box	x 1
User Manual	x 1

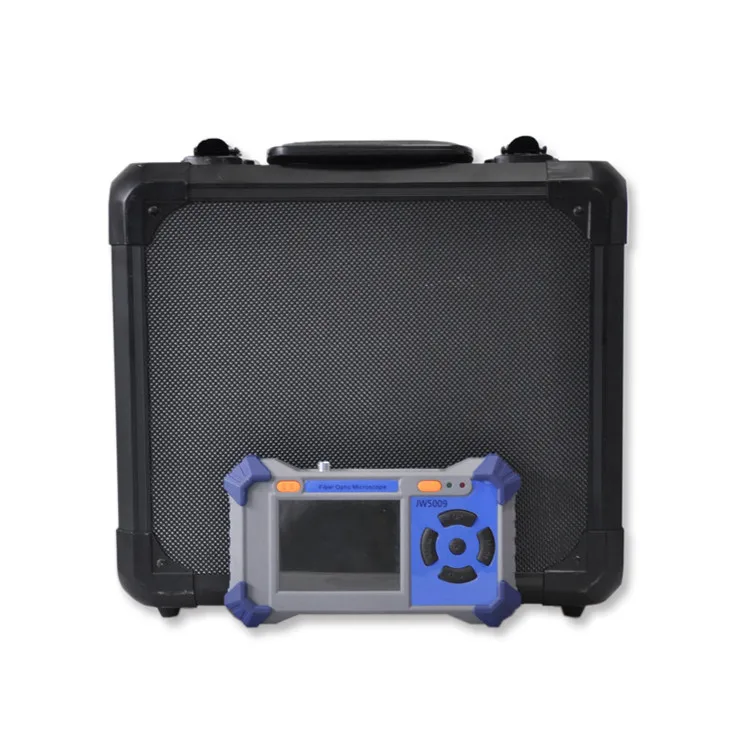

Carrying case	x 1



Optional Accessories

2.5mm tip for APC male connectors

1.25mm tip for APC male connectors

Tip for SC APC female connectors

Tip for FC APC female connectors

Tip for LC APC female connectors
