YFMB920 Semi auto Sunmica Board Lamination Machine
- Category: >>>
- Supplier: Zhejiang Fengming Industrial Co. Ltd. [Zhejiang China]Zhejiang
Share on (60699631565):
Product Overview
Description

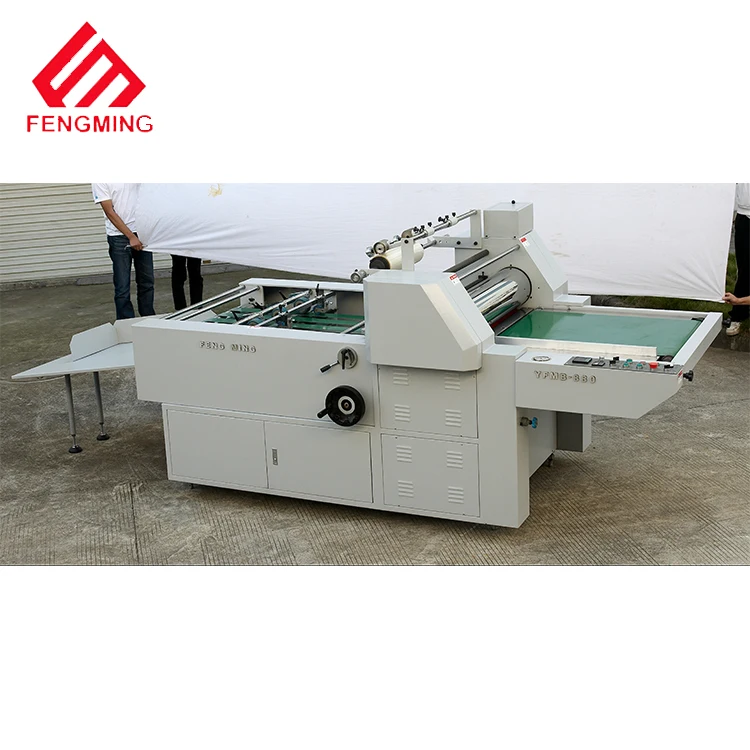

YFMB920 Semi-auto Sunmica Board Lamination Machine
YFMB720 | YFMB920 | YFMB1200 | |
Max.Laminating Width | 700*1040mm | 880*1040mm | 1100*1040mm |
Laminating Temperature | 60-130℃ | 60-130℃ | 60-130℃ |
Paper Thickness | 80-500g/mm | 80-500g/mm | 80-500g/mm |
Laminating Speed | 0-30m/min | 0-30m/min | 0-30m/min |
Total power | 6.7kw(normal is a half) | 8.7kw(normal is a half) | 9.5kw(normal is a half) |
Voltage | 220/380V | 220/380V | 220/380V |
Diameter of Heating Roller | 268/320mm | 268/320mm | 268/320mm |
Diameter of Film Paper core | ≤76mm(3 inch) | ≤76mm(3 inch) | ≤76mm(3 inch) |
Total Weight | 700kg | 900kg | 1100kg |
Overall Dimension | 3930*1350*1700mm | 3930*1550*1700mm | 3930*1830*1700mm |
Product Features:
Mechanic Dividing (with Vibration Table)
Oil Heating System

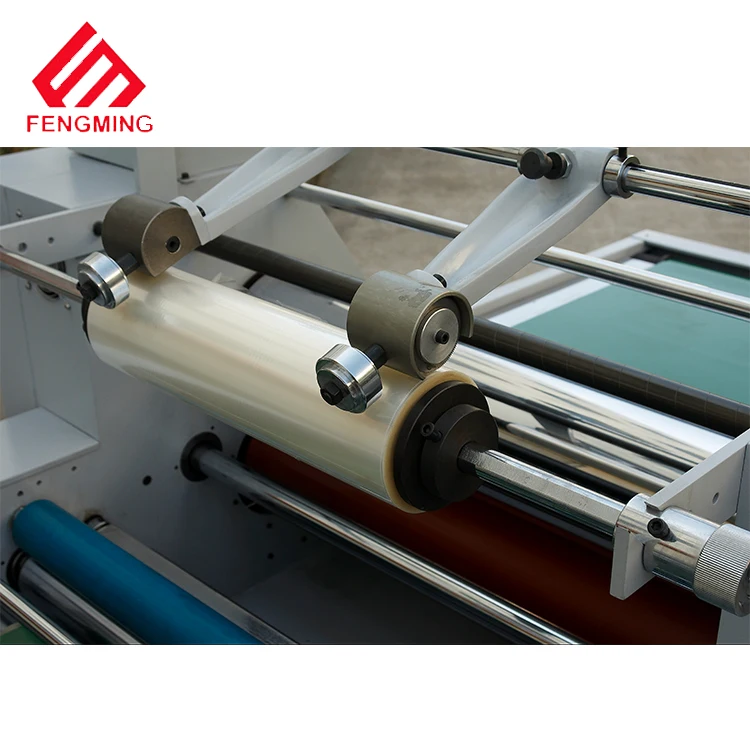

Manual Film Shaft(Use two iron disks to lock film and screw fix it)
Film Cutter and Film Puncher
Operation Plater
Automatic hydraulic pressure (Automatic adjustment pressure )
Anti-Curve Device
