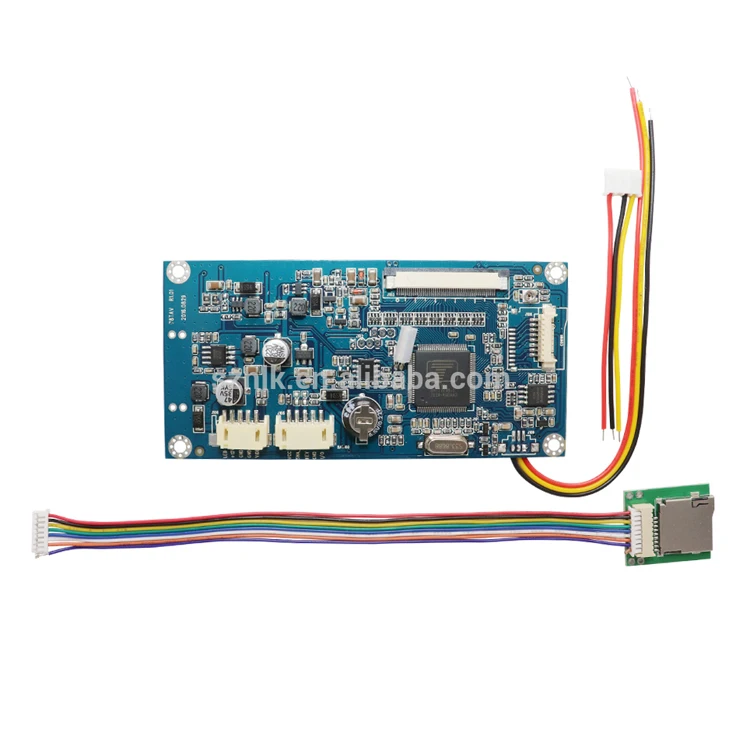

7 Inch Controller Module 800*480 LCD Display Controller Board For Intercom Indoor Monitor

Product Overview

Description



7 Inch Controller Module 800*480 LCD Display Controller Board For Intercom Indoor Monitor

LCD Display Controller Board

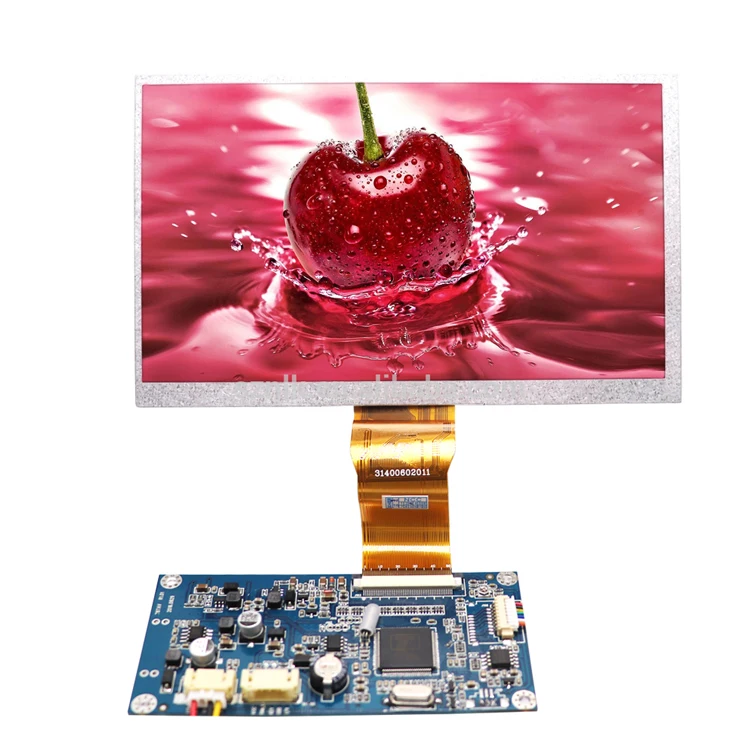

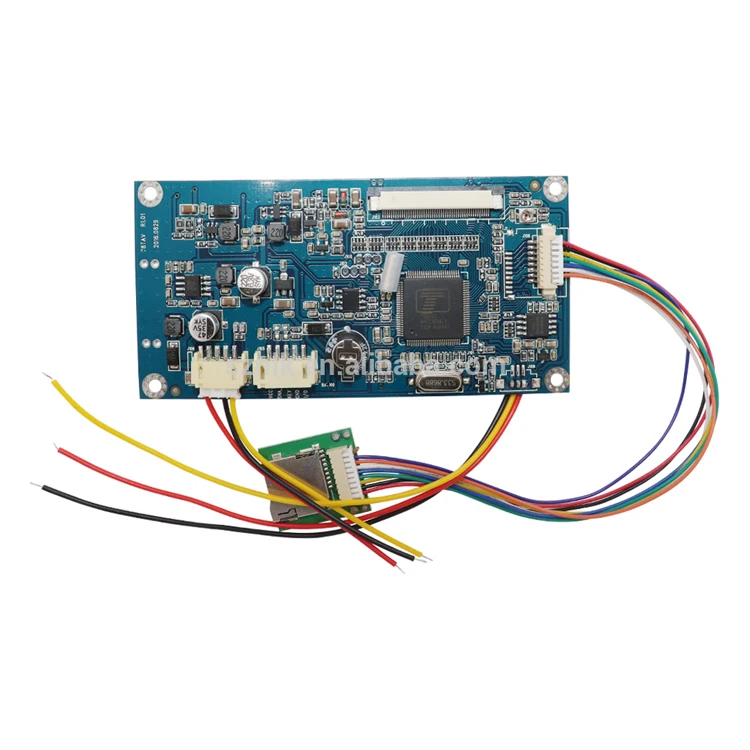

NLK-78TAV LCD display module with controller board is comprised by 78TAV VER:1.01 memory board and SAT070CP50D18YO panel, input CVBS(PAL or NTSC)signal, It can use RS232 and keybutton to take photo and video and storage and delete all pictures, can setting time and date, and adjust picture quality, power-off memory function and OSD display.



Application Area

Video Door Phone
Optical Fiber Tester Equipment
Car Monitor with Records





Electric Parameters

Pin.	Items	Description
1	Size	7.0 inch
2	Display ratio	16:09
3	Backlight	LED
4	Brightness	210~260 cd/m2
5	Resolution	800×3(RGB)×480
6	View angle(up,down,left,right)	(50/70/70/70)
7	Display dimension	164.9(W)×100.0(H)×5.15(D)mm
8	Effective display area	154.08(H)×85.92(V)mm
9	Driving board dimension	102.0(W)×50.0(H)×9.2(D)mm
10	Working Voltage	Min.:DC9V;Type:DC12V;Max:DC18V;
11	Working current (DC 12V)	DC220mA±20mA
12	Working consumption	2.64W(TYP)
13	Start time	≤2.0s
14	Working temperature	-10℃~60℃
15	Storage temperature	-20℃~70℃
16	Environment Humidity	5~95%RH
