5 870MHz Handheld Analog CATV Signal Level dB Meter
- Category: Measuring & Gauging Tools >>>
- Supplier: Ningbo Snow Sea Optoelectronic Technology Co. Ltd.
Share on (60699700669):
Product Overview
Description
5/47-870MHz Handheld Analog CATV Signal Level Mete
Description

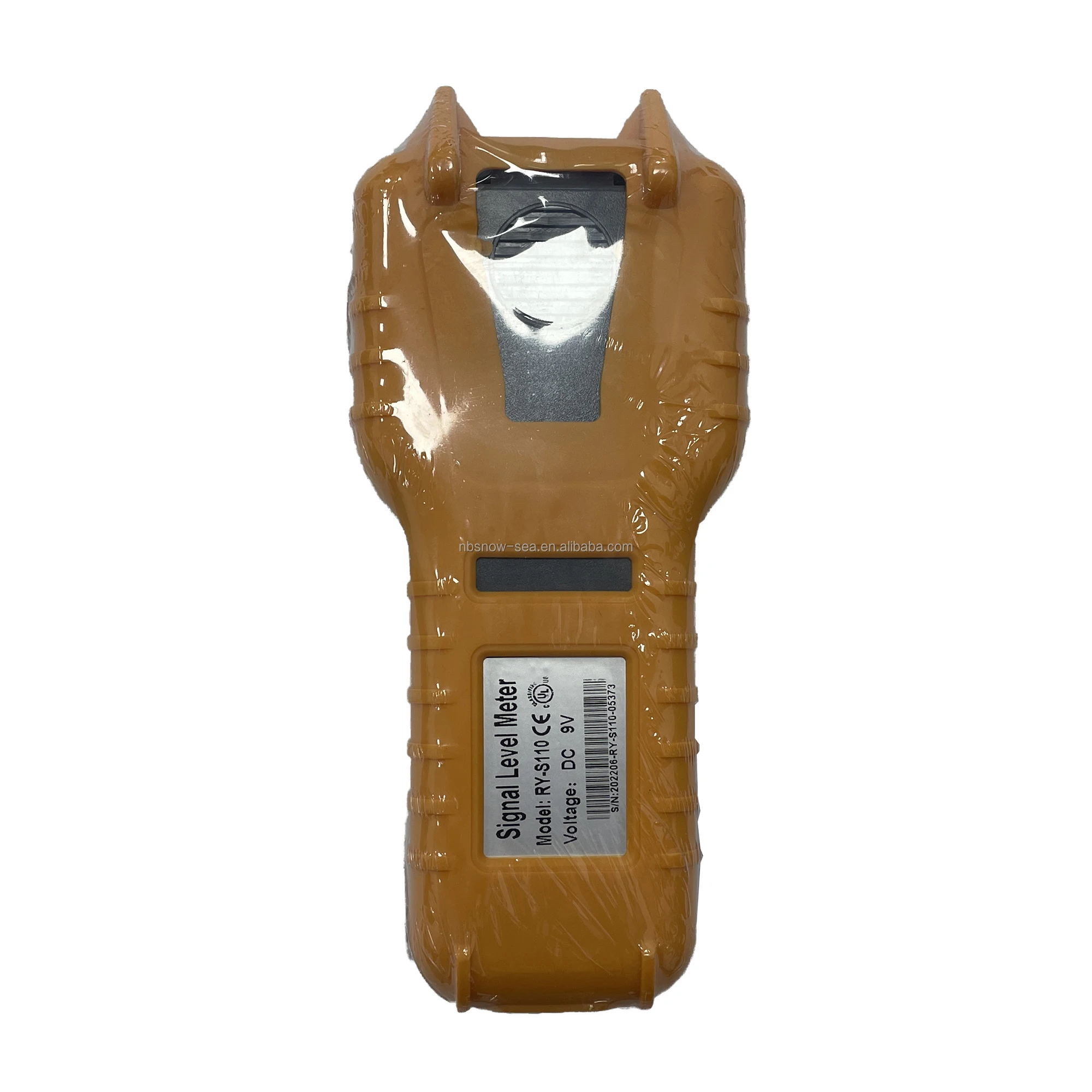

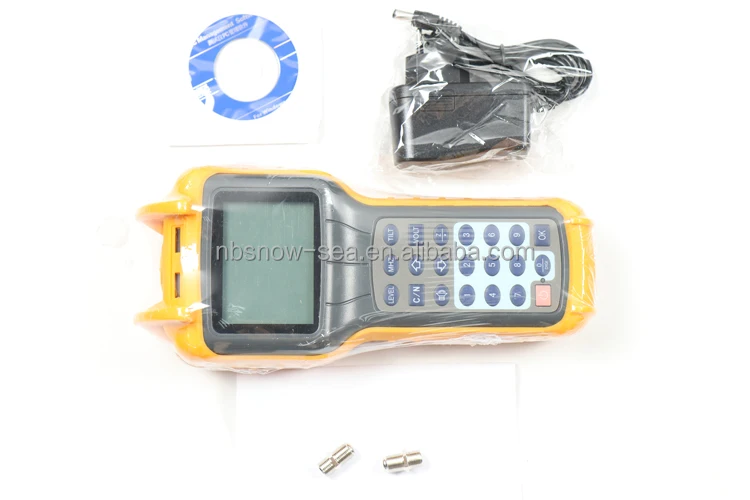

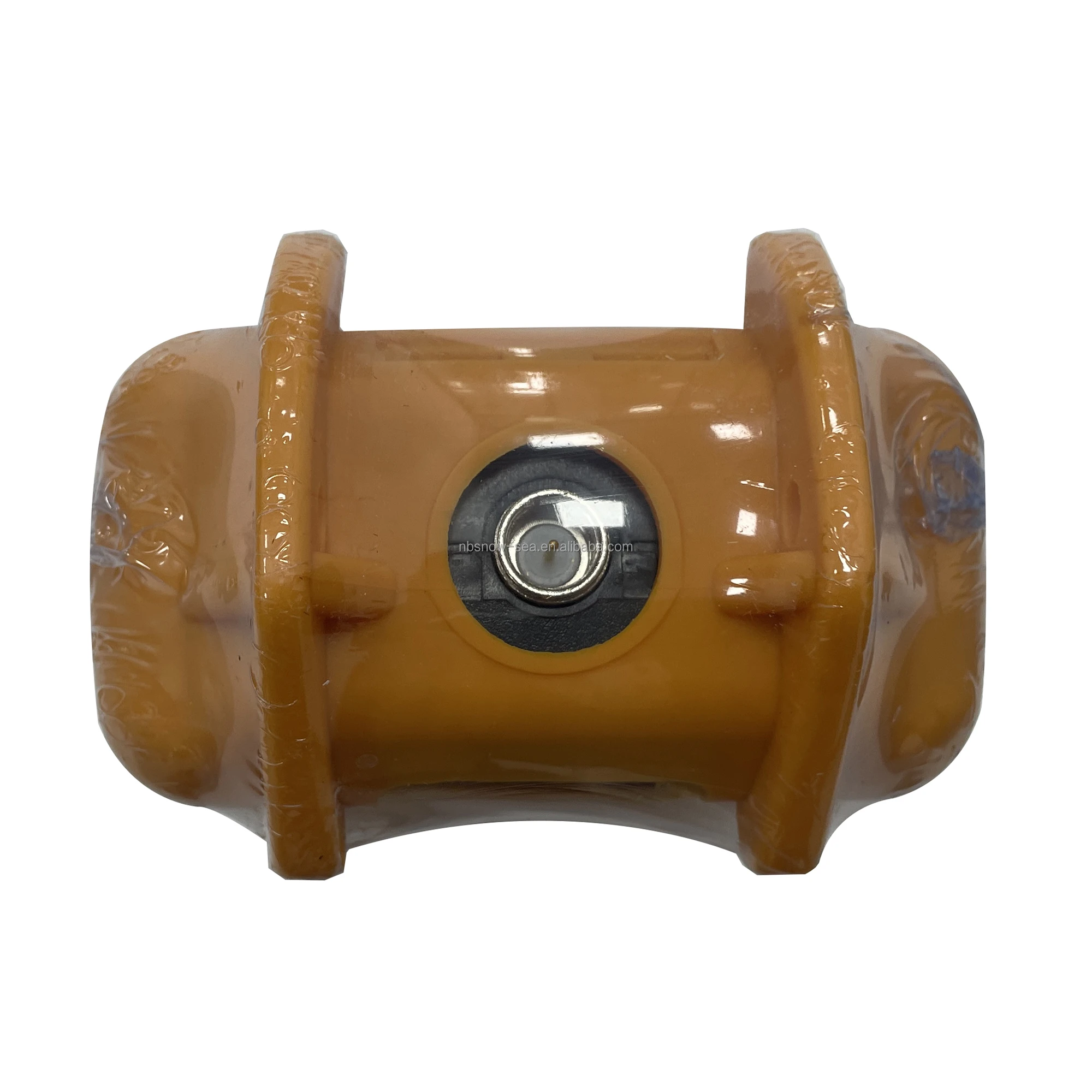

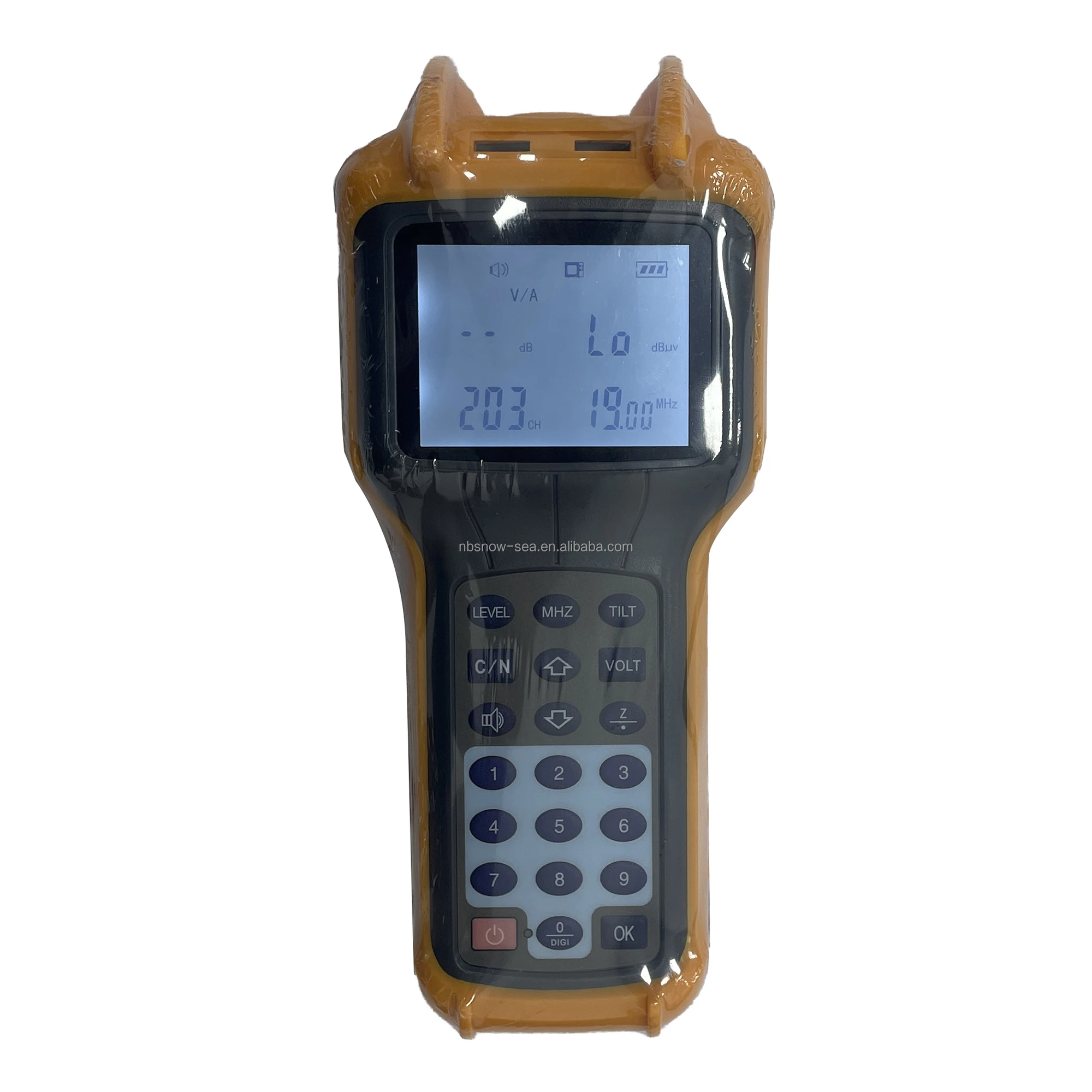

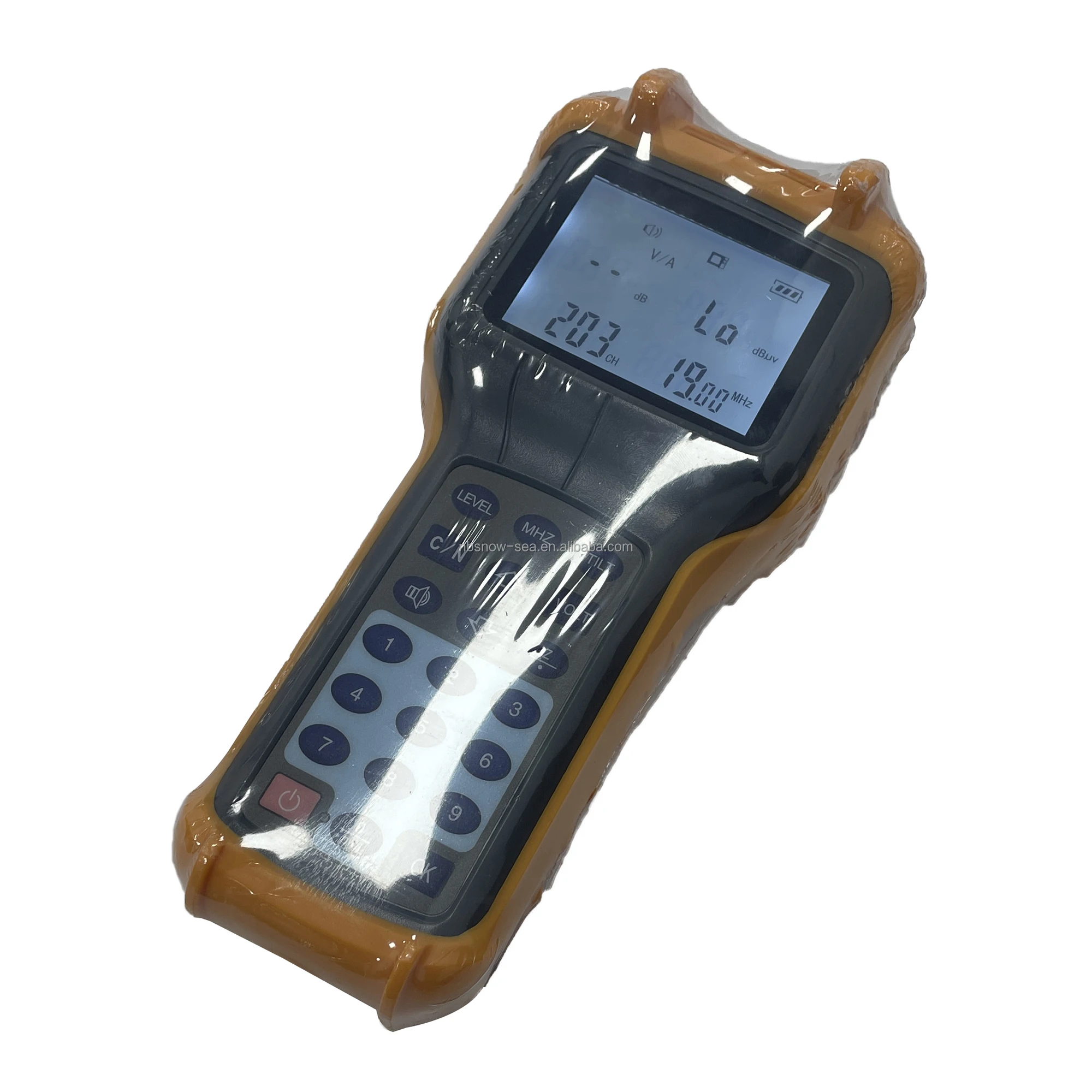

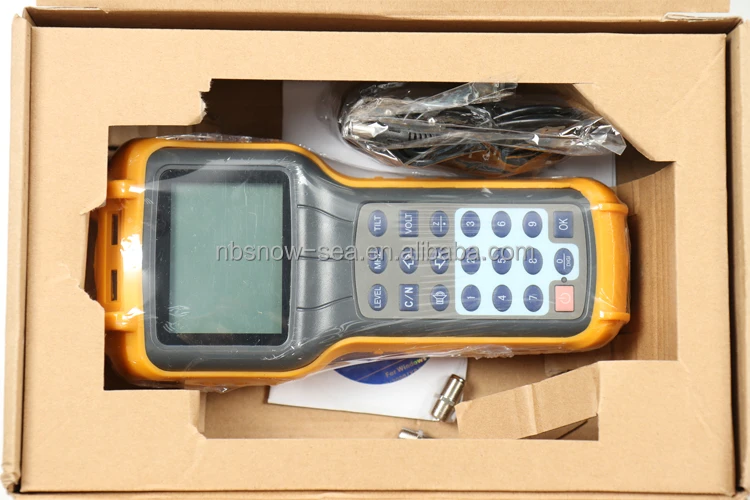

S110/S110D Signal Level Meter is an instrument used for the construction and maintenance of analog TV / digital TV, and the measurement of TV signal level and power level. It is widely applied in the routine maintenance of the CATV system. S110/S110D Signal Level Meter is compatible to both analog / digital channels, with strong comprehensive performances; it employs high brightness backlight operating modes, with clear LCD screens, dual-channel measurement display, so it is convenient and pragmatic; besides, numeric keypad input allows it easy to operate; S110/S110D is a compact, small light-weight portable signal level measuring
Technical Data
Model No | SNP-S110 | SNP-S110D |
Frequency / channel |
|
|
Frequency scope | 47~870MHz | 5~870MHz |
Channel | U.S. Standard Channel USA STD-CATV | |
Frequency accuracy | +50 * 10E-6 (20 oC +5 oC) | |
Level measurement | ||
Measuring range: | 30dBuV ~ 120 dBuV | |
Measurement accuracy | +2dB (20 oC +5oC) | |
Resolution | 0.5 dB | |
Carrier-to-noise ratio measurement | ||
Measuring range | 20dB ~ 50 dB | |
Signal input range | >=85dBuV | |
Measurement accuracy | + 3dB (20oC +5oC) | |
Channel scan | 150 | |
Voltage measurement | ||
Input range | 1 ~ 100V (AC / DC) | |
Measurement accuracy | +2V | |
Resolution | 1V | |
Power supply | ||
battery | 7.2V/1500mAH rechargeable battery | |
AC Supply: | AC 90V-220V 50Hz-60Hz | |
Working time | 6h | |
Charging time | 3h | |
Other CATV Signal Level Meter
Signal Lever Meters correlation table | ||
Model No | Constellation | Main Parameter |
SNP-S110/S110D | No | Double channel, A/V, C/N, Average Power, Trunk line Voltage, |
SNP-S128/S128D | No | Spectrum, Channel Power, Tilt, A/V, C/N, Average Power, Trunk line Voltage, |
SNP-S200/200D | No | MER, BER, Tilt, A/V, C/N, Average Power, Trunk line Voltage, |
SNP-S1127/S1127DQ | Yes | Spectrum, MER, BER, Tilt, Channel Power, A/V, C/N, Average Power, Trunk line Voltage |
SNP-S1130/S1130DQ | Yes | Advanced spectrum, Full automatic scanning, MER, BER, Tilt, V/A, C/N, Average Power, Channel Power, Trunk line Voltage, Threshold, Alarms |
