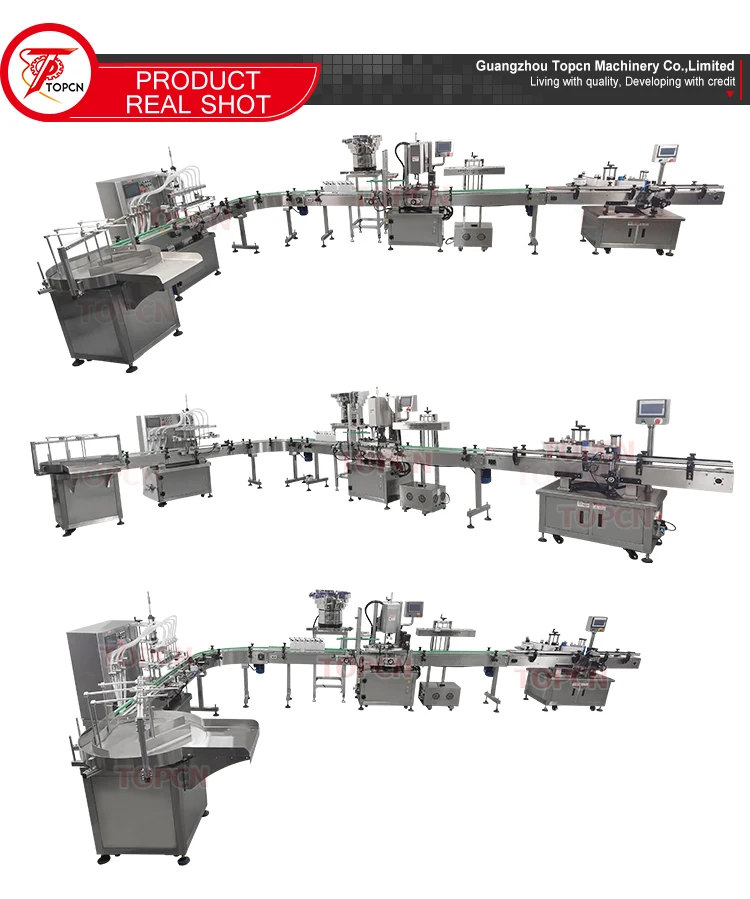

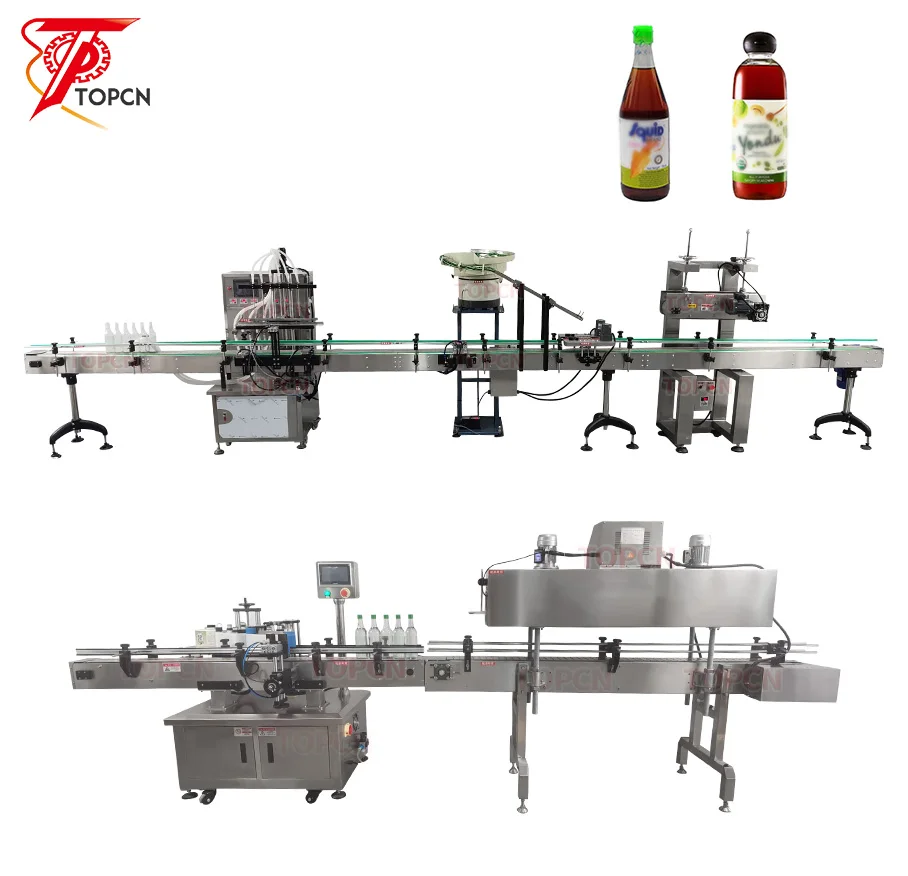

  • Full automatic complete glass bottle mineral water production line
Full automatic complete glass bottle mineral water production line
Full automatic complete glass bottle mineral water production line
Full automatic complete glass bottle mineral water production line
Full automatic complete glass bottle mineral water production line
Full automatic complete glass bottle mineral water production line
Full automatic complete glass bottle mineral water production line
Full automatic complete glass bottle mineral water production line

Full automatic complete glass bottle mineral water production line

Share on (60699721213):


Price:

Quantity:


Product Overview

Description



Related Products








This automatic complete bottle water production line is suitable for various liquid filling, mineral water production line has diaphragm pump ,magnetic pump,peristaltic pump need to be customized based on the different liquid and bottles
size.Please contact us before order, we will offer you the best solution with competetive price

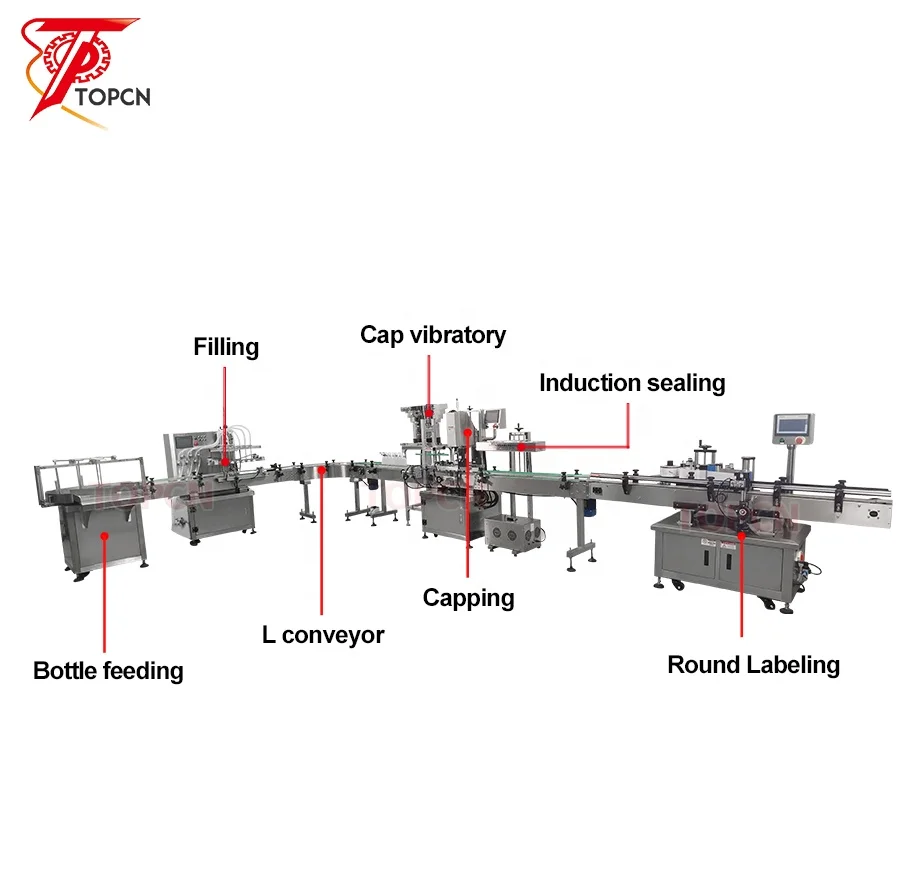

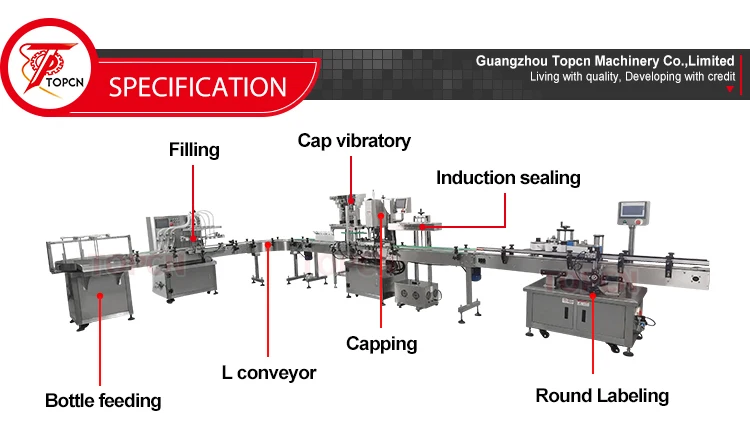

Working progres of glass bottle production line:

1:Feeding bottle   2:Filling    3: press capping  4:Screw Capping   5:Induction foil sealing   6:Labeling   7:Bottle collecting

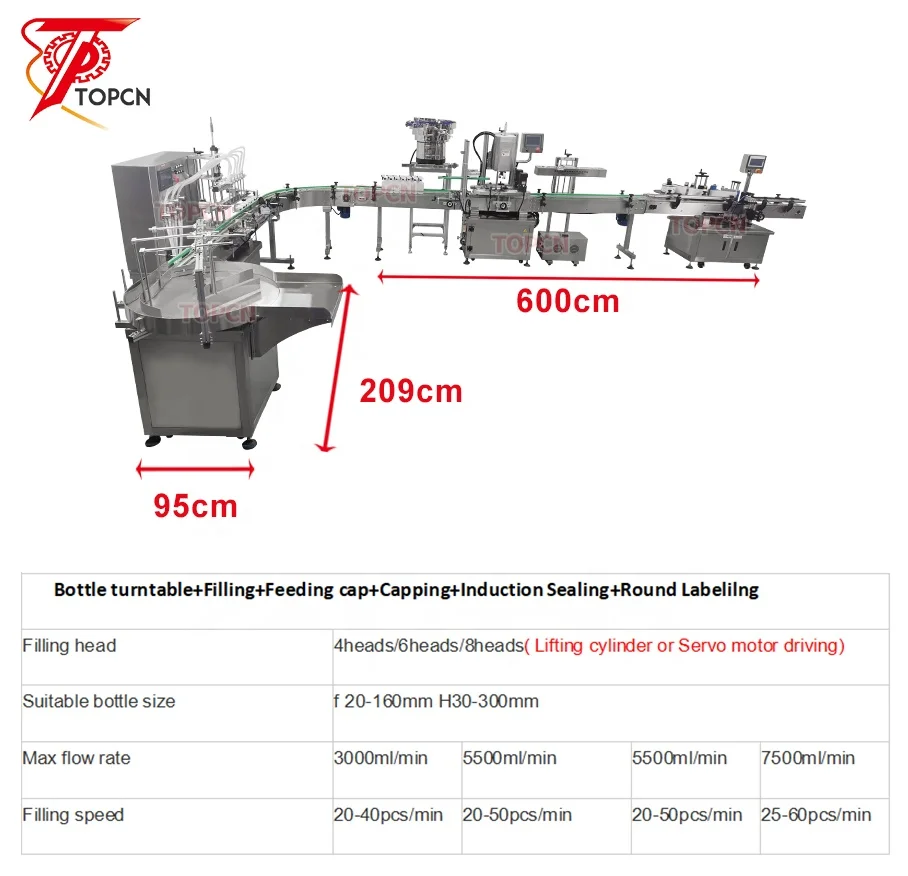

Automatic Liquid Filling Machine
Filling head
4heads/6heads/8heads( Lifting cylinder or Servo motor driving)
Suitable bottle size
φ20-160mm H30-300mm
Max flow rate
3000ml/min
5500ml/min
5500ml/min
7500ml/min
Filling speed
20-40pcs/min
20-50pcs/min
20-50pcs/min
25-60pcs/min
Material of pump
Plastic
304stainless steel
316stainless steel
Filling accuracy
≤100ml ≤±1ml
> 100ml precision ≤±1% ( based on water)
Power supply
220V-50HZ/110V-60HZ
The whole machine power
2KW
Package weight
About 180kg
Package size
About 214*900*208mm
Size of air compressor connector
OD 8mm
Net weight/Gross weight
About 549.5kg/650.5kg


Automatic Press Capping Machine
Voltage
AC 220V/60HZ 110V/50HZ
Power
1.5 kw
Cap diameter
φ15-φ60 mm
Bottle diameter
Φ35-φ140 mm
Bottle height
38mm-250 mm
Capping speed
30-60 pcs/min
Air pressure
0.4-0.6 Mpa
Machine size
2000*850*1800 mm
Weight
320 kg
Note : Accept customized service according to your bottle and lid


Round Labeling Machine
Labeling Precision
±1mm (excluding product and label error);
Power Supply
AC220V 50/60Hz 700W
Conveyor Speed
5~25 meters/minute;
Labeling Speed
10~35pcs/min(Related to product, label size);
Sticker Out-Come Speed
Stepping Motor: 5~19 meters/minute
Servo Motor: 5~25 meters/minute
Application Bottle Size
External diameter: Φ25-100mm;
Height: 25mm~300mm;
Applicable label size
Label Length: 20mm~290mm;
Label Width(body paper width): 20mm~120mm; 180mm (option)
Inner dia. of paper roll
Φ76mm
External dia. of paper roll
Max. Φ300mm
Size (LXWXH)
2000mm×1150mm×1600mm
Weight
185kgs


Servo motor driving
Filling nozzles driven by servo motor, which will fill from bottom of bottle and ensure filling precision.

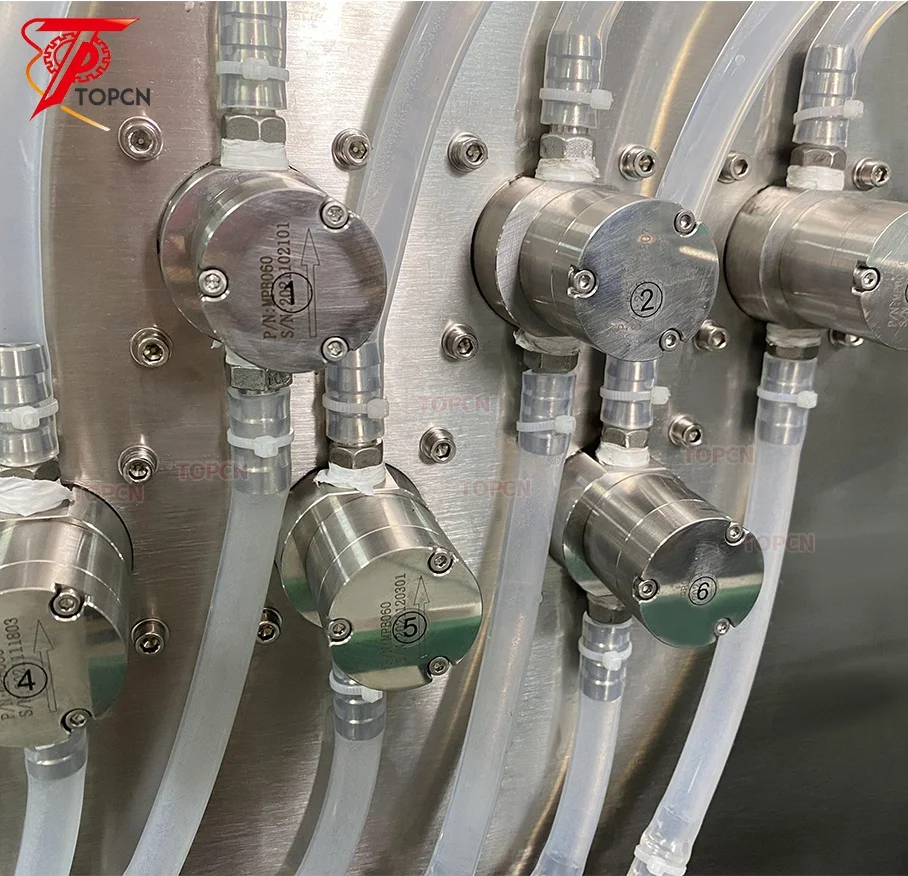

Magnetic pump
can filling liquid accurately and fast, which can help you improve production capacity. Magnetic pump is 316
stainless steel, using life is longer than other digital pump, each pump can work separately.


bottle stopper
With bottle stopper and fixed bottle neck to filling, and avoiding overrun bottles, broken bottles occur when the bottle conveying system runs at a high speed
Cap feeder
With bottle cap feeder which can feed lids before capping bottle.This one needs to be customized according to cap size.


bottle guiding structure
The bottle guiding structure can be adjusted according to bottle diameter. This is designed for bottles which are easy to fall down during capping work,it can help to transport bottles stably.
Round labeling machine
Round labeling machine Chain conveyor with steel plate support, smooth transition Conveyor guide width and height is adjustable for different size of bottle,easy change different round bottle




FAQ


Q1: Are you a machine manufacturer or trading company?
A1: We are a reliable machine manufacturer that could gives u best service. And our machine can be customized by client's requirement. Welcome to visit our factory!

Q2: How do you guarantee this machine normally operating?
A2: Every machine is tested by our factory and other client before shipping, We will adjust the machine to optimal effect before delivery. And spare is always available and free for you in warranty year.

Q3: How can I install this machine when it arrives?
A3: We will send the engineers overseas to help client installing, commissioning and training.

Q4: Could I choose the language on touch screen?
A4: It's no problem. You can choose Spanish, French, Italian, Arabic, Korean, etc,.

Q5: What should I do to choose the best machine for us?
A5: 1) Tell me the material you want to fill, we'll choose the suitable type of machine for you to consider.
2) After choose the suitable type of machine, then tell me the filling capacity you need for the machine.
3) At last tell me the inner diameter of your container to help us choose the best diameter of the filling head for you.

Q6: Do you have manual or operation video for us to know more about the machine?
A6: Yes, we will send you the manual and operation video after you ask for us.

Q7: If there's some spare parts that broke,how to solve the problem?
A7: Yes, we will send you the manual and operation video after you ask for us.

Q8: If there's some spare parts that broke,how to solve the problem?
A8: First of all, please take the pic or make a video to show the problem parts.
After the problem is confirm from our sides,we'll send you the spare parts for free, but the shipping cost should be paid by your side.

Q9: Do you have manual or operation video for us to know more about the machine?
A9: Yes, we will send you the manual and operation video after you ask for us.

Q10: If there's some spare parts that broke,how to solve the problem?
A10: Yes, we will send you the manual and operation video after you ask for us.

Q11: If there's some spare parts that broke,how to solve the problem?
A11: First of all, please take the pic or make a video to show the problem parts.
After the problem is confirm from our sides, we'll send you the spare parts for free, but the shipping cost should be paid by your side
