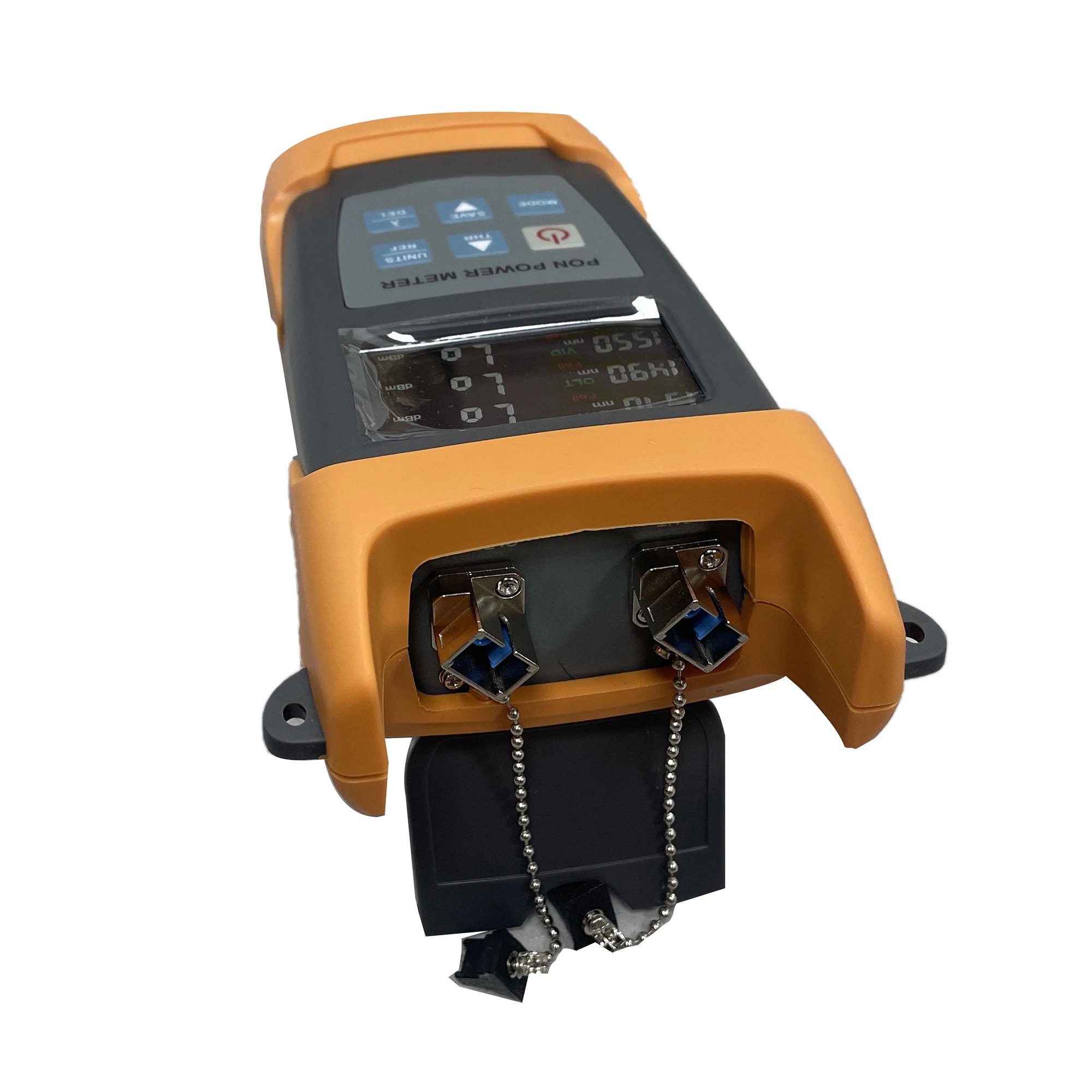

1310/1490/1550nm FTTH Fiber Optic PON Power Meter with OPM and VFL and Color LCD for Testing from OLT to ONT

Product Overview

Description

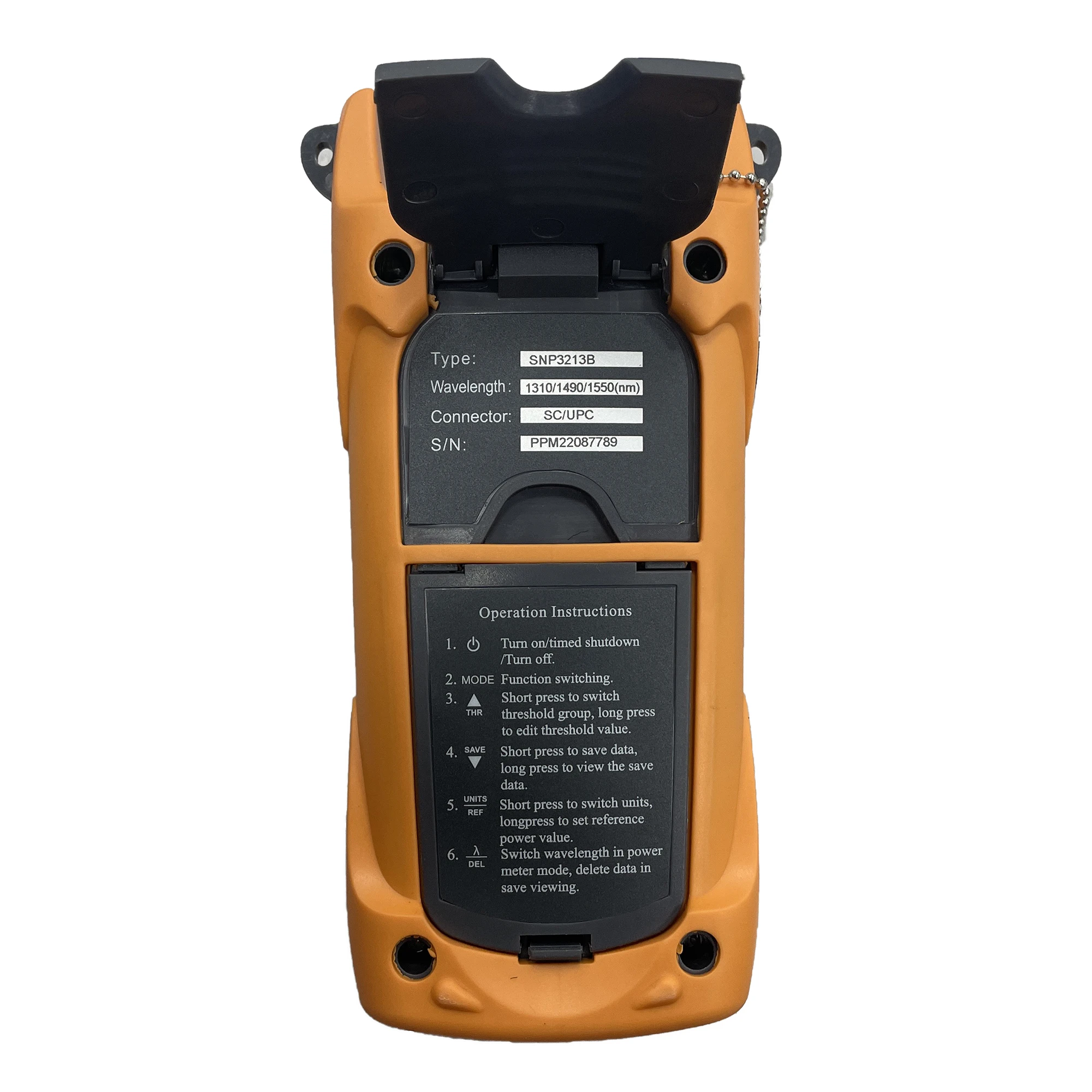

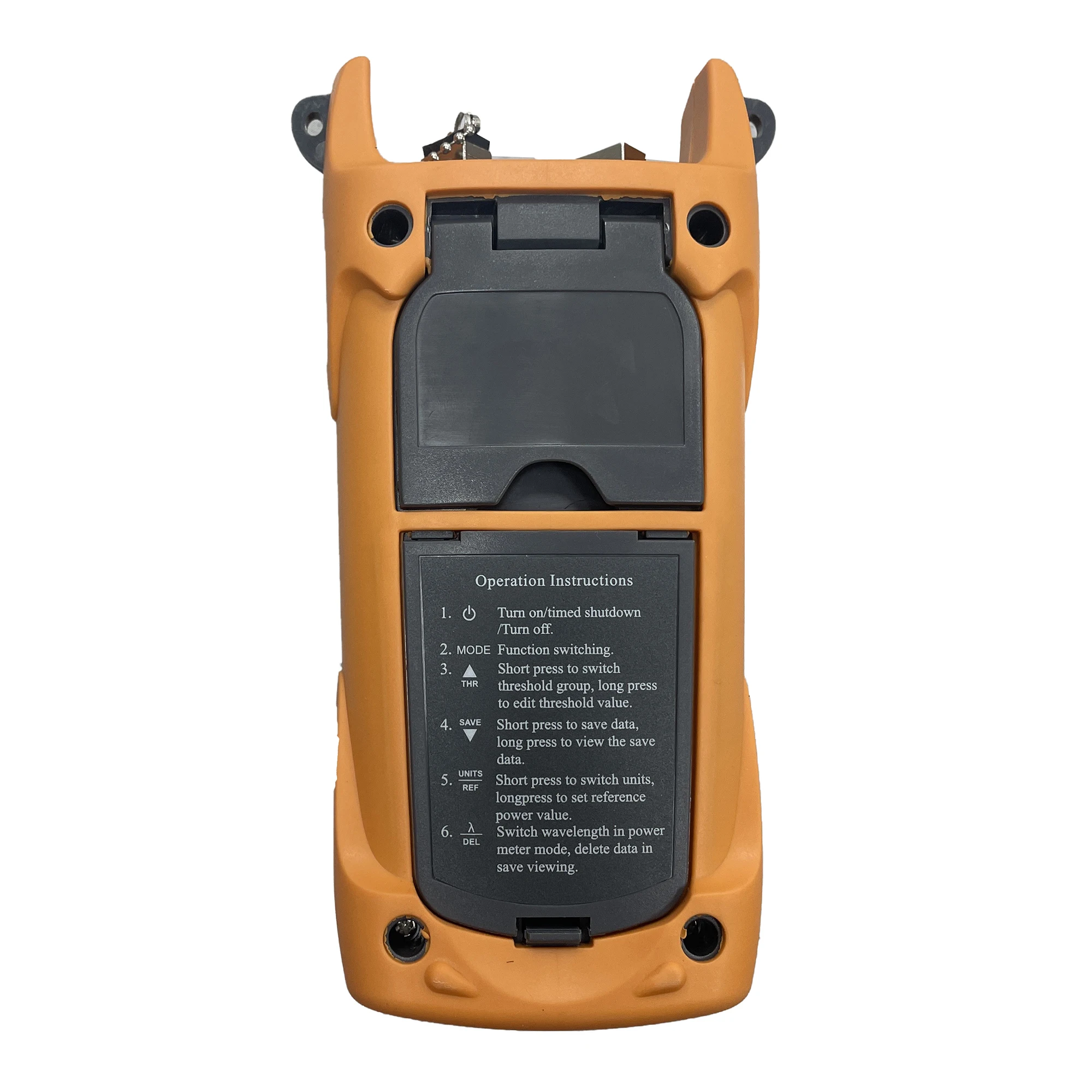

SNP3213 Series 1310/1490/1550nm FTTH PON Optical Power Meter with FC/SC/ST Replaceable Adapter

Description

SNP3213 Series PON Optical Power Meter target at the FTTx application and maintenance. This power meter is able to simultaneously test and estimate the signals of the voice, data and video. It is an essential and ideal tool for the construction and maintenance of the PON projects.



Features

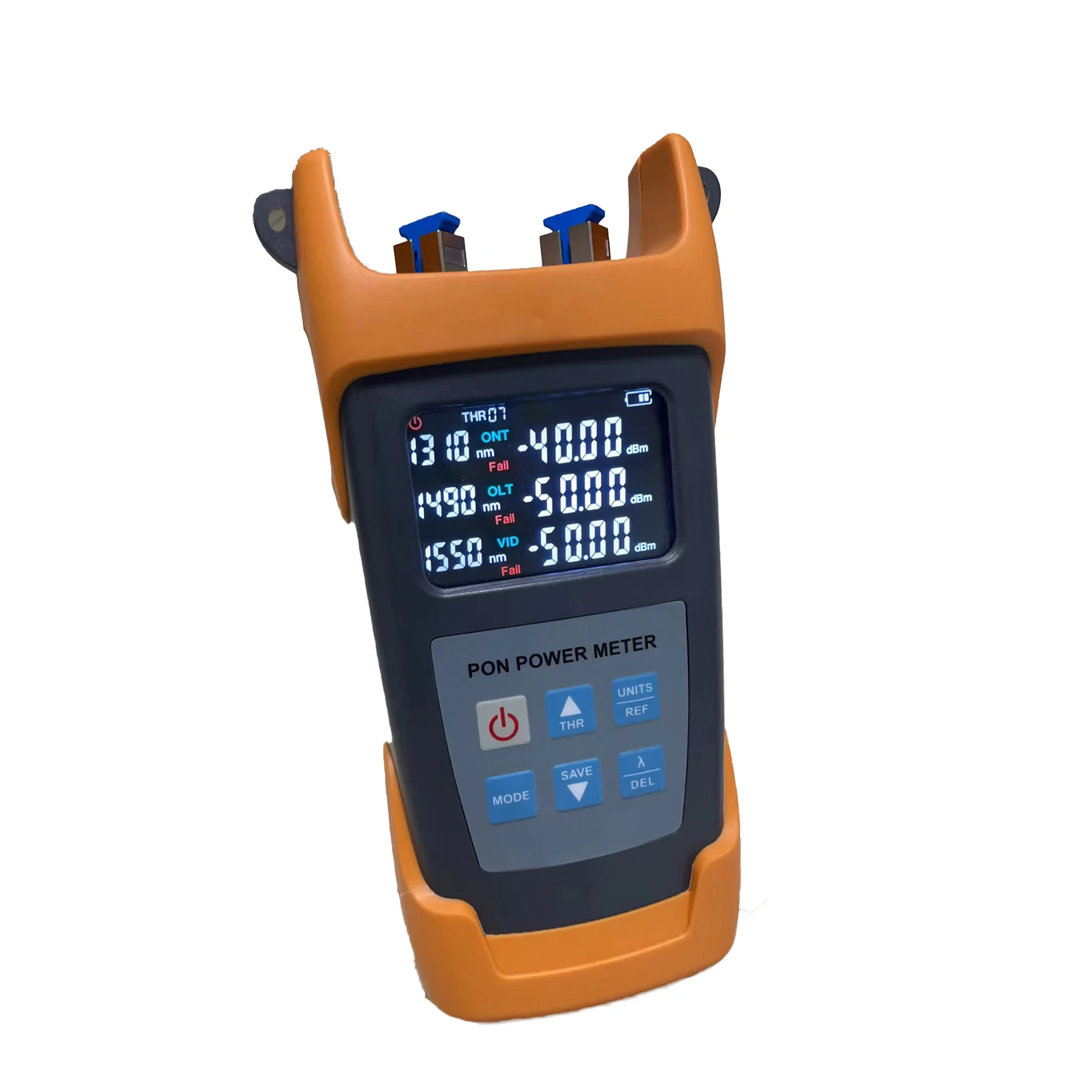

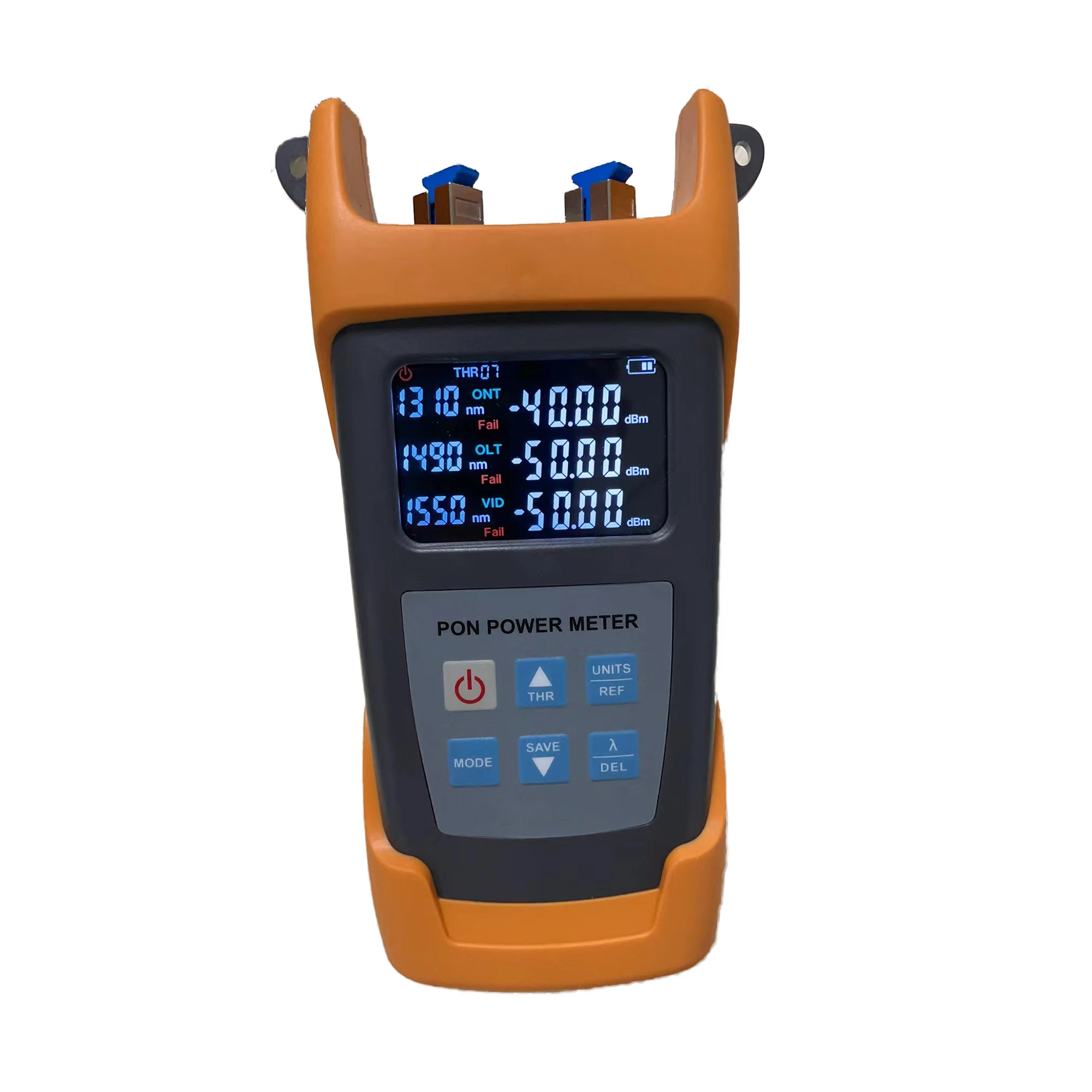

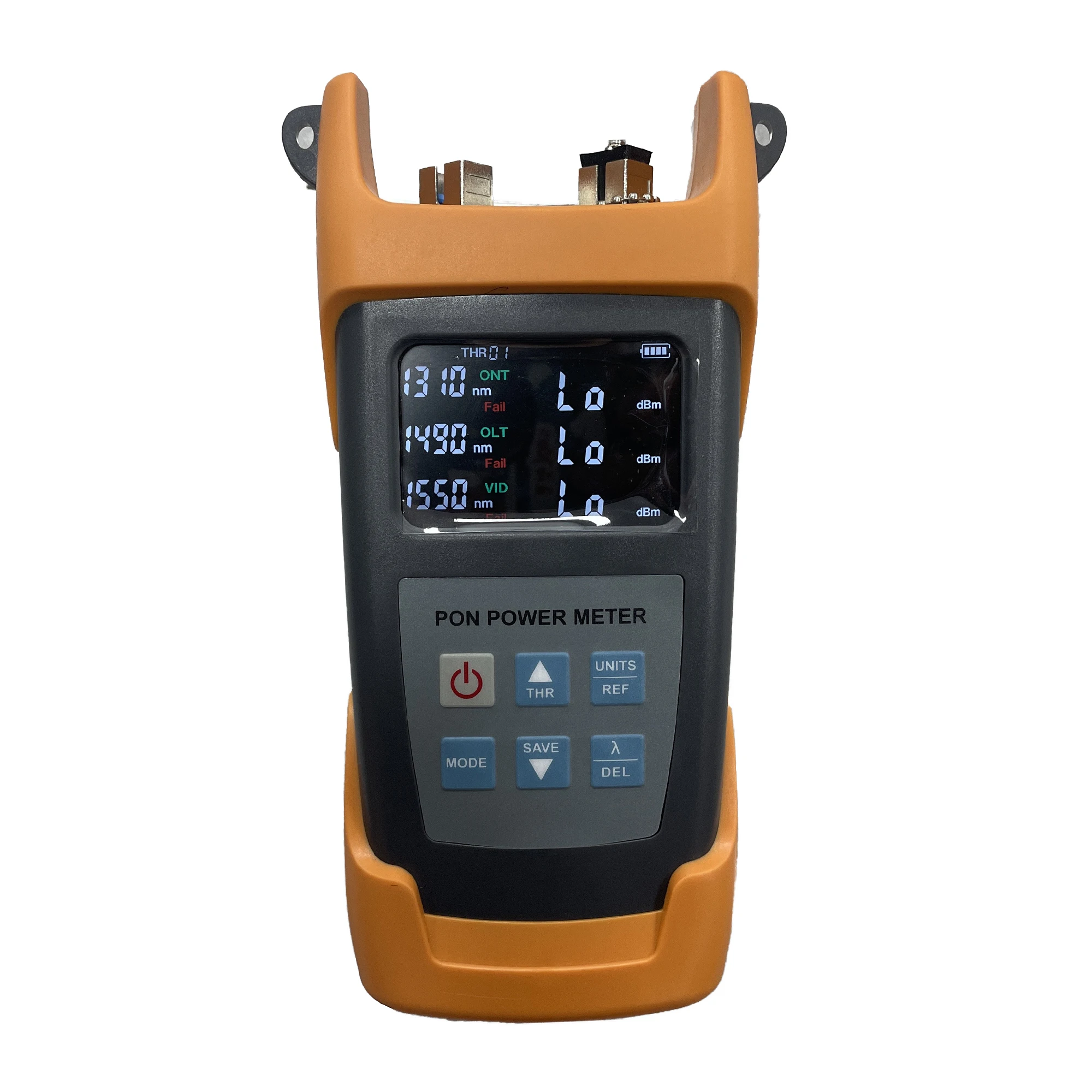

1. It can experiment at Voice, data and video signal synchronous measurement and display on BPON/EPON/GPON.

2. Providing simultaneous measurement for all three wavelengths on the fiber (1490nm, 1550nm, 1310nm).

3. Used in Burst mode measurement of 1310nm upstream.

4. Use the software connect with PC, setting the threshold, data transfer, and calibration the wavelength.

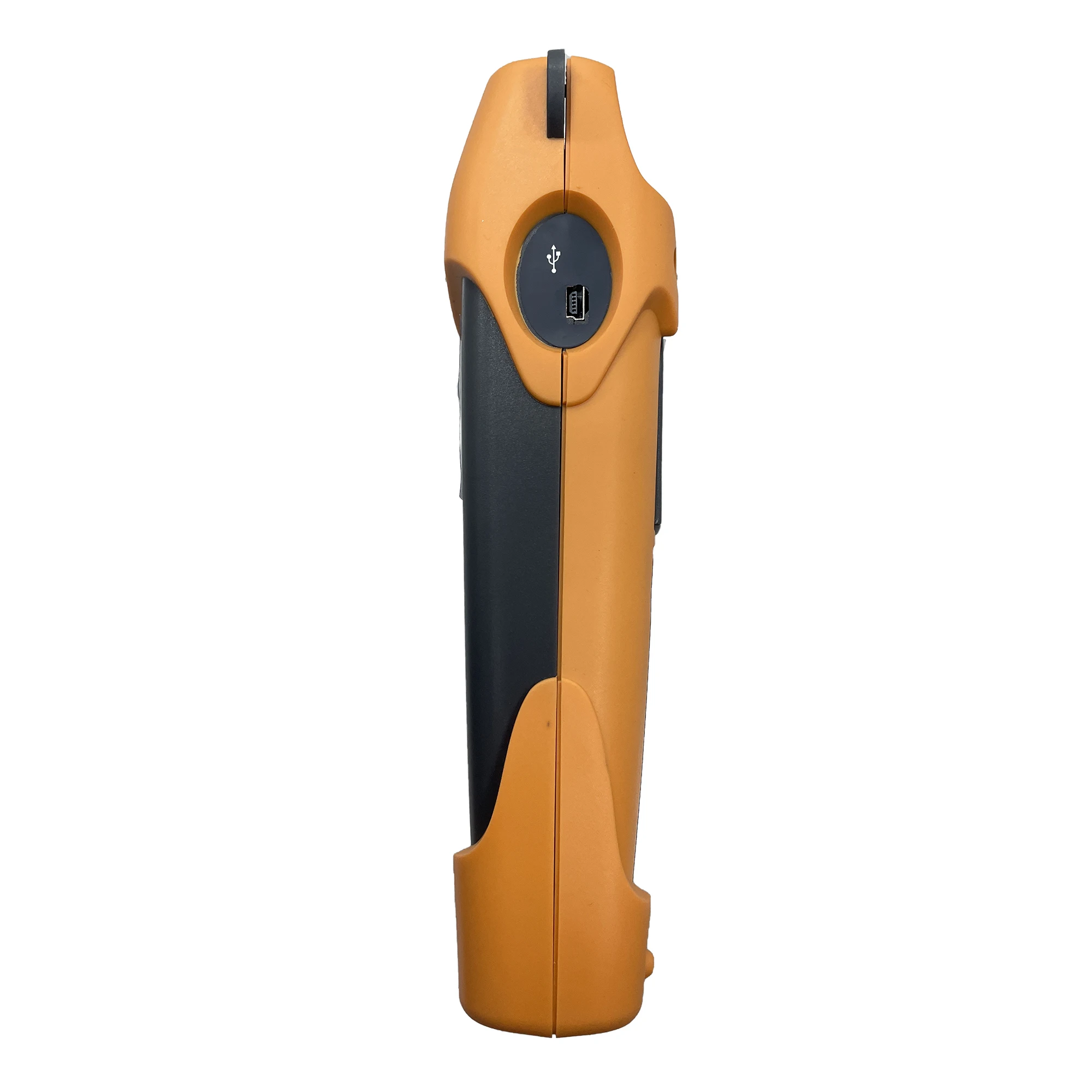

5. USB communication port enables data transfer to a PC. 1000measurement item can be saved in SNP3213 PON power meter or computer for data review.

6. With optical power meter modual, include850, 1300, 1310, 1490, 1550, 1625 six (SNP3213AP, SNP3213A without 850nm wavelength) wavelength.

With visual fault locator modual. (SNP3213 and SNP3213AV)

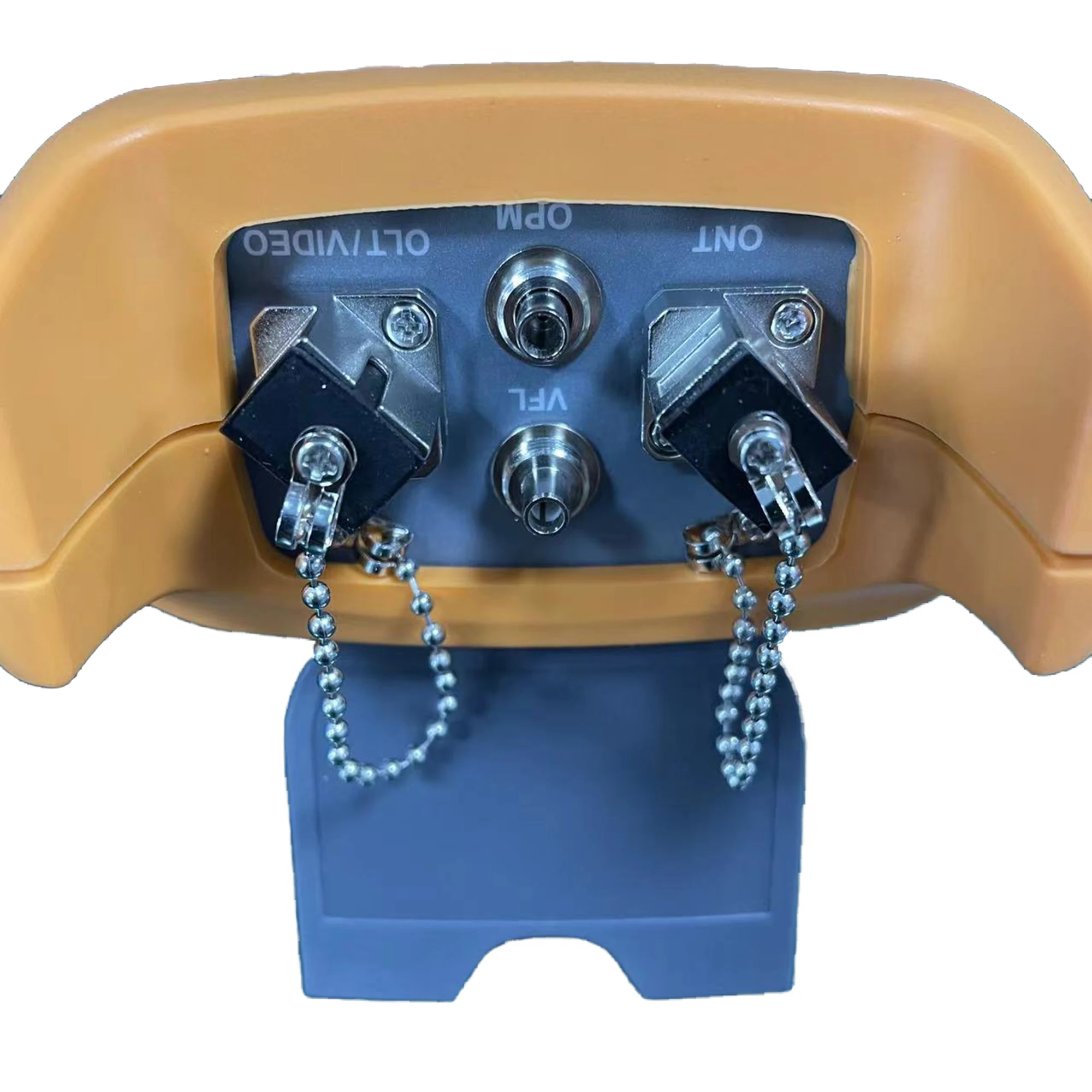

7. Optical power meter and VFL with one port.(only SNP3213A)

8. Optional Chinese/English display.

9. Offers up to 10 different threshold sets in total, three status LEDs represent different optical signal conditions of Pass, Warn and Fail respectively.

10. 10 minutes Auto-off function can be activated or deactivated

11. Good key design, high sensitivity, greatly reducing the volume and weight of the tester.

12. Different models corresponding to different function, according to own use to choose.



Specification

1. PON module

PON module:	SNP3213B	SNP3213A	SNP3213AV	SNP3213AP
1310 upstream measurement
Pass Zone(nm)	1260nm~1360nm
MeasurementRange(dBm)	-40dBm~+10dBm
Output power(max)	15dBm
Isolation@1490/1550(dB)	>40dB
Burst mode measurement error	<±0.5dB
1490 downstream measurement
Pass Zone(nm)	1470nm~1505nm
MeasurementRange(dBm)	-40dBm~+10dBm
Output power(max)	15dBm
Isolation@1310/1550(dB)	>40dB
1550 downstream measurement
Pass Zone(nm)	1535nm~1570nm
MeasurementRange(dBm)	-40dBm~+10dBm
Output power(max)	25dBm
Isolation@(1310/1490nm)	>40dB
Measurement Accuracy
Connatural uncertainty(dB)	±0.5dB
Linearity(dB)	±0.1dB
Passing through insertion Loss(dB)	<1.5dB
General Information
Detector Type	InGaAs

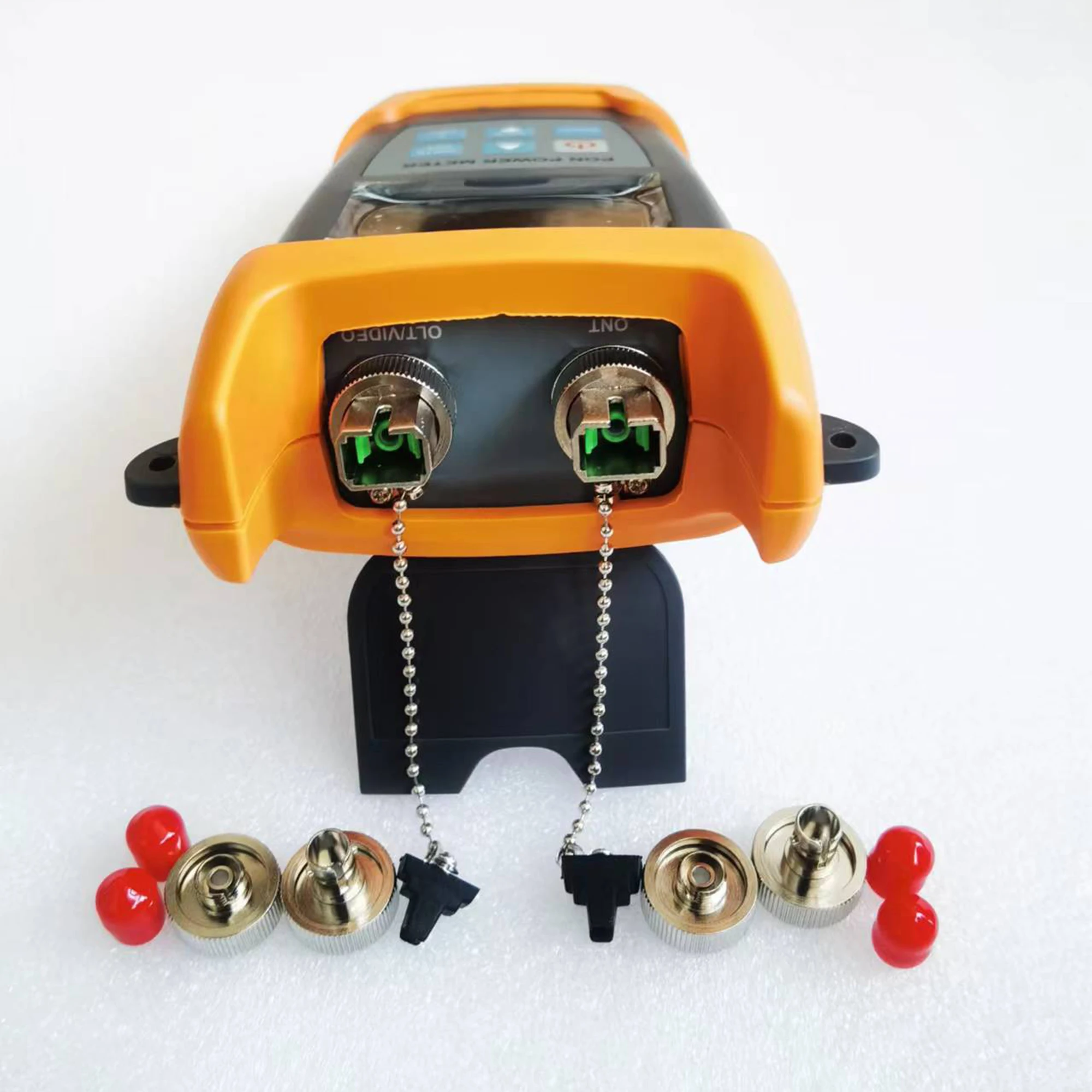

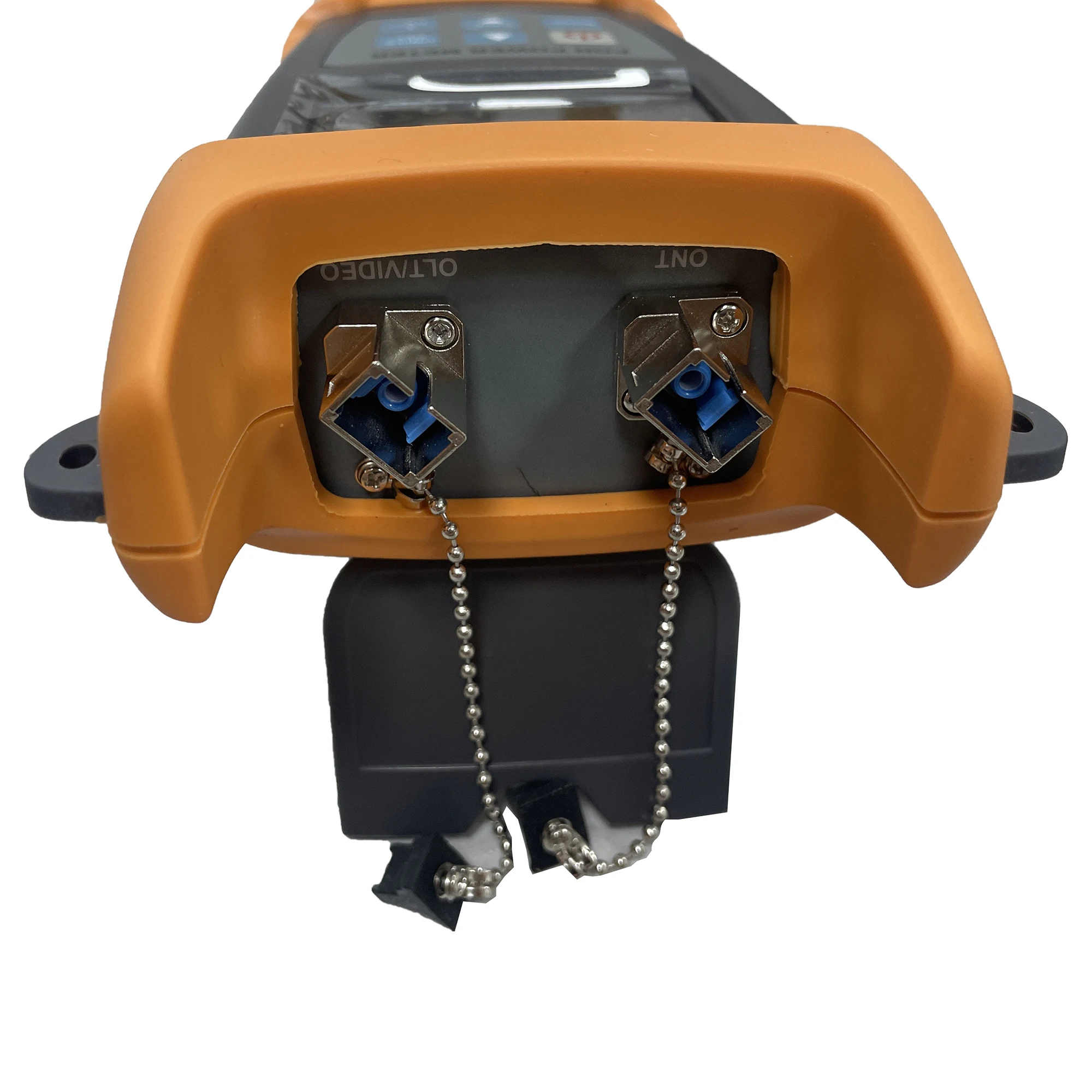

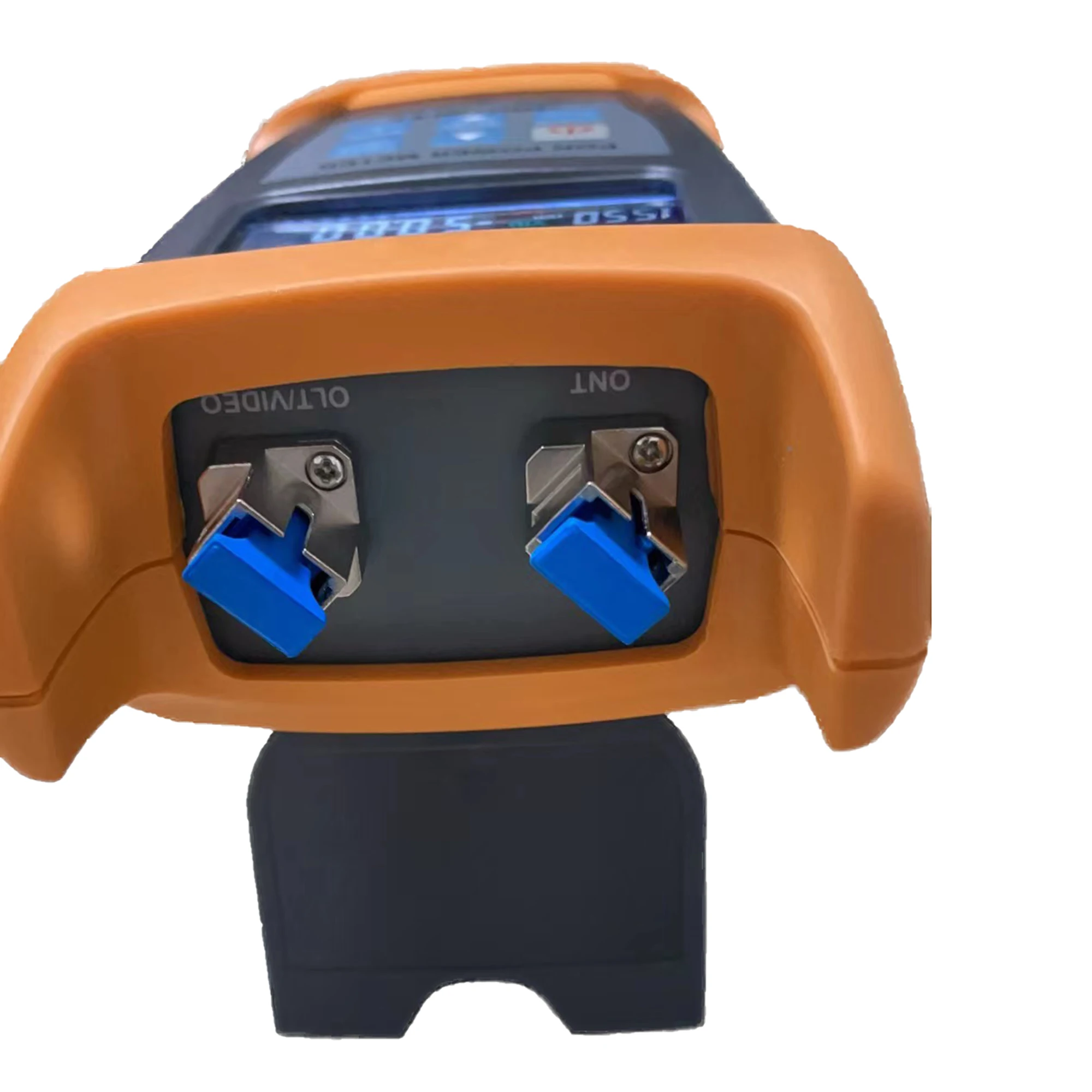

Optical Connector	FC/SC/ST Interchangeable/2.5 universal adapter
Fiber Type	SM 9/125um
Measurement Unit	dB/dBm/xW
Resolution (dB)	0.01dB
Operation Voltage(V)	DC 3.3V~5.5V
Power Supply	3pc1.5V battery
Continuously Operation time (h)	PON: 90h	PON: 90h OPM: 100h VFL: 50h	PON: 90h VFL: 50h	PON: 90h OPM: 100h
Operation Temperature(℃)	-10℃~60℃
Storage temperature(℃)	-25℃~70℃
Weight(kg)	423g	425g	424g	424g

Note: The operation time of the battery are all for the instrument that do not turn on backlight, if the backlight turn on the operation time will be shorted.



2. Normal Optical Power Meter Module

Normal Optical Power Meter	SNP3213	SNP3213A	SNP3213AP
Measurement Accuracy
Connatural uncertainty(dB)	None	±0.5dB
Linearity(dB)		±0.1dB
Measurement Range(dBm)		-70dBm~+6dBm
General Information
Measurement Unit	None	dB/dBm
Resolution (dB)		0.01dB
Calibration Wavelength(nm)		1300/1310/ 1490/1550/1625		850/1300/1310/ 1490/1550/1625
Detector Type		InGaAs
Optical Connector		FC/SC/ST Interchangeable/2.5 universal adapter

Note: SNP3213 do not have the OPM module



3. VFL Module

VFL	SNP3213	SNP3213A	SNP3213AV
Output power	None	>0.5mW
Wavelength		650nm
Optical Connector		FC/SC/STInterchangeable/2.5 universal adapter
Fiber Type		SM/MM

Note: SNP3213 without VFL module.
