full automatic roll paper creasing and die cutting machine for cutting paper cups , cartons speed 100 120punching /per min

Product Overview

Description

full automatic roll paper creasing and die cutting machine

1. Products description:

      Roll paper flat die cutting machine can be a one-time from roll paper  \\into paper sheets through creasing and cutting ,and automatic collection sheets, high production efficiency, easy operation. The machines are ideal equipment for pressed card, box series products.

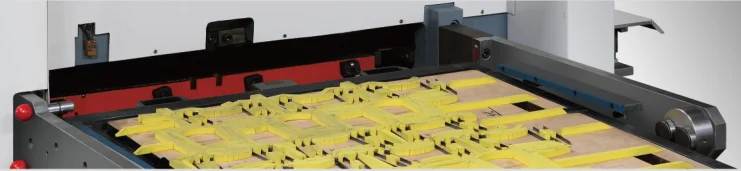

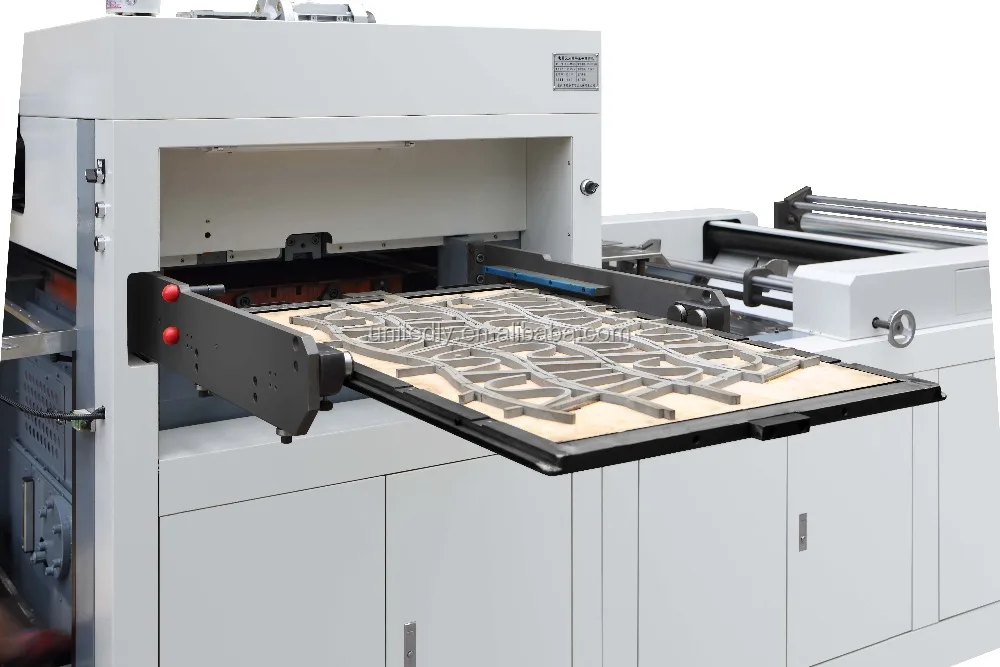

2. Cutting board

1)Die cutting knife plate and plate frame can be take out so that it can save plate-changing time.

2)Die cutting department adopts pneumatic lock version of the device.

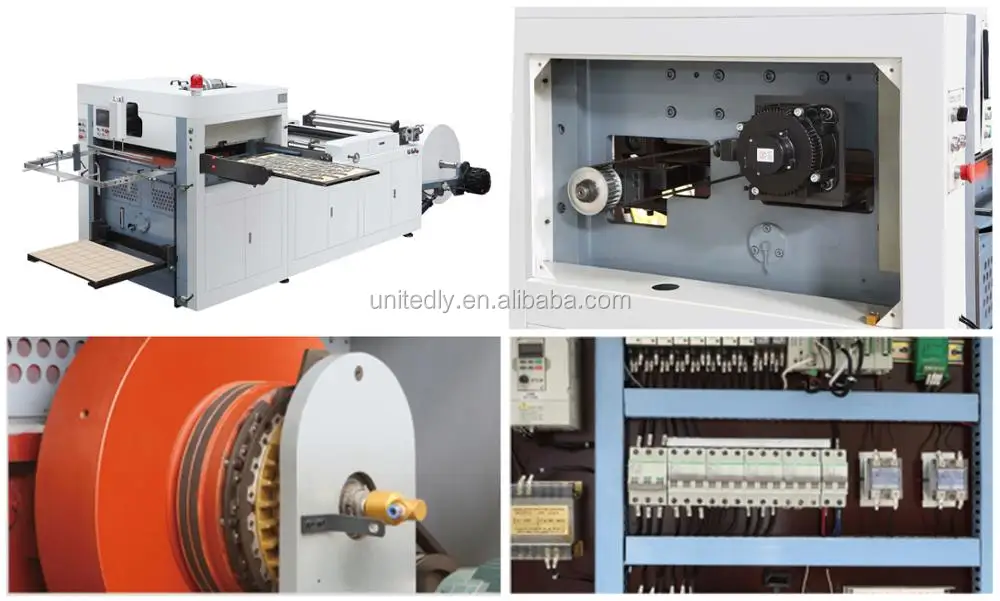

3 Main features :

  A.Pneumatic clutch

     High quality clutch can reflect rapidly and ensure high security.

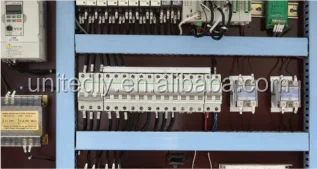

    B.Electrical configuration

      All electrical original adopt imported brands, in line with the European Union CE standard.

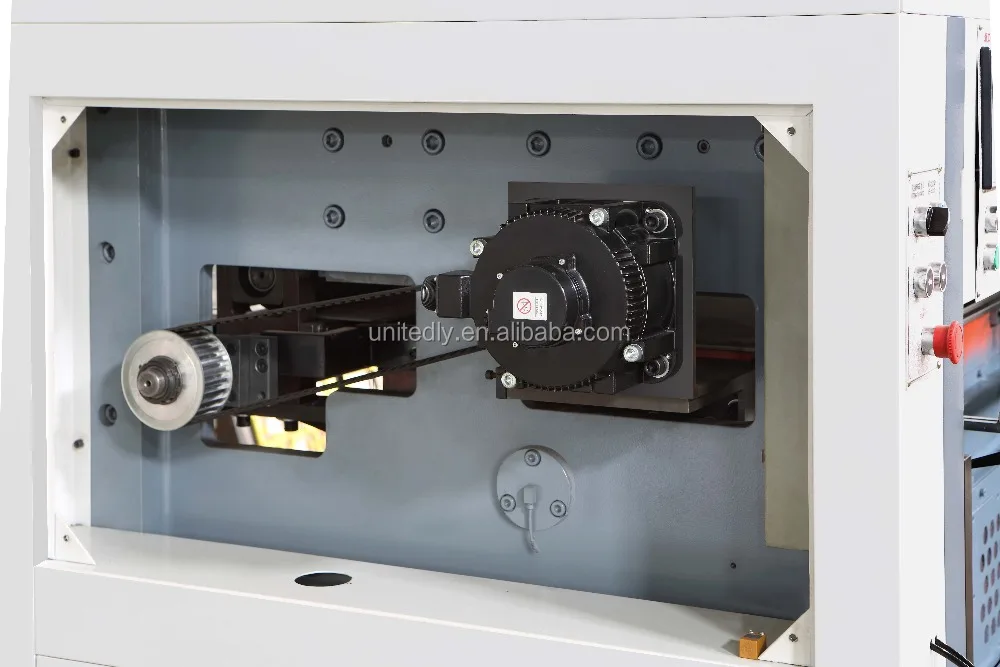

   C.Straight league transmission

1). High precision reducer, to ensure feed accuracy.

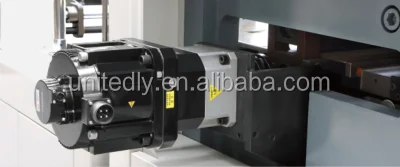

2). Servo drive, easy to operate.



4.Main technical datas



Cutting Precision	±0.1mm(white paper)
Rated Cutting Speed	100-120times/min
Max Cutting Speed	120times/min
Max Cutting Pressure	120T
Max Cutting Paper Size(W×L)	900mm*500mm(W×L)
Min Cutting Paper Size(W×L)	490mm*350mm (W×L)
Suitable Paper Weight	135g-500g
Total Rate Of Machine	16Kw
Main Motor Power	7.5Kw
Overall Dimensions	6.5m*2.8m*2m (L×W×H)
Total Weight	7.0T

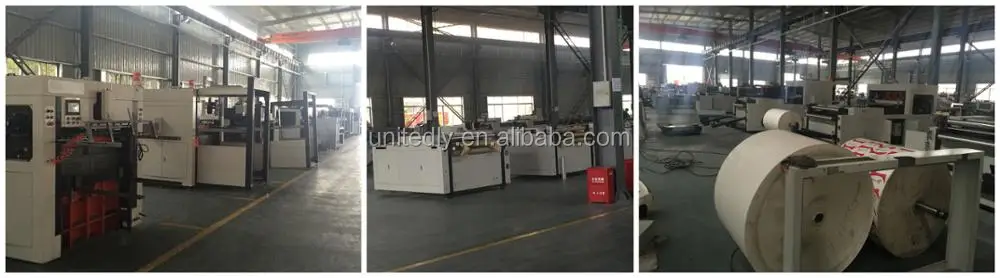

5.Workshops







6.Packing Details: Wooden Case Packing Or Iron Tray Packing

         Delivery Time:20-30 days after prepayment





Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
