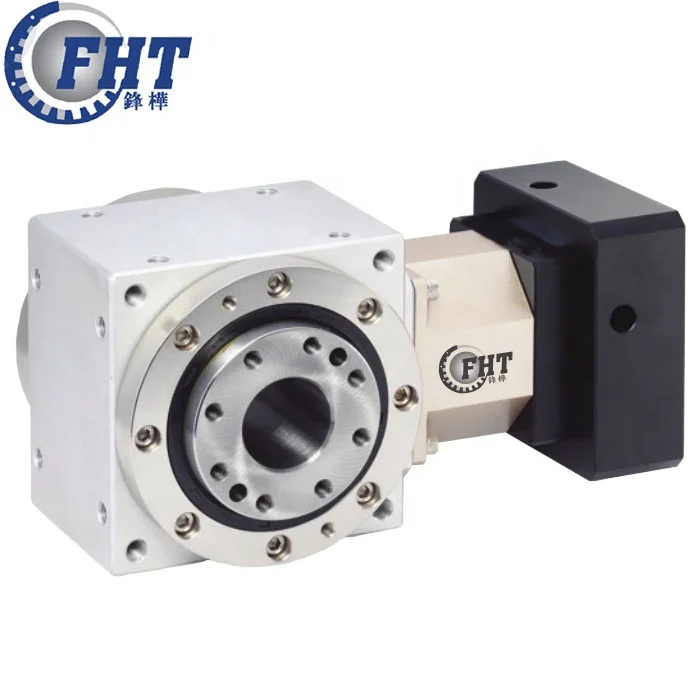

TQG Right angle transmission speed gearbox 90 degree reducer AAW135 A(B)S RFK 1 stage Reductor
- Category: >>>
- Supplier: Taiqi Electromechanical Equipment (Shanghai) Co. Ltd.
Share on (60699768495):
Product Overview
Description
Product Overview
AAW-A(B)S-RFK flange with key groove type gearbox
AAW-RFK right angle gearbox has one input flange and output flange with keyway.We always call it spiral bevel gearbox or right angle planetary gearbox.Since it consists of high efficiency planetary frame and precision spiral bevel gear.The flange output design allows for direct mounting of workpiece for added convenience in workpiece loading.
Nominal torques of AAW-RFK right angle gearbox is 30~4000Nm,applicable for various drive systems with high rotation torque.
Nominal torques of AAW-RFK right angle gearbox is 30~4000Nm,applicable for various drive systems with high rotation torque.
AAW-RFK right angle spiral bevel gearbox has a large range of ratios:
1-stage: 1:2~1:30
2-stage: 1:24~1:300
AAW-RFK is a low backlash right angle gearbox:
1-stage : 1arcmin~5arcmin
2-stage : 2arcmin~8arcmin
High efficiency makes the apiral bevel gearbox rotate with low noise and generate less heat:
1-stage: ≥ 90%
2-stage: ≥ 85%
The hollow shaft right angle gearbox has nine sizes available: AAW080AS / AAW110AS / AAW135AS / AAW135BS / AAW165AS / AAW165BS / AAW200AS / AAW200BS/
Application
The flange output right angle gearbox is suitable for semiconductor equipment, LCD rotating, PCB equipment, printing presses, AGV,Printer, Belt Conveyors, Gantry Robot, Auto packing sealing machine, Packing machine ( vertical pillow), Packing machine ( horizontal pillow), Dispenser Robot, Loader robot and some other heavy load case
1-stage: 1:2~1:30
2-stage: 1:24~1:300
AAW-RFK is a low backlash right angle gearbox:
1-stage : 1arcmin~5arcmin
2-stage : 2arcmin~8arcmin
High efficiency makes the apiral bevel gearbox rotate with low noise and generate less heat:
1-stage: ≥ 90%
2-stage: ≥ 85%
The hollow shaft right angle gearbox has nine sizes available: AAW080AS / AAW110AS / AAW135AS / AAW135BS / AAW165AS / AAW165BS / AAW200AS / AAW200BS/
Application
The flange output right angle gearbox is suitable for semiconductor equipment, LCD rotating, PCB equipment, printing presses, AGV,Printer, Belt Conveyors, Gantry Robot, Auto packing sealing machine, Packing machine ( vertical pillow), Packing machine ( horizontal pillow), Dispenser Robot, Loader robot and some other heavy load case
FEATURES AT A GLANCE
*Compact structure, small volume, space saving, beautiful appearance, strong load capacity
*Transmission ratio complete subdivision, wide selection range, speed spectrum wide, special ratio can be customized
*Low energy consumption, superior performance, reducer efficiency up to 85%-90%, small vibration, no noise, almost no maintenance
*Light operation, small wear and long service life
*Low energy consumption, superior performance, reducer efficiency up to 85%-90%, small vibration, no noise, almost no maintenance
*Light operation, small wear and long service life
Model | AAW070AS/BS-RF-K, AAW080AS/BS-RF-K, AAW110AS/BS-RF-K, AAW135AS/BS-RF-K, AAW165AS/BS-RF-K, AAW200AS/BS-RF-K, AAW320AS/BS-RF-K |
Ratio | 2,3,4,5,6,8,9,10,12,15,16,18,20,21,24,30,34,36,40,42,45,48,50,56,60,63,70,75,80,84,90,100,105,120,140,150,160,180,200,210, 240,300 |
Backlash | [1,8] |
Torque | 30Nm-4000Nm |
Weight | 2.5kg-330kg |
Package | Carton or wood gearbox |

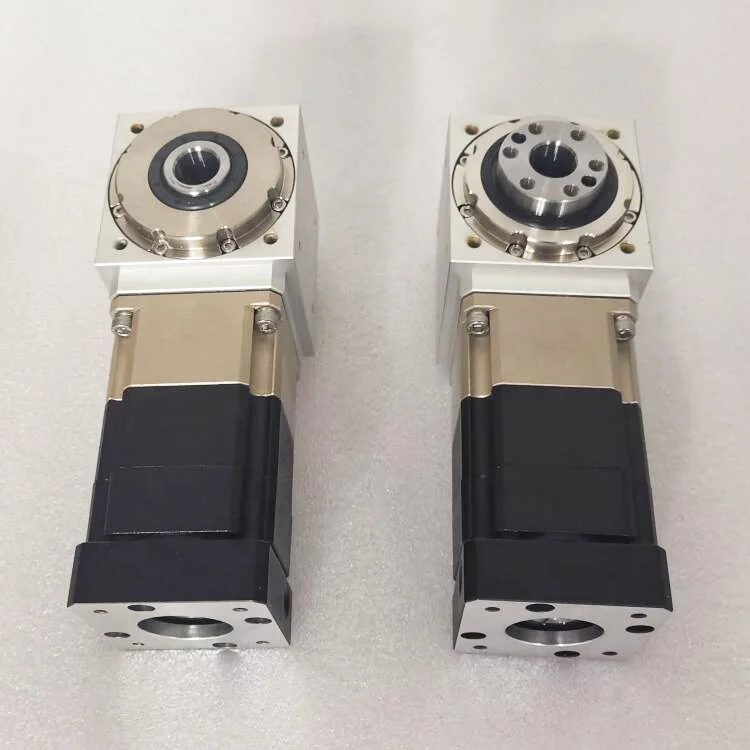

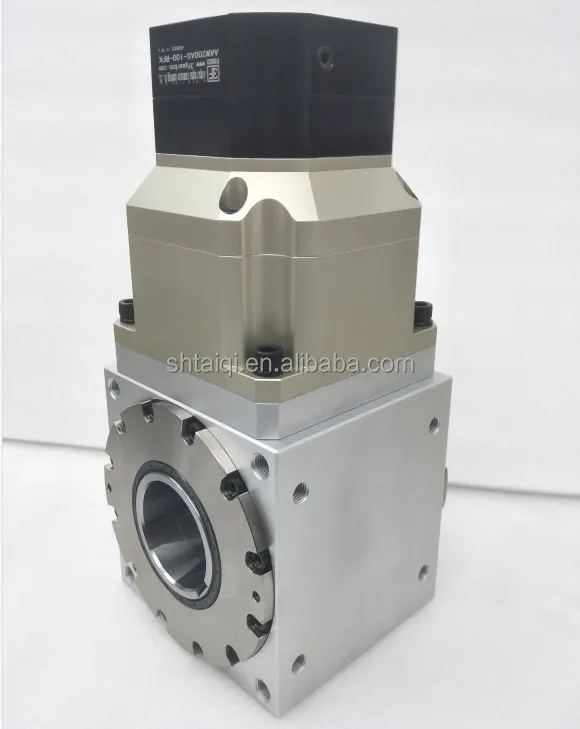

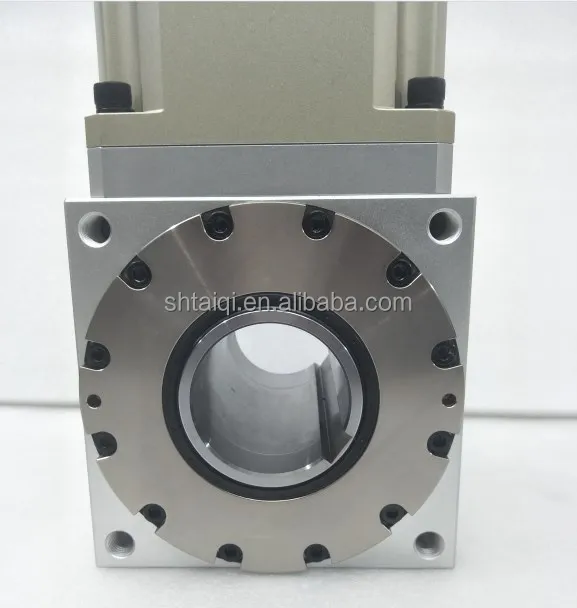

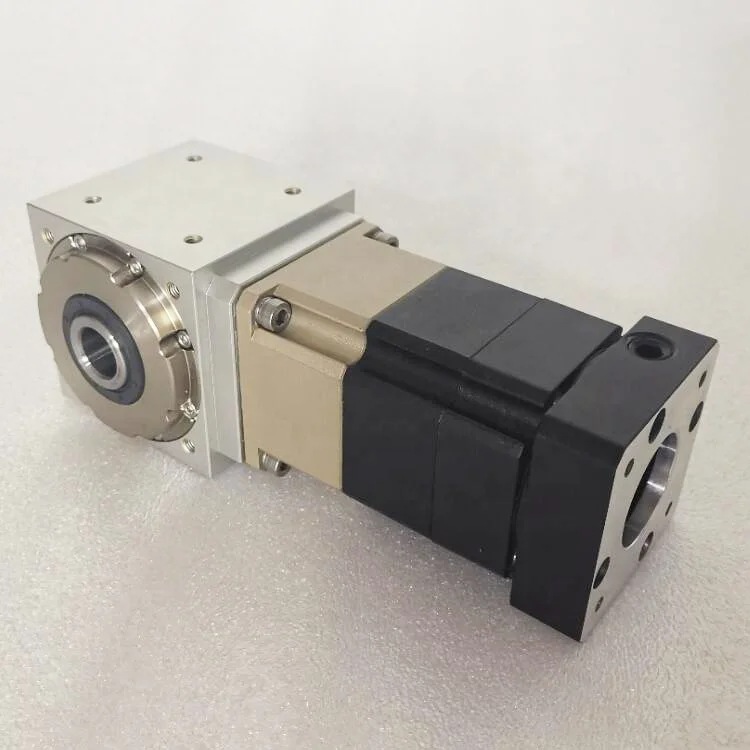

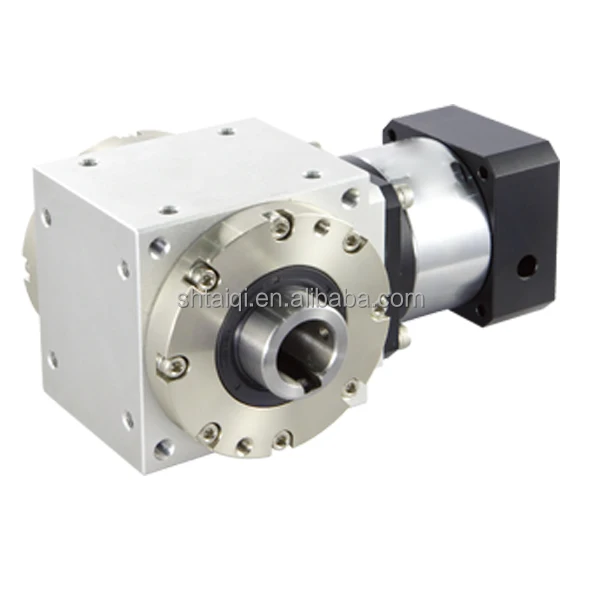

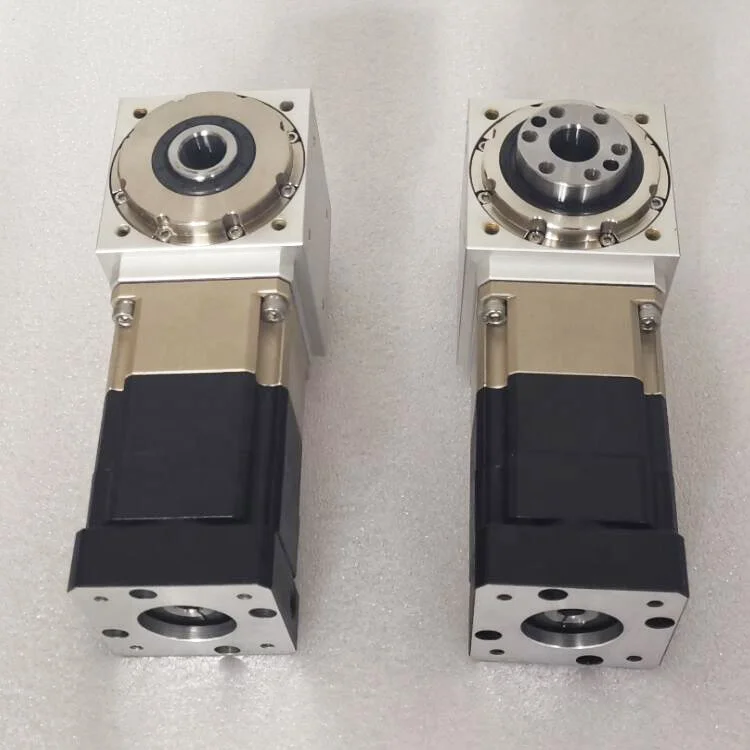

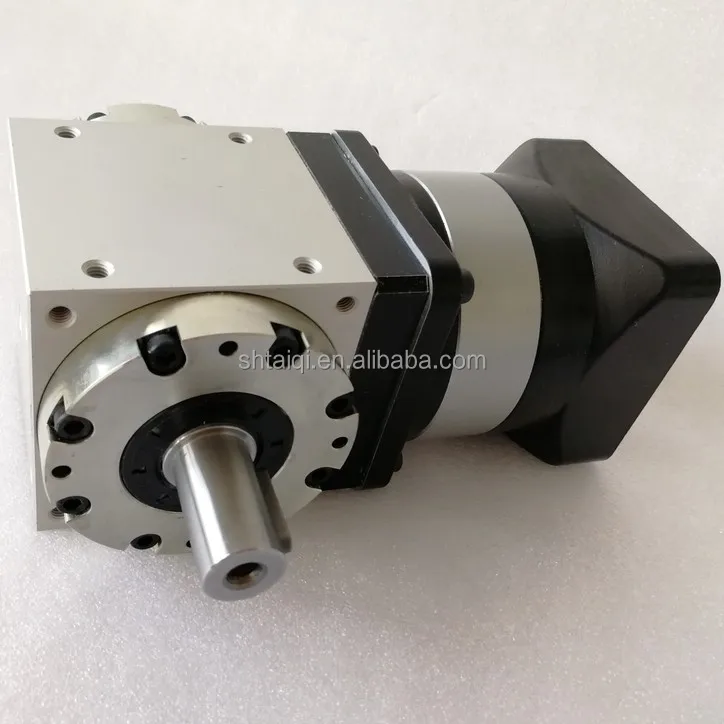

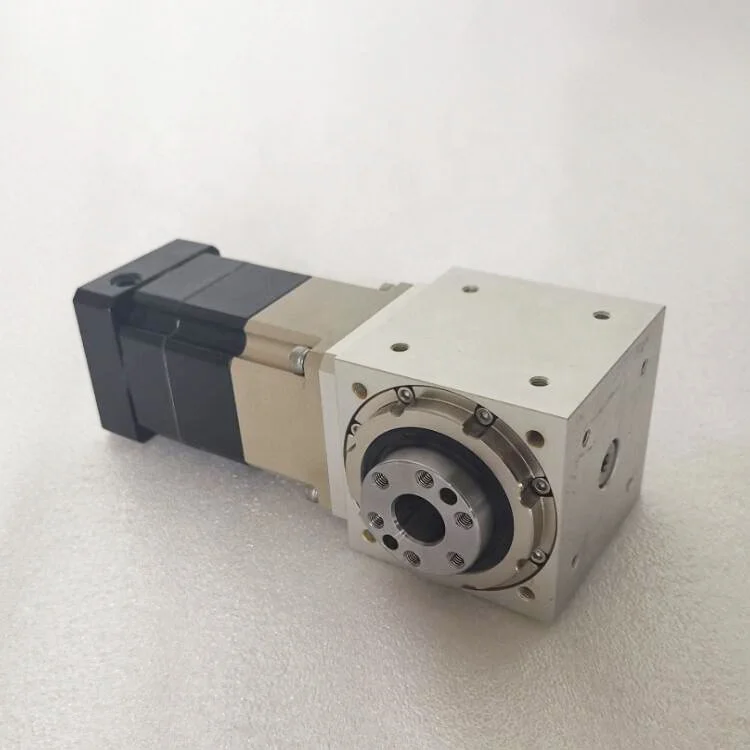

Real Figures

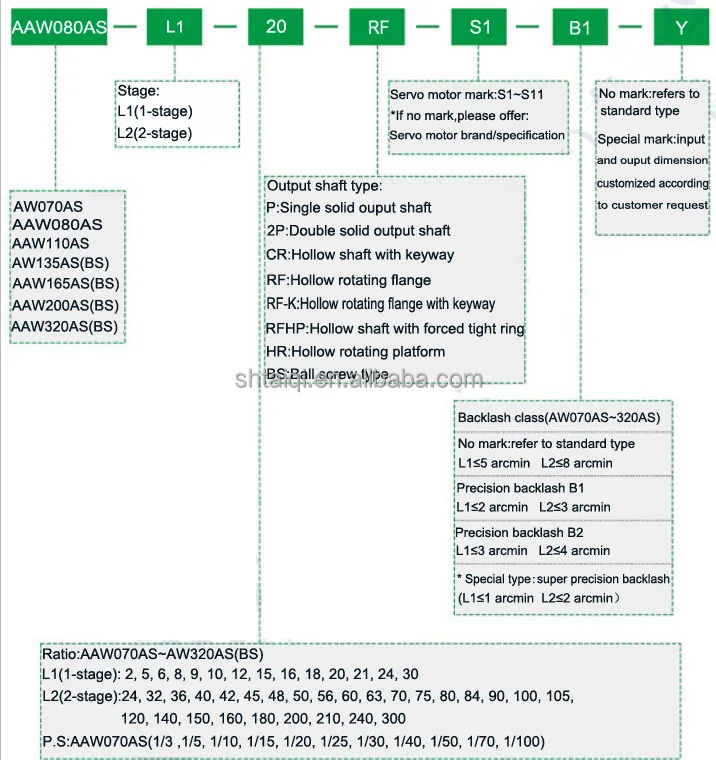

Model Selection

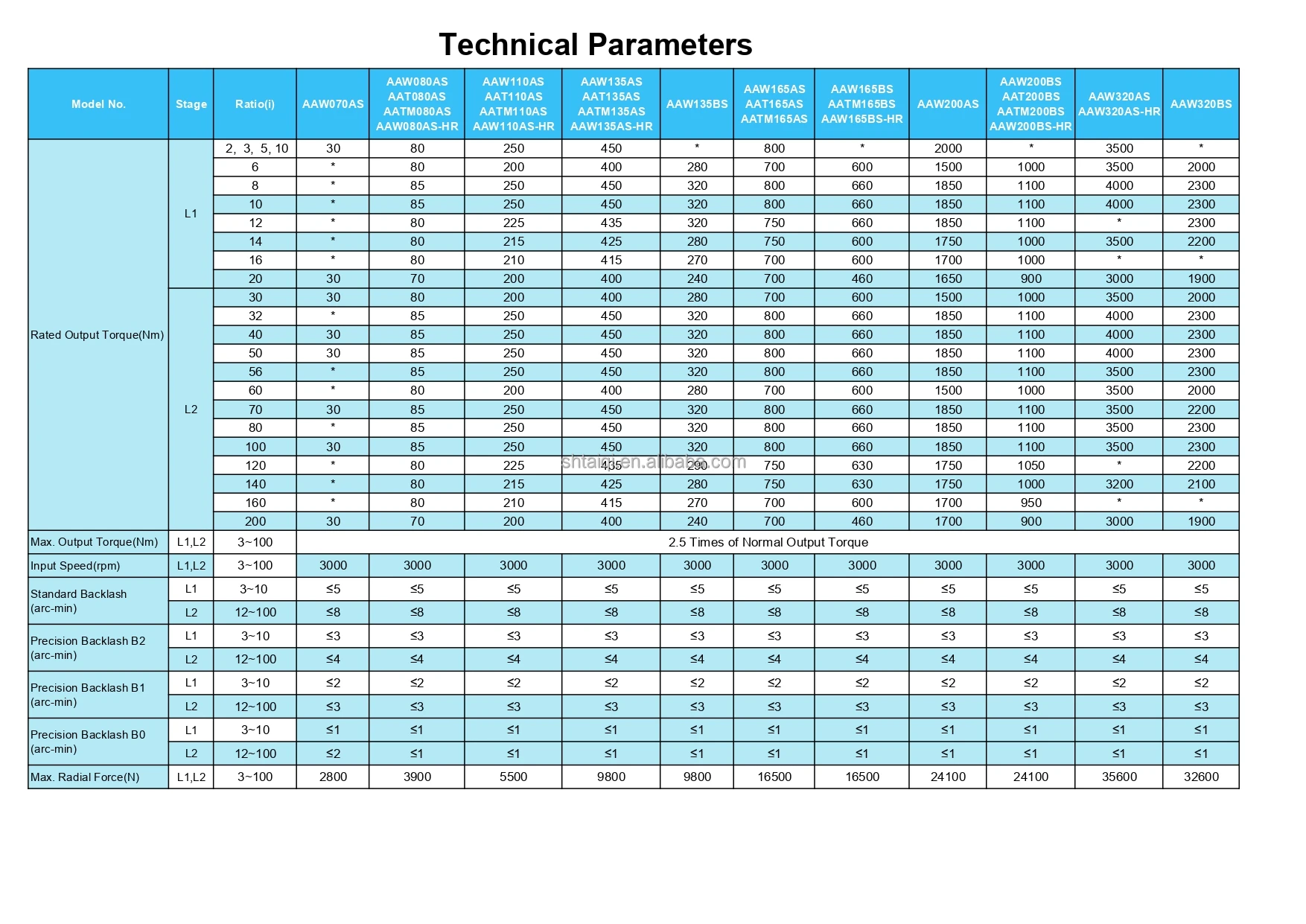

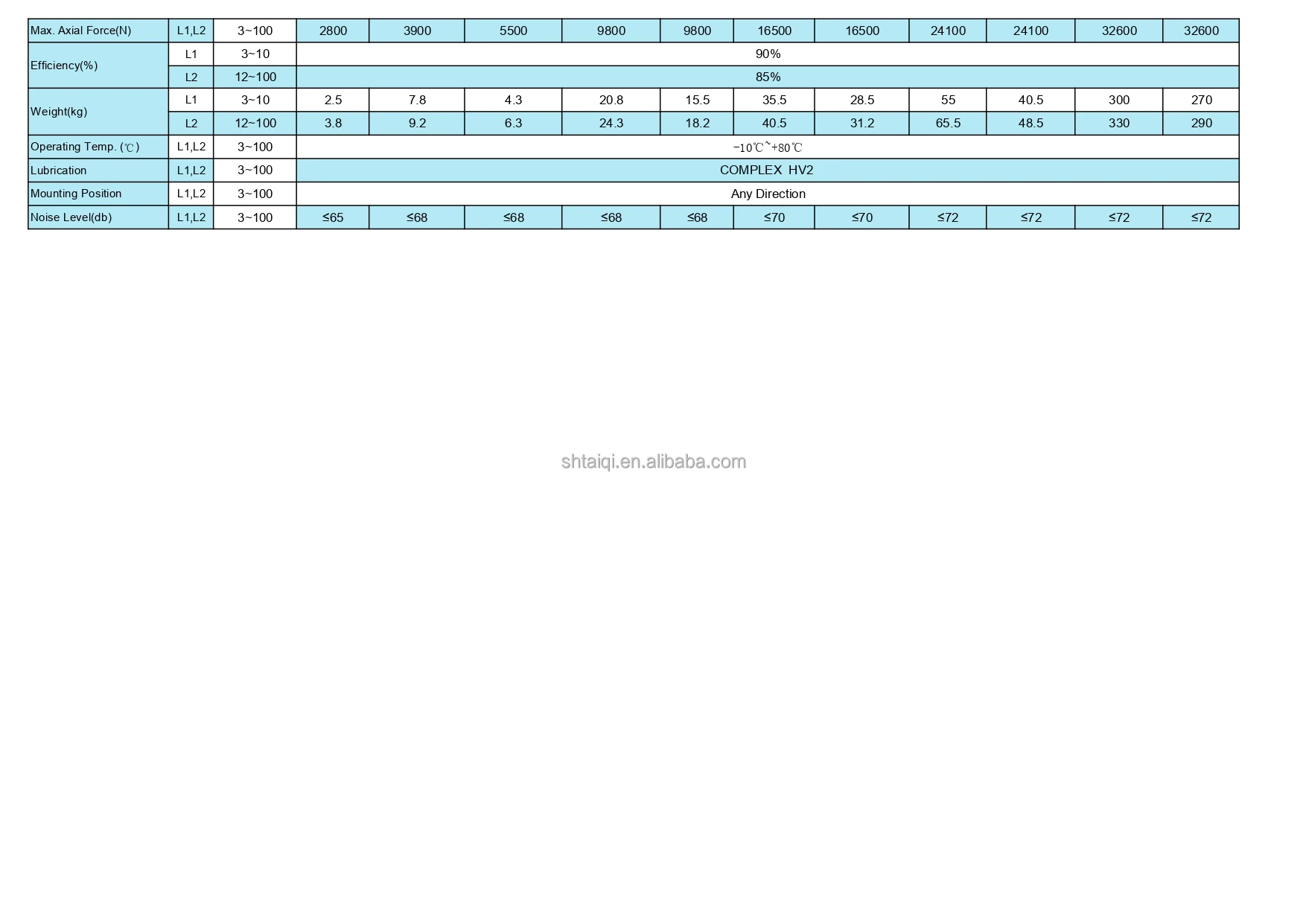

PRODUCT SPECIFICATIONS

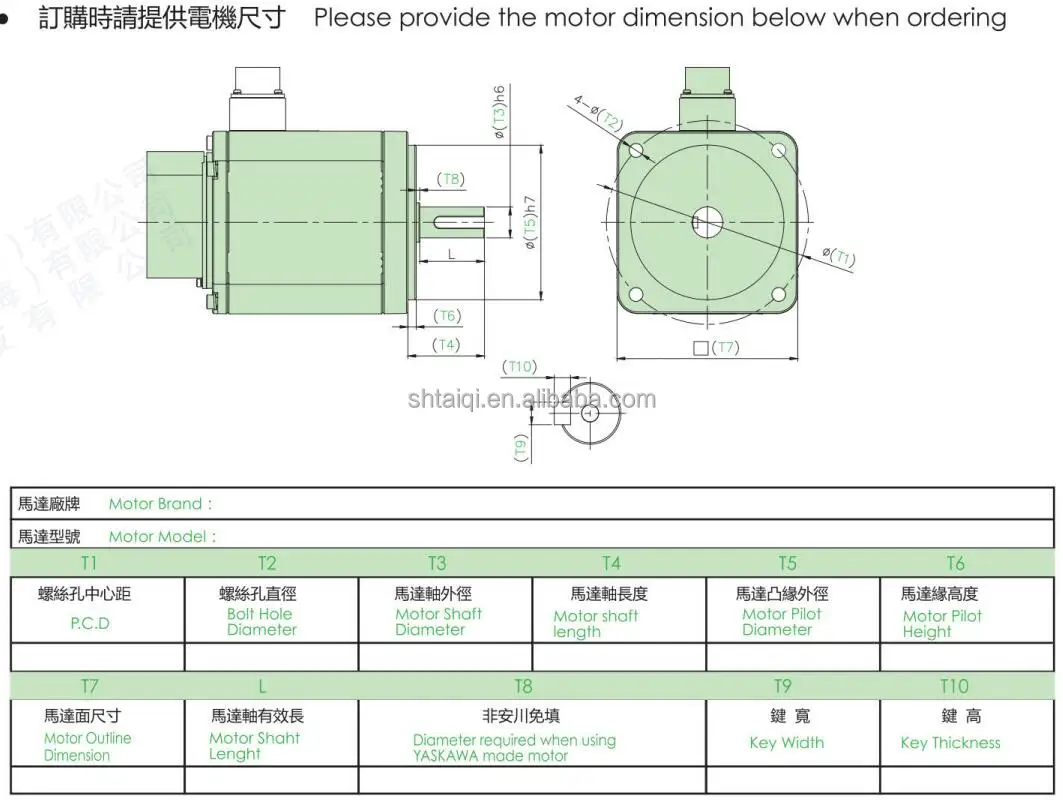

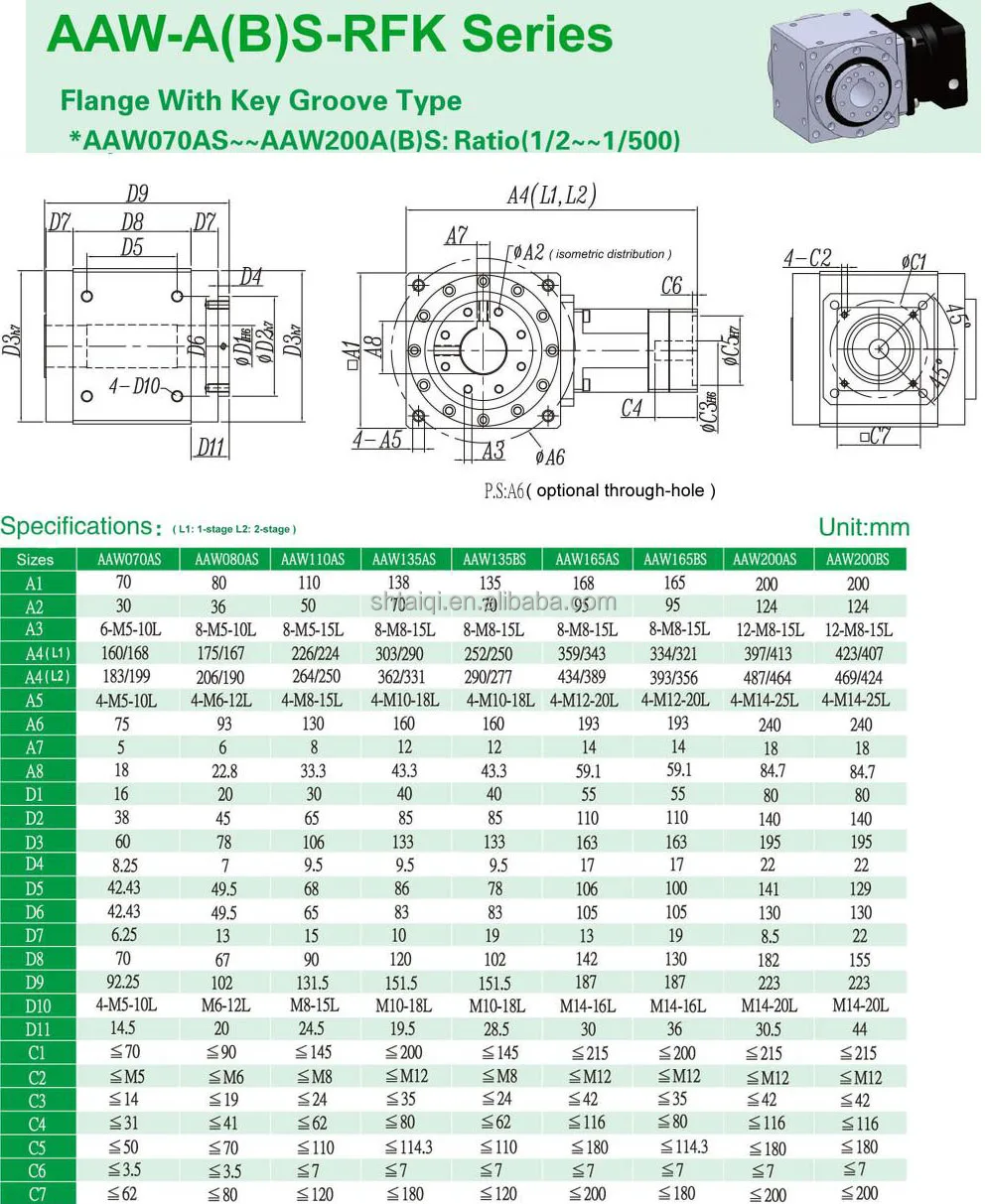

Dimensions
